QuickJack 6000TLX Extended Portable Car Lift - 6,000-lbs. Capacity (5175629)

Longer Wheelbases Finally Get a 6,000-lb. QuickJack

The QuickJack 6000TLX Extended Portable Car Lift gives longer-wheelbase vehicles the extra reach they need without jumping into a heavier truck-focused lift. With a 6,000-lb. lifting capacity, 24-inch lift height, and extended 76-inch frame, the 6000TLX is built for SUVs, light-duty trucks, and cars with lift points just beyond the reach of standard-length frames.

This is the 6,000-lb. portable car lift for users who need more lift point spread, not just more capacity. It keeps QuickJack’s low-profile storage, open-center access, and fast setup while adding the reach needed for vehicles that make standard portable lifts feel just a little too short.

Extended TLX Reach Without Losing QuickJack Portability

The 6000TLX is engineered around a longer lift point range than standard TL models. Compared to the TL frame, the TLX platform offers a 43-inch minimum lift point spread, 66-inch maximum lift point spread, and 76-inch overall frame length, giving users more flexibility with longer vehicles.

Even with the added length, the 6000TLX maintains QuickJack’s 3-inch low-profile height for easy storage and positioning. That makes it a practical solution for home garages, professional shops, and users who need extended reach without a permanent lift installation.

Redesigned Hydraulics That Lift in Sync

The 6000TLX uses a redesigned electric/hydraulic power unit with a pressure-compensated flow divider and independent shut-off solenoids to help both frames move together. The result is smoother, more predictable lifting and lowering, even when stopping mid-cycle.

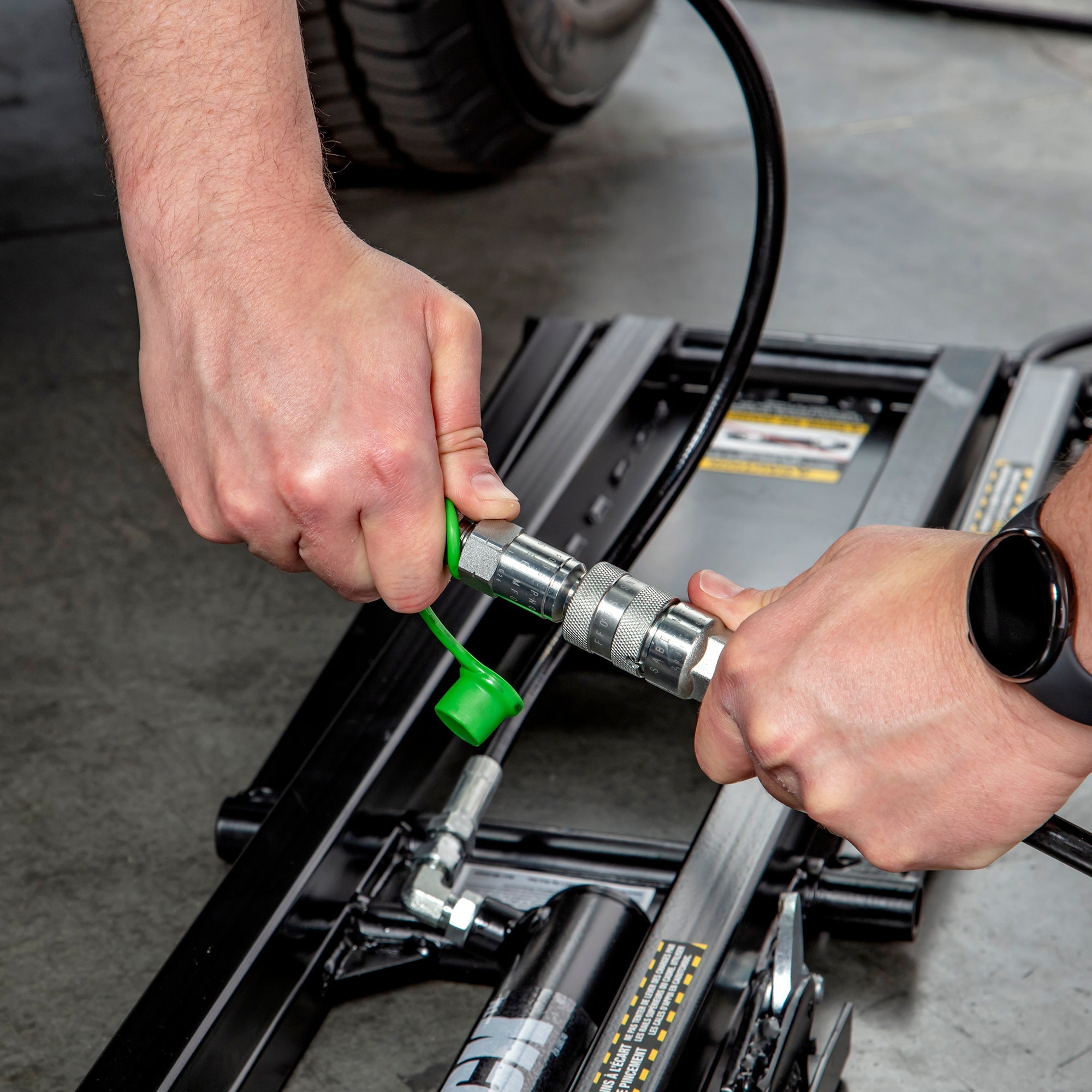

Factory preassembled hydraulics reduce setup complexity, while the one-handed pendant control keeps operation simple. Place the frames, position the blocks at the correct lift points, connect the power, and the 6000TLX is ready to work without the usual floor jack shuffle.

More Capacity, More Reach, Stronger Frame Geometry

The 6000TLX steps up from the previous 5,000-lb. extended QuickJack platform with increased 6,000-lb. lifting capacity, structural reinforcements, and an upgraded hydraulic system. Thicker cross members, improved weld geometry, and upgraded pivot joints help reduce flex and support stability under heavier loads.

For vehicles that are too long for standard TL frames but do not need the 8,000-lb. truck lift platform, the 6000TLX lands in the sweet spot. It gives shops and enthusiasts a better way to lift longer cars, light-duty trucks, and SUVs while preserving the speed, portability, and storage convenience of QuickJack.

6,000-lb. Capacity

Adds more strength for SUVs, light-duty trucks, and heavier passenger vehicles while staying in a portable QuickJack package.

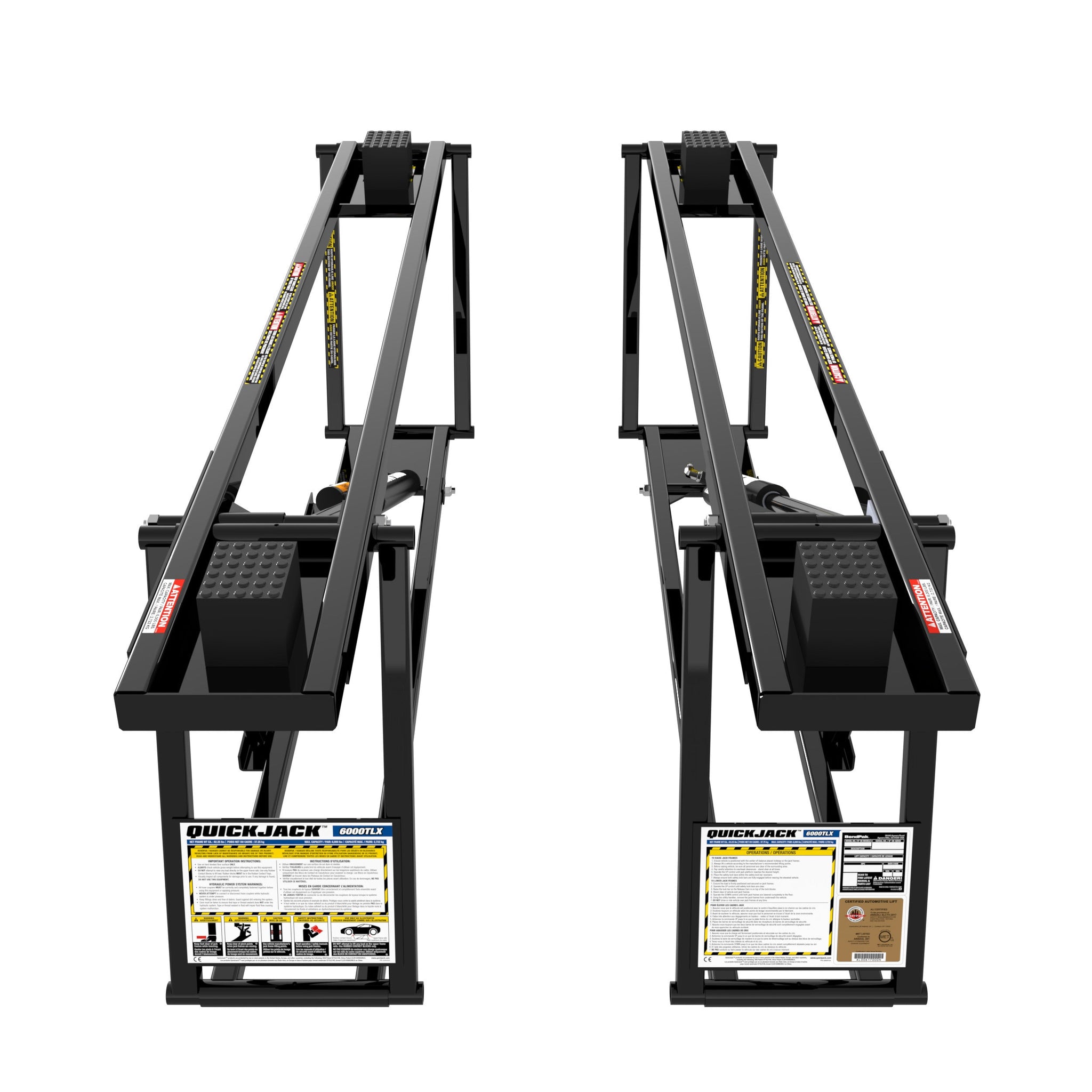

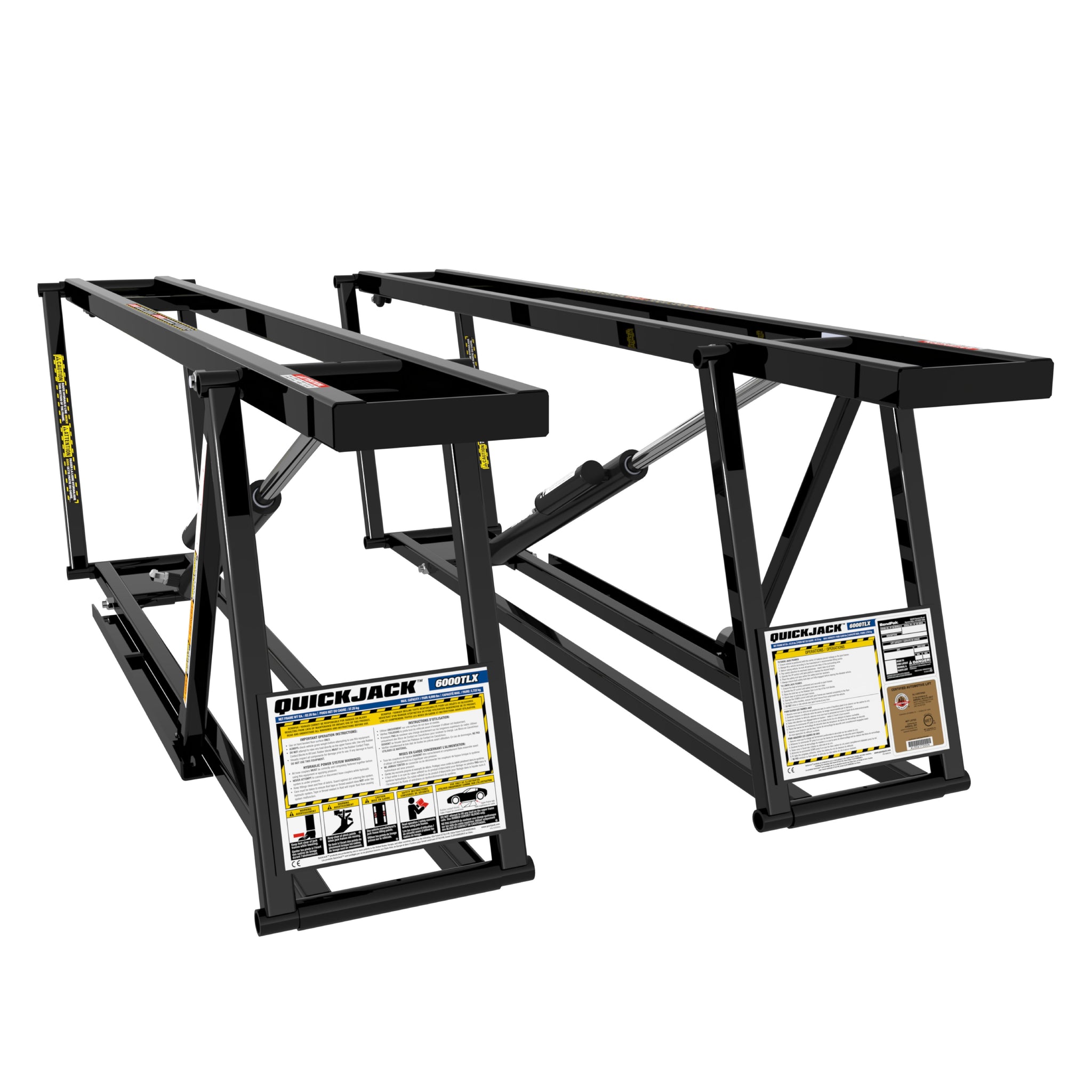

Extended 76-Inch Frame

The longer TLX frame gives users more lift point spread for vehicles that standard-length frames cannot comfortably reach.

24-Inch Lift Height

Provides useful clearance for tire service, brake work, detailing, inspections, and underbody maintenance.

Low 3-Inch Profile

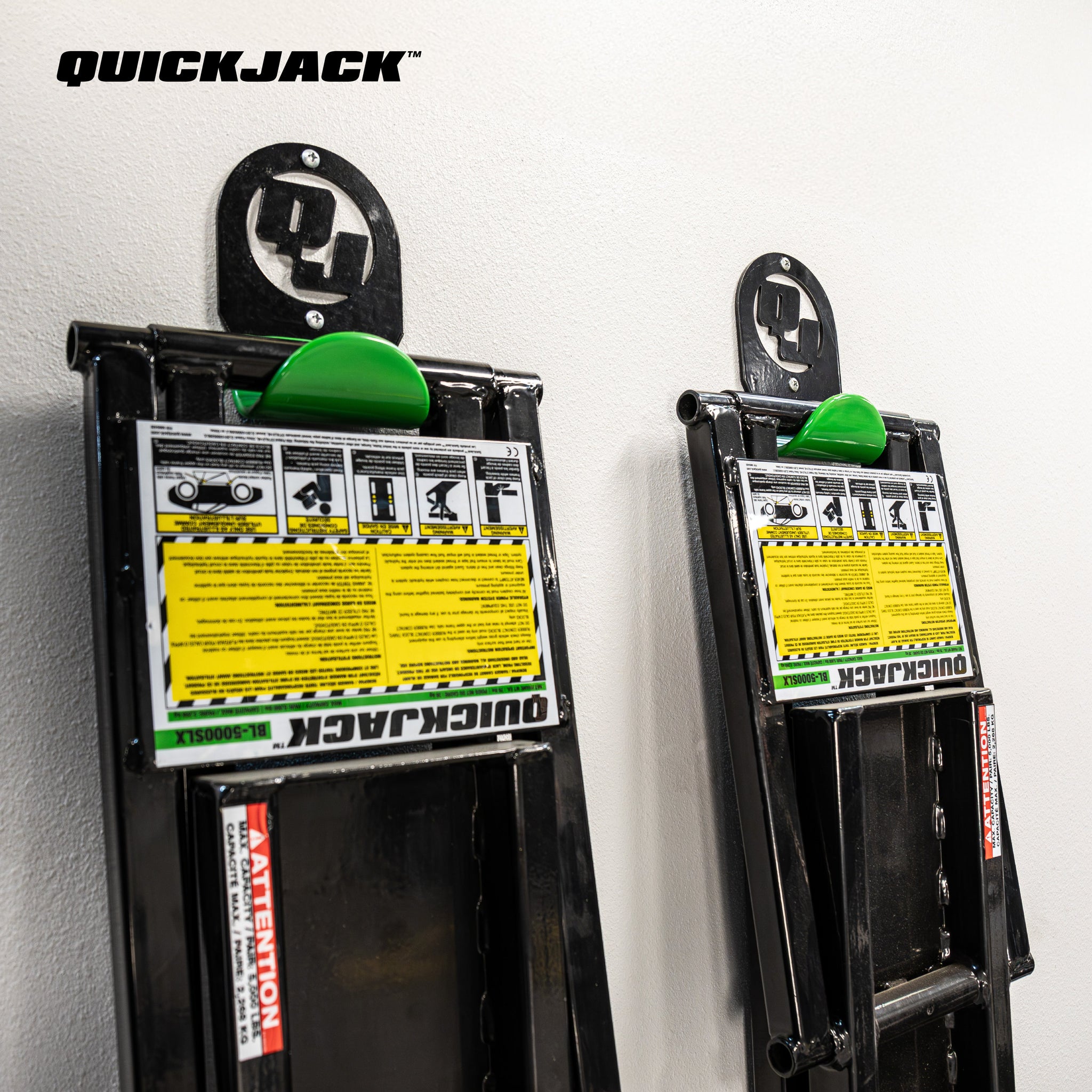

Maintains QuickJack’s slim collapsed height for easier positioning, storage, and use in tight garage spaces.

Synchronized Lifting

The upgraded hydraulic system helps both frames rise and lower together for smoother, more controlled operation.

Automatic Safety Locks

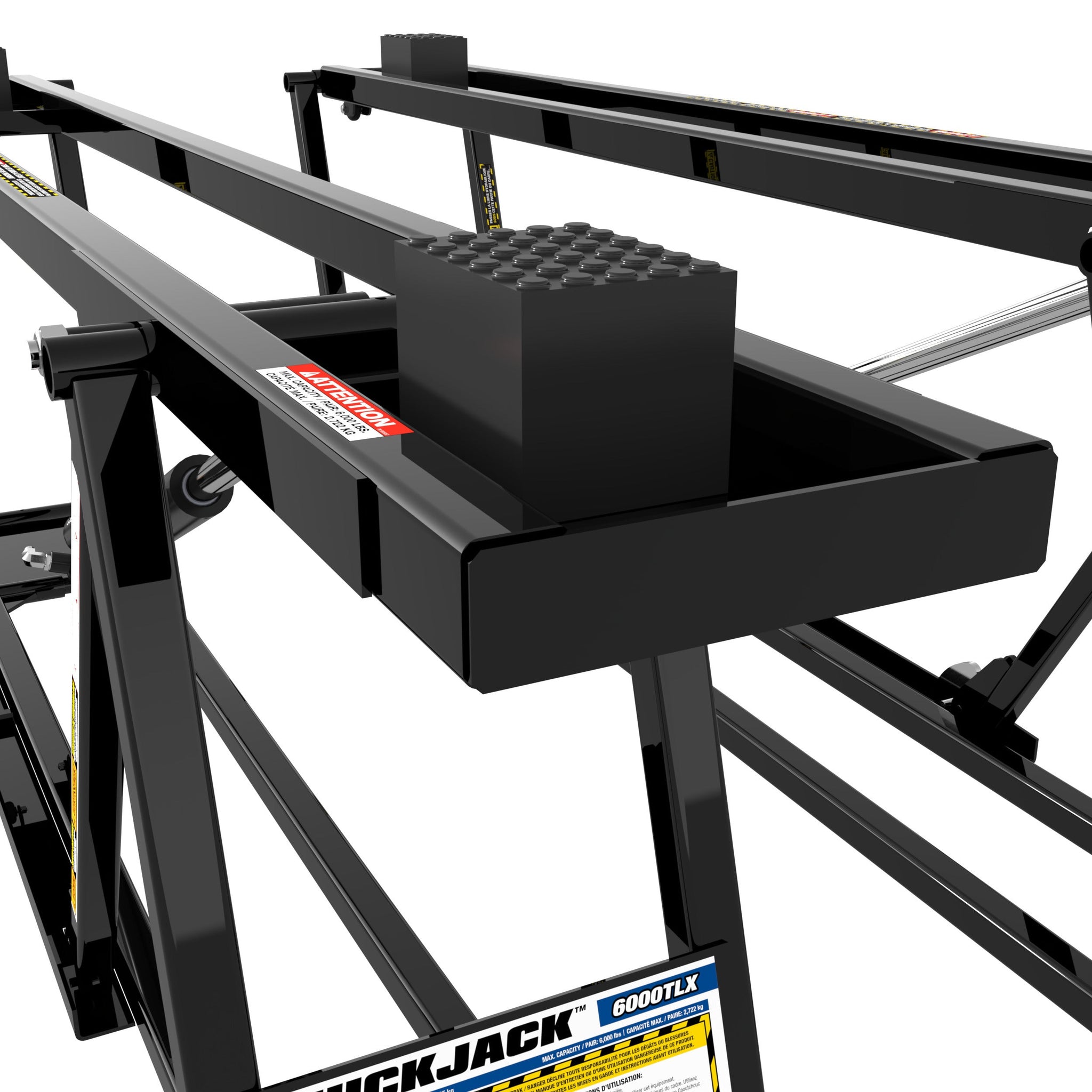

Dual-position locks engage at mid-rise and full-rise positions, then release with a simple lock bar movement for controlled lowering.

Recommended Add-ons

Features

• 6,000-lb. lifting capacity
• Extended-length portable car lift design
• 76-inch overall frame length
• 66-inch maximum lift point spread
• 43-inch minimum lift point spread
• 24-inch lift height
• 3-inch low-profile collapsed height
• Fast lift cycle of about 30 seconds
• Factory preassembled hydraulics
• Pressure-compensated flow divider
• Independent shut-off solenoids
• Automatic dual-position safety locks
• One-handed pendant control
• Thicker cross members and improved weld geometry
• Compatible with QuickJack accessories for expanded versatility

Specifications

Manuals & Downloads

• QuickJack 6000TL 8000TL Series Portable Car Lift Brochure
• QuickJack 3500SLX 6000TL 6000TLX 8000TL 8000TLX 6000EXT Assembly Operation Manual
• QuickJack Limited Warranty
