Features:
-
12.1" high-resolution display (1024 × 768) with 3D graphics
-
Available offline software
-
Built-in calculator for standard, trigonometric, and geometry calculations, with direct transfer into part programs
-
Closed-loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
-

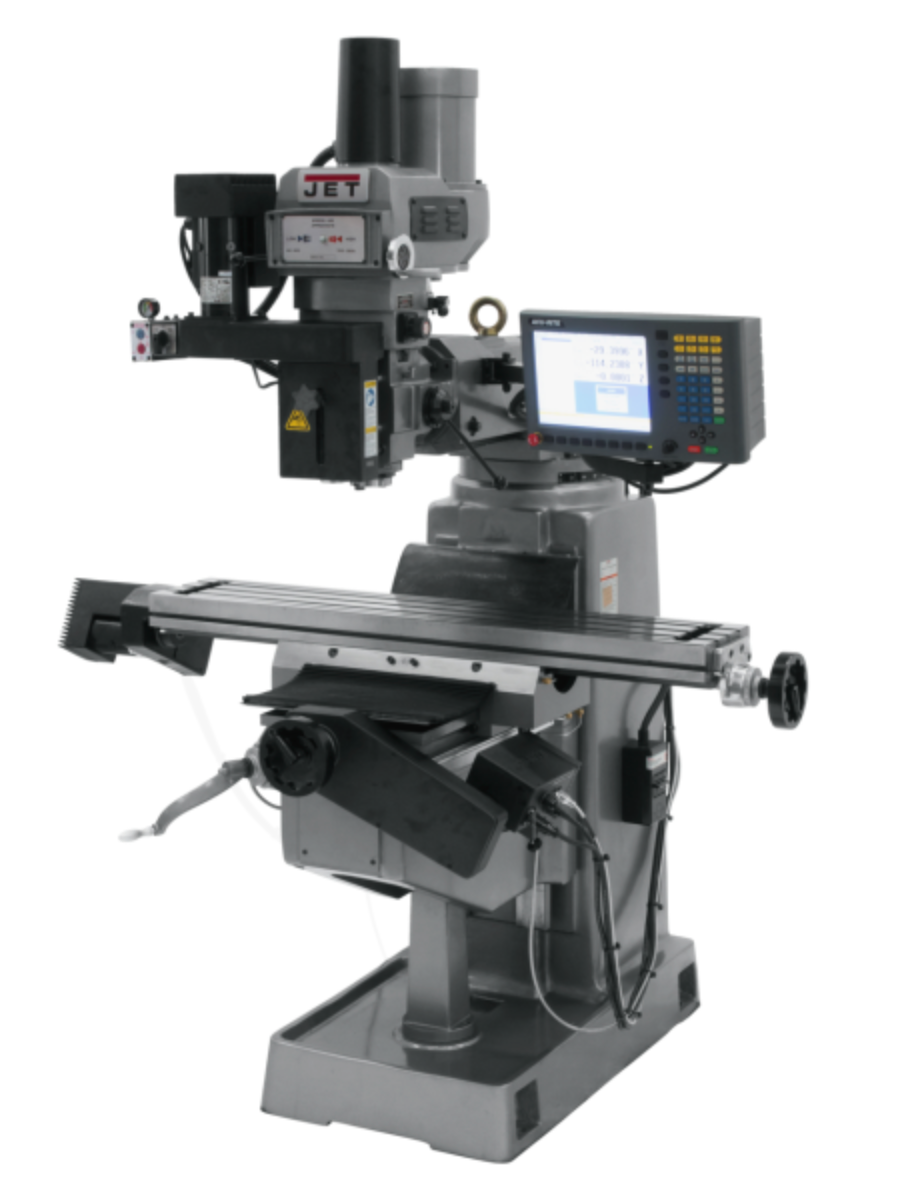

CNC electronic variable speed vertical milling machine package for JTM-1050EVS
-
Estimated run time feature
-
Jog Control for quick table movement (one axis at a time or two axes simultaneously)
-
Powerful DC servo motor assemblies, including mounting castings and hardware
-
Precision-ground ball screws to eliminate backlash for precise lateral movements
-
USB and Ethernet compatible
Specifications:
| Stock Number | JT9-690684 |
|---|---|
| CNC Package | ACU-RITE MILLPWR® G2 |
| Collet Capacity | 1/8 - 7/8 |
| Column Width (In.) | 20 |
| Distance Spindle to Column (Max.) (In.) | 26-3/4 |
| Inverter Type | Delta, B |
| Max Distance Spindle to Table (In.) | 20-3/4 |
| Model Number | JTM-1050EVS2/230 |
| Motor (HP) | 3 HP, 230V, 3Ph |
| Number of Axis | 3 |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 87 |
| Power Draw Bar | Pneumatic |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 60 - 4,500 |
| Saddle Width (In.) | 11-1/2 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 14-3/4 |
| Table Longitudinal Travel (In.) | 35-1/3 |
| Table Longitudinal Travel With Powerfeed (In.) | 29-7/8 |
| Table Size (L x W) (In.) | 10 x 50 |
| Travel of Knee (In.) | 16-1/8 |
| Travel of Ram (In.) | 15-7/8 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 840 |
| Gross Weight | 3000.0 |
| Net weight | 3000.0 |
