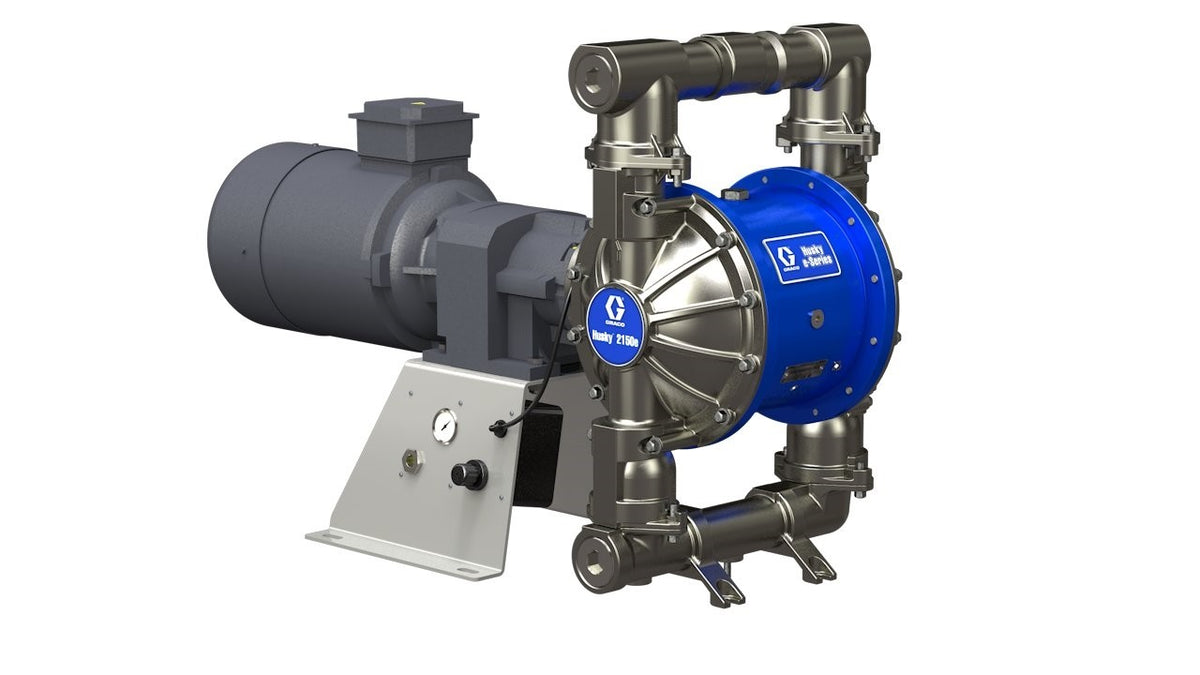

Husky 2150e 2 in. (51 mm) SS Electric Diaphragm Pump; 5.0 Hp CID1 Motor, No CMPSR, End Port NPT, AL Center, SP Seat, SP Ball, SP Diaphragm
Specifications
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ball Material | Santoprene |
| Center Section Material | Aluminum |
| Diaphragm Compatible Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (psi) | 100 |
| Maximum Amperage (A) | 13.0/6.5A |
| Maximum Cycle Rate (CPM) | 160 |
| Maximum Flow Rate (GPM) | 100 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (in) | 0.25 |
| Minimum Operating Temperature (°F) | -40 |
| Model | Husky |
| Motor Type | AC |
| Power Rating (HP) | 5 |
| Power Source | Electric |
| Seat Material | Santoprene |
| Standards Met | Class 1, Division 1 |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230/460V |
| Weight (lb) | 410 |
| Fluid Inlet Size (mm) | 50 |
| Fluid Outlet Size (mm) | 50 |
| Maximum Flow Rate (L/min) | 0.00 |
| Maximum Operating Temperature (°C) | 82.22 |
| Maximum Solid Size (cm) | 0.64 |
| Maximum Solid Size (mm) | 6.35 |
| Minimum Operating Temperature (°C) | -40.00 |
