Description

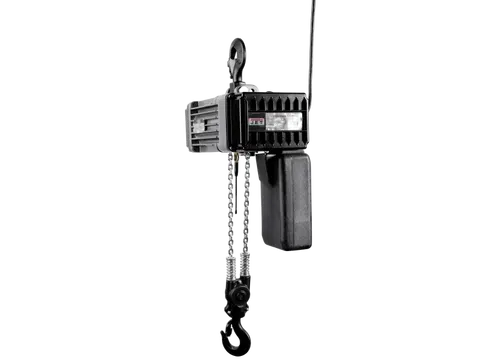

JET Trademaster® Series Electric Hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8Ton to 2Ton capacities and standard lifts of 10 and 20ft. (custom lifts up to 100ft are available).
Features:
- Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
- TAA Approved
- Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
- Overload protection using slip clutch system to protect hoist from loads over rated capacities
- Hoist carries a dust and moisture rating of IP-55 and the wireless transmitter IP-65 which means hoist can stay in the light rain and pendant is dust and water proof.
- DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
- 30 / 7.5 Time ratings
- Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting
- 1/8 to 1/2 ton models come in plastic carry case for exceptional mobility
- Low noise at less than 75 dBA
Specifications:
| Stock Number | 104011 |
|---|---|
| Capacity (Lbs.) | 550 |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 10 |
| Lifting Speed (FPM) | 0-10 / 41 |
| Load Capacity (Tons) | 1/4 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On Time (Min. / Hr.) | 15 |
| Motor (HP) | 0.8HP, 120V, 1PH |
| Motor Phase | Single |
| Overload Protection | Yes |
| Weight (Lbs.) | 36.4 |
| Headroom (In.) | 15-3/4 |
| Overall Width (In.) | 10-2/5 |
| Motor Current (Amps) | 10 |
