DESCRIPTION

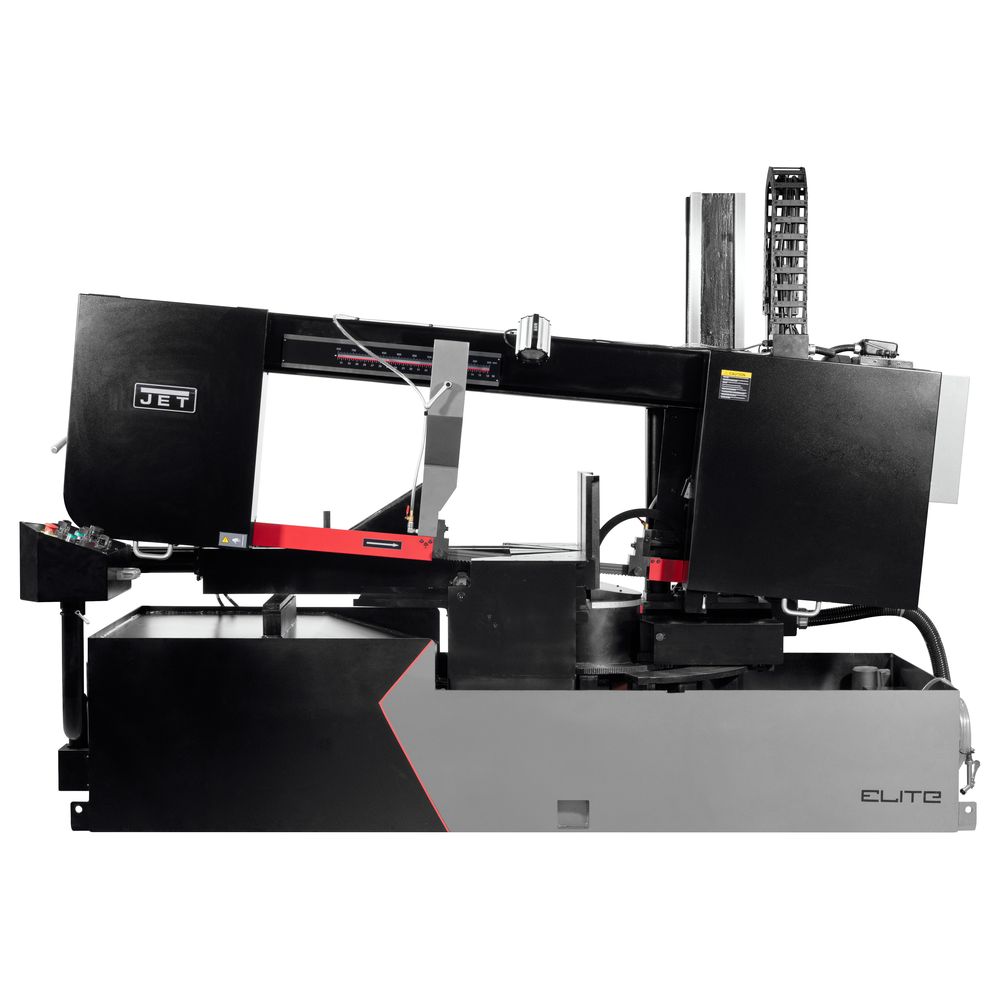

JET ELITE 18 x 33" ECB-1833DMEVS-230 Semi-Automatic Dual Mitering EVS Bandsaw 230V, 3Ph JT9-891175
- With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.
- Auto table swivel
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Electronic Variable Speed from 50-297 SFPM
- Heavy duty construction reduces vibration and deflection
- Hydraulic assist descent control
- Semi-auto on saw bow lifting and hydraulic vise
- Swing away control box allows Operator to use in any position
ITEM: 18 x 33" Semi-Automatic Dual Mitering EVS Bandsaw 460V, 3Ph
MANUFACTURER: JET ELITE
MODEL: ECB-1833DMEVS-460
PART# JT9-891175
|
Rectangle at 90 Degrees (In.)
|
18 x 31-1/2
|
|
Square at 60 Degrees (In.)
|
15 x 15
|
|
Cutting Capacity (W x D) (In.)
|
18 x 33
|
|
Throat Depth (In.)
|
18
|
|
Blade Wheel Diameter (In.)
|
22-53/64
|
|
Bed Height (In.)
|
33-15/32
|
|
Square at 45 Degrees (In.)
|
18 x 18
|
|
Square at 90 Degrees (In.)
|
18 x 18
|
|
Coolant Pump Motor
|
1/8HP, 460V, 3PH
|
|
Electrics
|
7-1/2HP, 460V, 3Ph
|
|
Prewired Voltage (V.)
|
460
|
|
Overall Dimensions (L x W x H) (In.)
|
110 x 75 x 83
|
|
Net Weight (Lbs.)
|
5,060
|
|
Shipping Weight (Lbs)
|
5,500
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts & Labor
