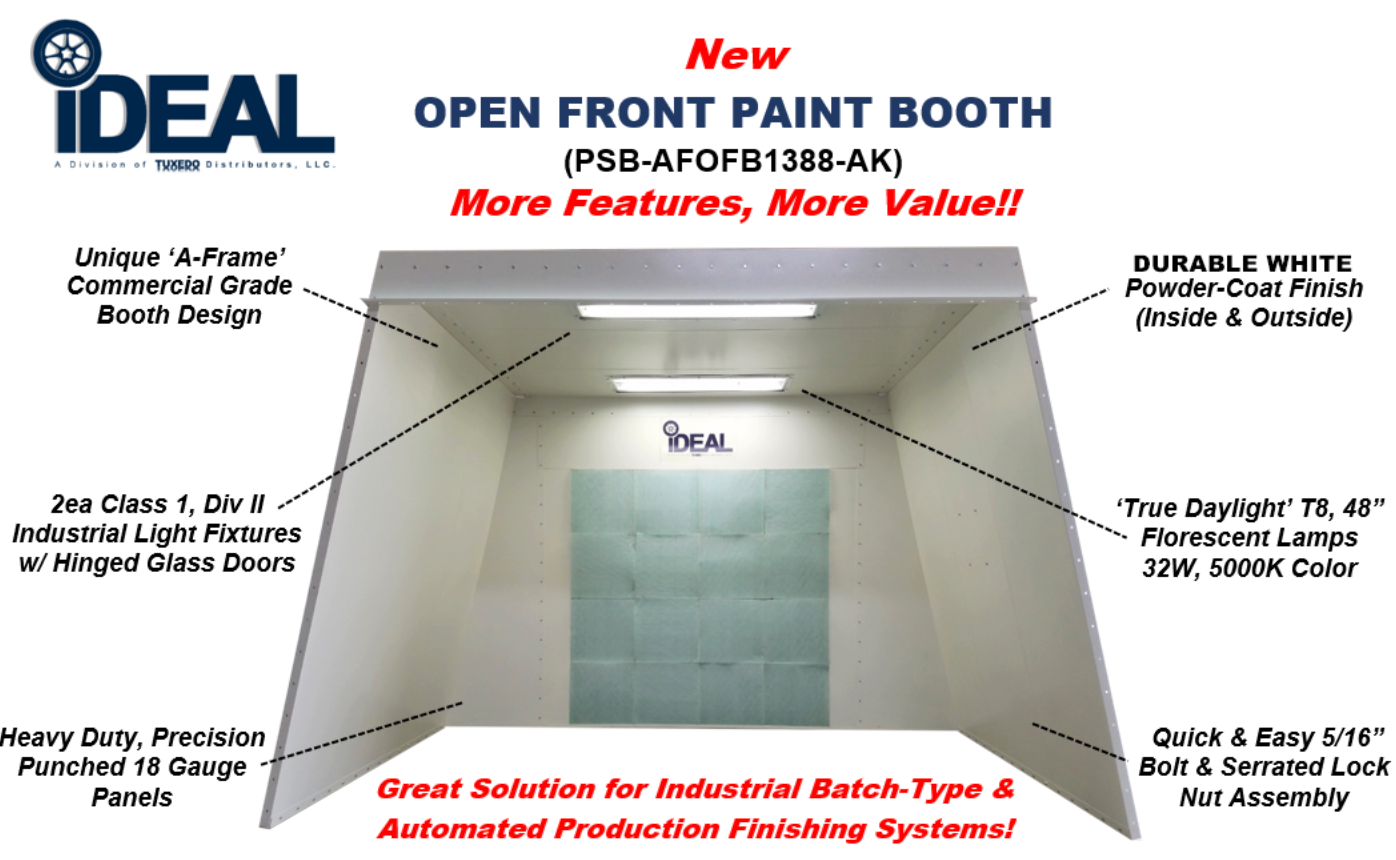

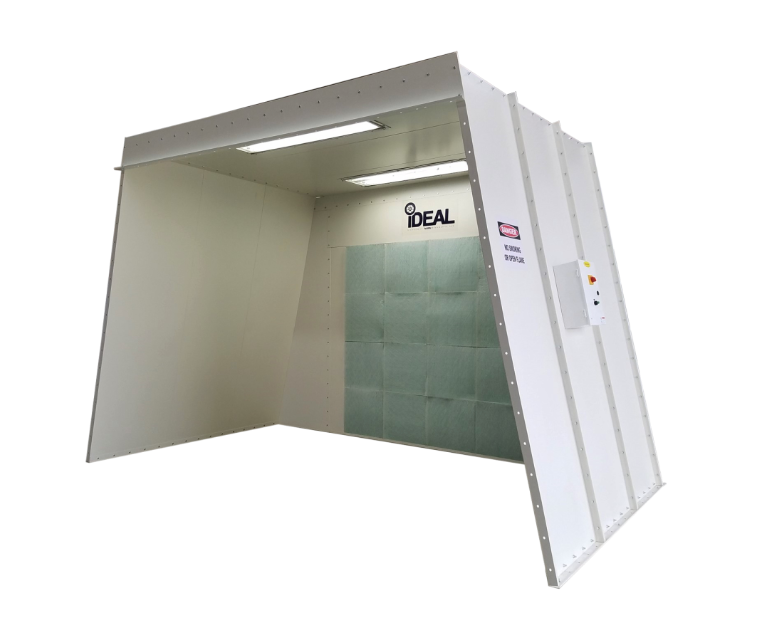

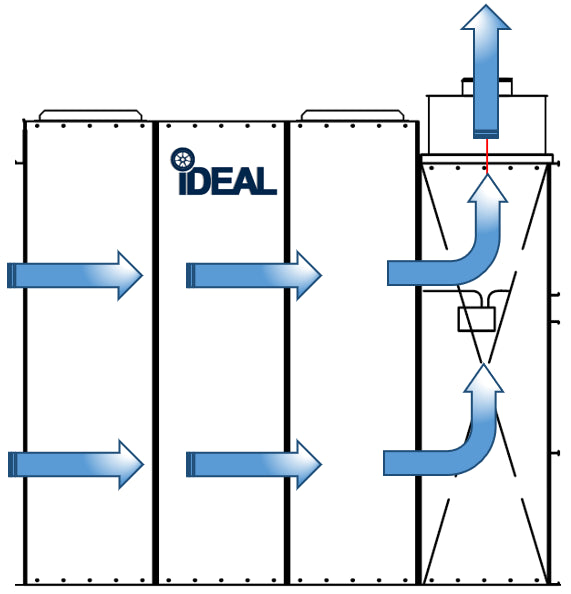

The iDEAL ‘A-Frame’ Open Front Paint Booth is an economic, commercial grade open front paint booth designed to provide optimal ‘air flow’ with superior lighting for high-quality spray painting & finishing applications. The iDEAL Open Front Paint Booth is a great solution for industrial batch-type & automated production-type finishing systems. Air flows through the open front section of the booth, then passes through the work area towards the rear of booth into the filtered exhaust chamber. Filtered exhaust air is then drawn through the exhaust plenum & discharged upwards through the exhaust fan & ducting. Easily installed with heavy duty, precision punched 18 gauge panels allowing for quick nut & bolt assembly. Standard with bright white powder-coat finish, deluxe control panel, premium exhaust filters, hinged glass light fixtures & high-quality tube-axial exhaust fan to complete the package for a premium, high-Quality Open Front Paint Booth, all at a great value!
- COMMERCIAL GRADE DESIGN FOR OPTIMAL AIR FLOW & LIGHTING COVERAGE

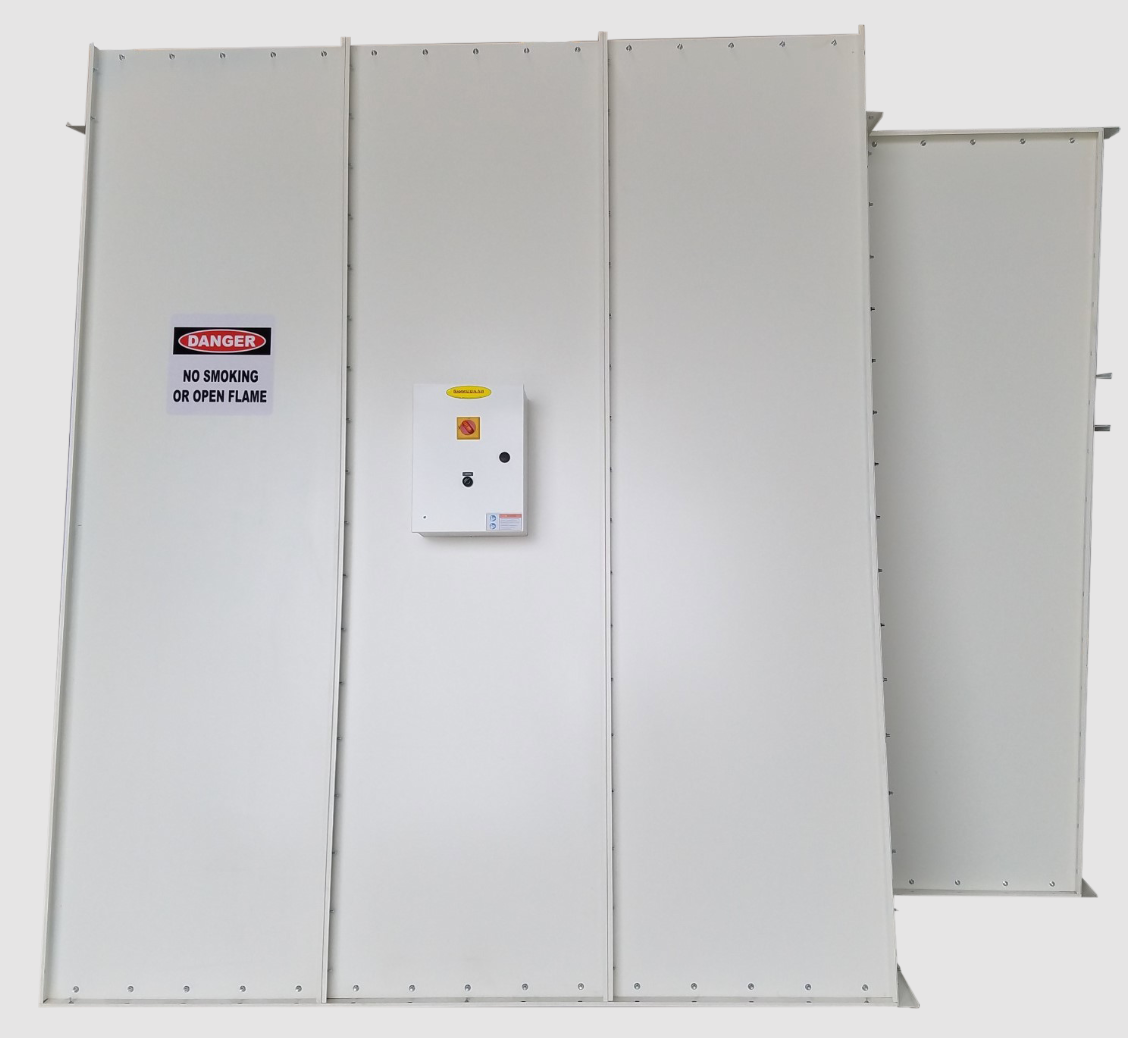

- DELUXE CONTROL PANEL INCLUDED
- WHITE POWDER COAT PANEL FINISH – (INSIDE & OUTSIDE)
- HEAVY DUTY PRECISION PUNCHED 18 GAUGE PANEL CONSTRUCTION
- CONVENIENT 5/16” BOLT & SERRATED LOCK NUT ASSEMBLY

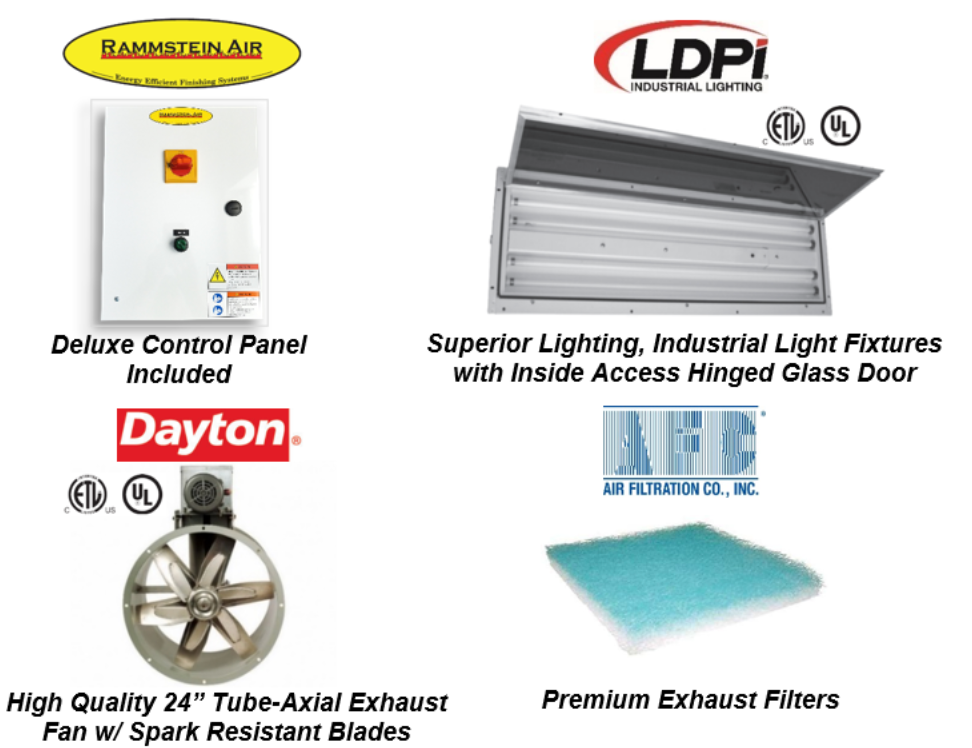

- UL LISTED DAYTON 24” TUBE-AXIAL EXHAUST FAN W/ SPARK RESISTANT FAN BLADES
- NEMA RATED 2HP-3 PHASE – 230/460VAC-60HZ MOTOR STANDARD
- PREMIUM AFC EXHAUST FILTERS
- LDPI INDUSTRIAL LIGHT FIXTURES W/ INSIDE ACCESS HINGED GLASS DOOR
- (2EA) LDPI INDUSTRIAL (CLS1 / DIV 2) LIGHT FIXTURES – UL & ETL (GROUPS A, B, C & D.)
- TRUE ‘DAYLIGHT COLOR’ W/ GE T8 48” FLORESCENT LAMPS 32W – 2900 LUMENS, 5000K
- OPTIMAL AIR FLOW W/ CFM 7,983 @ .5 STATIC PRESSURE

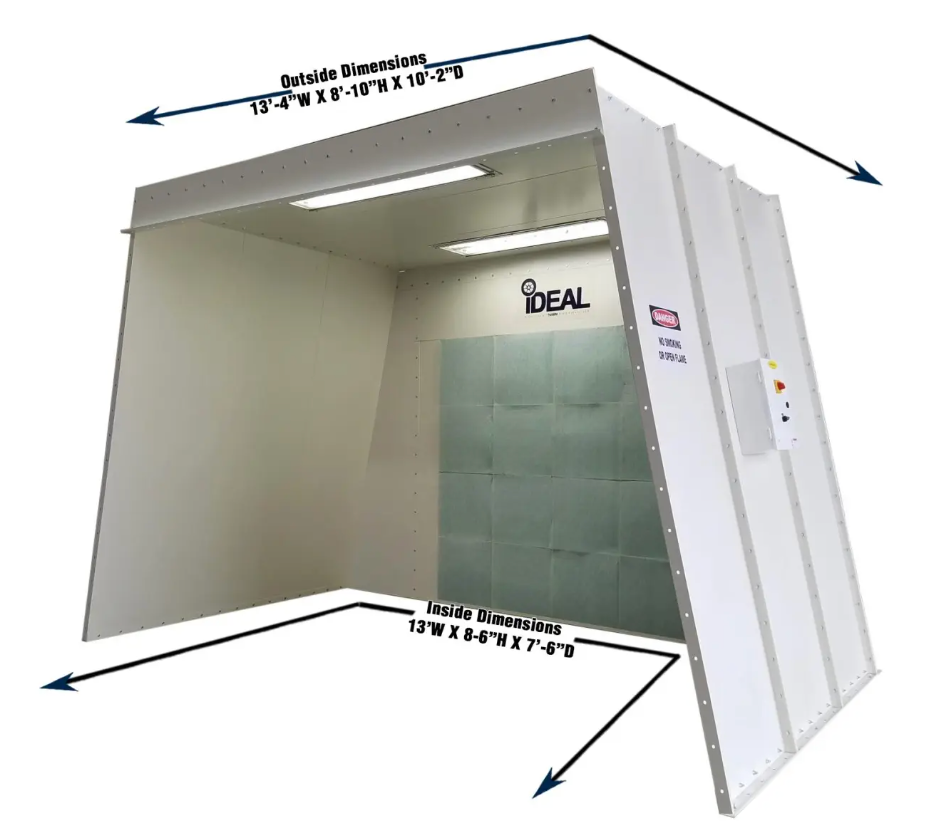

- INSIDE DIMENSIONS: 13′ W X 8′-6″ H X 7′-6″ D
- ALL ASSEMBLY HARDWARE, MANOMETER & SEALANT INCLUDED
- MEETS AND/OR EXCEEDS ALL APPLICABLE OSHA & NFPA 33 REGULATIONS
- EASY TO INSTALL, OPERATE & MAINTAIN

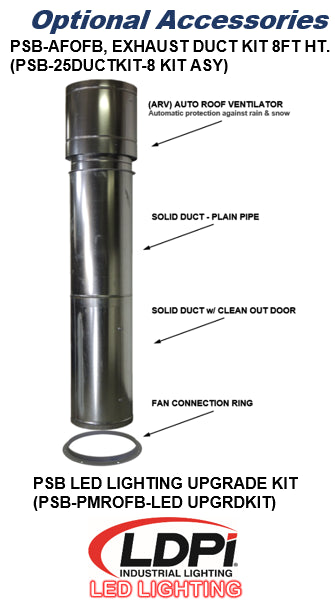

- OPTIONAL: 1PH ELECTRICAL & PSB-25DUCTKIT-8 KIT ASY
