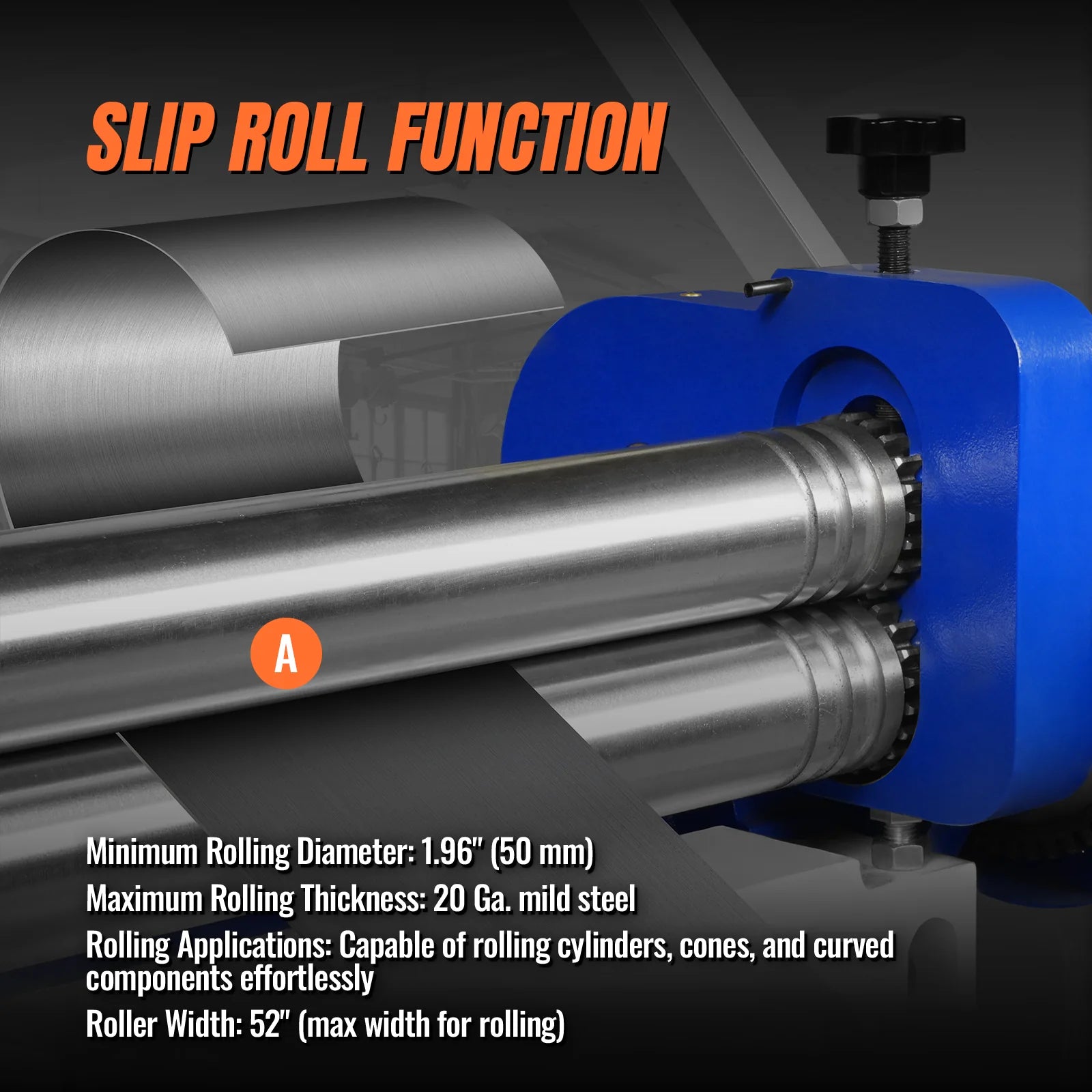

| Slip Roll Function | Minimum Rolling Diameter | 1.96" (50 mm) |
| Maximum Rolling Thickness | 20 Ga. mild steel | |
| Wire Sizes | 3/16", 1/4", 5/16" | |
| Roller Type | Slip Rollers for straightening and forming cylinders, cones, and arcs |
|

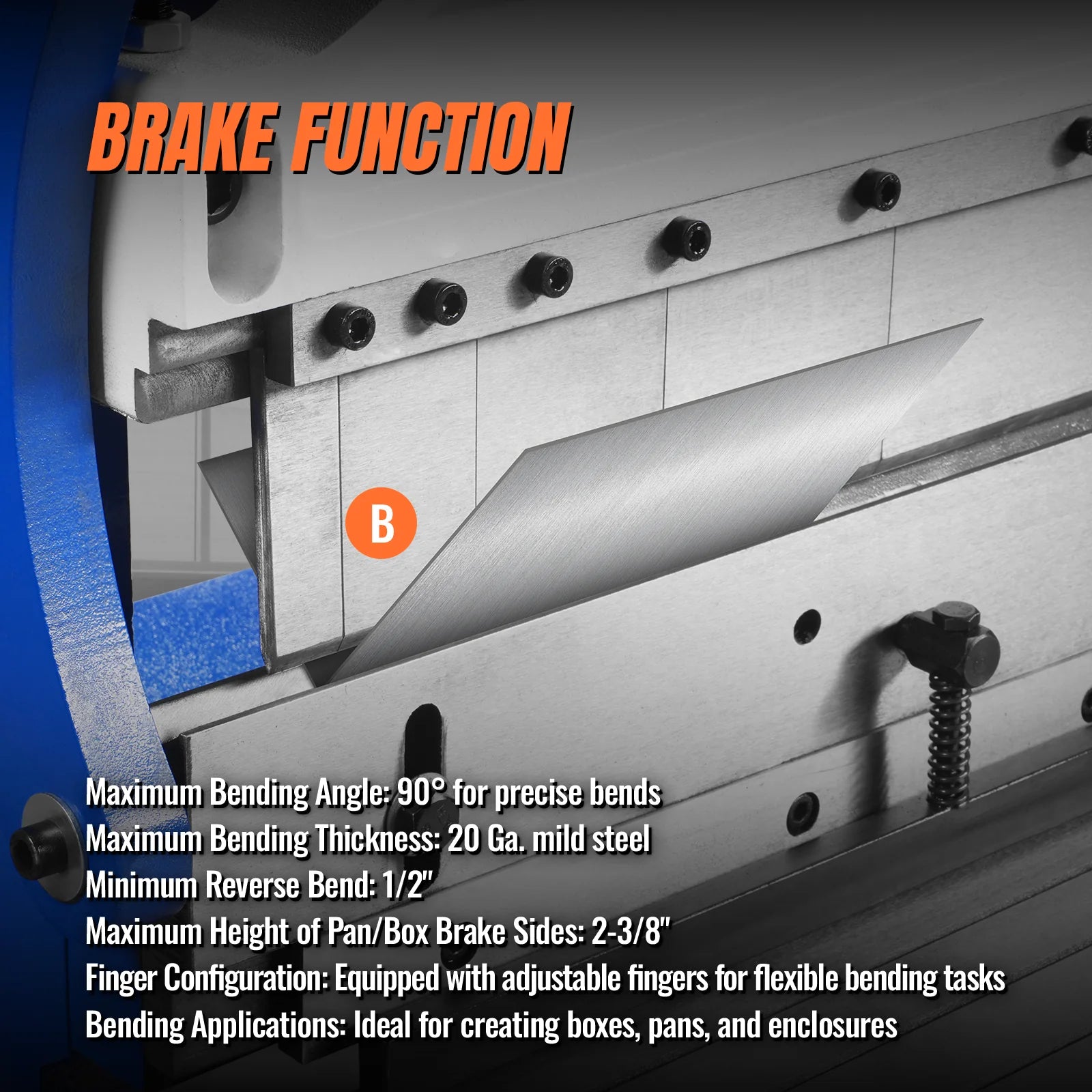

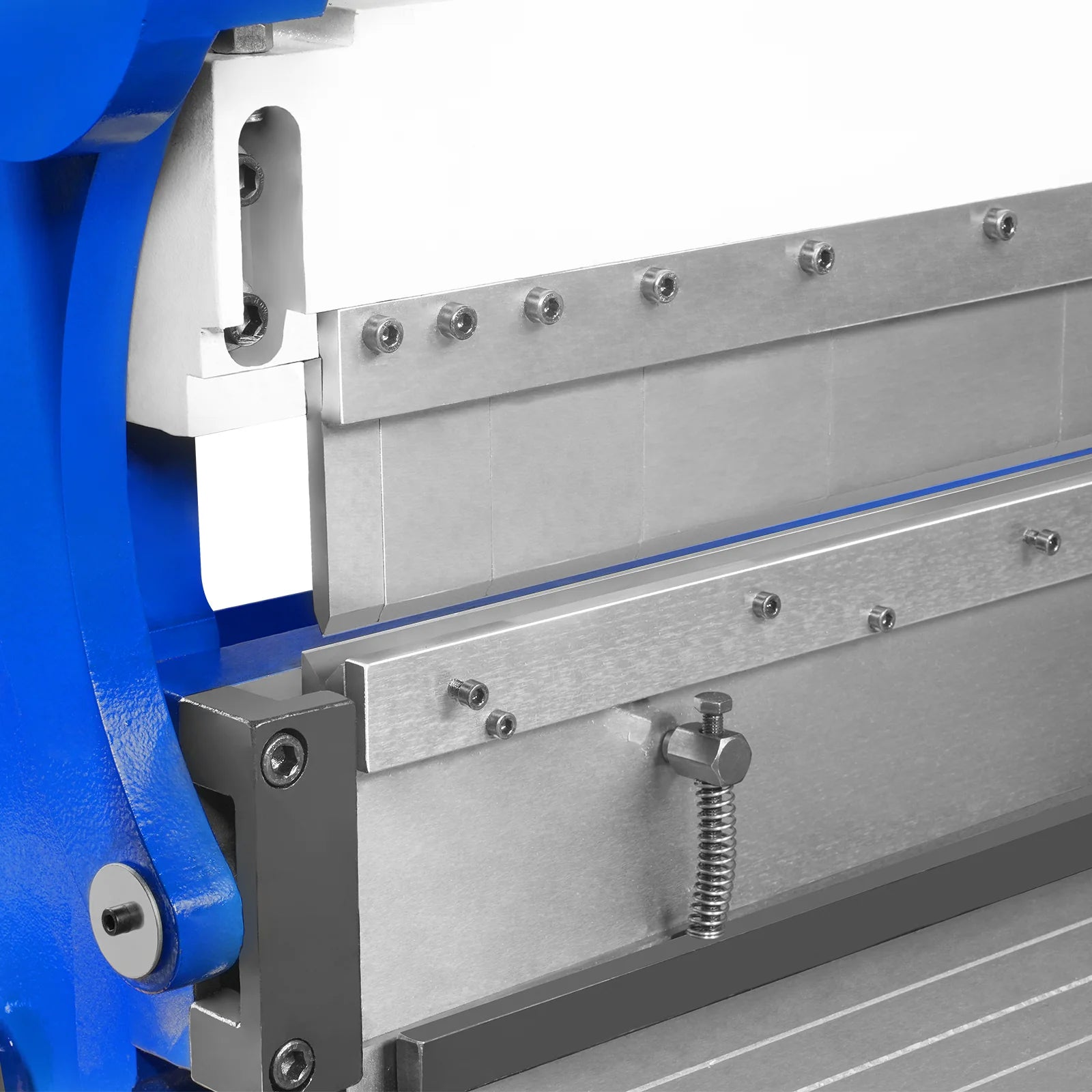

| Brake Function | Maximum Bending Angle | 90° |
| Maximum Bending Thickness | 20 Ga. mild steel | |
| Minimum Reverse Bend | 1/2" | |
| Maximum Height of Pan/Box Brake Sides | 2-3/8" (60 mm) | |

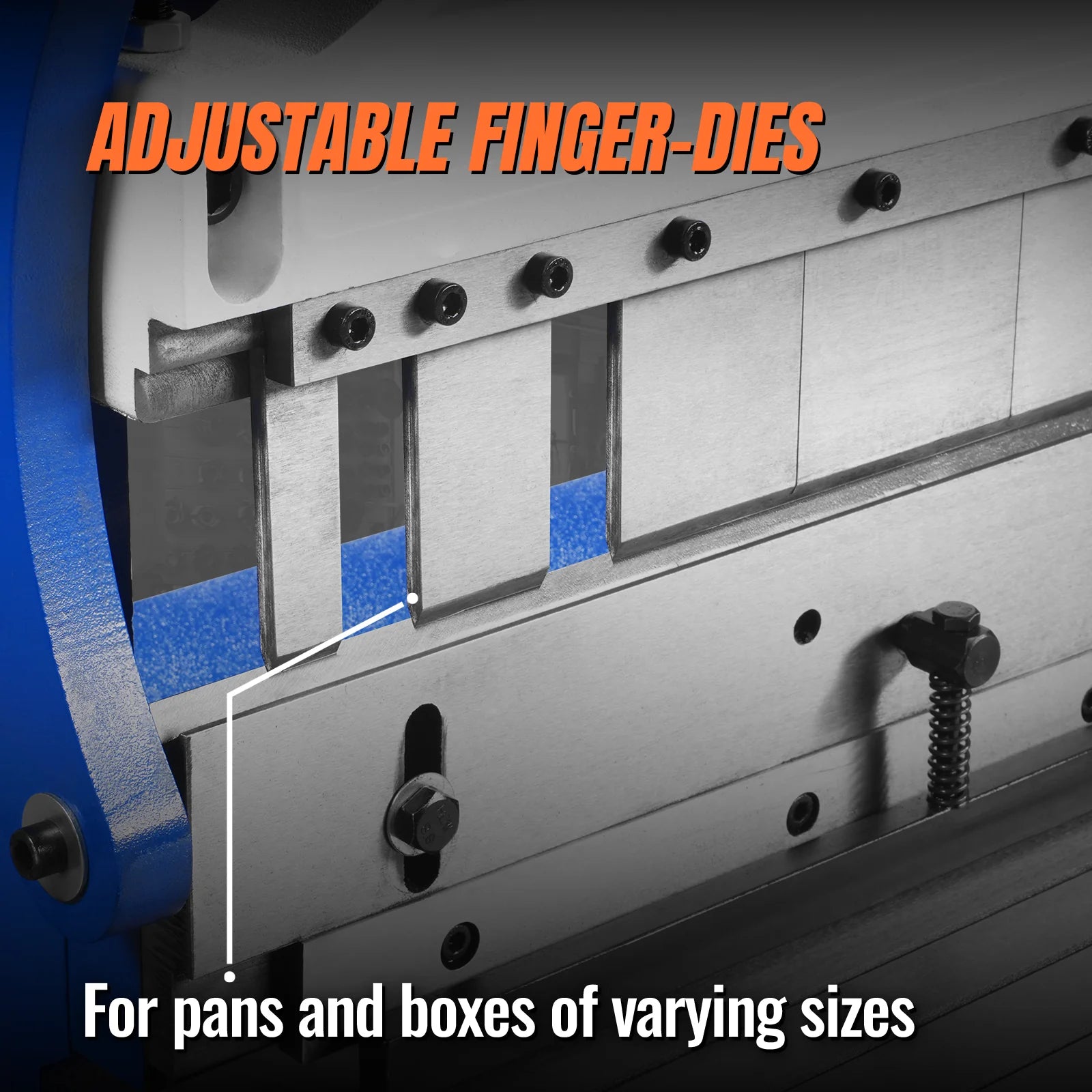

| Finger Configuration | 9 adjustable fingers: 1", 2", 3", 4", 5-1/2", 7", 8", 10", 10" |
|

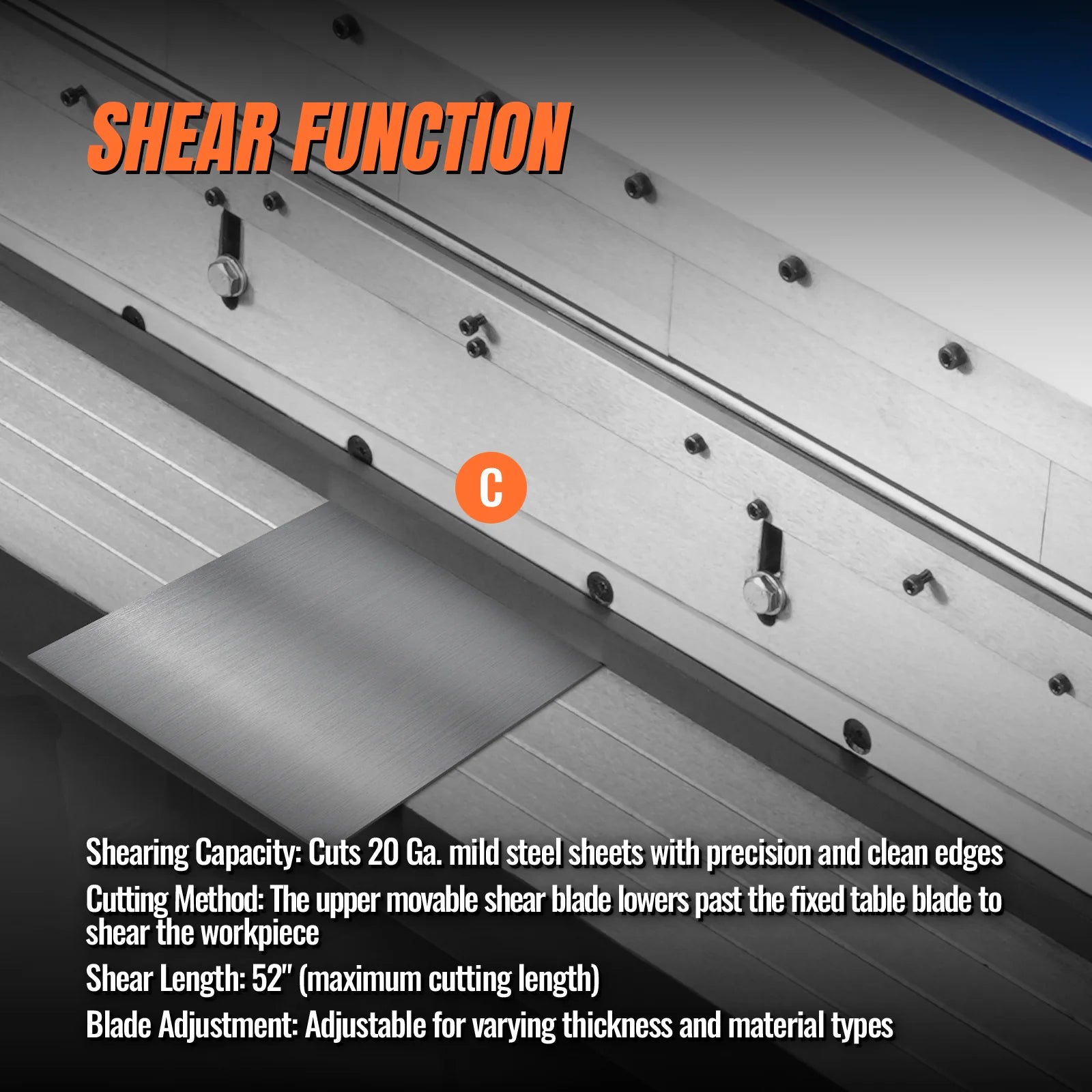

| Shear Function | Shearing Capacity | 20 Ga. mild steel |
| Blades | Reversible upper shear blade and fixed lower table blade | |
| Cutting Method | Upper movable shear blade lowers past the fixed table blade | |
| Shear Length | 52" (maximum cutting length) | |
| Blade Adjustment | Adjustable for varying thickness and material types |
