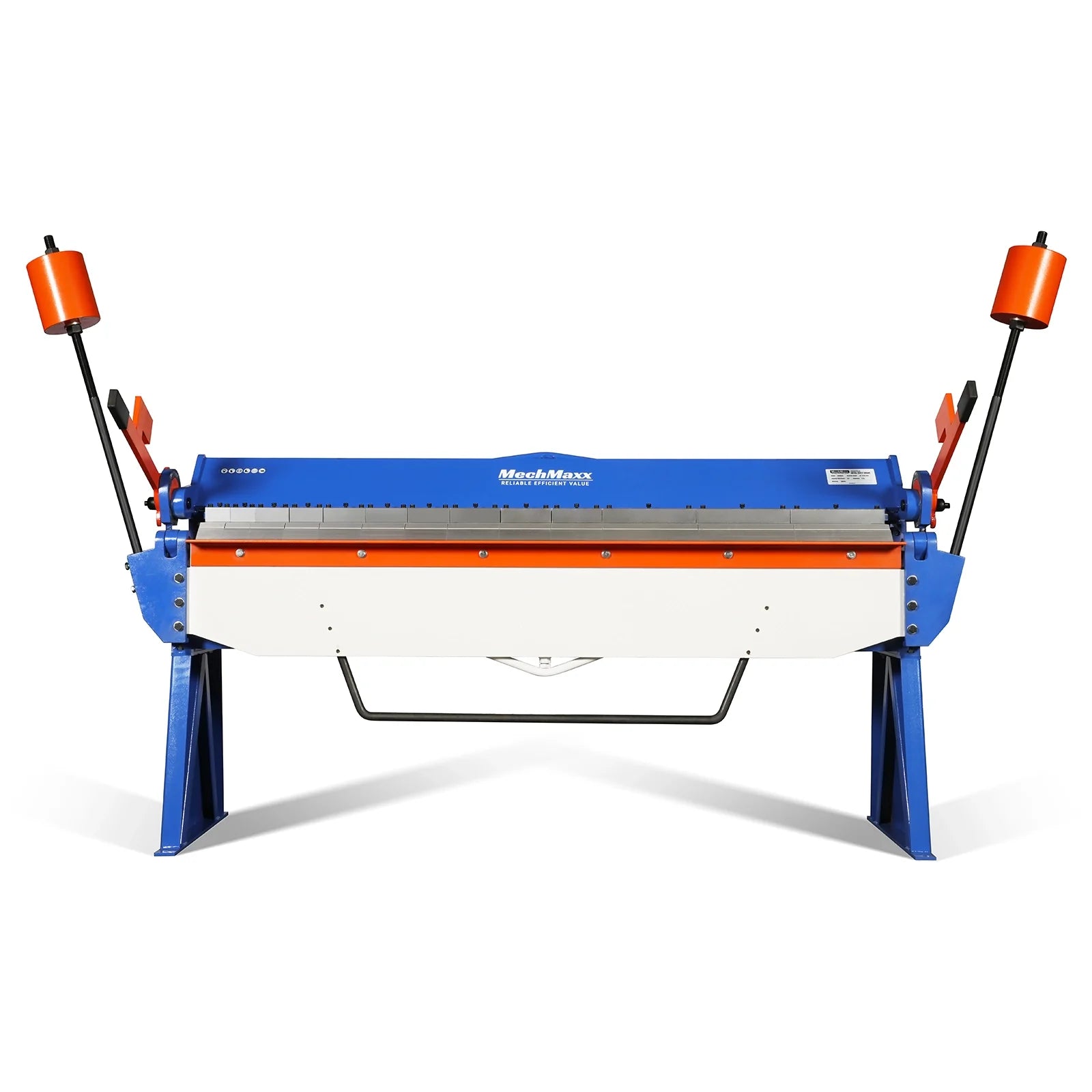

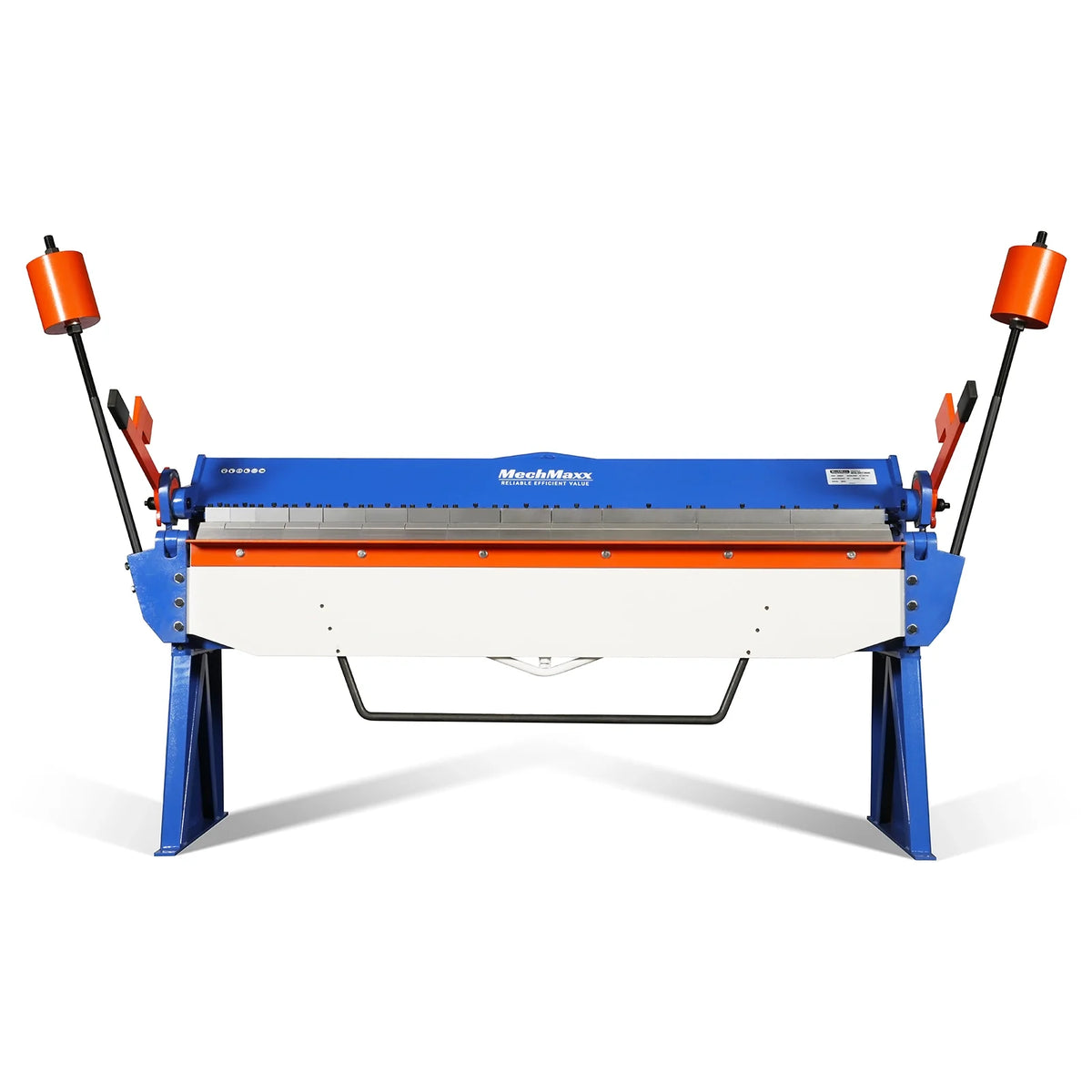

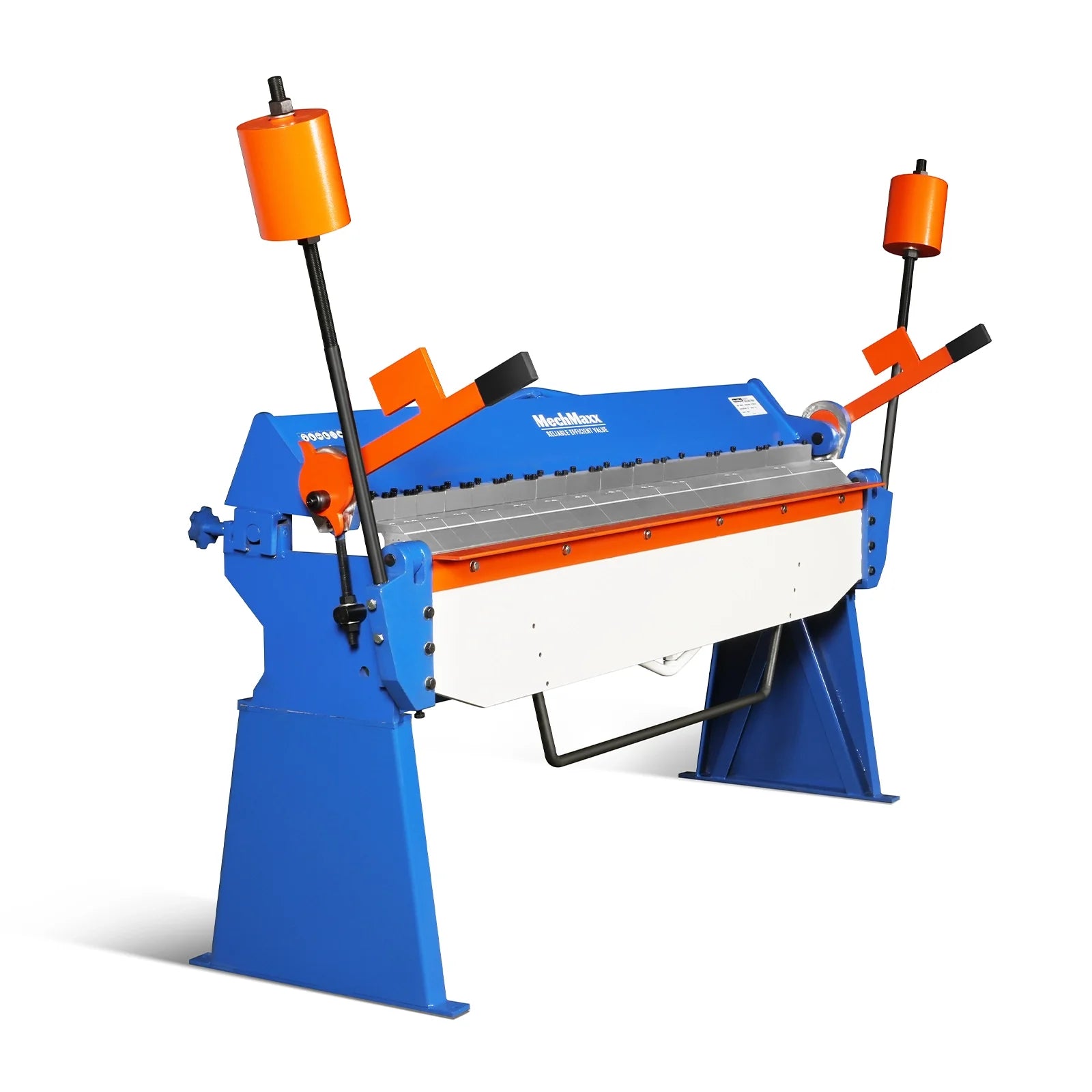

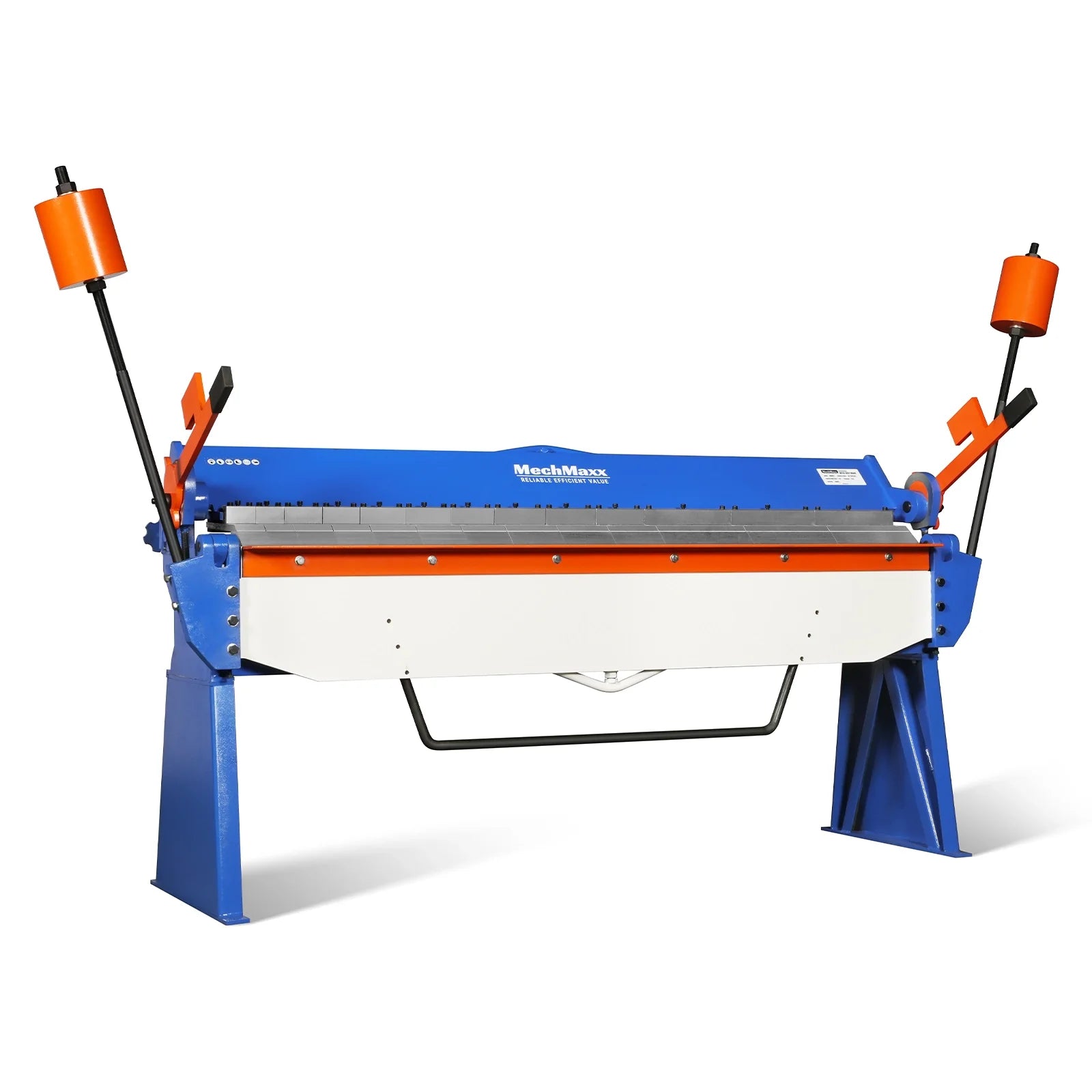

| Model | PB8012 |

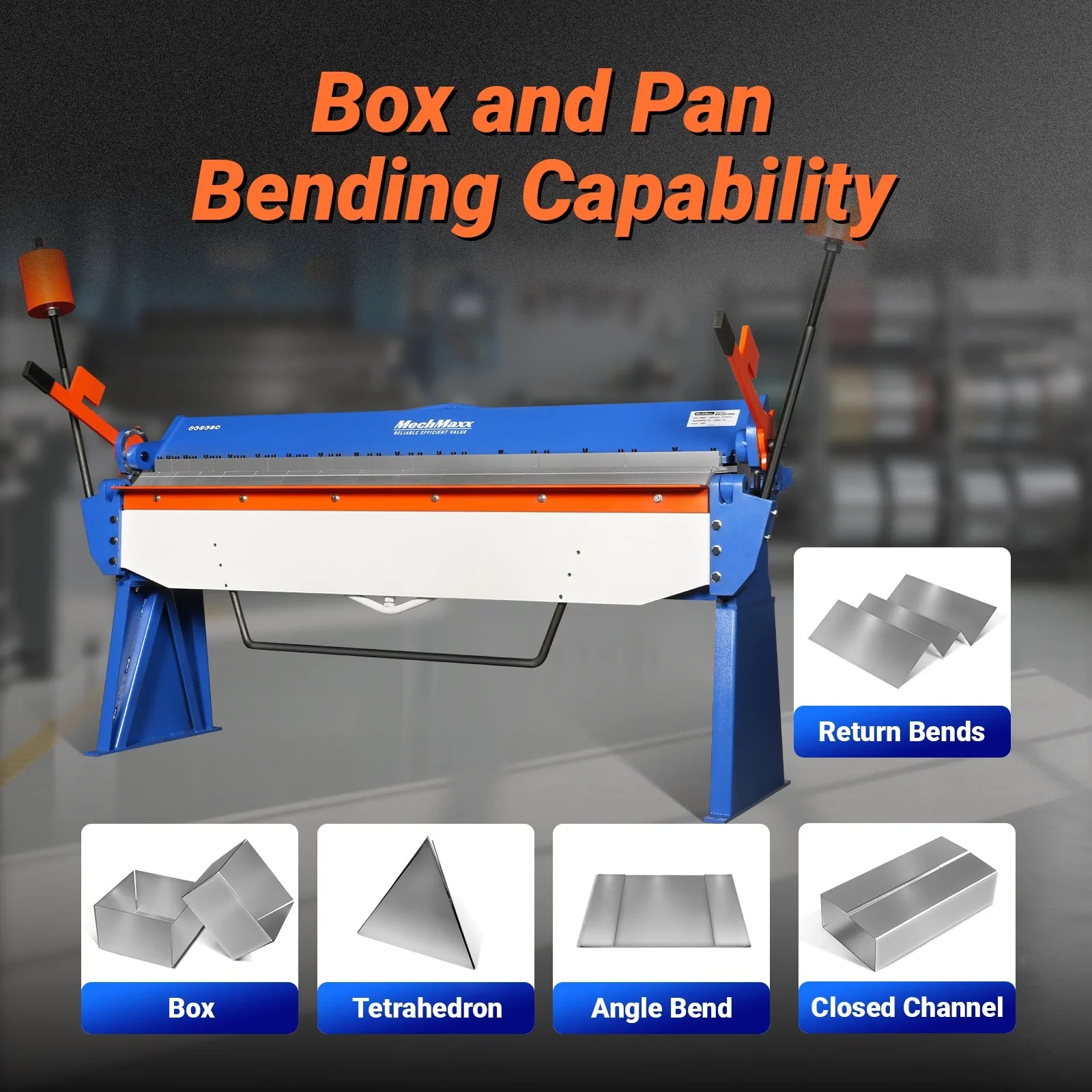

| Type | Manual Pan and Box Brake |

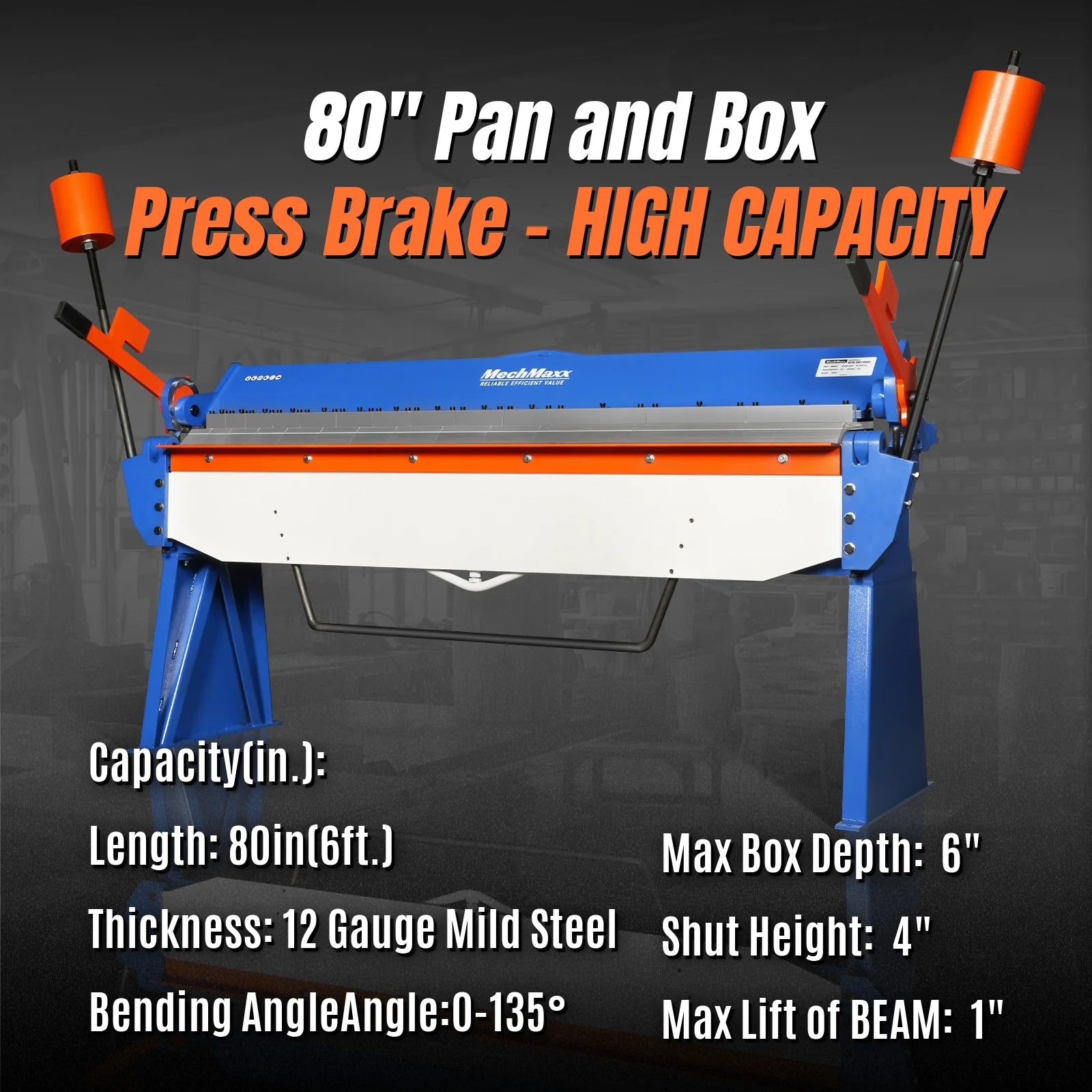

| Max Bending Length | 80 in (2032 mm) |

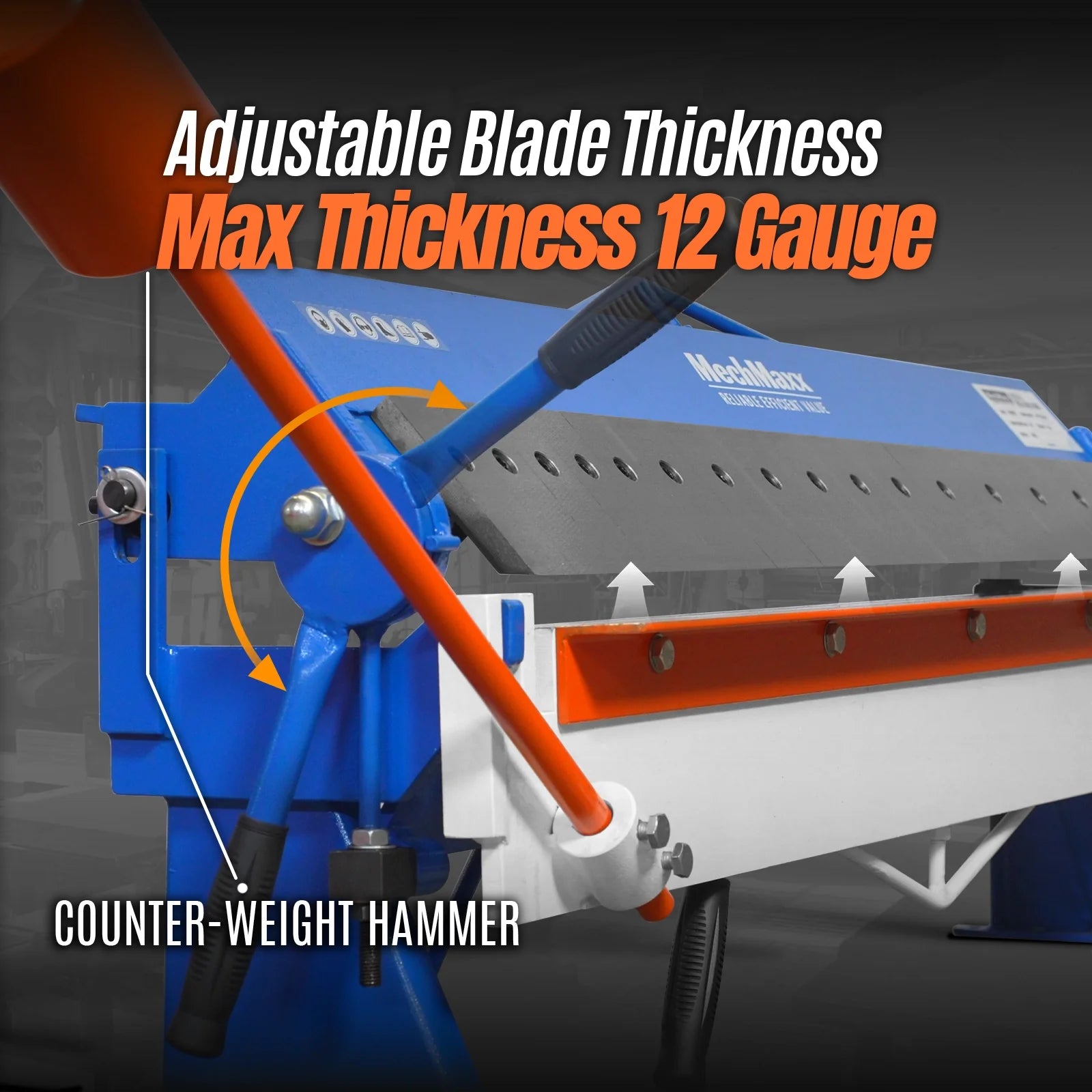

| Max Bending Thickness | 12 Gauge Mild Steel (2.5 mm) |
| Bending Angle | 0° to 135° |
| Max Box Depth | 6 in (152 mm) |
| Shut Height | 4 in (102 mm) |
| Max Lift of Beam | 1 in (25 mm) |
| Beam Adjustment | Manual |

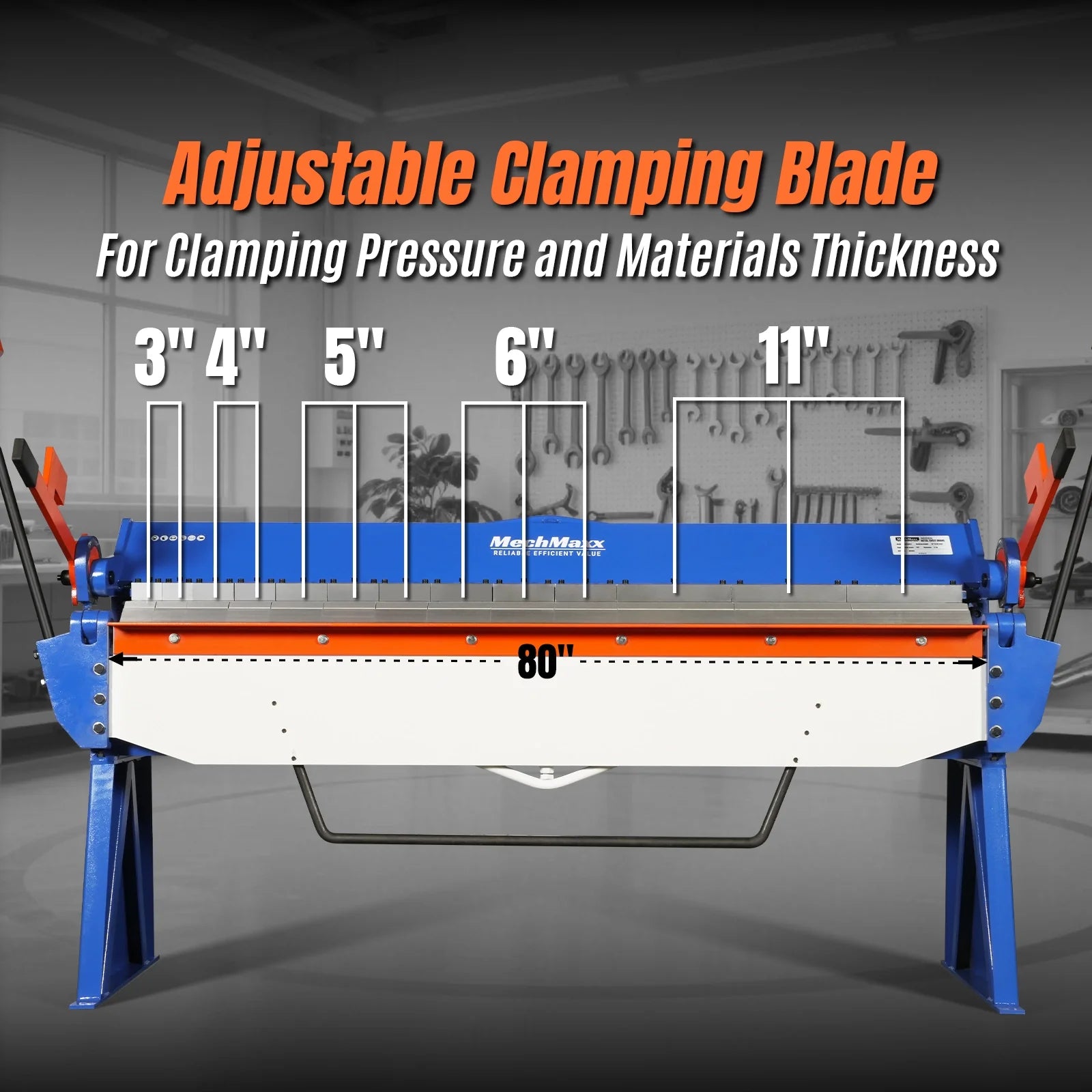

| Finger Configuration | 11" x 3 pcs, 6" x 3 pcs, 5" x 3 pcs, 4" x 2 pcs, 3" x 2 pcs |
| Material | High-strength Steel Frame |

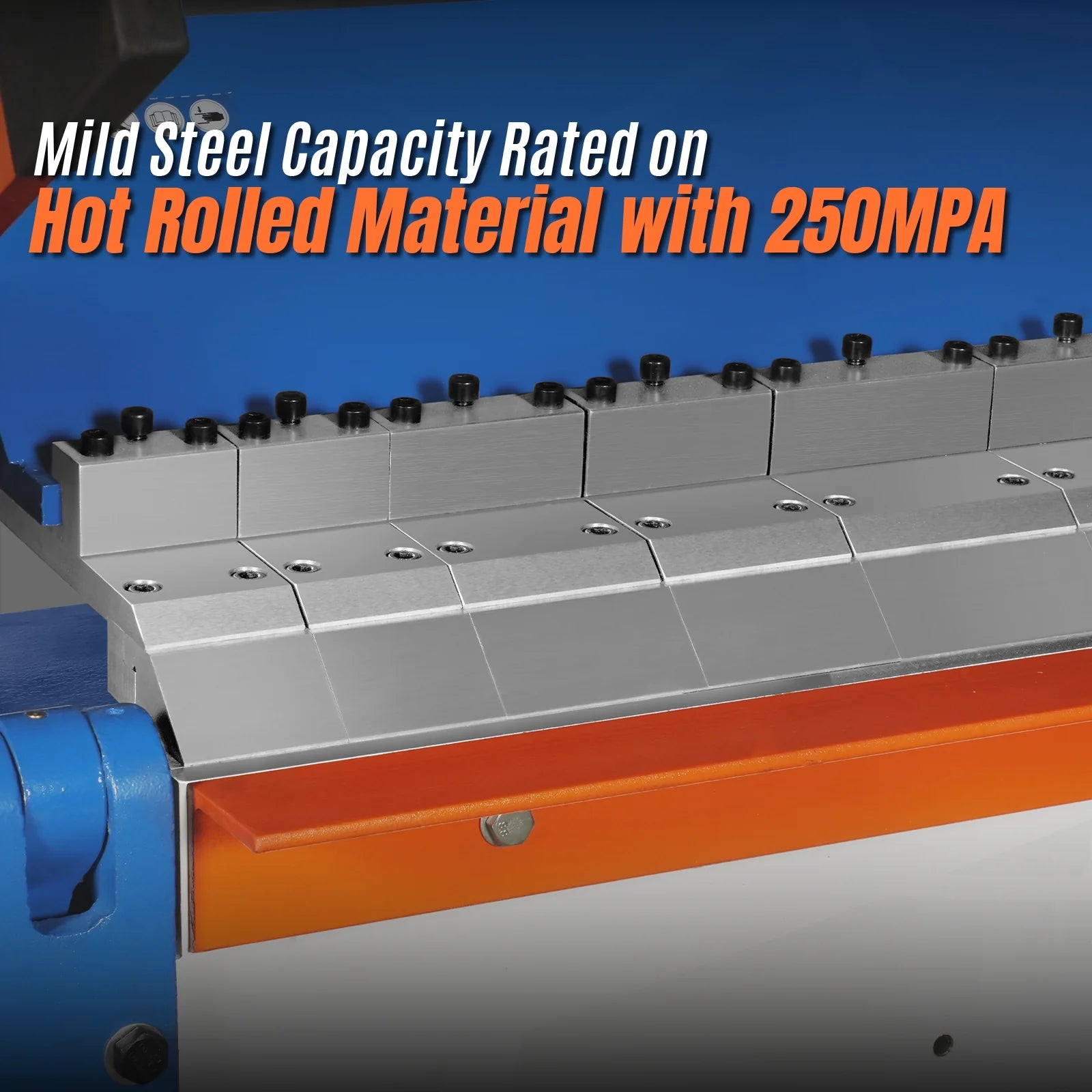

| Max Capacity | 12 Gauge Mild Steel (0.105 in, 2.5 mm) |

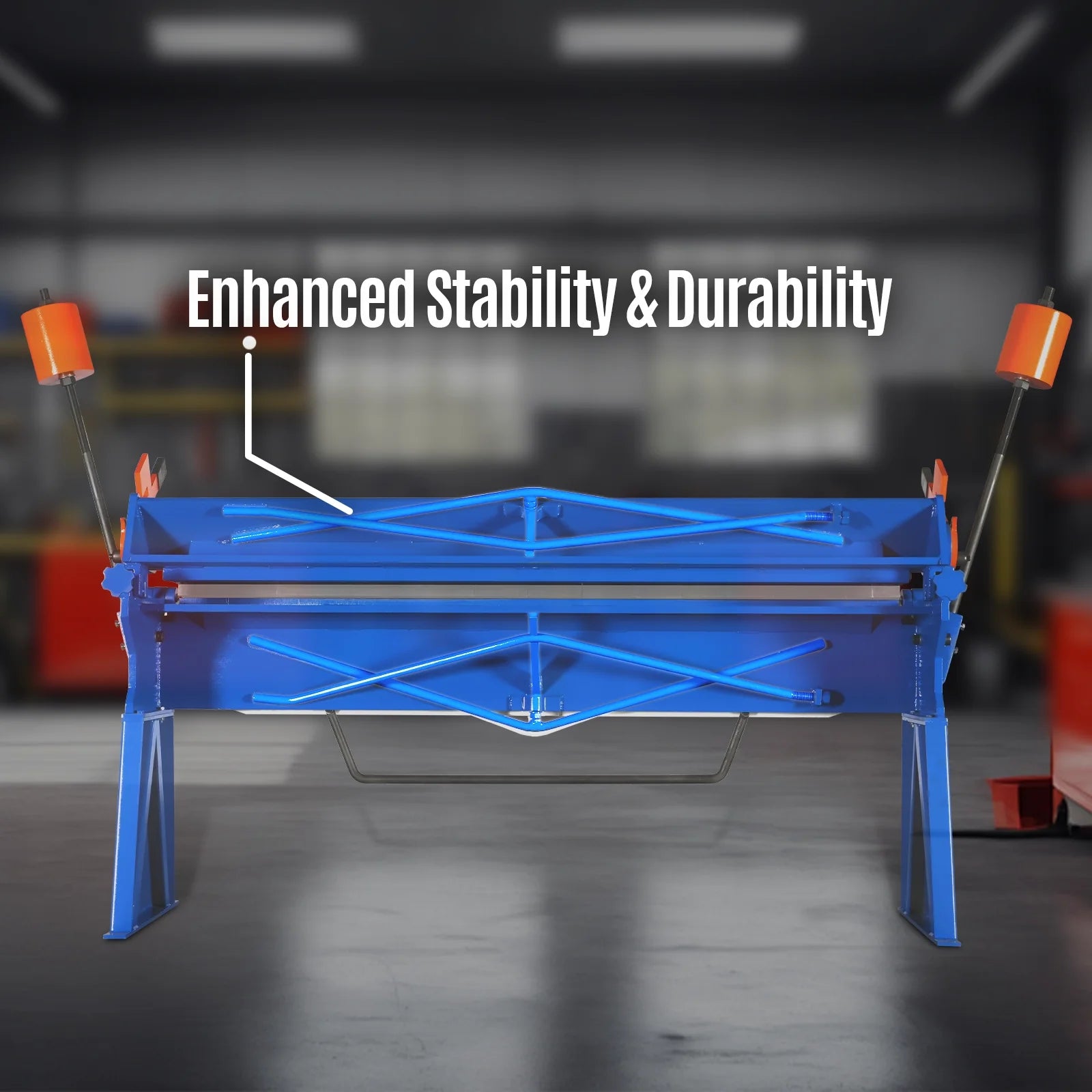

| Beam Type | Box Beam with Reinforced Ribs |
| Packaging Dimensions | 100" x 30" x 40" (2540 mm x 760 mm x 1016 mm) |
| Shipping Weight | Approx. 2,631 lbs (1036 kg) |
