- Low-friction coating provides more control
- Helical cutterhead with 42 two-sided carbide inserts
- 12" x 84" precision-ground cast iron table
- Rack and pinion adjustable fence
Description

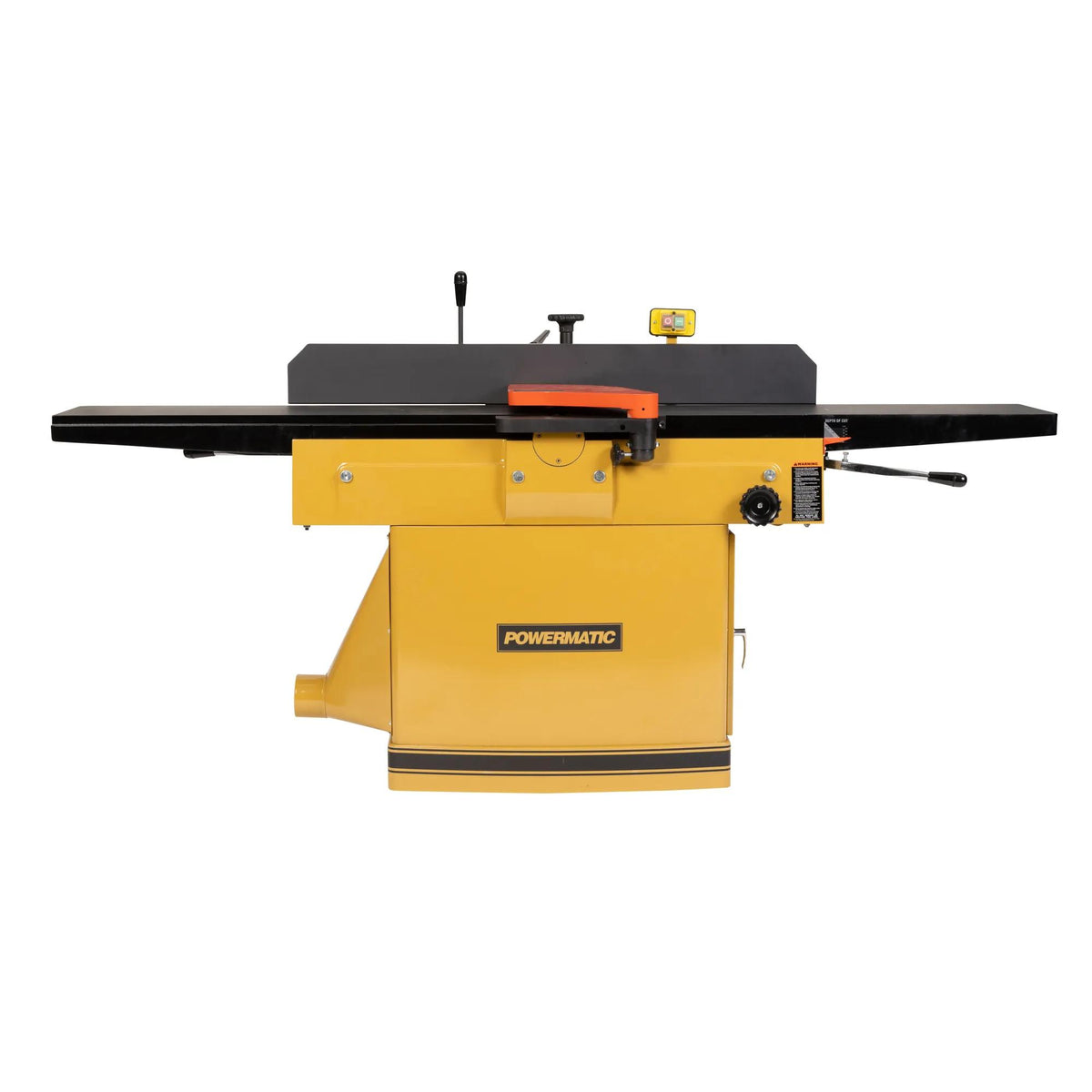

The Powermatic 1285T ArmorGlide 12-inch parallelogram jointer configured for 230/460V three-phase power offers flexibility and precision for professional production shops. Featuring ArmorGlide Technology, the jointer’s tables provide long-lasting protection against rust while reducing friction for smoother feeding. The 3 HP motor delivers steady power to the helical cutterhead, which uses carbide inserts arranged in a spiral pattern to produce a refined finish with less vibration and noise. Its parallelogram table system allows fast depth adjustments while keeping the tables perfectly aligned with the cutterhead over time. The center-mounted fence adjusts smoothly via rack-and-pinion control and includes preset stops for common angles. Built for durability and accuracy, this jointer is well suited for demanding woodworking operations.
Features
- ArmorGlide-coated cast iron tables reduce friction and resist corrosion, allowing smoother stock movement and reduced upkeep in demanding shop environments
- Three-phase 3 HP motor delivers consistent power across heavy jointing loads for reliable performance in production applications
- Helical cutterhead uses 42 two-sided carbide inserts to deliver quieter cuts, reduced tear-out, and fast edge rotation without knife adjustments
- Parallelogram table system keeps tables precisely aligned to the cutterhead while enabling quick and accurate depth-of-cut changes
- Large 12-inch by 84-inch precision-ground cast iron table supports long stock with improved stability and jointing accuracy
- Center-mounted cast iron fence adjusts smoothly through a rack-and-pinion mechanism for controlled positioning and repeatable setups
- Fence preset stops allow fast, repeatable positioning at common angles including 45 degrees and a positive 90-degree stop
- Heavy-duty cast iron construction minimizes vibration for smoother operation and more consistent surface results
- Cast iron table lips positioned near the cutterhead help dampen operating noise during cutting passes
- Designed for controlled cutting depths up to 1/8 inch for jointing and up to 1/2 inch when rabbeting
Specifications
| SKU | PM1-1791308T |
|---|---|
| Coating | ArmorGlide Technology |
| Cutterhead Speed (RPM) | 5000 |
| Cutting Capacity Width | 11.75 in. |
| Dust Port Outside Diameter (in.) | 4 in. |
| Fence Size | 47-1/4 x 5-1/4 in. |
| Gross Weight | 880 |
| Input Power | 230V Three Phase |
| Model Number | 1285HHT |
| Motor HP | 3 |
| Net weight | 812 |
| Number of Knives | 44 |
| Old Material Number | 1791308T |
| Prewired Voltage | 230 |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height | 31-5/8 |
| Type of Cutterhead | Helical Head |
| UPC | 019907108085 |
| Warranty | 5 Year |
