- Low-friction coating provides more control
- Cutterhead with 58 two-sided knife inserts
- 16" x 96" precision-ground cast iron table
- Cut rabbets up to 3/4" deep
Description

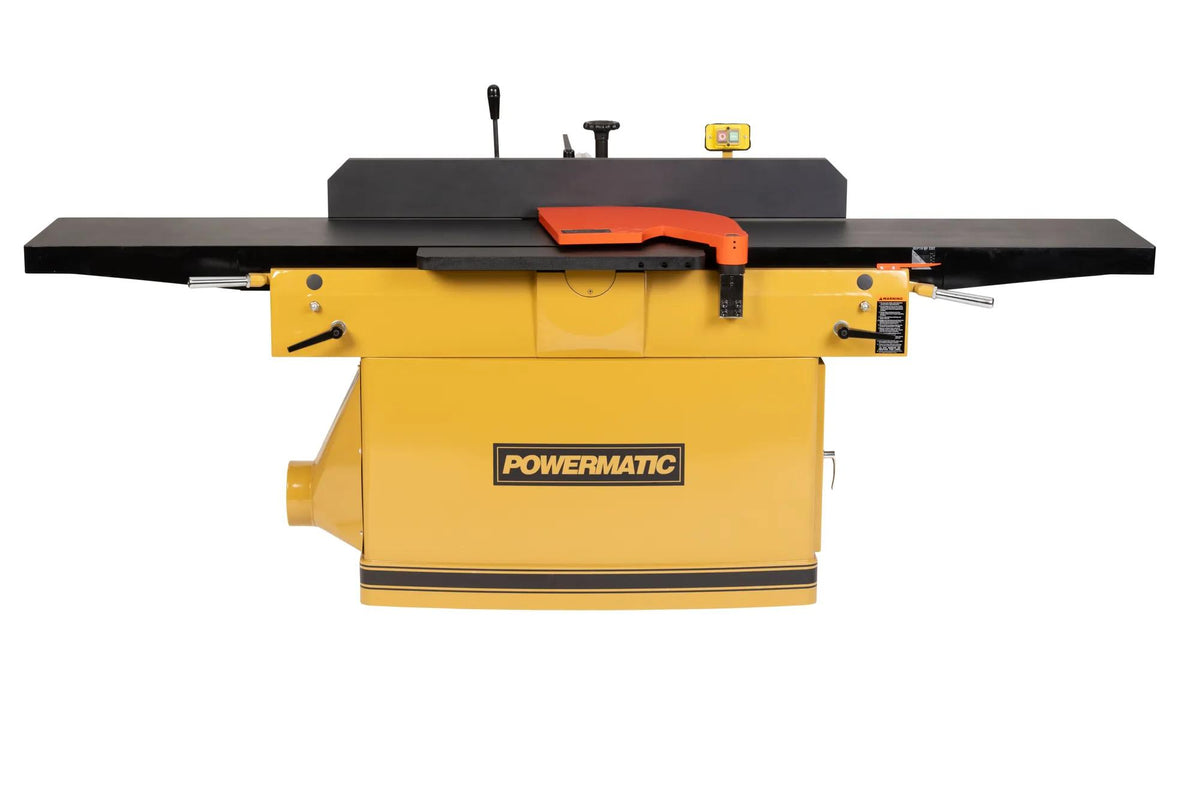

The Powermatic PJ1696T ArmorGlide 16-inch parallelogram jointer configured for 230/460V three-phase power combines high-output cutting performance with enhanced table protection. ArmorGlide Technology creates a smooth, corrosion-resistant surface that helps material glide effortlessly across the tables, even in humid shop conditions. A 7.5 HP motor drives the solid steel helical cutterhead, which uses six rows of precision-ground carbide inserts to deliver consistent finish quality and simplified maintenance. The parallelogram table system allows rapid depth-of-cut changes while ensuring the tables remain parallel to the cutterhead throughout years of use. The center-mounted fence adjusts easily through a rack-and-pinion mechanism with a secure locking system and includes preset stops for common jointing angles. Designed for demanding production environments, this jointer delivers accuracy, durability, and long-term reliability.
Features
- ArmorGlide low-friction table coating resists rust and improves stock flow, helping maintain smooth feeding and consistent results in demanding shop conditions
- 7.5 HP three-phase motor delivers continuous cutting power for jointing wide hardwood stock in high-output production environments
- Helical cutterhead with 58 two-sided carbide inserts produces a cleaner surface with reduced noise and faster knife indexing than straight knife systems
- Large 16" x 96" precision-ground cast iron tables provide stable support for long boards and improved accuracy during edge and face jointing
- Parallelogram table system keeps tables aligned with the cutterhead while allowing quick, accurate depth-of-cut adjustments
- Rack-and-pinion cast iron fence adjusts smoothly and includes positive bevel stops at 45 and 90 degrees for repeatable jointing setups
- Full-size rabbeting table supports large workpieces and allows rabbets up to 3/4 inch deep without repositioning material
Specifications
| SKU | PM1-1791283T |
|---|---|
| Coating | ArmorGlide Technology |
| Cutterhead Diameter | 4 in. |
| Cutterhead Speed (RPM) | 5200 |
| Cutting Capacity Width | 16 in. |
| Dust Port Outside Diameter (in.) | 6 in. |
| Fence Size | 47-1/4 x 5-1/4 in. |
| Gross Weight | 1400 |
| Input Power | 230V Three Phase |
| Model Number | PJ1696T |
| Motor HP | 7.5 |
| Net weight | 1280 |
| Number of Knives | 58 |
| Old Material Number | 1791283T |
| Prewired Voltage | 230 |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height | 37-1/2 |
| Type of Cutterhead | Helical Head |
| UPC | 019907108054 |
| Warranty | 5 Year |
