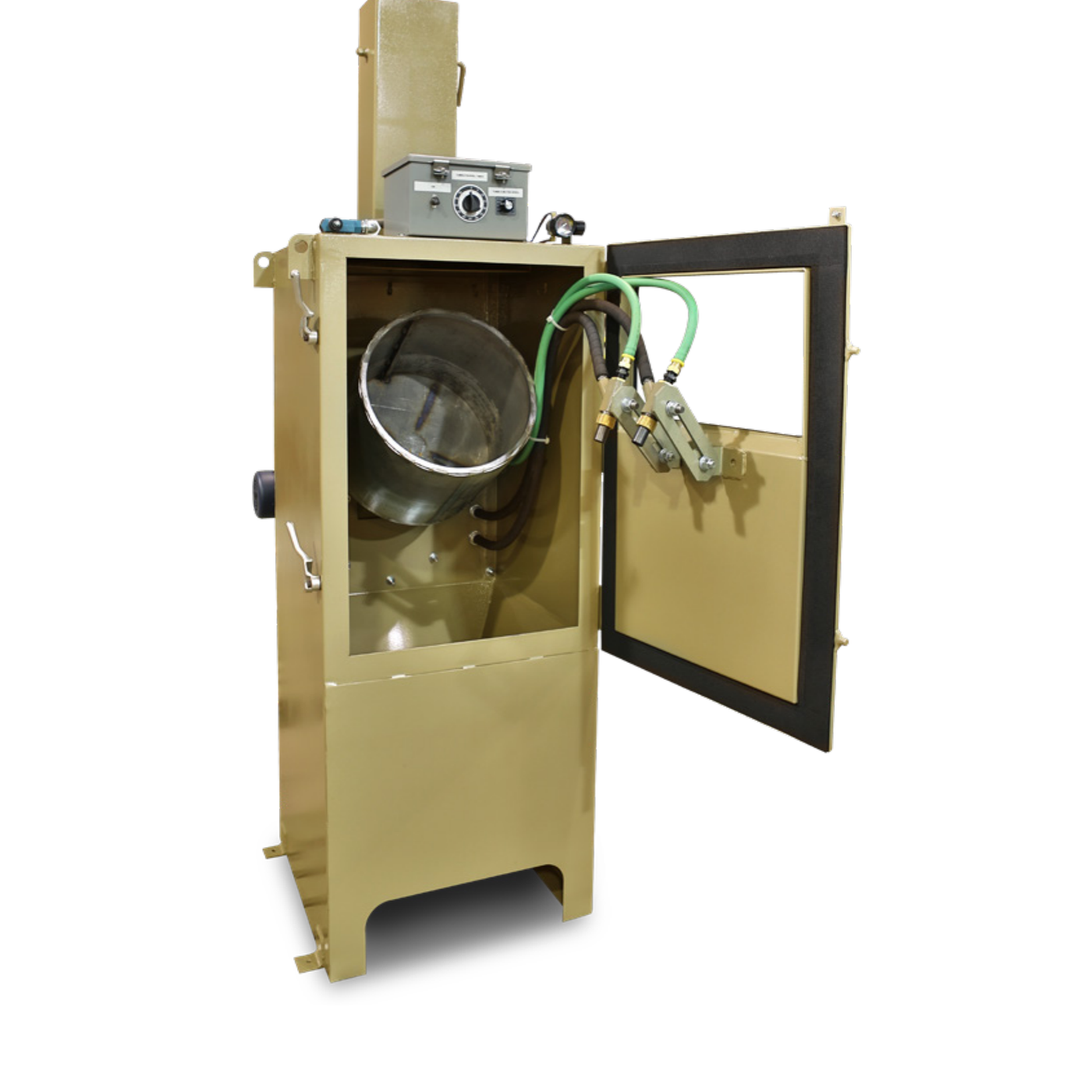

Blast batches of parts up to 35 pounds in a high-production suction cabinet that gives consistent coverage and switches between media easily. The detached 300-cfm power module — reclaimer and reverse-pulse dust collector in one — pairs with a compact cabinet footprint, so the two pieces can be arranged to fit a tight work area rather than dictating the layout.
Why a tumble basket instead of a hand cabinet
The front-facing basket opening is the detail that separates this machine from a plain rotating drum. Parts cascade forward instead of being carried up and dropped, which cuts part-on-part impingement — the difference between a clean finish and dinged edges on anything soft or finished.
Features
- 4-gallon chamber, 35 lb batch capacity
- Front-facing basket opening produces a cascading tumble that reduces part-on-part impingement
- Two #5 BNP automatic blast guns for faster, more even coverage
- Detached 300 cfm power module with reclaimer and reverse-pulse dust collector — site it where you have room
- Changes between media types quickly
- 14-gauge steel construction
- Runs on ordinary 115V single-phase shop power
Common applications
- Remove residual sand from metal castings
- Beautify steel, stainless steel, aluminum, brass and other metals with a uniform matte finish
- Remove burrs, parting lines, flashings and other defects from castings and injection-molded parts
- Shot peen springs, journals, bearings, valve stems and tools to enhance strength and reliability
- Clean mold release and material buildup from molds
Specifications
| Cabinet dimensions | 28" W x 41" D x 73" H |
| Door size | 20" W x 30.875" H |
| Chamber capacity | 4 gallons |
| Chamber dimensions | 13" long x 16" diameter |
| Basket load limit | 35 lbs |
| Tumble drive motor | 1/4 hp |
| Blast gun | 2 — #5 BNP guns |
| Air consumption | 64 cfm @ 80 psi |
| Minimum air supply | 1 in. NPT |
| Reclaimer | 300 cfm |
| Dust collector | 300 cfm reverse-pulse |
| Electrical | 115V / 1 ph / 60 Hz |
| Full load amperage | 9.5 |
Specifications, electrical requirements and air consumption vary with options, configuration and production requirements.
Sizing help
This is the largest of the ZERO tumble baskets. Above 35 lbs a batch the line moves to tumble barrels — the BNP 162 at 100 lbs, the BNP 164 at 200 lbs and the BNP 166 at 300 lbs. Call 888-714-1410 with your part, your batch size and the finish you are after and we will confirm the right machine and media before you order.
