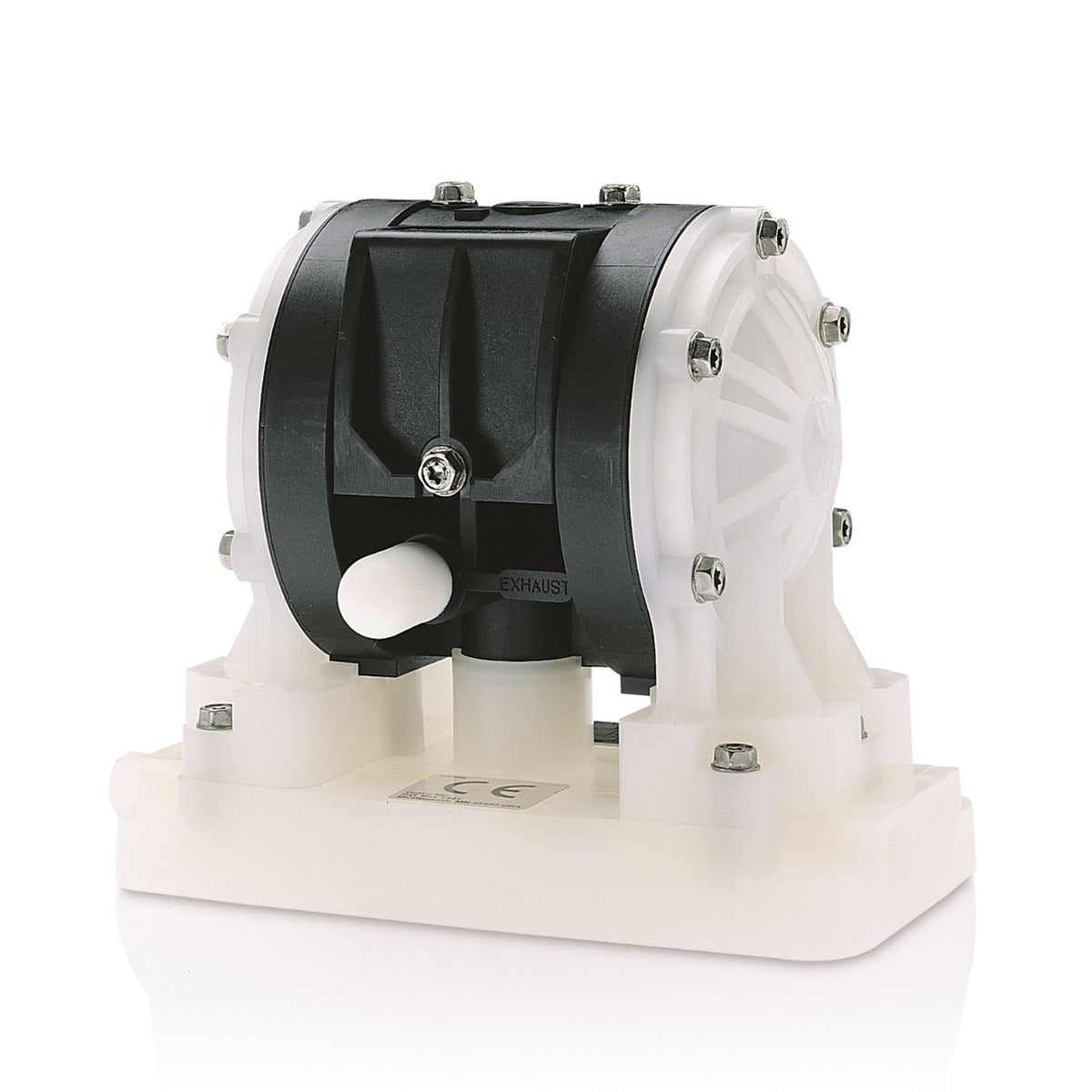

Husky 205 PP Pump, Remote PP Center Section, PP Balls & SP Diaphragm
Specifications
| Air Exhaust Port Size (in) | 1/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT, BSPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT, BSPT |
| Application | Industrial |
| Ball Material | Santoprene |
| Center Section Material | Polypropylene |
| Compressor Required | Yes |
| Diaphragm Compatible Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT, BSPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT, BSPT |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE Encapsulated Fluoroelastomer |
| Material | Polypropylene |
| Maximum Air Consumption (SCFM) | 9 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 250 |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (in) | 0.06 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Polypropylene |
| Standards Met | CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 2 |
| Fluid Inlet Size (mm) | 6.35 |
| Fluid Outlet Size (mm) | 6.35 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Flow Rate (L/min) | 18.9 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Solid Size (cm) | 0.15 |
| Maximum Solid Size (mm) | 1.5 |
