| TYPE | Pneumatic Diaphragm Pump |
|---|---|
| AIR EXHAUST PORT SIZE (IN) | 3/8 |
| AIR EXHAUST PORT THREAD GENDER | Female |
| AIR EXHAUST PORT THREAD TYPE | NPT |
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET THREAD GENDER | Female |
| AIR INLET THREAD TYPE | NPT |
| APPLICATION | Industrial |
| BALL MATERIAL | PTFE |
| CENTER SECTION MATERIAL | Polypropylene |
| COMPATIBLE MATERIAL | Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink |
| DIAPHRAGM MATERIAL | PTFE Overmold |
| FLUID INLET SIZE (CM) | 1.27 |
| FLUID INLET SIZE (IN) | 1/2 |
| FLUID INLET SIZE (MM) | 12.7 |
| FLUID INLET THREAD GENDER | Female |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 1.27 |
| FLUID OUTLET SIZE (IN) | 1/2 |
| FLUID OUTLET SIZE (MM) | 12.7 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| FLUID SECTION MATERIAL | Polypropylene |
| MANIFOLD CONFIGURATION | Center Port |
| MANIFOLD O-RING MATERIAL | PTFE |
| MATERIAL | Polypropylene |
| MAXIMUM AIR CONSUMPTION (SCFM) | 28 |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (KPA) | 700 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM CYCLE RATE (CPM) | 400 |
| MAXIMUM FLOW RATE (GPM) | 15 |
| MAXIMUM FLOW RATE (L/MIN) | 56.8 |
| MAXIMUM FLUID PRESSURE (BAR) | 7 |
| MAXIMUM FLUID PRESSURE (KPA) | 700 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 66 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 150 |
| MAXIMUM SOLID SIZE (CM) | 0.2383 |
| MAXIMUM SOLID SIZE (IN) | 0.09375 |
| MAXIMUM SOLID SIZE (MM) | 2.383 |
| MINIMUM OPERATING TEMPERATURE (°C) | 4 |
| MINIMUM OPERATING TEMPERATURE (°F) | 40 |
| MODEL | Husky |
| OVERALL HEIGHT (IN) | 10.63 |
| POWER SOURCE | Air |
| SEAT MATERIAL | Polypropylene |
| SERIES | 515 |
| STANDARDS MET | ATEX, CE |
| WEIGHT (LB) | 6.5 |
| MAXIMUM FLUID PRESSURE (MPA) | 0.7 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| CONNECTION TYPE | Threaded |
| DIAPHRAGM_COMPATIBLE_MATERIAL | PTFE |
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.

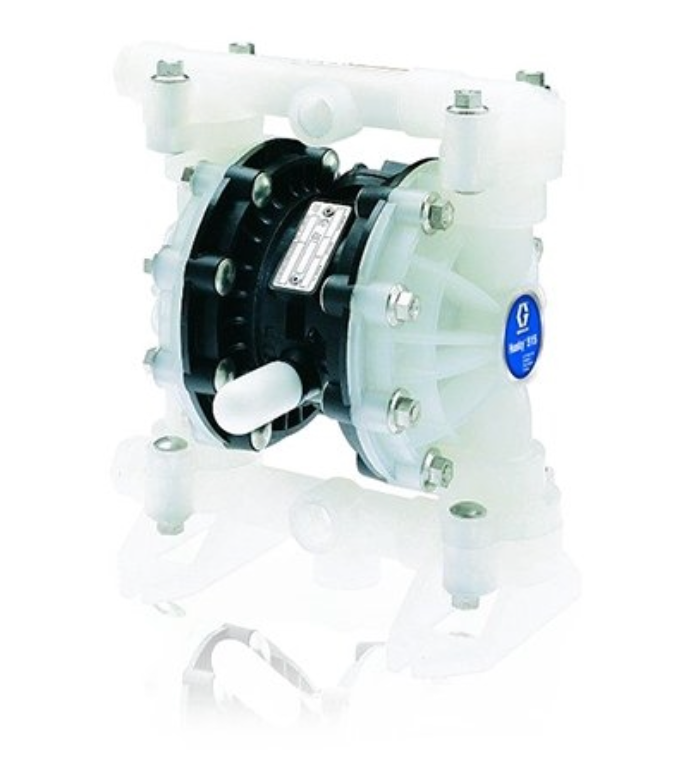

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
