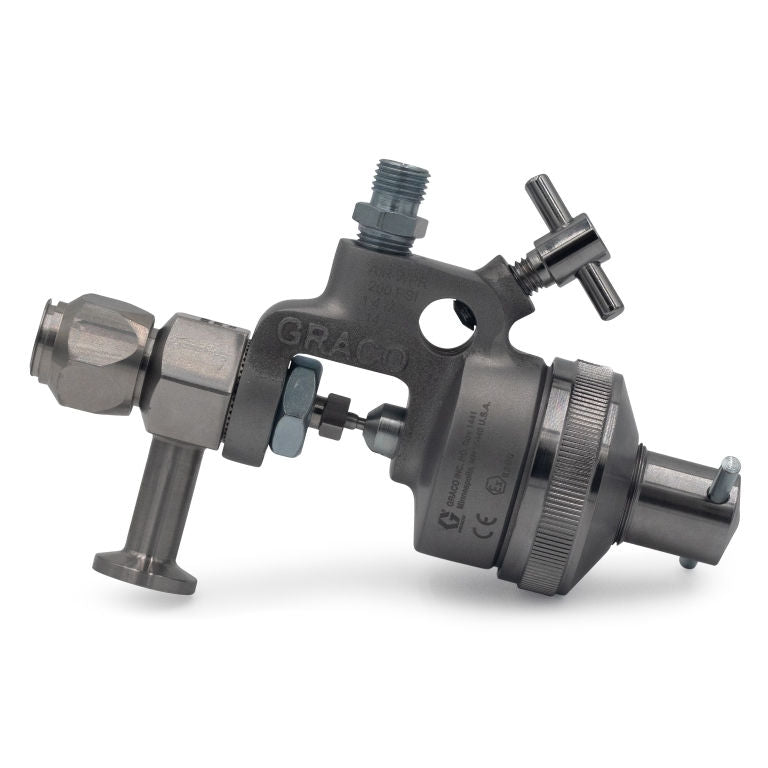

SaniForce In-Line Spray Applicator
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Sanitary |
| Body Material | Stainless Steel |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.5 |
| Fluid Inlet Thread Type | Sanitary Flange |
| Gun Weight (lb) | 1.78 |
| Gun Weight (oz) | 28.5 |
| Includes | Gun only - spray tip sold separately |
| Maximum Air Inlet Pressure (MPa) | 4.1 |
| Maximum Air Pressure (MPa) | 1.4 |
| Maximum Air Pressure (psi) | 200 |
| Maximum Fluid Pressure (MPa) | 4.1 |
| Maximum Fluid Pressure (psi) | 600 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (psi) | 600 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Model | SaniForce |
| Overall Height (in) | 7.24 |
| Pattern Size (in) | Varied |
| Sound Pressure Level (dB(A)) | 79.5 |
| Type | Spray Accessory Kit |
| Air Inlet Size (cm) | 0.64 |
| Air Inlet Size (mm) | 64 |
| Fluid Inlet Size (cm) | 1.27 |
| Fluid Inlet Size (mm) | 12.7 |
| Gun Weight (kg) | 0.81 |
| Maximum Air Pressure (bar) | 14 |
| Maximum Fluid Pressure (bar) | 41 |
| Maximum Fluid Temperature (°C) | 49 |
| Minimum Air Inlet Pressure (bar) | 3.4 |
| Minimum Air Inlet Pressure (kPa) | 345 |
| Overall Height (cm) | 18.4 |
| Overall Height (mm) | 184 |
| Pattern Size (mm) | Varied |
