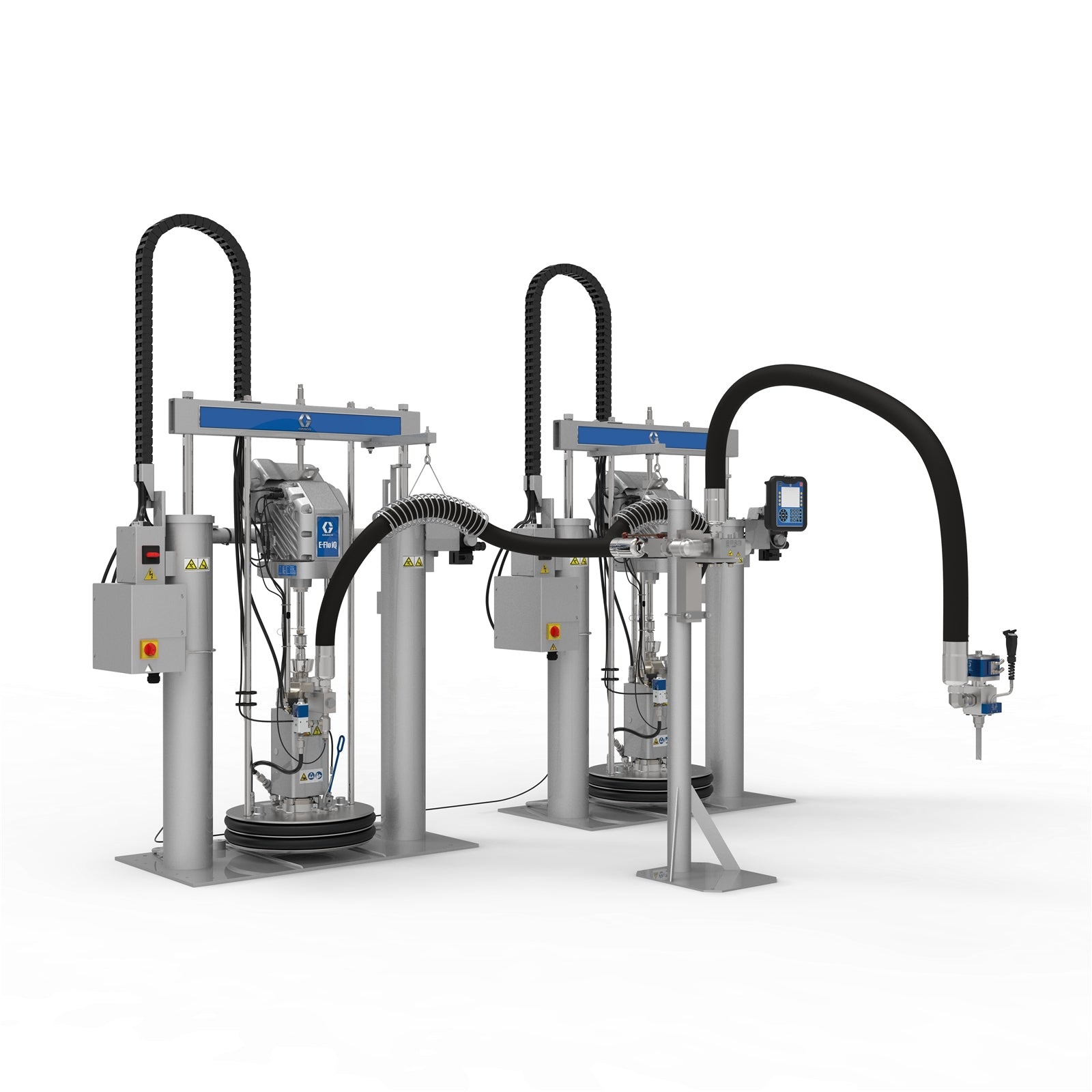

The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.
Features
- Delivers consistent control and accurate performance
- Quiet electric servo-driven motor for lower sound levels
- Provides continuous dispensing without the need to reload
- Check-Mate Severe Duty lower for long life and reliable material movement
- Graco heated hoses are insulated for an accurate and uniform material temperature.
- Equipped with a total of 40 ft of hose (two 10 ft hoses for pumps to manifold and one 20 ft hose from manifold to valve)
- Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
- Delivers reliable and consistent beads in high flow applications
- Compact and lightweight design allows for lower payload
- Rotating valve prevents twining and reduces wear
- Remote mounted solenoid
- The communication gateway module (CGM) has integrated mapping of all of the programming data.
- Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS.
Specifications
| UPC Product | 769946182736 |
| Country of Origin | US |
| Height | 80 IN | 203.200 CM |
| Length | 200 IN | 508.000 CM |
| Width | 43 IN | 109.220 CM |
| Shipping Weight | 2691 LBS | 1220.617 KG |
| Maximum Working Pressure (psi) | 4000 |
| Minimum Flow Rate (cc/min) | 10 |
| Minimum Fluid Viscosity (cP) | 100000 |
| Power Rating (HP) | 2.5 hp |
| Sound Pressure Level (dB(A)) | < 70 |
| Air Inlet Size (in) | 1 |
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (cc/min) | 5000 |
| Maximum Fluid Temperature (°F) | 158 |
| Maximum Fluid Viscosity (cP) | 3000000 |
| Maximum Hose Length (ft) | 30 |
