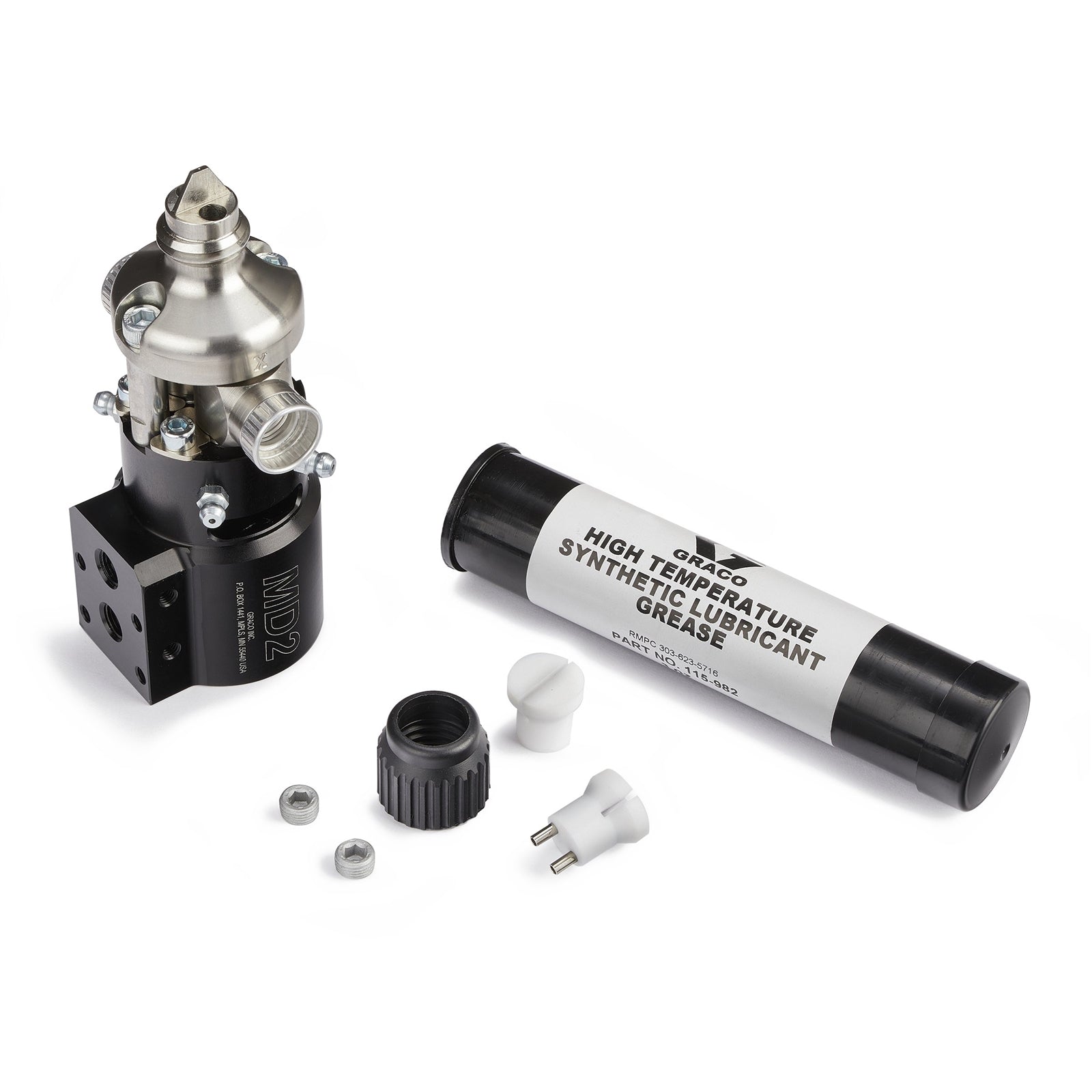

Mixing dispense (MD) valve for 2 component materials minimizes maintenance while maximizing production.
Static valve with Elite construction reliably dispenses highly abrasive thermal interface materials (TIMs), silicones, urethanes, and epoxies.
Features
- 1:1 ratio nose handles a wide range of material.
- Hard seats with Elite construction withstand highly abrasive material at least 10 times longer than standard construction. (Data verified in Graco test environment.)
- Stroke adjustment knob can adjust the distance the dispense valve will open. This restricts the flow of material through the tip and seat.
- Modular design adapts to different installation needs.
- No unique tools are required for maintenance or repair.
- MD2 valve handles cannot be used with this particular valve.
- No unique tools required
Specifications
| Compatible Material | Sealants, Adhesives |
| Includes | Dispense Valve, 1:1 Ratio Night Cap, 1:1 Ratio Check Adapter, ASM Aid Tool |
| Maximum Working Pressure (psi) | 3000 |
| Model | MD2 |
| Type | Metering Valve |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (kg/cm²) | 210.9 |
