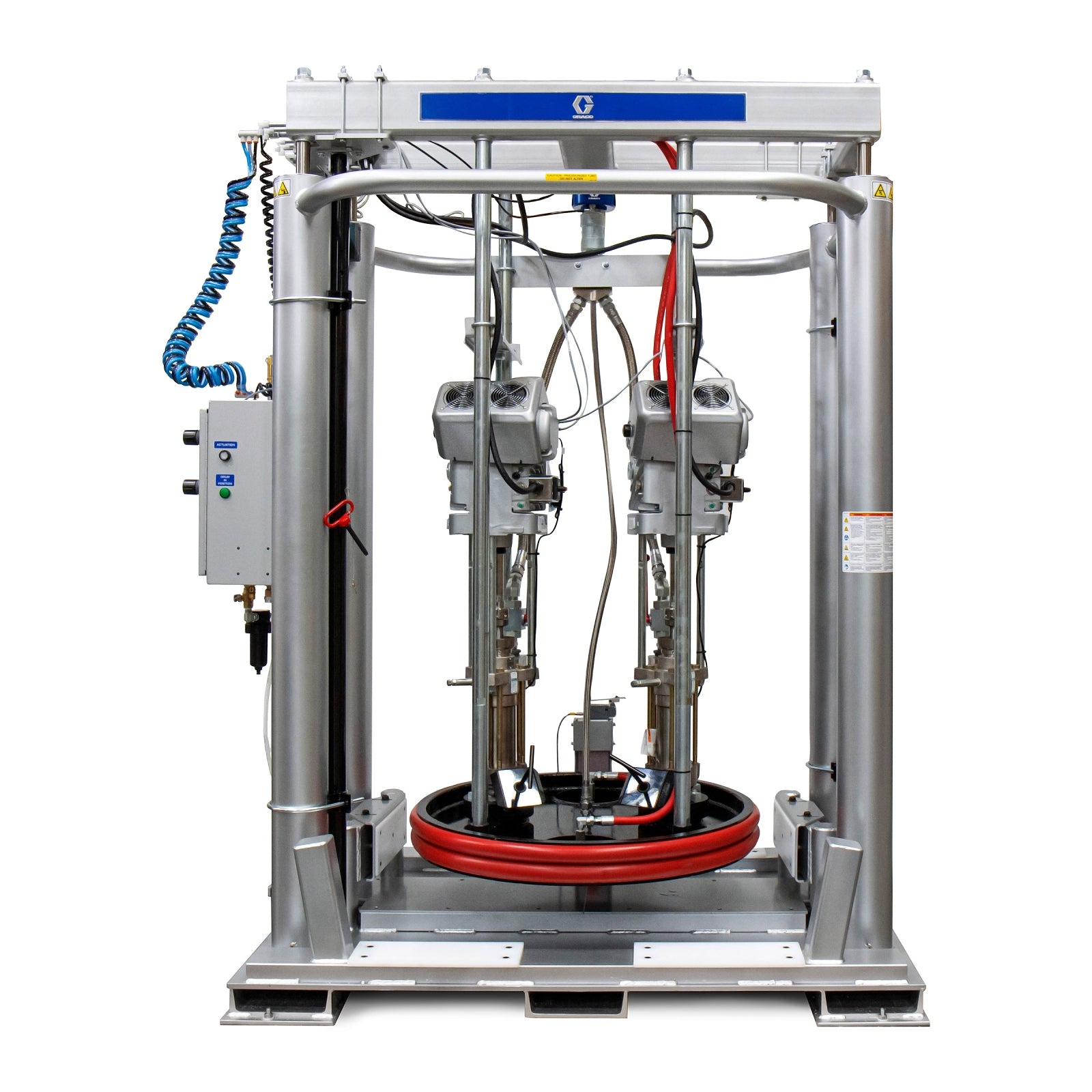

Electric bulk unloader efficiently evacuates 300 gallon (1200 liter) magna drums or tote drums, supplying one-component, medium to high viscosity sealants and adhesives to industrial and automotive applications.
Bulk supply system works well when spraying underbody material and applying sealing beads to car and truck bodies.
Features
- E-Flo SP electric supply pump is powered by an electric driver that provides real-time, integrated, closed-loop flow control.
- Since the electric motor operates much more quietly than pneumatic or air-operated motors, the supply can be placed closer to the point of application. This requires less pressure for accurate and consistent meter and dispense.
- MaxLife coating extends equipment life when moving highly abrasive materials, including liquid applied sound deadeners (LASDs).
- The electric bulk drum unloader can be set up to automatically alternate between left handed and right handed supply units. The dual supply (controlled by factory PLC) virtually eliminates downtime to refill material.
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Spray, Fluid Transfer, Unloading |
| Configuration | Left |
| Container Type | Magna Drum |
| Control Options | Elec/Pneumatic |
| Material Container Volume | 300 Gallons |
| Material Container Volume (gal) | 300 |
| Maximum Air Inlet Pressure (psi) | 95 |
| Maximum Flow Rate (GPM) | 2.8 |
| Maximum Fluid Pressure (MPa) | 13.1 |
| Maximum Fluid Pressure (psi) | 1900 |
| Maximum Height (ft) | 11.75 |
| Maximum Height (in) | 141 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 13.1 |
| Maximum Working Pressure (psi) | 1900 |
| Minimum Height (ft) | 7.1 |
| Minimum Height (in) | 85.2 |
| Model | UniDrum |
| Number of Wipers | 2 |
| Overall Depth (in) | 51 |
| Overall Width (in) | 69 |
| Power Type | Electric |
| Pump Ratio | 19:1 |
| Pump Type | Double Ball |
| Type | Supply Unit |
| Voltage (V) | 480 |
| Weight (lb) | 3950 |
| Wetted Material | 17-ph Stainless Steel, Ductile Iron, Carbon Steel, Acetal, Zinc, PTFE, Leather, Silicon Nitride, Chrome, Tungsten Carbide, UHMWPE, 440 Stainless Steel, Electroless Nickel Plated |
| Material Container Volume (l) | 1135 |
| Maximum Air Inlet Pressure (bar) | 6.55 |
| Maximum Air Inlet Pressure (kg/cm²) | 6.68 |
| Maximum Flow Rate (L/min) | 10.8 |
| Maximum Fluid Pressure (bar) | 131 |
| Maximum Fluid Pressure (kPa) | 131000 |
| Maximum Height (cm) | 358.1 |
| Maximum Height (m) | 3.58 |
| Maximum Height (mm) | 3581 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (bar) | 131 |
| Maximum Working Pressure (kPa) | 131000 |
| Minimum Ambient Temperature (°C) | 1 |
| Minimum Height (cm) | 216.4 |
| Minimum Height (m) | 2.16 |
| Minimum Height (mm) | 2164 |
| Overall Depth (cm) | 129.5 |
| Overall Depth (mm) | 1295 |
| Overall Width (cm) | 175.3 |
| Overall Width (mm) | 1753 |
| Weight (kg) | 1792 |
