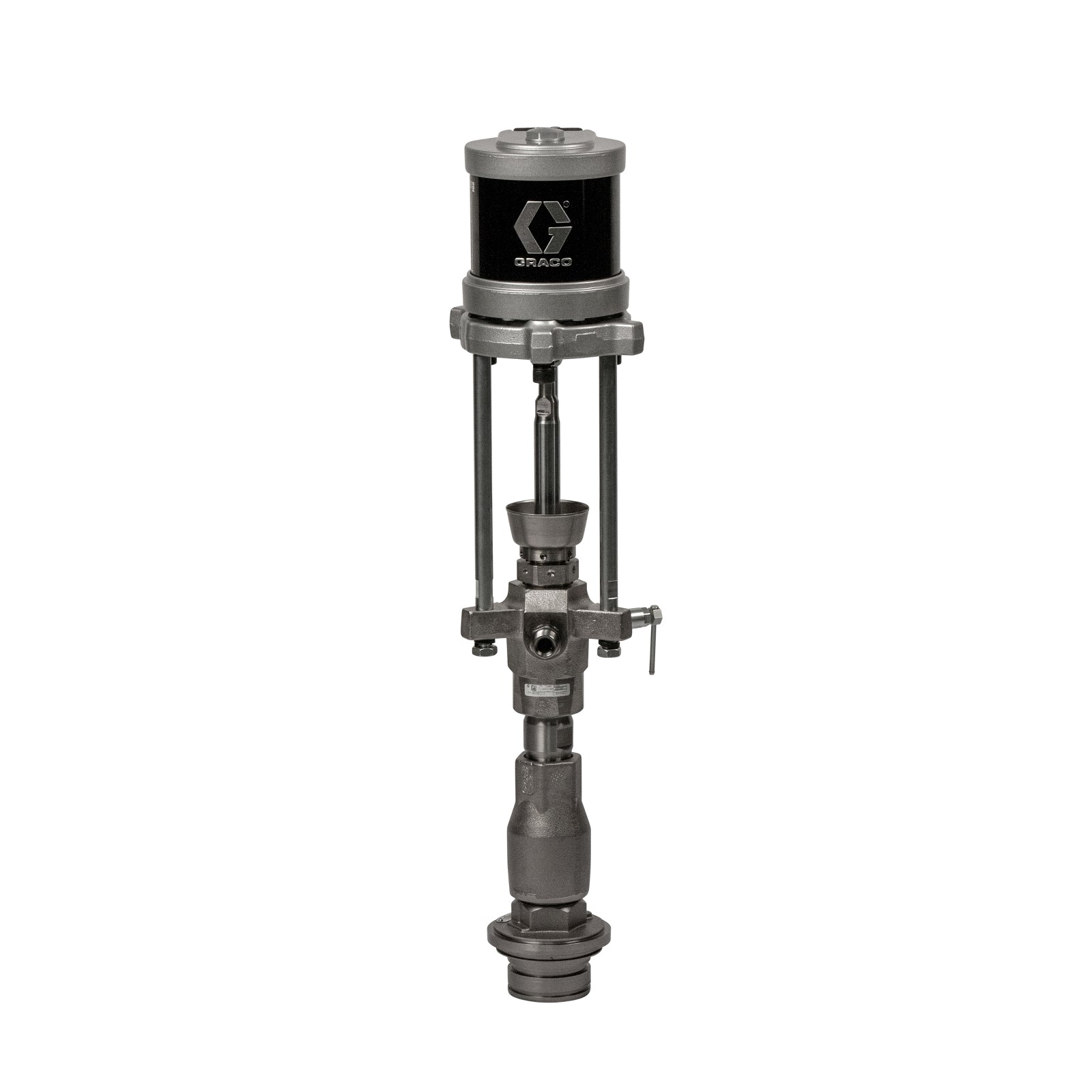

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.
Features
- NXT 700 Air Motor Low NoiseModular design for easier maintenanceHighest technology air motor on the market
- Low Noise
- Modular design for easier maintenance
- Highest technology air motor on the market
- 60cc Check-Mate Lower Severe Duty coatings on rods and cylinder Extends production time
- Severe Duty coatings on rods and cylinder Extends production time
- Xtreme Coupler - No tool connection Quick-disconnect coupler for easy maintenance
- Quick-disconnect coupler for easy maintenance
- Replaceable 3/4"-14 NPT Male Outlet Fitting Reduces repair costs
- Reduces repair costs
- Replaceable Seat Minimizes service costs
- Minimizes service costs
- Cast Outlet and Inlet Housing Improves structural integrity
- Improves structural integrity
- NEW Xtreme® Coupler Quick-disconnect coupler for easy maintenance
- Quick-disconnect coupler for easy maintenance
- Replaceable Outlet Fitting Reduces repair costs
- Reduces repair costs
- Piston Valve with Floating Piston Seal For maximum pressure balance over a range of material viscosities
- For maximum pressure balance over a range of material viscosities
- Replaceable Seat Minimizes service costs
- Minimizes service costs
Specifications
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Adhesive, Sealant |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 180 |
| Model | Check-Mate |
| Overall Depth (in) | 14 |
| Overall Width (in) | 14 |
| Pump Ratio | 14:1 |
| Type | Piston Pump Package |
| Weight (lb) | 152 |
| Wetted Material | 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel, 440C Stainless Steel, Zinc & Electroless Nickle Plated, Electroless Nickel Plated Ductile Iron, Nitrile Rubber, PTFE, Polyurethane, Carbon Filled PTFE, Electroless Nickel Plating, Chrome Plating, UHMWPE, Ceramic, Tungsten Carbide |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Operating Temperature (°C) | 80 |
| Overall Depth (mm) | 355.6 |
| Overall Width (mm) | 355.6 |
| Weight (kg) | 69 |
