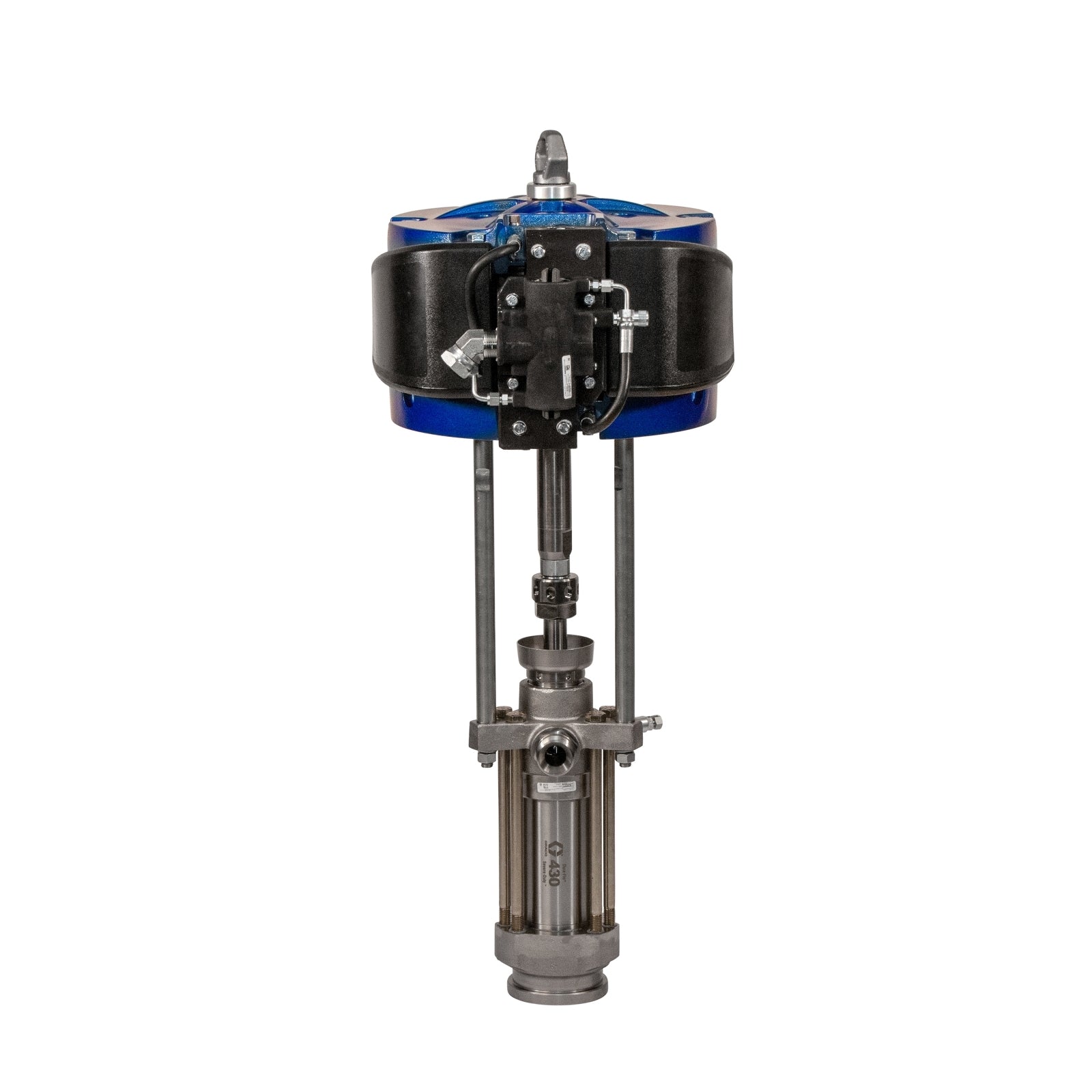

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.
Features
- XL 1000 Air Motor Low NoiseModular design for easier maintenanceRugged body armor won't rust or dentHighest technology air motor on the market
- Low Noise
- Modular design for easier maintenance
- Rugged body armor won't rust or dent
- Highest technology air motor on the market
- 580cc Dura-Flo Lower MaxLife coatings on rods and cylinder maximizes wear life
- MaxLife coatings on rods and cylinder maximizes wear life
- Standard Threaded Coupler -
- Replaceable 1 1/2"-11 1/2 NPT Male Outlet Fitting Reduces repair costs
- Reduces repair costs
- Replaceable Seat Minimizes service costs
- Minimizes service costs
- Cast Outlet and Inlet Housing Improves structural integrity
- Improves structural integrity
- Optional DataTrak™ Control Runaway protectionPump diagnosticsMaterial usage
- Runaway protection
- Pump diagnostics
- Material usage
Specifications
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Compatible Material | CARC, High Solids, Metallics, Solventborne, Stain, Varnish, Xirallic |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Includes | Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench |
| Material | Stainless Steel |
| Maximum Working Pressure (psi) | 3500 |
| Model | Dura-Flo |
| Pump Ratio | 35:1 |
| Type | Piston Pump Package |
| Fluid Inlet Size (mm) | 50.8000 |
| Maximum Working Pressure (bar) | 241 |
