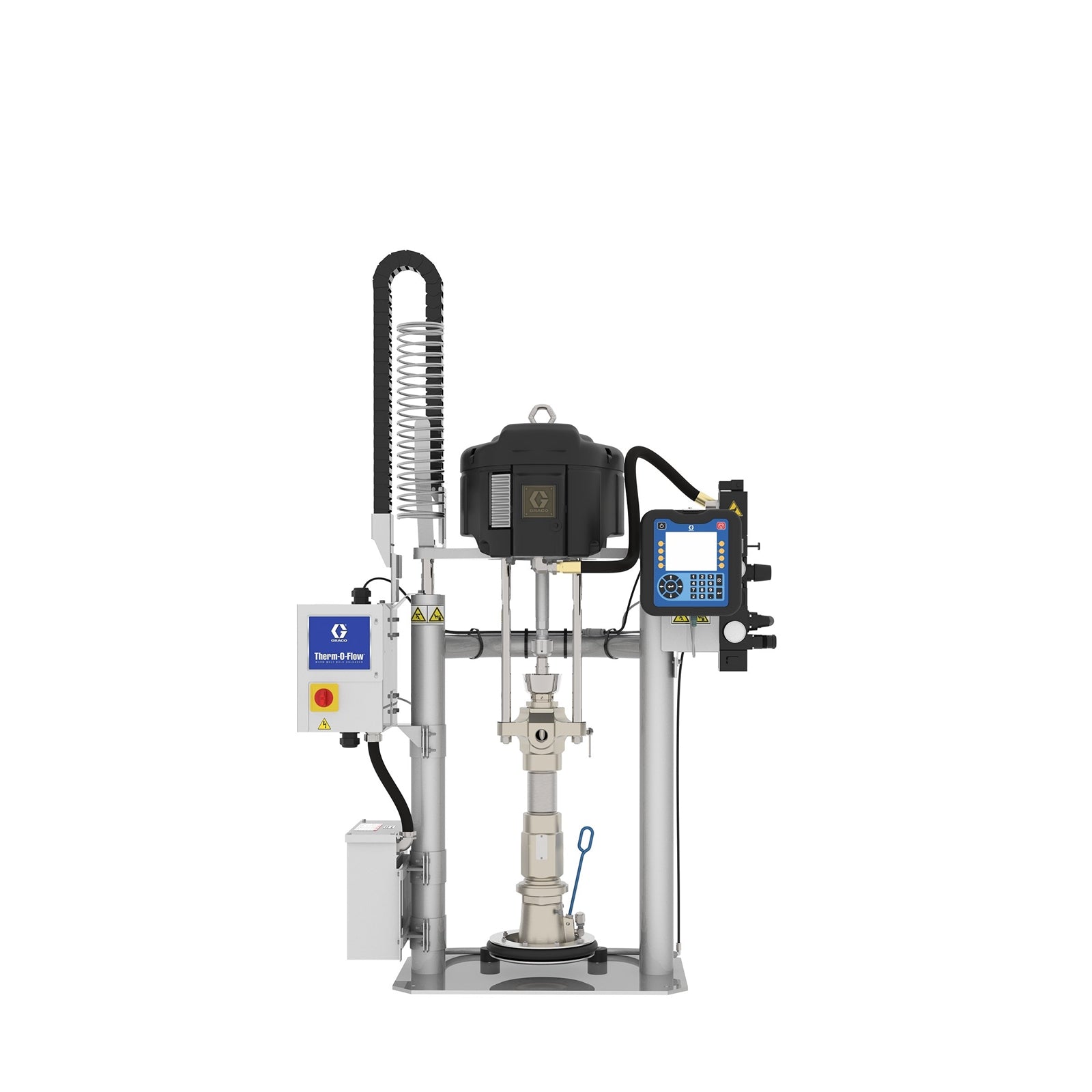

Designed with more heat zones, the Therm-O-Flow Bulk Warm Melt Supply Pumps deliver superior temperature control and application flexibility.
Features
- Designed specifically for sealants or adhesives applications that require a warm applied material for process controls up 158°F (70°C).
- With an heated pump and platen, you can heat up 3 heated hoses and 3 end of hose devices.
- Primary unit with ADM can be configured as a tandem system.
- Add one zone expansion kit to add 4 heated hoses and 4 end of hose devices or 8 heated accessories per TOFw pump
- Add a second heat zone expansion kit for up to 14 heated hoses and 14 heated end of hose devices on a tandem system for a total of 32 heated zones.
- Featuring the Graco Advanced Display Module — an easy-to-use HMI with graphic-based control screens.
- Complete integration possibilities through Ethernet/IP, PROFINET, PROFIBUS and DeviceNet or simple integration through discrete I/O.
Specifications
| UPC Product | 769946177800 |
| Country of Origin | US |
| Height | 73.5 IN |
| Length | 30 IN |
| Width | 54.9 IN |
| Shipping Weight | 559 LBS |
| Material Container Volume (gal) | 5 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Flow Rate (L/min) | 12 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (F) | 158 |
