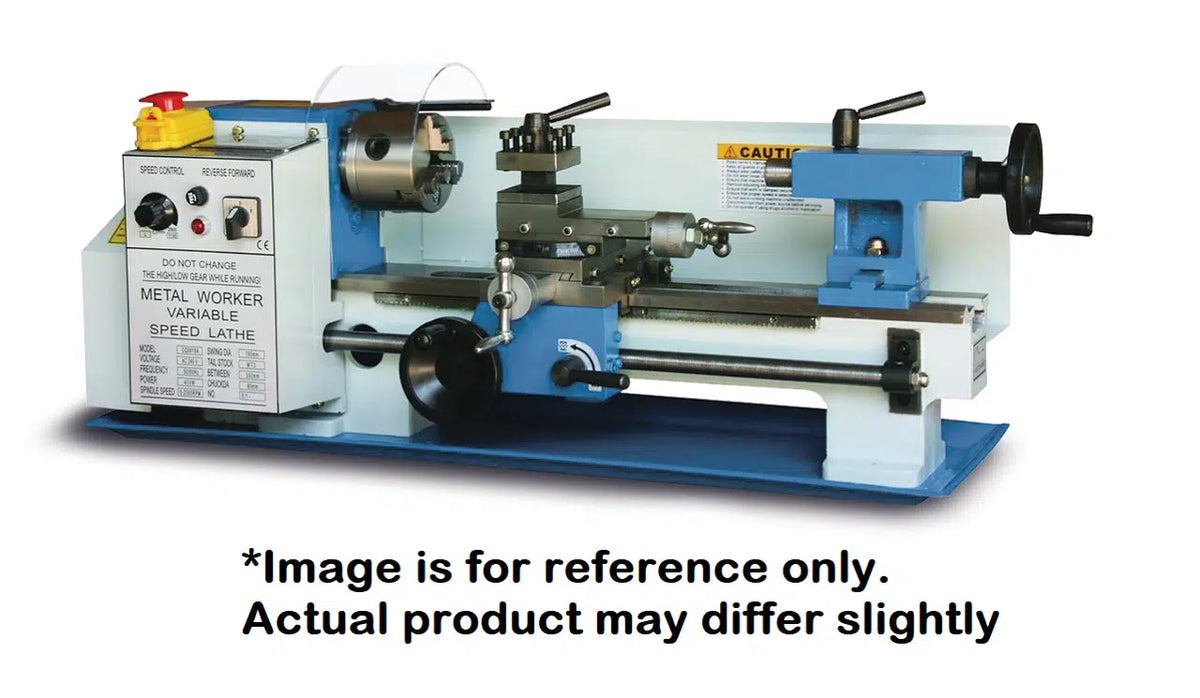

Baileigh Industrial - 110V Variable Speed Bench Top Lathe, 7" Swing, 14" Bed Length
Baileigh Industrial - 110V Variable Speed Bench Top Lathe, 7" Swing, 14" Bed Length
Baileigh Industrial - 110V Variable Speed Bench Top Lathe, 7" Swing, 14" Bed Length
Baileigh Industrial - 110V Variable Speed Bench Top Lathe, 7" Swing, 14" Bed Length

Baileigh Industrial - 110V Variable Speed Bench Top Lathe, 7" Swing, 14" Bed Length

Regular price
$1,759.00

See Lower Price in Cart

Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Description

This 14” bed variable-speed benchtop metal lathe is accurate to .001”—a level of quality typically associated with larger models. The PL-714VS is a compact and economical choice for home garage shops.

Features

  • Variable speed from 100 to 2,500 rpm.
  • Digital readout (DRO) shows spindle speed.
  • Runs on 110 volts, so it will work anywhere.
  • Capable of making metric or standard threads.
  • Includes 3-jaw and 4-jaw chucks to hold rounded and square materials.
  • Standard style tool post.
  • Steady rest and follow rest prevent wobbling and maintain high accuracy.
  • Splash guard helps keep your shop safe from flying debris.
  • Catch pan avoids mess when you spray coolant.

Specifications

 Item Number  PL-714VS-V2
 Chuck Diameter  4"
 Tool Slide Travel  1.378"
 Spindle Accuracy  .001"
 Range Of Metric Threads  0.5 - 2.5 mm
 Spindle Bore  .75"
 Range Of Inch Threads  12 - 52 T.P.I.
 Motor  3/4 hp
 Spindle Speed  100 - 2500 rpm
 Spindle Taper  MT 3
 Taper Of Tailstock Quill  MT 2
 Max. Swing Over Bed  7"
 Cross Slide Travel  2.559"
 Distance Between Centers  13.8"

 Power

 110V / 60Hz
 Shipping Weight  170lbs
 Shipping Dimensions (Inches)  48x31x20
