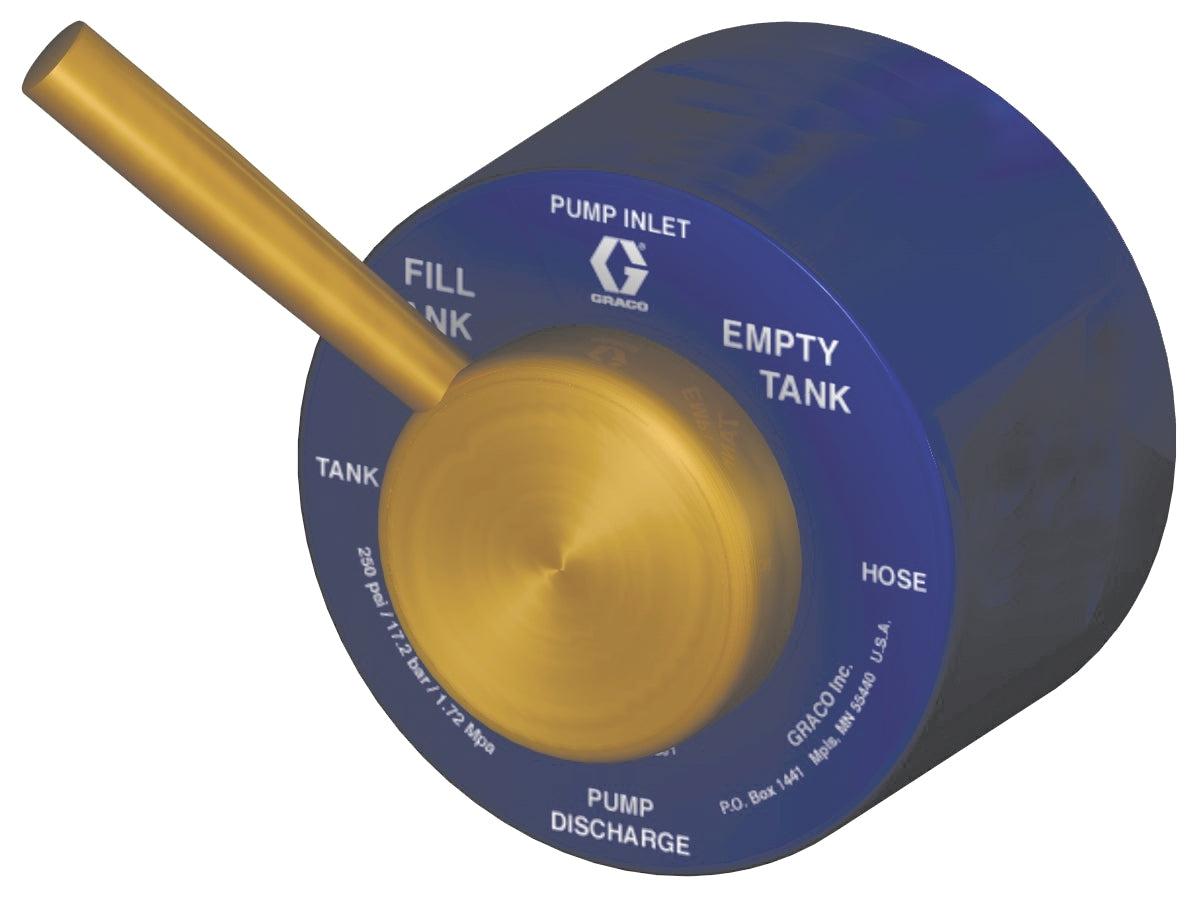

1 1/2 in. NPT (Female) 4-Way Evacuation Valve

1 1/2 in. NPT (Female) 4-Way Evacuation Valve

Regular price
$713.00
Sale price
$713.00
Quantity must be 1 or more


The 4-way evacuation valve is a directional control valve used to simplify the filling and emptying of tanks. Typical applications include filling and emptying waste containers on lube trucks and transferring fluids from bulk supply tanks to operational day tanks. Typical fluids handled include petroleum and synthetic-based oils, fuels, anti-freeze and windshield wash fluid.

  • Simplifies installation by eliminating need for multiple valves

  • Unrestricted flow - no pressure or volume loss

  • Two position tank fill and emptying control

  • Tapered, self-seating valve spool for superior sealing performance

  • Four (4) 5/16 inch threaded bolt holes for flush mount installation

UPC Product: 00633955033122
Family Code: FAMWRC
Unit of Measure: EA
Height: 5.45 IN   |  13.843 CM
Length: 5.1 IN   |  12.954 CM
Width: 5.1 IN   |  12.954 CM
Volume: .082 FT3   |  .002 M3
Chargeable Weight: 3.65 LBS  | 1.66 KG

Technical Specifications

Maximum Working Pressure (bar) 14
Maximum Working Pressure (kPa) 1400
Maximum Working Pressure (psi) 200
Overall Height (cm) 12.065
Overall Height (in) 4.75
Overall Height (mm) 120.65
Overall Width (cm) 12.065
Overall Width (in) 4.75
Overall Width (mm) 120.65
Thread Gender Female
Thread Size (in) 1-1/2
Thread Type NPT
Type Control Valve
Weight (lb) 3.5
Wetted Parts Aluminum, Fluoroelastomer
Maximum Working Pressure (MPa) 1.4

;
