A fully-loaded, high-precision lathe in a relatively small footprint.

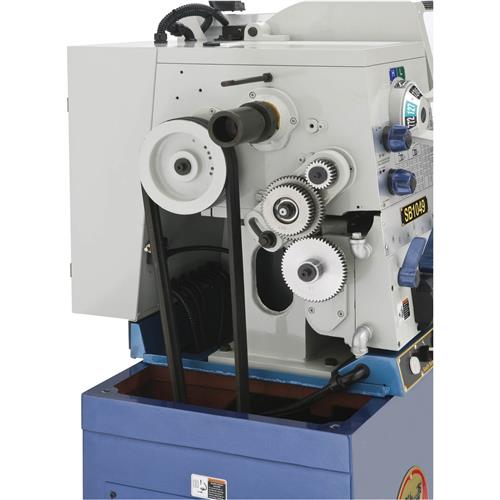

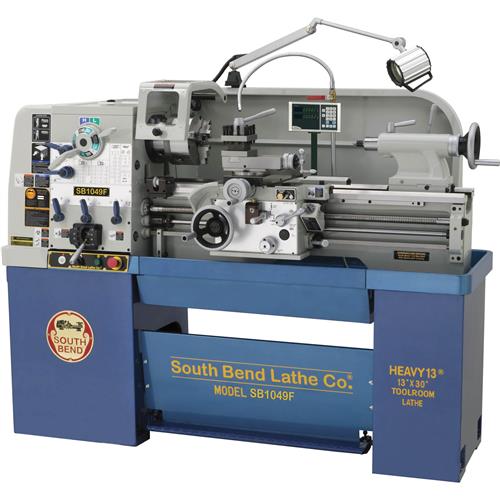

The South Bend SB1049F Gearhead Lathe is driven by a fixed-speed 3 HP motor with convenient headstock levers to control the 8 spindle speeds between 80–2000 RPM.

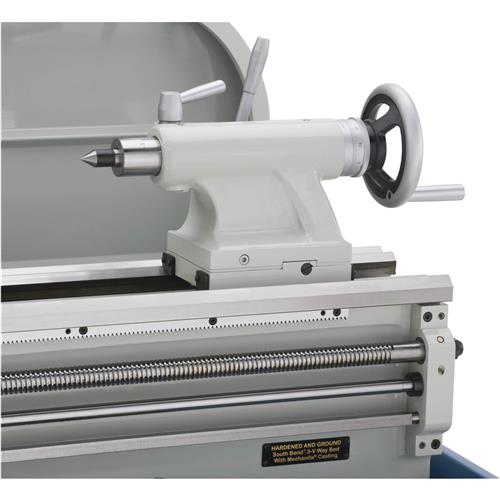

The spindle has D1-5 camlocks with an MT#5 taper, 1.57" bore, and equipped with Japanese NSK or NTN bearings. The tailstocks have an MT#3 taper and 4.5" of quill travel.

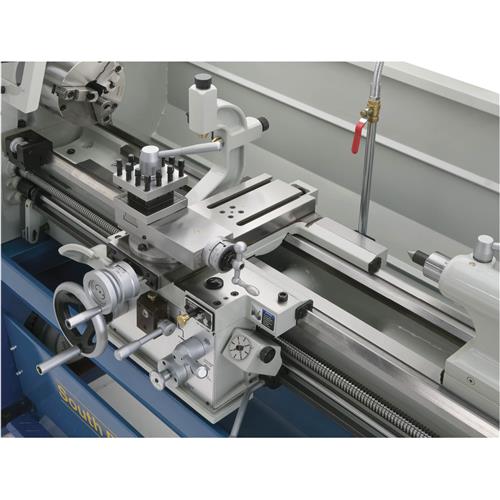

A factory-installed Fagor two-axis digital readout displays the X- and Y-positioning of the carriage and cross slide.
The bed of the lathe is constructed with Meehanite® castings that are hardened and precision-ground in the traditional three V-way prismatic design.

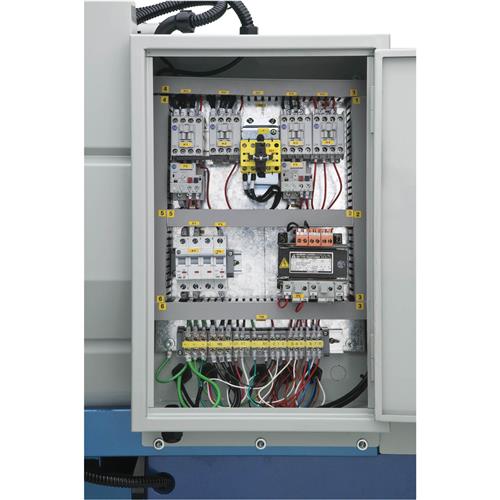

Quality Allen-Bradley® electrical components and attention to detail provide dependable electrical control of the powered movements.
And finally, this lathe comes with a circulating coolant system.
The SB1049F is covered by a South Bend 2-year warranty covering parts and factory defects. Tooling and other lathe-related consumables are not covered by this warranty.
The SB1049F manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
Parts may be available online and shipped from the South Bend parts warehouse in Springfield, MO.
SPECIFICATIONS
Spindle motor: 3 HP, 220V, single-phase, 16.5A
Coolant pump motor: 1/8 HP, 0.45A
Distance between centers: 30"
Swing over bed: 13-1/4"
Swing over cross slide: 8.26"
Swing over saddle: 11.02"
Maximum tool bit size: 3/4"
Compound travel: 4"
Carriage travel: 36-1/2"
Cross slide travel: 7"
Spindle bore: 1.57"
Spindle taper: MT #5
Spindle speeds: 80–2000 RPM
Spindle type: D1-5 camlock
Tailstock travel: 4-1/2"
Tailstock taper: MT #3
Tailstock barrel diameter: 1.968"
Longitudinal feeds: 0.002 to 0.067 IPR (17)
Cross feeds: 0.001 to 0.034 IPR (17)
Inch thread range: 2 to 72 TPI (45 pitches)
Metric thread range: 0.2 to 14 mm (39 pitches)
Modular threads: 0.3 to 3.5 (18 pitches)
Diametral threads: 8 to 44 (21 pitches)
Bed width: 9"
Footprint: 69" x 19-1/2"
Overall dimensions: 71" W x 34" D x 73" H
Approximate shipping weight: 2513 lbs.
FEATURES
Fagor 2-axis DRO
Meehanite® castings
Signature South Bend® 3 V-way bed
Allen-Bradley® controls

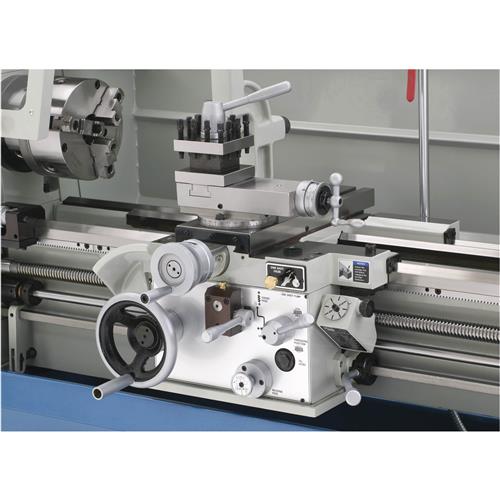

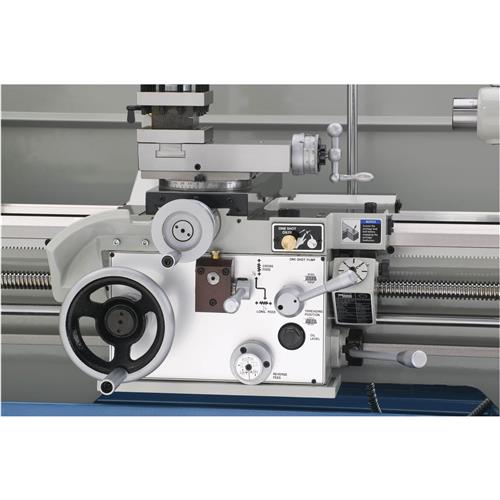

Micrometer carriage stop
4-Way tool post
Foot brake
8" 4-Jaw independent chuck D1-5
7" 3-Jaw scroll chuck D1-5
10" Faceplate D1-5
Follow rest

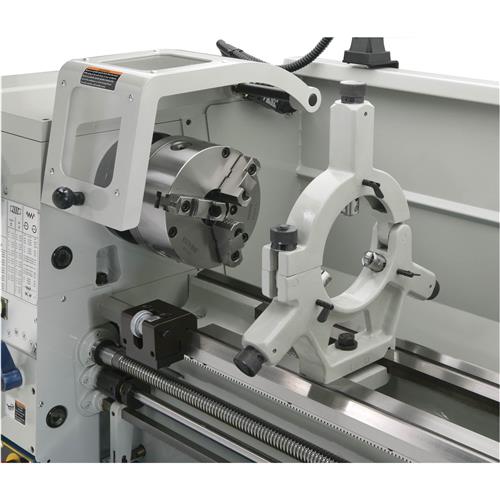

Steady rest with roller bearing tips

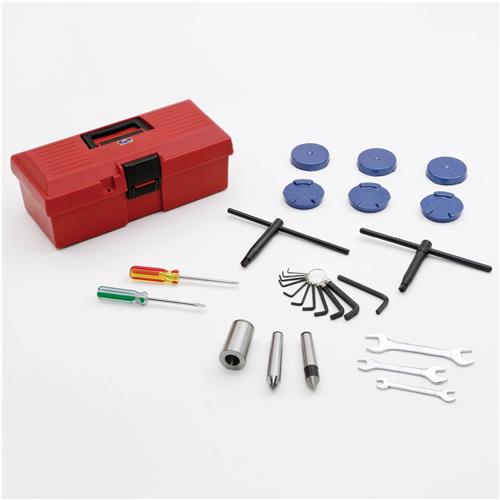

#5 to #3 morse taper spindle sleeves
Two morse taper #3 dead centers
U.S.-based customer service and technical support
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
