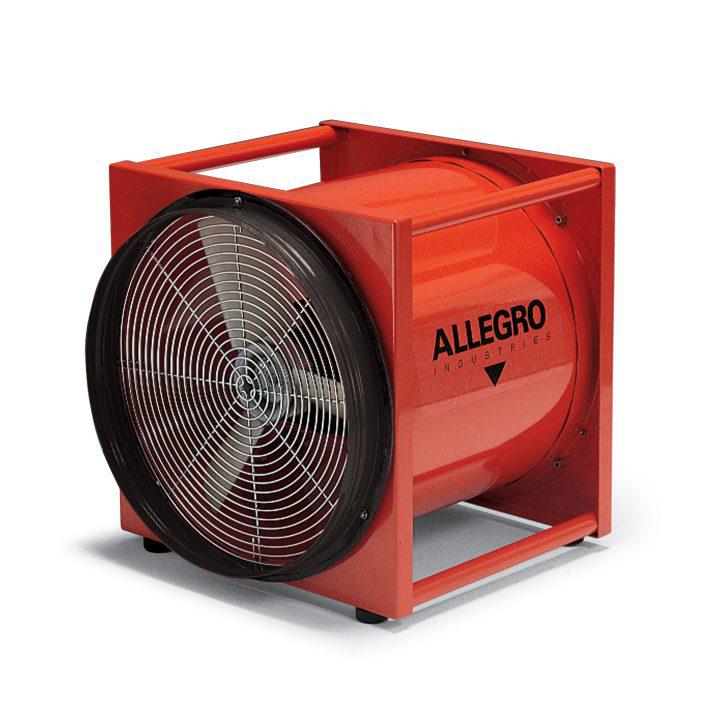

Designed for use in applications requiring a large amount of output in a hazardous location environment. Our 20” Axial Explosion-Proof Metal Blower is offered with a ½ hp single-phase motor and an efficient three-blade impeller fan in a rugged metal housing. Also included is a NEMA rated 115V plug to be used with an explosion-proof socket (sold separately). Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G. UL Listed. Certified to CSA Standard C22.2 No.113.
NOTE: Explosion-proof blowers require an explosion-proof socket.
CONSTRUCTION: • Complete unit epoxy powder coated in orange • Interchangeable flange for intake or exhaust side mounting • 16-gauge cold rolled steel housing • Integrated carrying handles • Steel grill (zinc plated) • Equipped with four rubber feet • NOTE: EX blowers require an explosion-proof socket (PN 9503-03)
FAN: • Anti-Static glass reinforced polyamide three blade fan with aluminum hub • Moving fan mounted 1 5/8” (4.12 cm) from grill for safety, grill gap 5/16” (0.79 cm)
DUCTING: (Accessory) • Black single-ply, neoprene coated, statically conductive vinyl/polyester material, temperature resistant up to 250° F (121.1° C) • Retractable, non-collapsible design. Class 1 hard drawn spring steel wire helix that (meets ASTM 227 specs) • WARNING: When using statically conductive ducting, the integrated grounding wire must be properly grounded to the blower chassis OR linked to any additional grounding wire or duct used
Technical Specification
HP
1/2HP
Phase
Single
Volts
115/230V, 60Hz
Max RPM
1725
Current Draw
8.2/4.1A
Cord
25’ (7.62 m) 12/3 AWG, SJOOW-A Neoprene 300V medium duty
