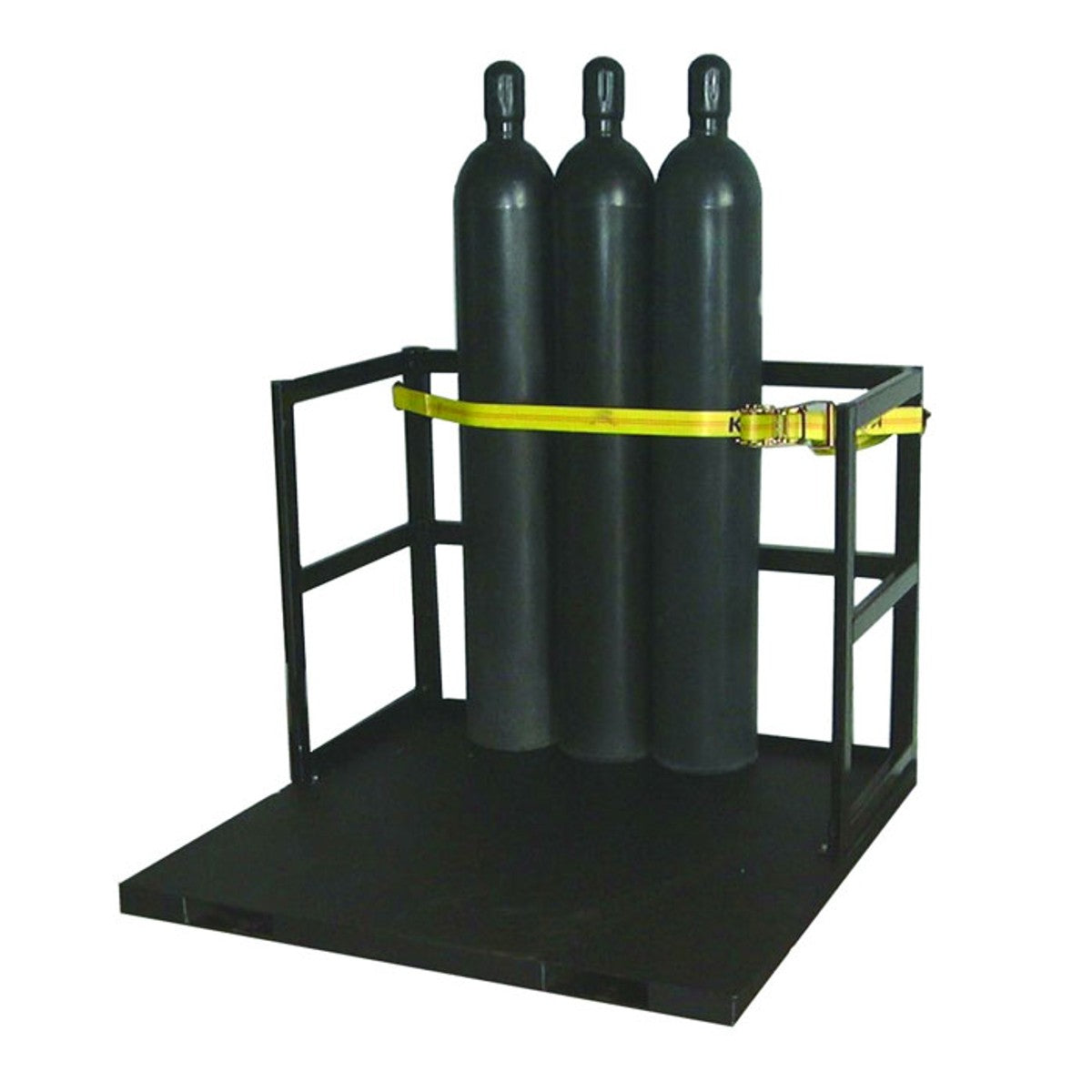

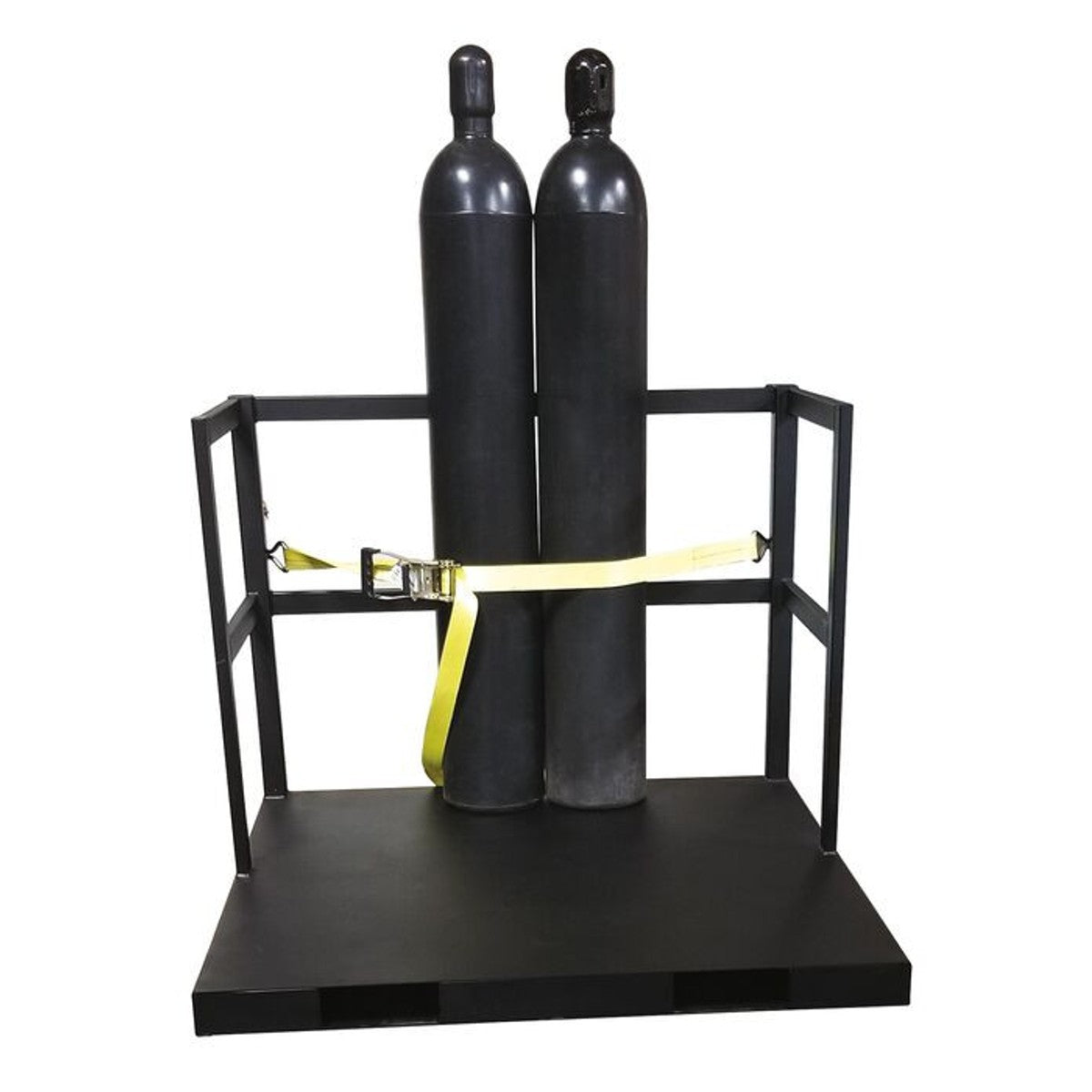

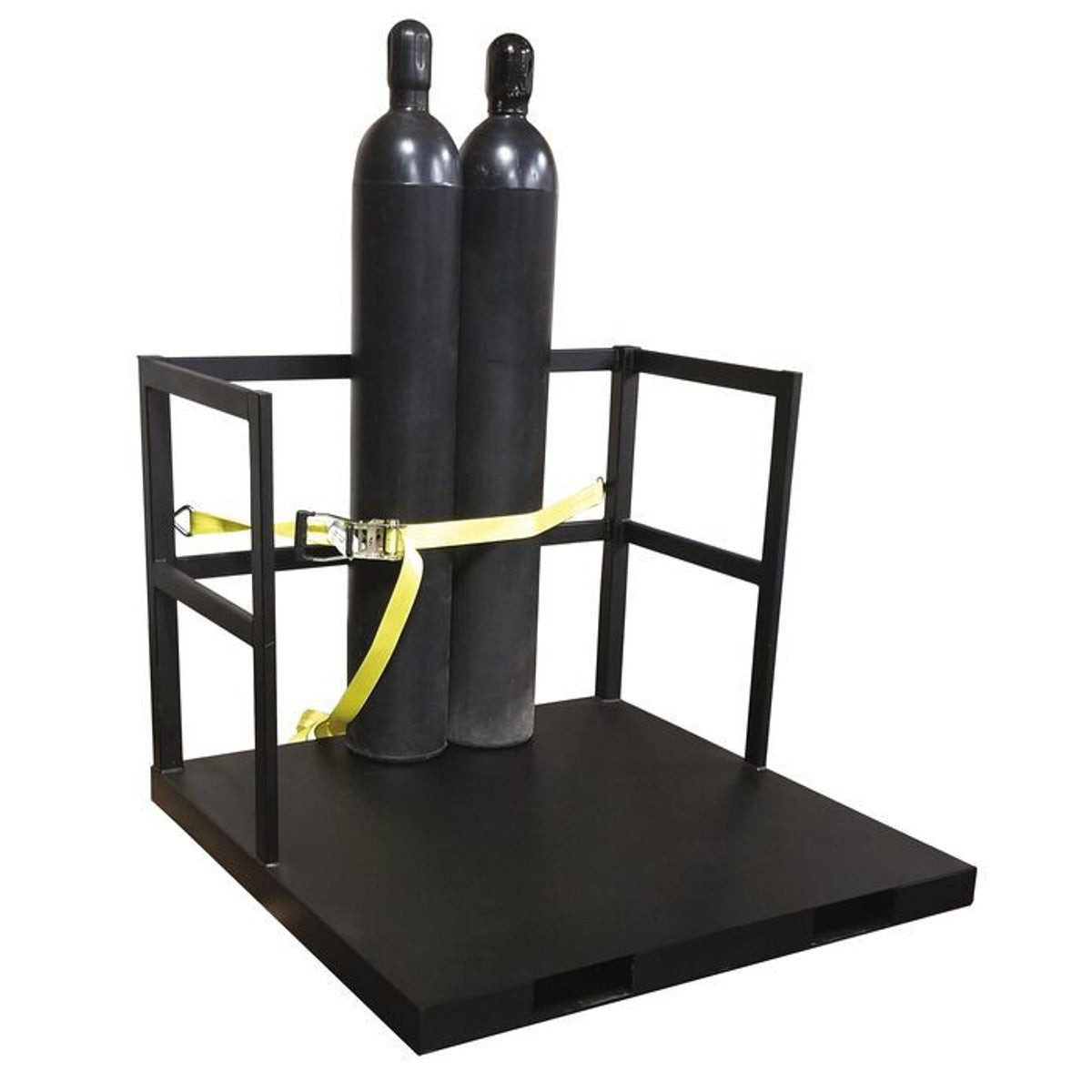

Transport multiple gas cylinders securely with a forklift using these end-load oriented pallets. Secure a group of gas cylinders using the 10,000-lb (4,536-kg) DOT compliant strap that attaches to frame at either 12-, 24- or 36-in (305-, 610- or 915-mm) from the deck. Fully welded construction from 11-gauge (3-mm) hot-rolled steel and structural tube steel, powder-coated to ensure longevity and chemical resistance.
Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Additional Specs
| Cylinder Capacity: | Varies |
| Cylinder Capacity with Max Cylinder Dia: | (21) 9 inch, (12) 12 inch, or (4) 21 inch |
| Mount Type: | Forklift |
| Weight Capacity (lb): | 6000 |
| Weight Capacity (kg): | 2722 |
| Strap Style: | Ratchet Binding |
| Straps Per Cylinder: | 1 Total |
| Material Specifications: | Steel |
| Complies with NFPA 1 Fire-Code: | Yes |
| NFPA 55: | Yes |
| OSHA Compliance: | Yes |
| CGA: | Yes |
| Net Weight, lbs: | 272 |
| Net Weight, kg: | 123 |
| Net Dimensions (W x D x H): | 48 x 48 x 38 inches |
| : | 1219 x 1219 x 965 mm |
