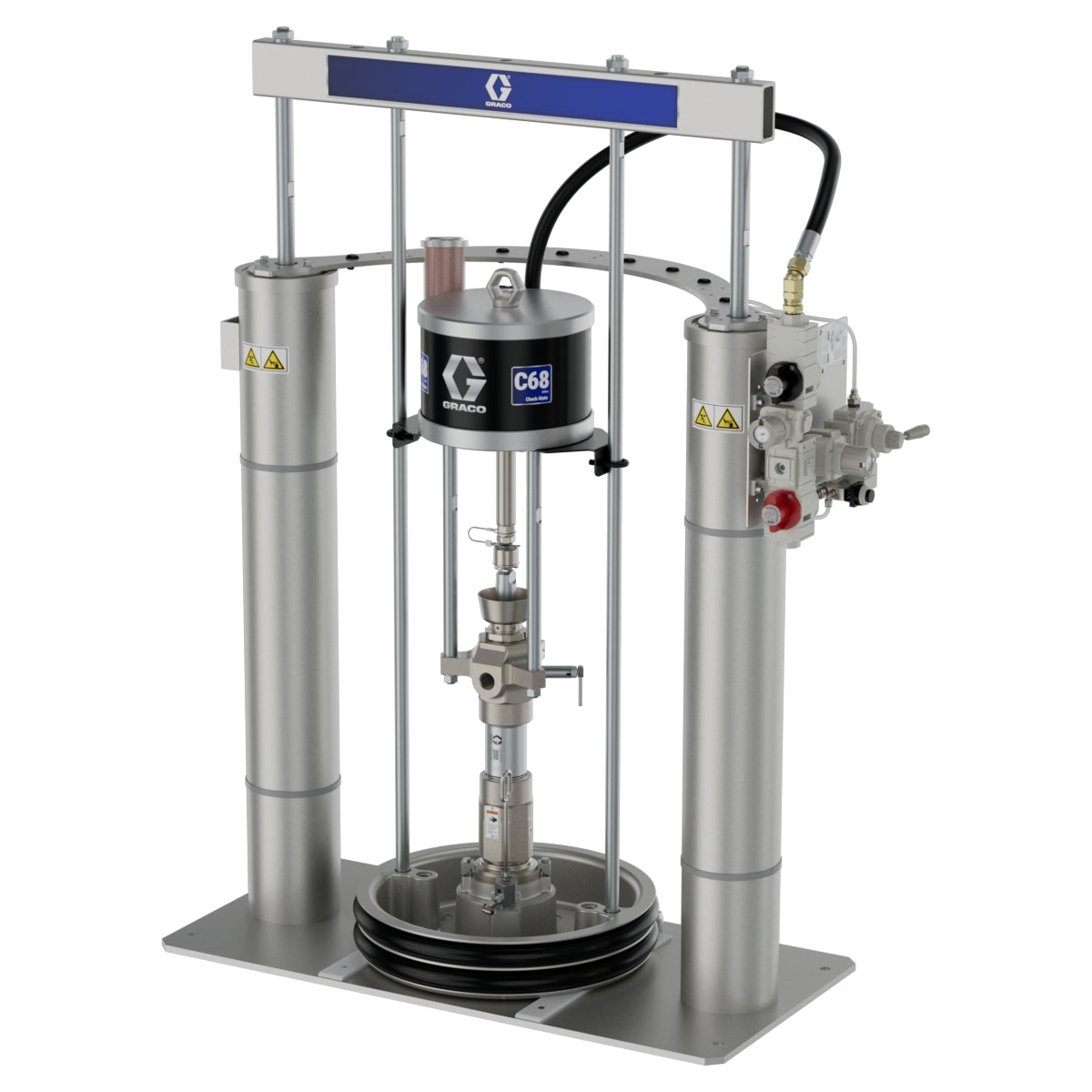

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.
Features
- For large drums up to 200 liter (55 gal)
- Graco D200s - Provides higher down-force for high-volume in-plant applications
- Quick placement of drum
- Platen wipers can be replaced in seconds
- Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
- High-quality, durable parts reduce maintenance time, maximize uptime
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Drum |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (GPM) | 3.2 |
| Maximum Fluid Pressure (psi) | 2300 |
| Maximum Height (ft) | 8.74 |
| Maximum Height (in) | 104.9 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 16.1 |
| Maximum Working Pressure (psi) | 2300 |
| Minimum Height (ft) | 5.86 |
| Minimum Height (in) | 70.3 |
| Model | Check-Mate |
| Overall Depth (in) | 25 |
| Overall Width (in) | 48 |
| Platen Material | Aluminum |
| Platen Size (L) | 200 |
| Platen Style | Dual O-Ring |
| Power Type | Pneumatic |
| Pump Ratio | 23:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Ram Post Diameter (in) | 6.5 |
| Seal Material | EPDM |
| Series | D200s |
| Type | Supply Unit |
| Wetted Material | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, PTFE, UHMWPE, EPDM, Aluminum, Zinc-Plated Carbon Steel |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Drum |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 8.62 |
| Maximum Air Inlet Pressure (kPa) | 862 |
| Maximum Air Inlet Pressure (kg/cm²) | 8.79 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (L/min) | 12.1 |
| Maximum Fluid Pressure (bar) | 158.8 |
| Maximum Fluid Pressure (kPa) | 15880 |
| Maximum Fluid Pressure (psi) | 2300 |
| Maximum Height (cm) | 266.5 |
| Maximum Height (m) | 2.66 |
| Maximum Height (mm) | 2665 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (MPa) | 16.1 |
| Maximum Working Pressure (bar) | 161 |
| Maximum Working Pressure (kPa) | 16100 |
| Minimum Height (cm) | 178.5 |
| Minimum Height (m) | 1.79 |
| Minimum Height (mm) | 1785 |
| Model | Check-Mate |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 121.9 |
| Overall Width (mm) | 1219 |
| Platen Material | Aluminum |
| Platen Size (L) | 200 |
| Platen Style | Dual O-Ring |
| Power Type | Pneumatic |
| Pump Ratio | 23:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Seal Material | EPDM |
| Series | D200s |
| Type | Supply Unit |
| Wetted Material | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, PTFE, UHMWPE, EPDM, Aluminum, Zinc-Plated Carbon Steel |
