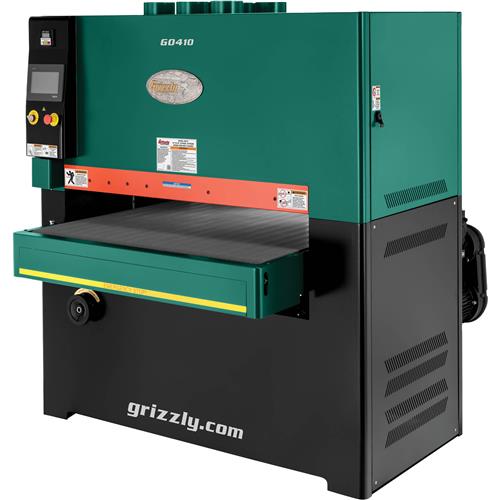

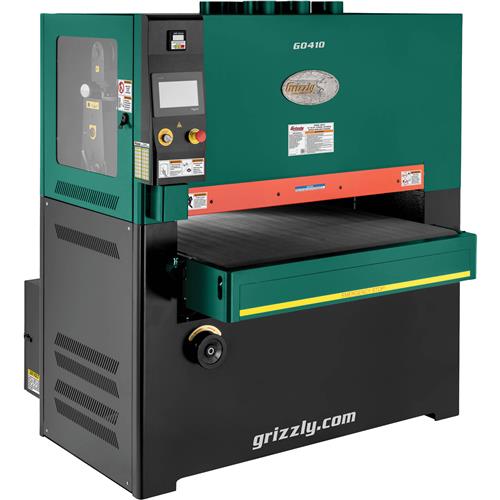

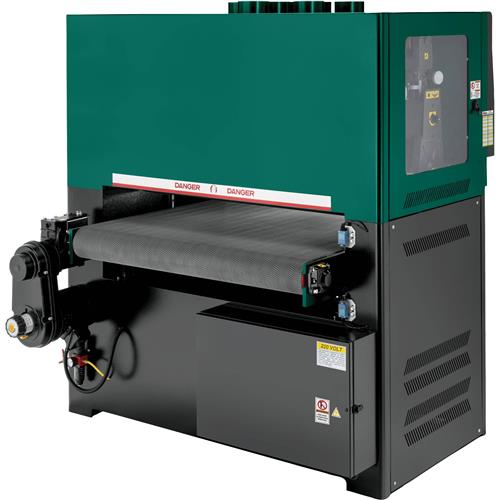

G0410 43" 25 HP 3-Phase Extreme Series Wide-Belt Sander
Deliver consistent, high-quality sanding across workpiece types and sizes in fast-paced production environments.
Get your professional woodworking shop up to full speed by adding this wide-belt sander to your equipment lineup.
Fitted with a robust 25 HP motor, the sander turns out top quality, consistently smooth workpieces so you can meet every deadline.
Special options on this 43" wide-belt sander include a VFD for variable-speed operation, user-friendly touch screen controls, thickness sensor, clear side window, and interior lighting.
This sander is ready to boost productivity whether you are sanding identical boards for large-volume production, creating uniform thicknesses for glued-up panels, or preparing veneered sheets for finishing.FEATURES & BENEFITS:

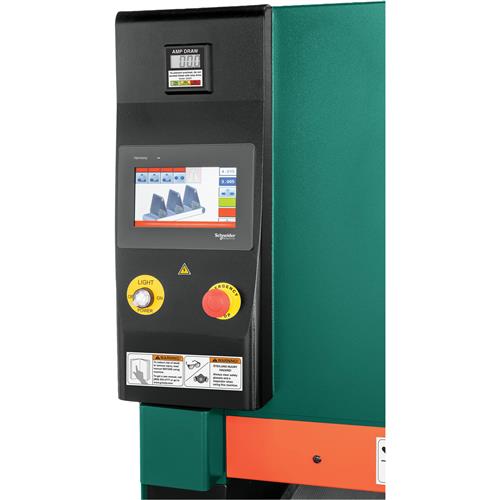

Touch-screen controls for motors, sanding drum, conveyor, and table elevation
Material thickness sensor automatically adjusts the table to the thickness of your workpiece

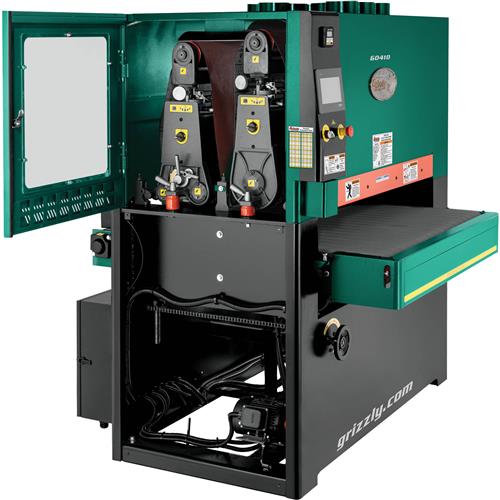

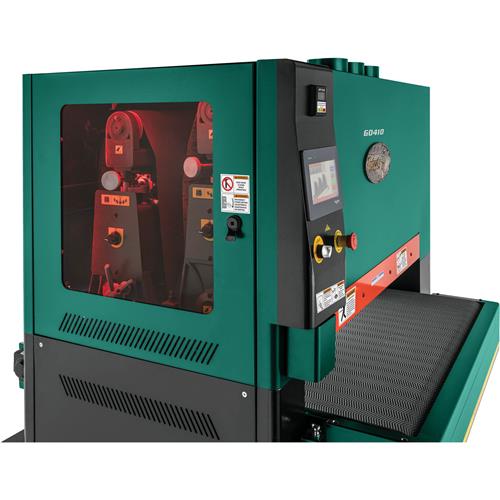

Plexiglass side window and interior lights for easy viewing of sanding belt tracking

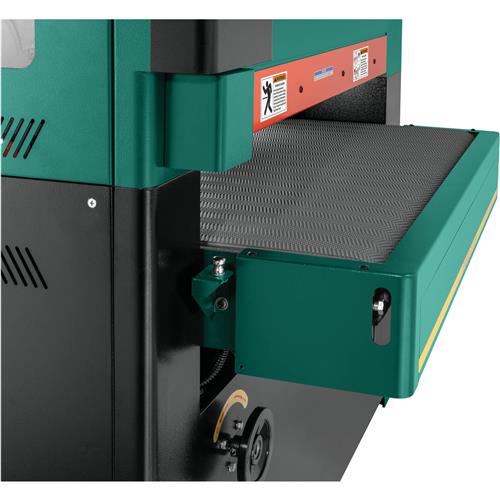

Variable-speed feed conveyor for adaptability and optimal sanding results

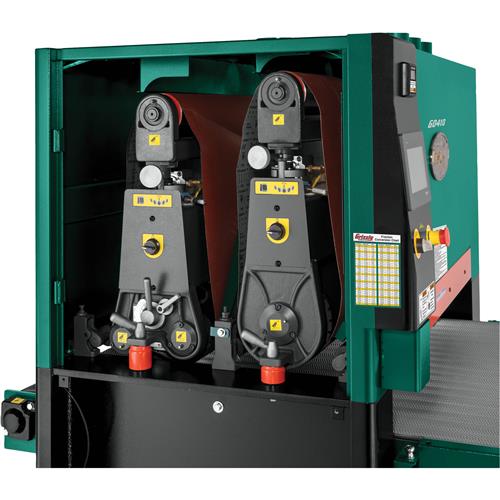

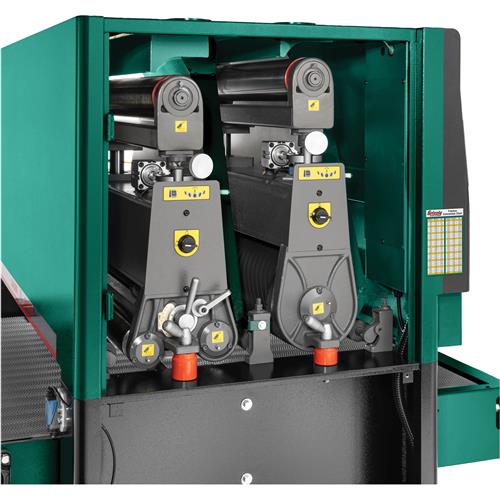

Pneumatic belt tracking and tensioning to maintain the perfect pressure for accurate sanding
Amp/load meter to prevent excessive loads while maximizing machine capacity
Built-in air regulator/water separator to protect pneumatic components
Rubber infeed and outfeed pressure rollers prevent uneven sanding and dampen vibration
Disc brake, emergency stop bar, and stop switch for optimal safetySPECIFICATIONS:
Main motor: 25 HP, 220V/440V*, 3-phase, 64.9A/32.5A
Conveyor feed motor: 2 HP, 6A/3A
Table elevation motor: 1/4 HP, 1.2A/0.6A
Maximum board width: 43"
Maximum board thickness: 6"
Minimum board length: 14"
Minimum board thickness: 3/16"
Conveyor speed: 14-60 FPM
Sanding belt speed: 3543 FPM front, 2565 FPM rear
Sanding belt size: 43" x 60"
Sanding belt oscillations: 35-40 OPM
Air requirement: 75 PSI
Footprint: 61-1/2" x 31"
Overall dimensions: 63" W x 60" D x 68" H
Approximate shipping weight: 3418 lbs.
Built for busy shops, this 43" 25 HP 3-phase wide-belt sander is ready for maximum impact on your bottom line.Our U.S.-based Technical Documentation Department produces detailed owner's manuals and instruction sheets, empowering your team to optimize equipment performance and minimize downtime.
Comprehensive U.S.-Based Support:
Our experts provide a full range of support services including troubleshooting, maintenance tips, and parts sourcing. The 1-year warranty on the G0410 safeguards your investment, offering peace of mind and ensuring long-term reliability.Made in an ISO 9001 factory*This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.
