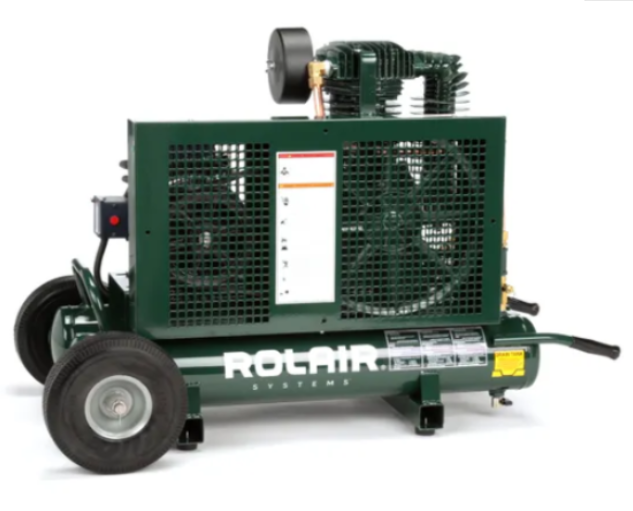

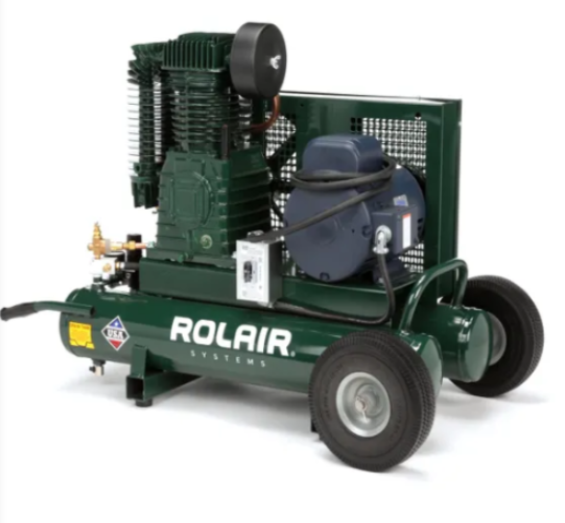

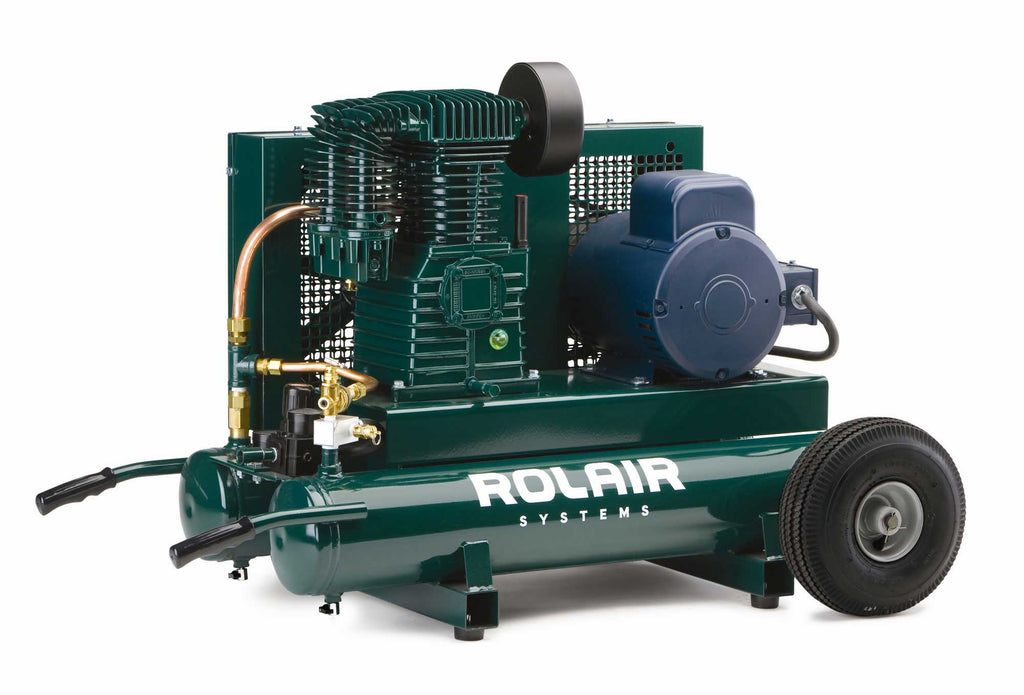

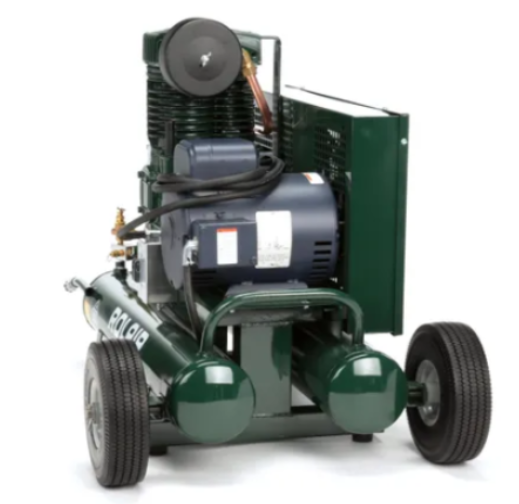

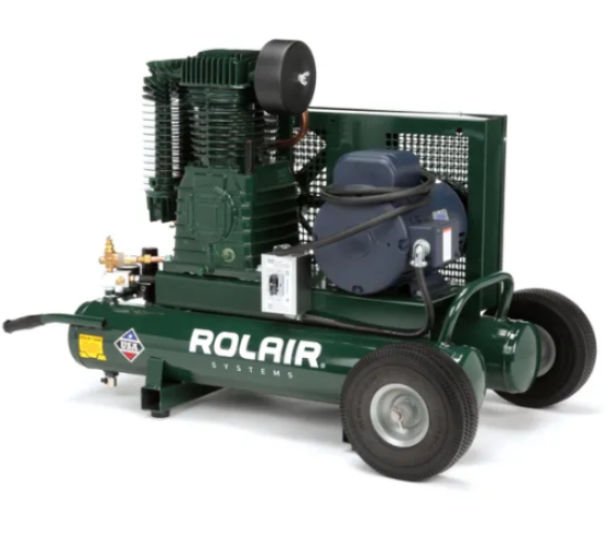

Rolair Systems 90 PSI - 18.8 CFM Two Stage 230 Volt – 60 Hz 5HP 9gal. Belt Drive Electric Air Compressor
Rolair Systems 90 PSI - 18.8 CFM Two Stage 230 Volt – 60 Hz 5HP 9gal. Belt Drive Electric Air Compressor
Rolair Systems 90 PSI - 18.8 CFM Two Stage 230 Volt – 60 Hz 5HP 9gal. Belt Drive Electric Air Compressor
Rolair Systems 90 PSI - 18.8 CFM Two Stage 230 Volt – 60 Hz 5HP 9gal. Belt Drive Electric Air Compressor
Rolair Systems 90 PSI - 18.8 CFM Two Stage 230 Volt – 60 Hz 5HP 9gal. Belt Drive Electric Air Compressor
Rolair Systems 90 PSI - 18.8 CFM Two Stage 230 Volt – 60 Hz 5HP 9gal. Belt Drive Electric Air Compressor

Rolair Systems 90 PSI - 18.8 CFM Two Stage 230 Volt – 60 Hz 5HP 9gal. Belt Drive Electric Air Compressor

Regular price
$2,799.00
Sale price
$2,799.00
Quantity must be 1 or more


NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

With Installed Accessories: 38RG (Reg & Gauge)

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

Model 5230K30CS - the biggest electric portable available - delivers 18.8 CFM @ 90 PSI. The two-stage pump allows for cooler and more efficient operation. Because of the high CFM output and for protection of the motor, this unit is built for constant-run operation.

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

Optional Equipment: Filter-Regulator-Lubricator Sets, 20 Gallon ASME Tank.

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

ABOUT THE PUMP
Heavy-Duty, Two Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Cast-Iron Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 15.16" Flywheel, Oil Sight Gauge

ABOUT THE MOTOR
5 HP, 1740 RPM, Open Drip Proof, 230 Volt – 60 Hz, Ball Bearings, Overload Protection with Manual Reset

STANDARD EQUIPMENT

  • On/Off Switch
  • Pressure Gauge 0-200 in 5 lb. Graduations
  • Pilot Unloader Valve
  • Accessory Support Clip
  • Intake Filter with Silencer and Replaceable Element
  • Multi-Finned Intercoolers
  • Air-Cooled Aftercooler
  • Totally Enclosed Steel Belt Guard
  • Safety Relief Valve
  • Constant Speed Operation
HORSE POWER 5 HP
CFM DISPLACED 23.1 CFM
CFM DELIVERED 18.8 CFM @ 90 PSI
PUMP/MOTOR RPM 1740 RPM
OVERLOAD PROTECTION Yes (Manual Reset Standard)
LUBRICATION TYPE Splash Lubrication
PUMP OIL CAPACITY 47 oz.
REED VALVE SYSTEM Yes (Standard)
NUMBER OF CYLINDERS 2
TANK CAPACITY 9 Gallons
L X W X H 46"x27"x34"
DECIBEL RATING Unavailable

;
