NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

With Installed Accessories: 38RG (Reg & Gauge), DC3 (Dual Controls) & 20G ASME tank

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

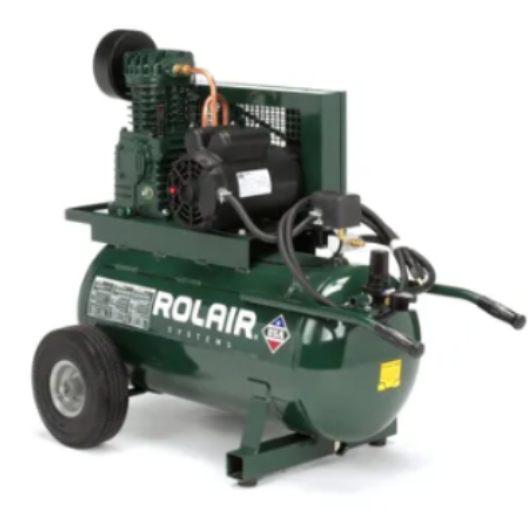

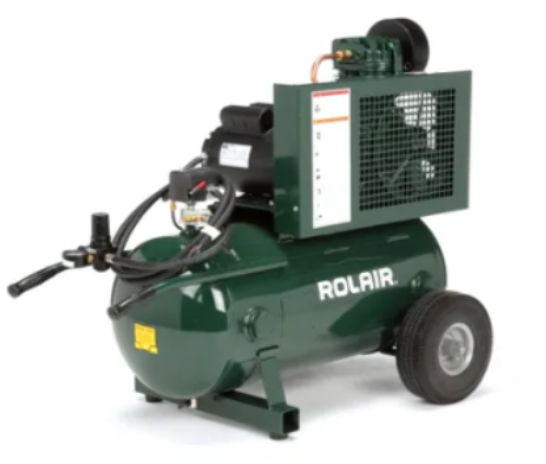

Model 5520K17A is the step up from our classic 1.5 HP twin-tank wheelbarrow design. Featuring a single 20 gallon tank assembly, the 5520K17A sustains 7.3 CFM @ 90 PSI longer than the traditional 9 gallon twin tank design. The low-RPM pump and motor combine for quiet operation and minimal amp draw.

Optional Equipment: Filter-Regulator-Lubricator Sets, Dual Voltage Switch, Dual Control Operation.

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

ABOUT THE PUMP
Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Hardened Steel Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 11" Flywheel, Oil Sight Gauge

ABOUT THE MOTOR
1.5 HP, 1755 RPM, Open Drip Proof, 115/230 Volt - 60 Hz, Ball Bearings, Overload Protection with Manual Reset

STANDARD EQUIPMENT

• Pressure Gauge 0-200 in 5 lb. Graduations
• Square D Pressure Switch with Unloader
• Accessory Support Clip
• Intake Filter with Silencer and Replaceable Element
• Air-Cooled Aftercooler
• Totally Enclosed Steel Belt Guard
• Safety Relief Valve
