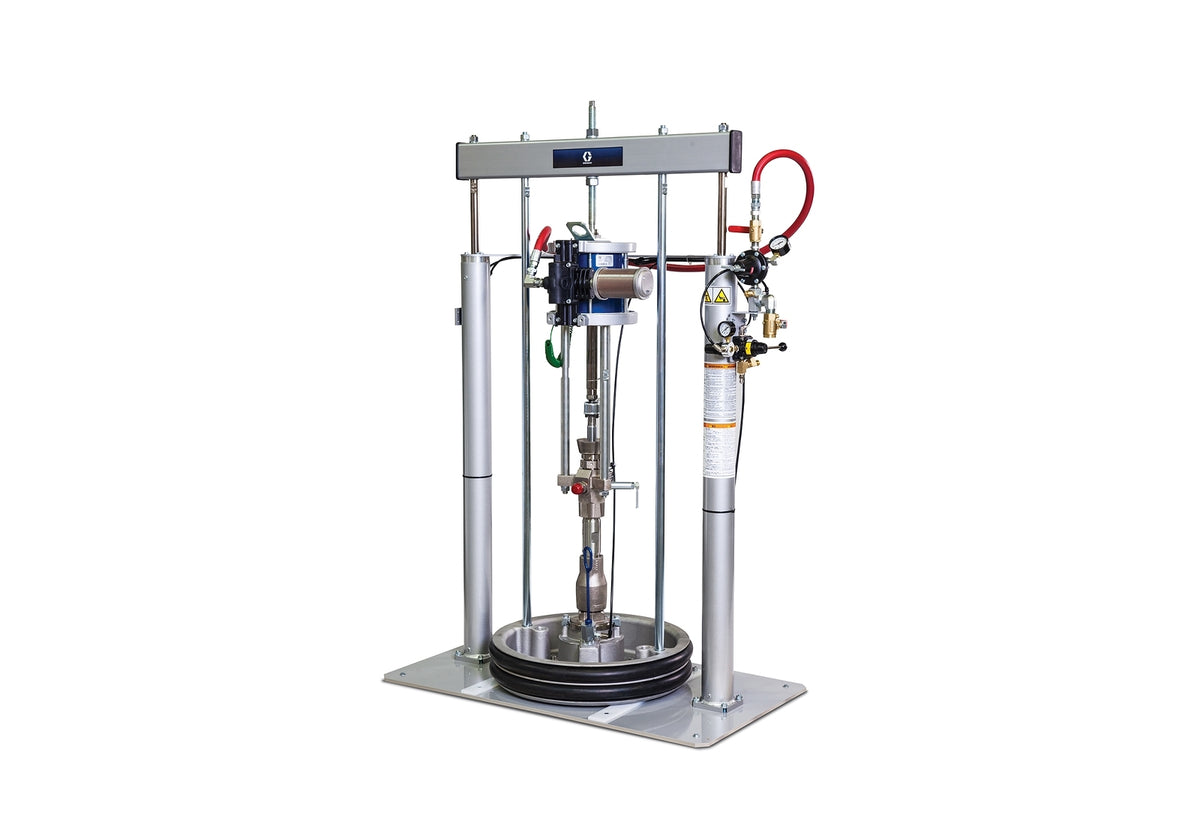

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems. Designed with innovative features plus advanced pump and air motor technologies, Graco Supply Systems help maximize your plant's production capacity.
Features
- The next generation of bulk supply systems
- Easy to service
- Long-lasting and durable air motor
- Affordable and reliable supply system
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Pail |
| Material Container Volume (gal) | 5.3 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Fluid Pressure (psi) | 6100 |
| Maximum Height (ft) | 2.5 |
| Maximum Height (in) | 30 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 42.1 |
| Maximum Working Pressure (psi) | 6100 |
| Minimum Height (ft) | 4.67 |
| Minimum Height (in) | 56 |
| Overall Depth (in) | 19 |
| Overall Width (in) | 15 |
| Power Type | Pneumatic |
| Pump Ratio | 61:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Type | Supply Unit |
| Weight (lb) | 187 |
| Wetted Material | Electroless Nickel Plating, Polyurethane, Nitrile Rubber, Carbon Steel, Polyethylene, Zinc-Plated Carbon Steel, Buna-N, Stainless Steel |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Pail |
| Material Container Volume (l) | 20 |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (kg/cm²) | 7.03 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (L/min) | 5.7 |
| Maximum Fluid Pressure (bar) | 420.6 |
| Maximum Fluid Pressure (kPa) | 42060 |
| Maximum Fluid Pressure (psi) | 6100 |
| Maximum Height (cm) | 76.2 |
| Maximum Height (m) | 0.76 |
| Maximum Height (mm) | 762 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Working Pressure (MPa) | 42.1 |
| Maximum Working Pressure (bar) | 421 |
| Maximum Working Pressure (kPa) | 42100 |
| Minimum Height (cm) | 142.24 |
| Minimum Height (m) | 1.42 |
| Minimum Height (mm) | 1422.4 |
| Overall Depth (cm) | 48.3 |
| Overall Depth (mm) | 483 |
| Overall Width (cm) | 38.1 |
| Overall Width (mm) | 381 |
| Power Type | Pneumatic |
| Pump Ratio | 61:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Type | Supply Unit |
| Weight (kg) | 84.8 |
| Wetted Material | Electroless Nickel Plating, Polyurethane, Nitrile Rubber, Carbon Steel, Polyethylene, Zinc-Plated Carbon Steel, Buna-N, Stainless Steel |
