NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

With Installed Accessories: 38RG (Reg & Gauge)

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

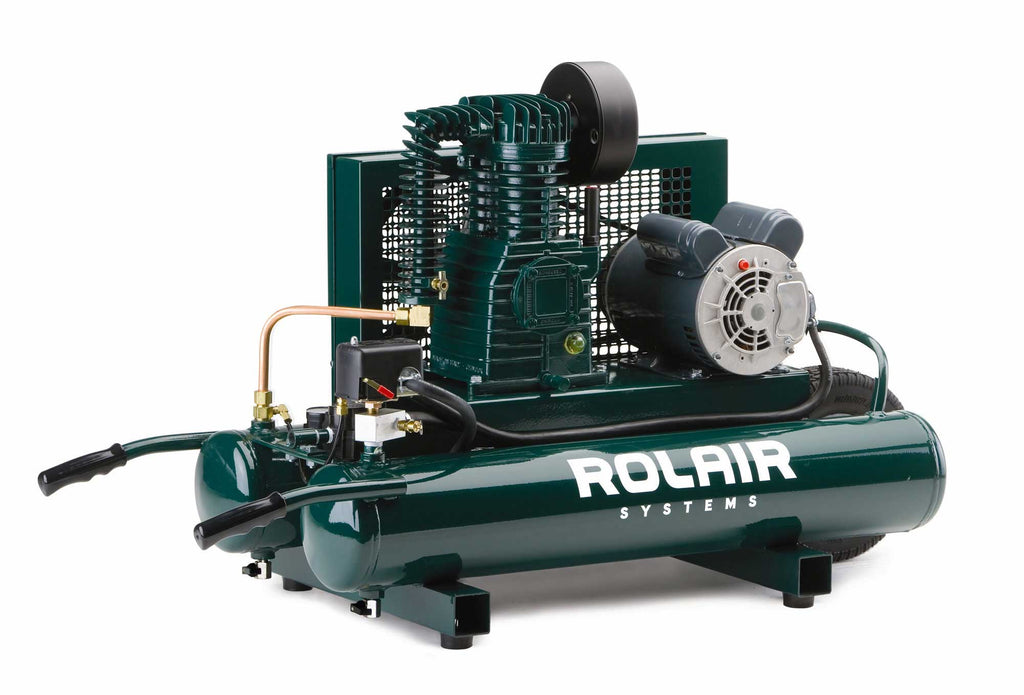

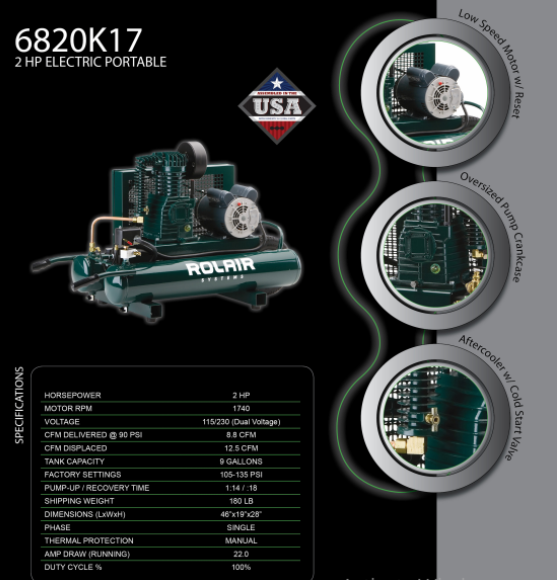

Model 6820K17D includes a dual-control feature, which allows it to run start/stop or constant-speed operation. This model provides the most air available on a 110 Volt electric compressor, yet is equipped with a dual-voltage switch allowing you to run off 220 Volt when needed.

Optional Equipment: Filter-Regulator-Lubricator Sets, 20 Gallon Tank.

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

ABOUT THE PUMP
Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Hardened Steel Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 11" Flywheel, Oil Sight Gauge

ABOUT THE MOTOR
2 HP, 1740 RPM, Open Drip Proof, 115/230 Volt – 60 Hz, Ball Bearings, Overload Protection with Manual Reset

STANDARD EQUIPMENT

• Dual Control Operation
• Pressure Gauge 0-200 in 5 lb. Graduations
• Square D Pressure Switch with Unloader
• Accessory Support Clip
• Intake Filter with Silencer and Replaceable Element
• Air-Cooled Aftercooler
• Totally Enclosed Steel Belt Guard
• Safety Relief Valve
• Dual Voltage Switch
