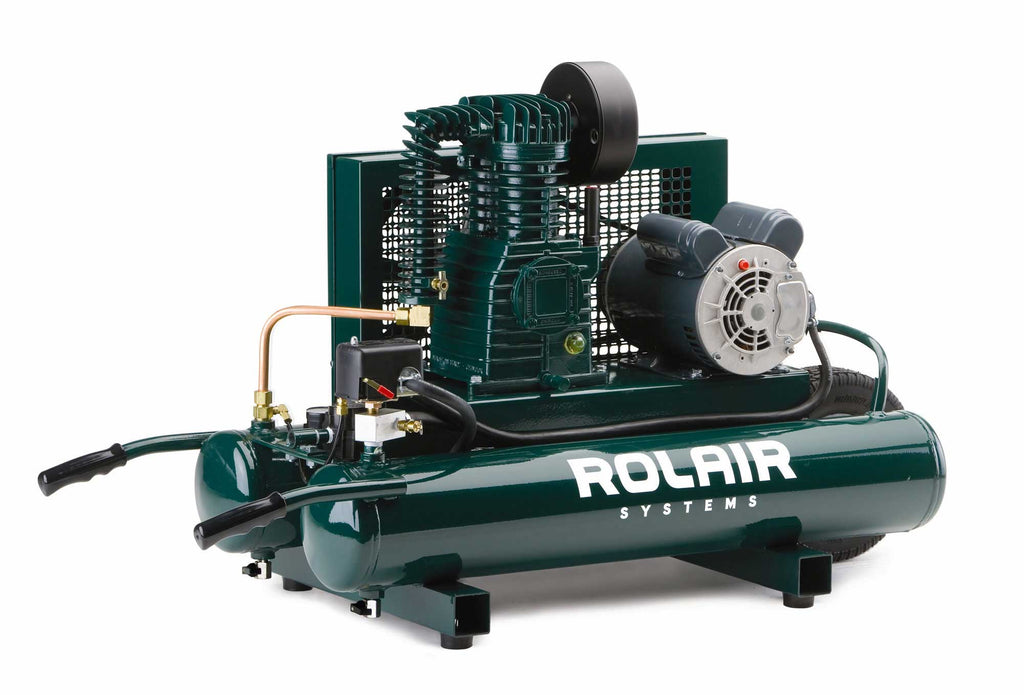

Rolair Systems 90 PSI @ 8.2 CFM Single Stage 115/230 Volt – 60 Hz 2HP 9gal. Belt Drive Electric Air Compressor
Rolair Systems 90 PSI @ 8.2 CFM Single Stage 115/230 Volt – 60 Hz 2HP 9gal. Belt Drive Electric Air Compressor

Rolair Systems 90 PSI @ 8.2 CFM Single Stage 115/230 Volt – 60 Hz 2HP 9gal. Belt Drive Electric Air Compressor

Regular price
$1,683.00
Sale price
$1,683.00
Quantity must be 1 or more


NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

With Installed Accessories: 38RG (Reg & Gauge)

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

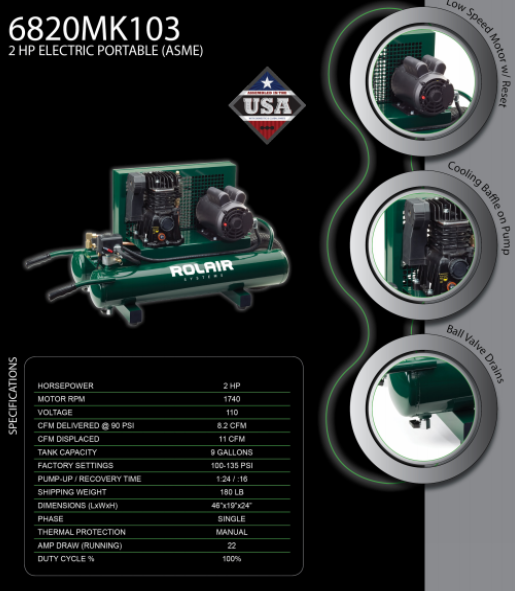

Model 6820MK103D is a sister model to 6820K17D. This model provides nearly as much air as the 6820K17D and is equipped with a dual-voltage switch, allowing you to run on 110 or 220 Volt as needed.

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

Optional Equipment: Filter-Regulator-Lubricator Sets, 20 Gallon ASME Tank.

NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

ABOUT THE PUMP
Heavy Duty, Two Cylinder, Single Stage, Splash Lubricated, High-Efficiency Reed Valve Design, Aluminum Alloy Connecting Rods, Multi-Finned 10" Flywheel, Oil Sight Gauge and 17 oz. Oil Reservoir

ABOUT THE MOTOR
2 HP, 1740 RPM, Open Drip Proof, 115/230 Volt – 60 Hz, Ball Bearings, Overload Protection with Manual Reset

STANDARD EQUIPMENT

  • Dual Control Operation
  • Square D Pressure Switch w/Unloader
  • Pressure Gauge 0-200 in 5 lb. Graduations
  • Accessory Support Clip
  • Intake Filter with Silencer and Replaceable Element
  • Air-Cooled Aftercooler
  • Totally Enclosed Steel Belt Guard
  • Safety Relief Valve
HORSE POWER 2 HP
CFM DISPLACED 11.0 CFM
CFM DELIVERED 8.2 CFM @ 90 PSI
PUMP/MOTOR RPM 1740 RPM
OVERLOAD PROTECTION Yes (Manual Reset Standard)
LUBRICATION TYPE Splash Lubrication
PUMP OIL CAPACITY 17 oz.
REED VALVE SYSTEM Yes (Standard)
NUMBER OF CYLINDERS 2
TANK CAPACITY 9 Gallons
L X W X H 46"x19"x24"
DECIBEL RATING Unavailable

;
