Description

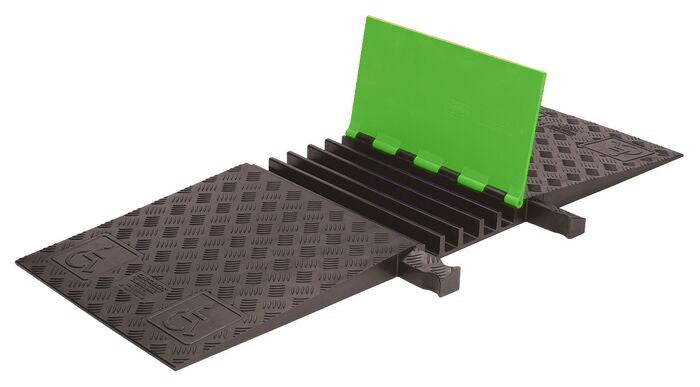

Made of all-weather high-visibility green polyurethane and featuring a patented 5-bar tread surface, the ADA 5-Channel Guard Dog® Cable Protectors for 1.325" Lines, Hi-Viz Green, model GD5X125ADAFLG/B. is equipped with built-in accessibility ramps. This allows them to provide safe passage for both vehicle and foot traffic without the need for separate connectors. Featuring a modular, interlocking design available in lightweight 18" sections, this protector is ideal for virtually any use.
Personalize cable protectors with your logo or colors. Request a quote now.
The Hi-Viz green coloring was created specifically for situations requiring high visibility, using SafeRay™ Technology that provides the best day and night visibility.
A reinforced hinged lid allows for easy cable placement, while a recessed carrying handle on the protector's underside makes transportation easy. The product is compatible with all standard 5 channel Dog Bone Connector Models, meaning you don't need specialized equipment in order to extend it to whatever length you need.
Specifications
| Model No | GD5X125ADAFLG/B | Brand | Checkers Safety™ | Accessory Type | ADA |
|---|---|---|---|---|---|
| Color | Lime Green | Quantity Included | 1 | Load Capacity Per Axle | 21000 lbs |
| Load Capacity Per Tire | 10500 | Length (Inches) | 20 | Width (Inches) | 50 |
| Height (Inches) | 1.88 | Max Cable Outside Diameter (Inches) | 1.325 | Number of Channels | 5-Channels |
| Connector Type | Dog Bone Connector | Channel Width | 1.339 |
