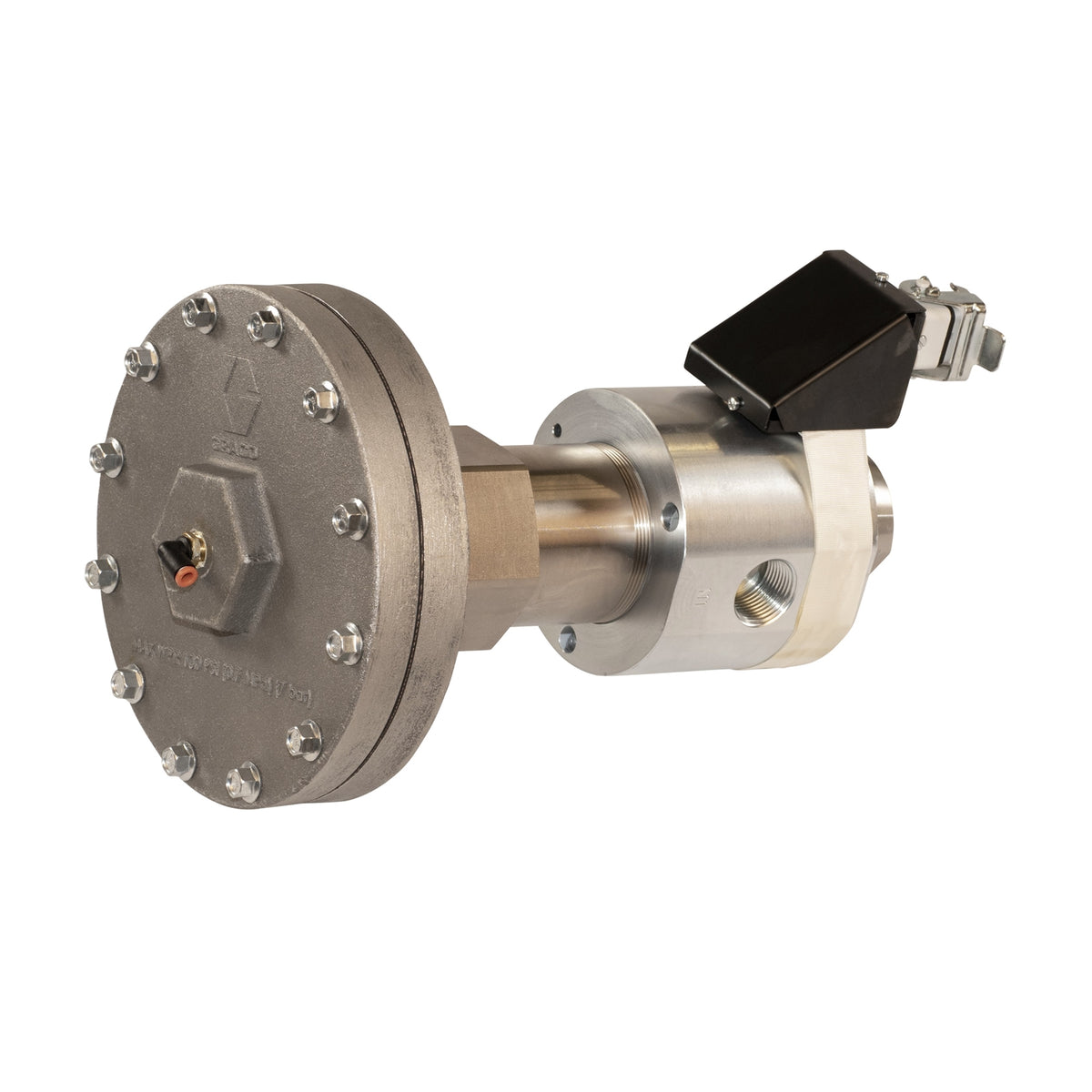

The heated mastic regulator is ideal for low to high viscosity warm-melt and hot-melt sealants or adhesives
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
UPC Product: 00633955023864
Family Code: FAMAPA
Unit of Measure: EA
Height:
9.6 IN
| 24.384 CM
Length:
19.2 IN
| 48.768 CM
Width:
8.4 IN
| 21.336 CM
Volume:
.9 FT3
| .025 M3
Chargeable Weight:
22.8 LBS
| 10.34 KG
Technical Specifications
| Actuation Type | Air |
|---|---|
| Inlet Size (cm) | 1.905 |
| Inlet Size (in) | 3/4 |
| Inlet Size (mm) | 19.05 |
| Inlet Thread Type | NPT |
| Maximum Regulated Pressure (bar) | 241 |
| Maximum Regulated Pressure (kPa) | 24100 |
| Maximum Regulated Pressure (psi) | 3500 |
| Maximum Working Pressure (bar) | 344 |
| Maximum Working Pressure (kPa) | 34400 |
| Maximum Working Pressure (psi) | 5000 |
| Minimum Regulated Pressure (bar) | 7 |
| Minimum Regulated Pressure (kPa) | 700 |
| Minimum Regulated Pressure (psi) | 100 |
| Outlet Size (cm) | 1.905 |
| Outlet Size (in) | 3/4 |
| Outlet Size (mm) | 19.05 |
| Type | Fluid Regulator |
| Flow Control Type | Regulation |
| Inlet Thread Gender | Female |
| Outlet Thread Gender | Female |
| Maximum Regulated Pressure (MPa) | 24.1 |
| Maximum Working Pressure (MPa) | 35 |
| Minimum Regulated Pressure (MPa) | 0.7 |
