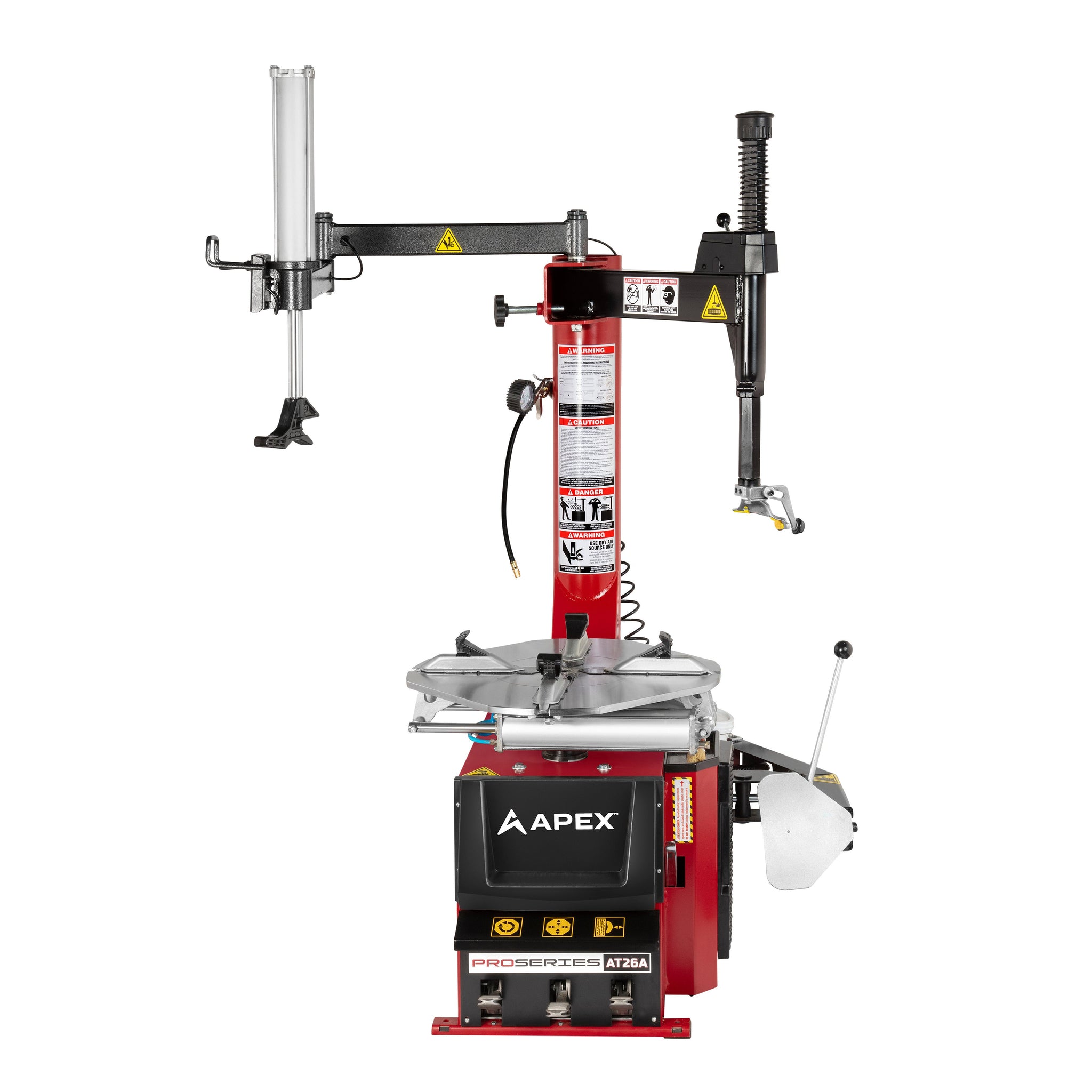

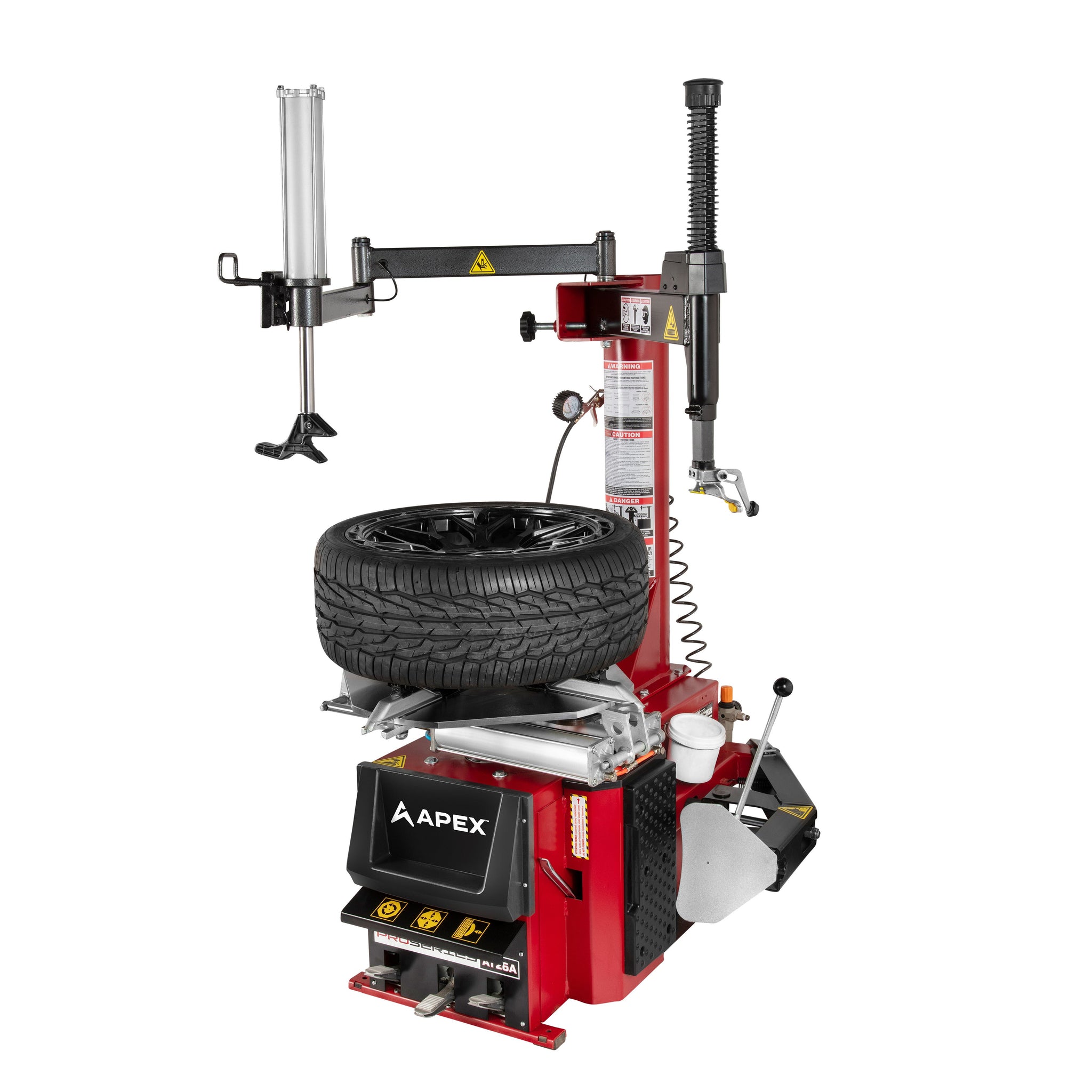

APEX AT26A Swing Arm Tire Changer with Assist Tower (5140350)

Assist-Tower Tire Changing Built for Tougher Tires

The APEX AT26A Swing Arm Tire Changer with Assist Tower is built for shops and serious home garages that regularly service modern wheels and tires and need more help controlling stiff sidewalls, low-profile tires, run-flat designs, and larger light-truck assemblies. It combines the core strength of the AT26 platform with a full pneumatic assist tower for users who want added leverage, stability, and workflow support.

For buyers comparing the AT26 and AT26A, the assist tower is the major reason to step up. The AT26A is the better choice when technicians frequently work with heavy, stubborn, or performance-focused tire assemblies where bead control, reduced physical effort, and wheel protection can make the difference between a clean job and an expensive headache.

High-Torque Power with Controlled Precision

At the core of the AT26A is a high-torque electric turntable drive that provides smooth, controlled rotation in both directions. Reversible operation lets technicians adjust rotation instantly during mounting and demounting, helping reduce bead stress and minimize the risk of tire or wheel damage.

Unlike entry-level machines that can feel abrupt or inconsistent, the AT26A gives the bead time to relax and move properly. That controlled motion is especially useful on stiff sidewalls, run-flat designs, and performance tires that demand a more careful approach.

Pneumatic Assist Tower for Stiff Sidewalls and Heavy Tires

The AT26A includes a pneumatic assist tower as standard equipment to stabilize the tire, hold beads in the drop center, and provide controlled leverage during mounting and demounting. This reduces technician effort while improving consistency and control on demanding tire assemblies.

The assist system is what makes the AT26A the stronger production choice for shops handling low-profile tires, heavy tires, and modern wheel packages on a regular basis. It helps speed up service, reduce physical strain, and protect wheels when the job gets tough.

Wheel Protection, Long-Life Components, and BendPak Support

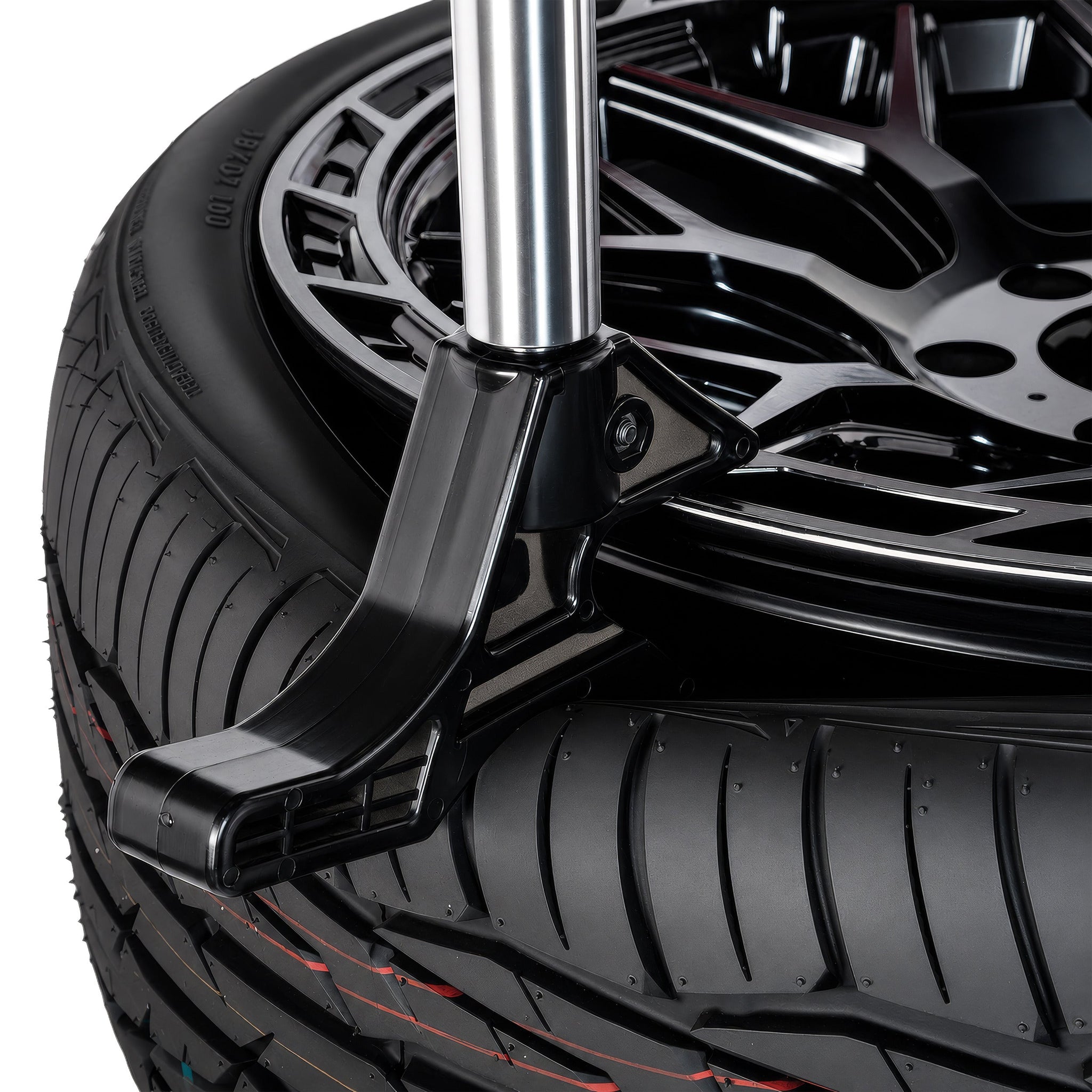

The AT26A is designed to protect wheels at every step of the tire service process. It includes both a hardened steel mount and demount head for durability and a polymer head for delicate finishes, along with plastic clamp covers and protective components that help prevent metal-to-metal contact.

A brushless AC motor delivers consistent power with reduced maintenance, while the sealed maintenance-free gearbox supports smooth long-term operation. Premium pneumatic components reduce vibration, resist corrosion, and maintain performance under daily use, and the machine is backed by BendPak’s U.S.-based technical support and warranty structure.

Assist Tower Advantage

The AT26A adds a pneumatic assist tower to the swing arm platform. It helps stabilize stiff, low-profile, and heavy tires while reducing technician effort.

Controlled Turntable Power

The high-torque electric turntable drive provides smooth, reversible rotation. This helps reduce bead stress during mounting and demounting.

Drop-Center Support

The assist system helps hold beads in the drop center for safer, easier installation. That support is valuable when working with stubborn modern tires.

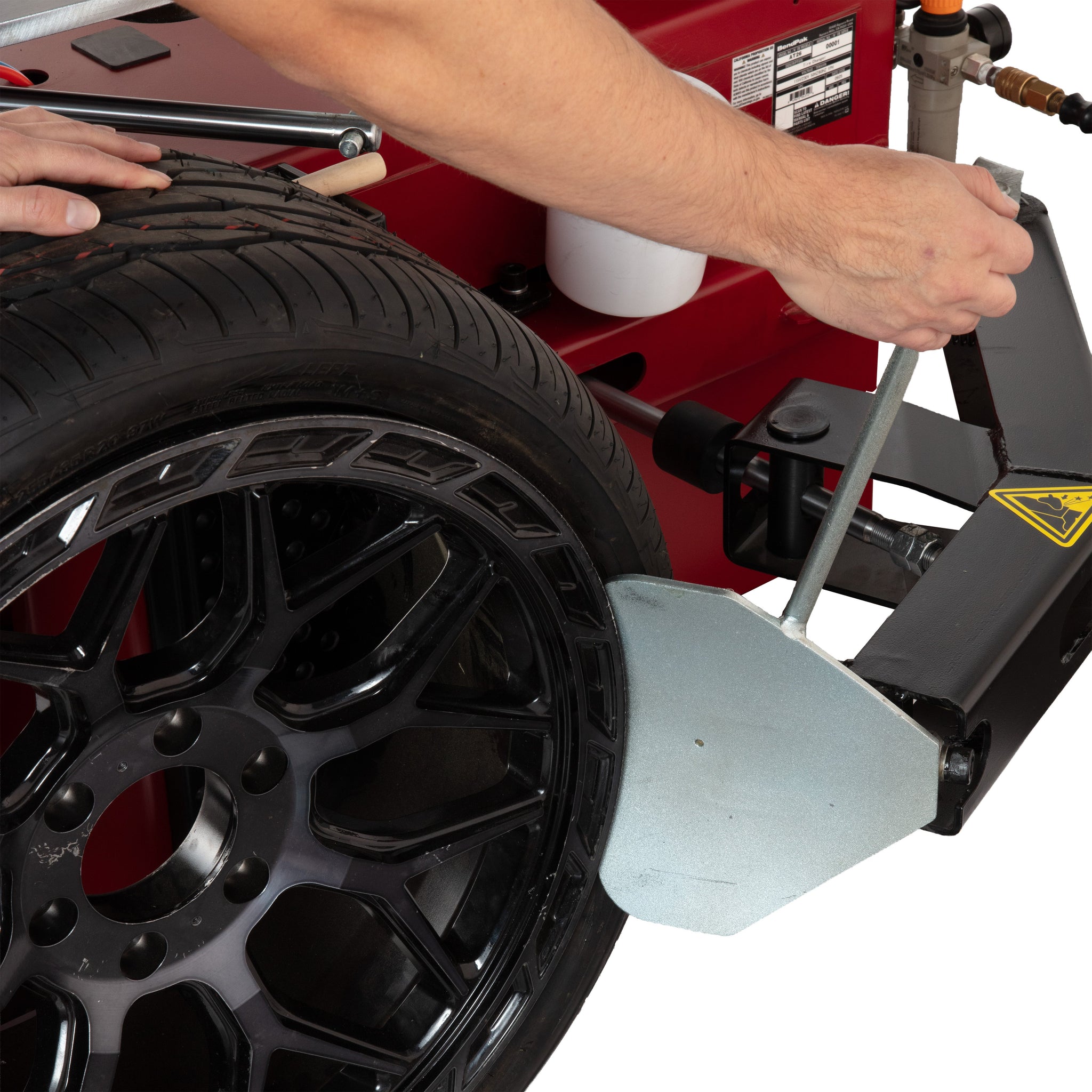

High-Power Bead Breaking

An oversized pneumatic cylinder delivers fast, consistent bead loosening. The multi-axis blade helps approach different wheel and tire combinations cleanly.

Wheel Protection Included

Hardened steel and polymer heads, plastic clamp covers, and protective accessories come standard. The AT26A is built to help protect premium wheel finishes.

Built for Daily Use

A brushless AC motor, maintenance-free gearbox, and premium pneumatic components support long service life. It is made for shops that need dependable output.

Recommended Add-ons

Features

• Pneumatic assist tower
• High-torque electric turntable drive
• Reversible turntable direction
• High-power bead breaking system
• Multi-axis adjustable bead breaker blade
• Spring-assisted tool shaft
• Rigid swing arm construction
• Dual mount and demount heads included
• Hardened steel head for durability
• Polymer head for delicate wheel finishes
• Plastic clamp covers included
• Wheel protection components standard
• Brushless AC motor
• Maintenance-free gearbox

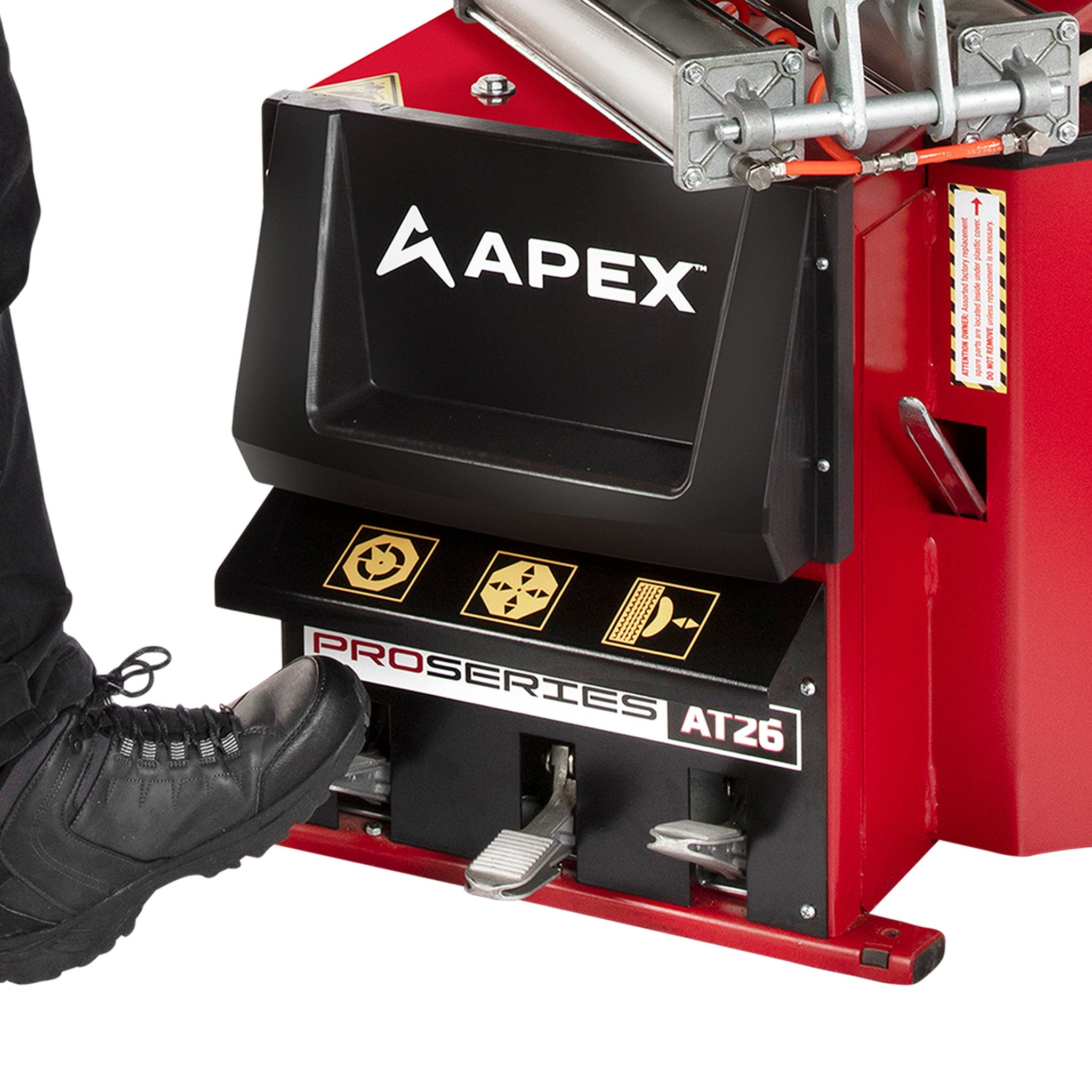

• Ergonomic upfront control layout

Specifications

Manuals & Downloads

• APEX AT26A Swing Arm Tire Changer with Assist Arm 5140350 Sales Sheet
• APEX AT26 Series Tire Changer 5140351 Installation Operation Manual
• APEX Limited Warranty All Products
