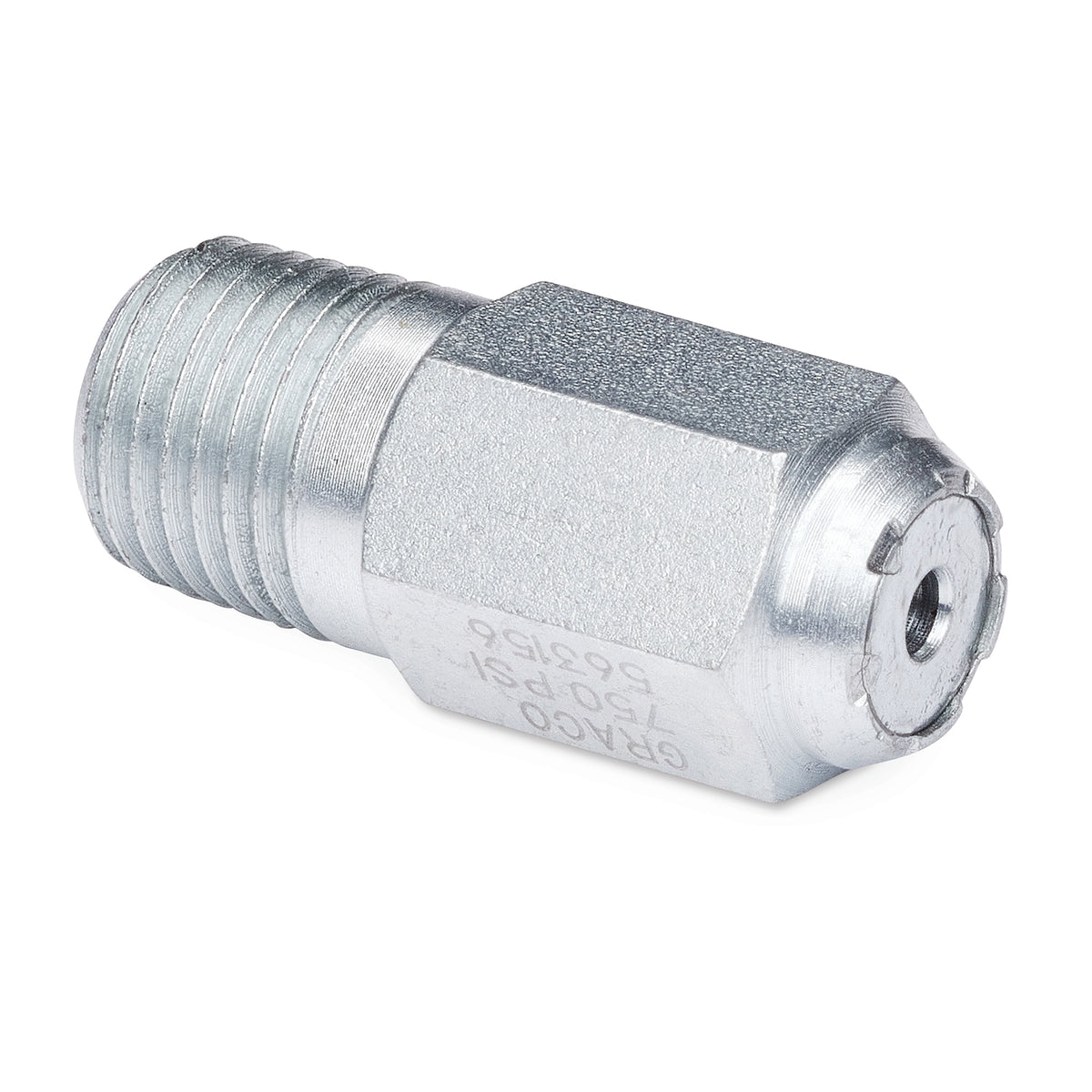

Automatic Relief Indicator for MX Divider Valves, 750 psi (52 bar)

Automatic Relief Indicator for MX Divider Valves, 750 psi (52 bar)

Regular price
$30.20
Sale price
$30.20
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.

  • No time or effort required for reset after blockage is cleared
  • Easy information on blocked lines, high system pressure or blocked bearings
  • Works with MSP, MX, MXP, MJ and MHH divider valves
  • Lubriquip part number 508-210-075
UPC Product: 00633955350380
Family Code: FAMCPT
Unit of Measure: EA
Height: 1.4 IN   |  3.556 CM
Length: .6 IN   |  1.524 CM
Width: .5 IN   |  1.27 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: .08 LBS  | .03 KG

Technical Specifications

Application In-Plant Machinery, Off-Road Equipment, Compressor Equipment
Compatible Material Oil, Grease
Connection Size (in) 0.25
Indicator Type Automatic Relief Indicators
Maximum Working Pressure (bar) 51
Maximum Working Pressure (kPa) 5100
Maximum Working Pressure (psi) 750
Overall Length (cm) 3
Overall Length (in) 1.37
Overall Length (mm) 35
Thread Type NPTF
Type Relief Valve
Maximum Working Pressure (MPa) 5
Model Trabon
