Baileigh Industrial 460V 3Phase 60 hz 30 ton Heavy Duty C-Frame Press
Baileigh Industrial 460V 3Phase 60 hz 30 ton Heavy Duty C-Frame Press
Baileigh Industrial 460V 3Phase 60 hz 30 ton Heavy Duty C-Frame Press
Baileigh Industrial 460V 3Phase 60 hz 30 ton Heavy Duty C-Frame Press

Baileigh Industrial 460V 3Phase 60 hz 30 ton Heavy Duty C-Frame Press

Regular price
$41,559.00
Sale price
$41,559.00
Quantity must be 1 or more


DESCRIPTION

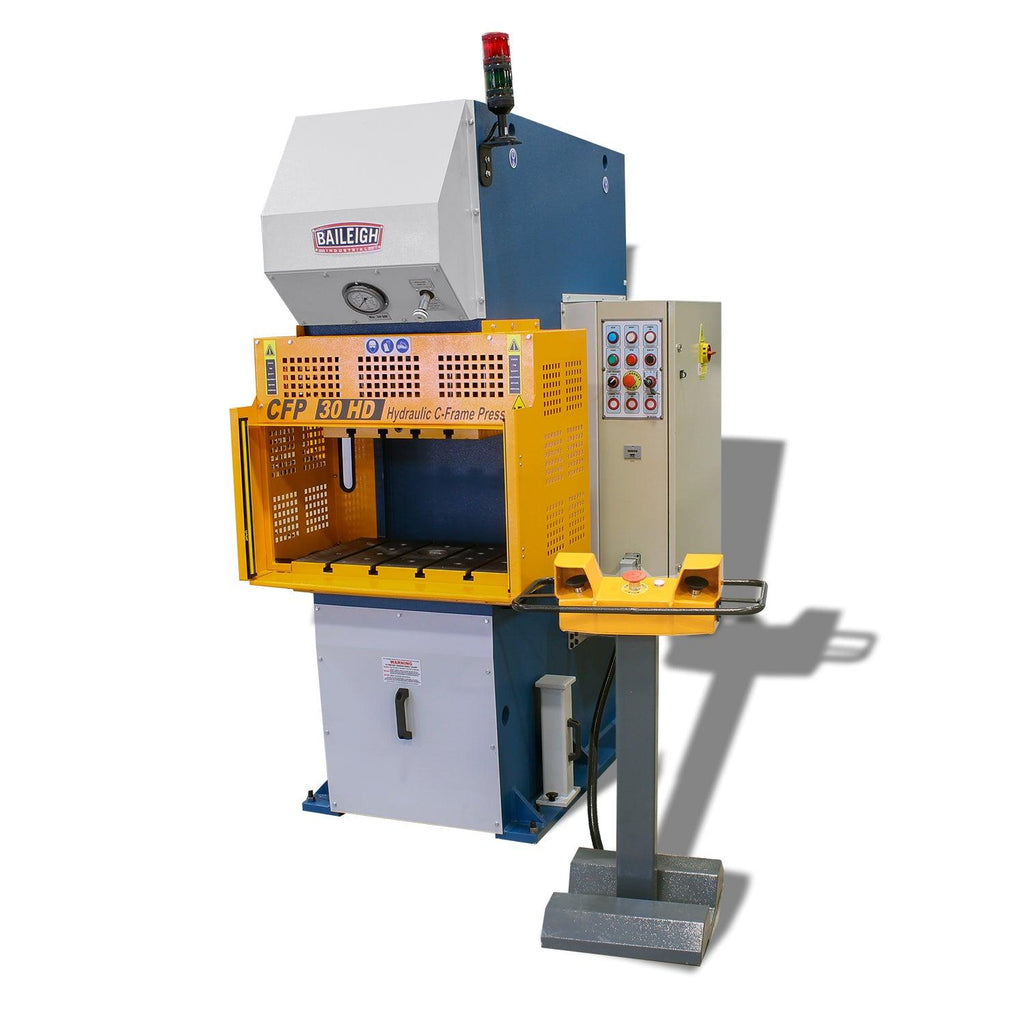

CFP-30HD: C-Frame Hydraulic Press Machine

  • 30 tons
  • C-frame press
  • Perfect for pressing or straightening
  • Fully welded construction
  • Hydraulically operated
  • Adjustable slide pressure

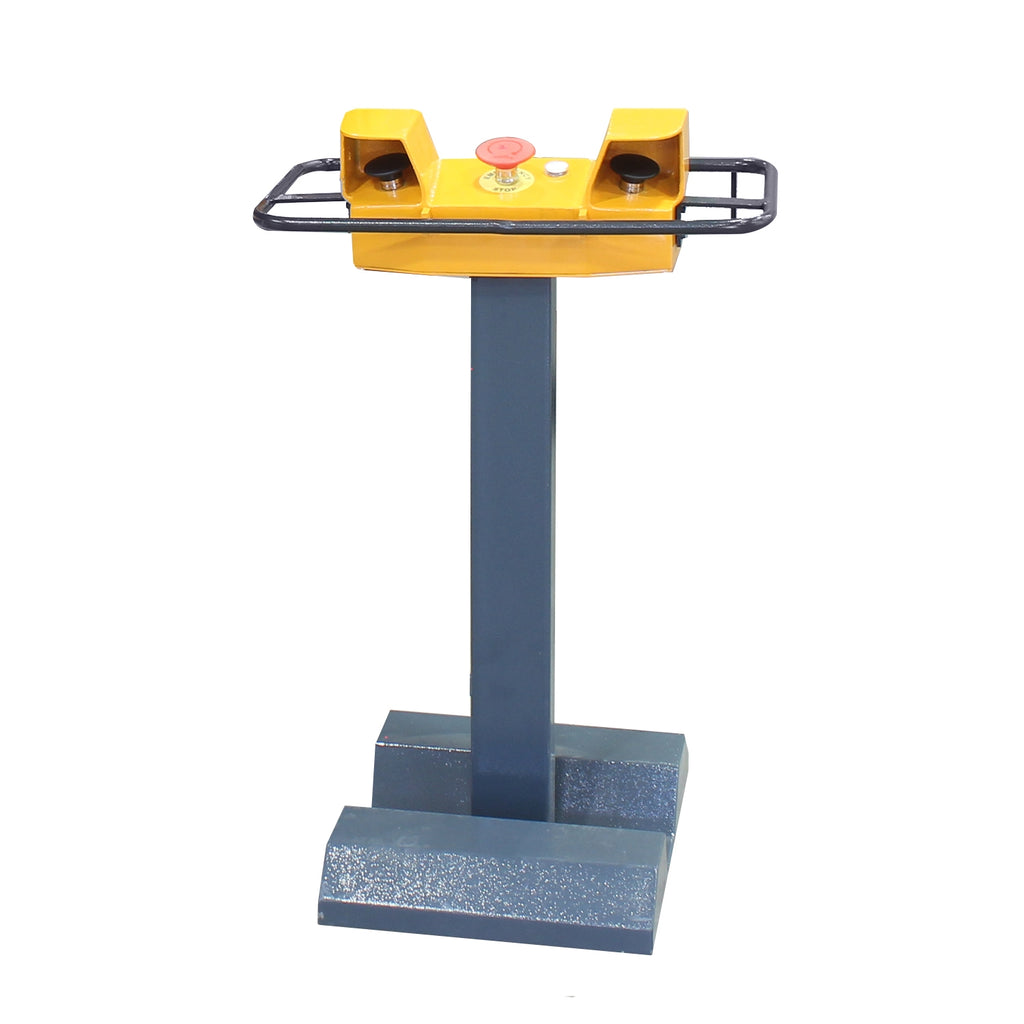

  • Separate control pedestal
  • 480V 3-phase

SPECIFICATIONS

Item Number CFP-30HD
Down Force 30 tons
Return Force 9 tons
Production Pressure 3539 psi
Return Speed 1.1" / sec
Bolster Size 27.56” x 23.625” x 1.75”
Shank Hole 3.9”
Motor 5 hp
Oil Capacity 24 gal.
Throat Depth 25.4"
Idle Speed 1.26" per sec.
Pressing Speed .28" per sec.
Table Height 26.75"
Power 480V / 3-Phase
Shipping Weight 5800lbs
Shipping Dimensions (Inches) 50x55x110

* specifications subject to change without notice.


;
