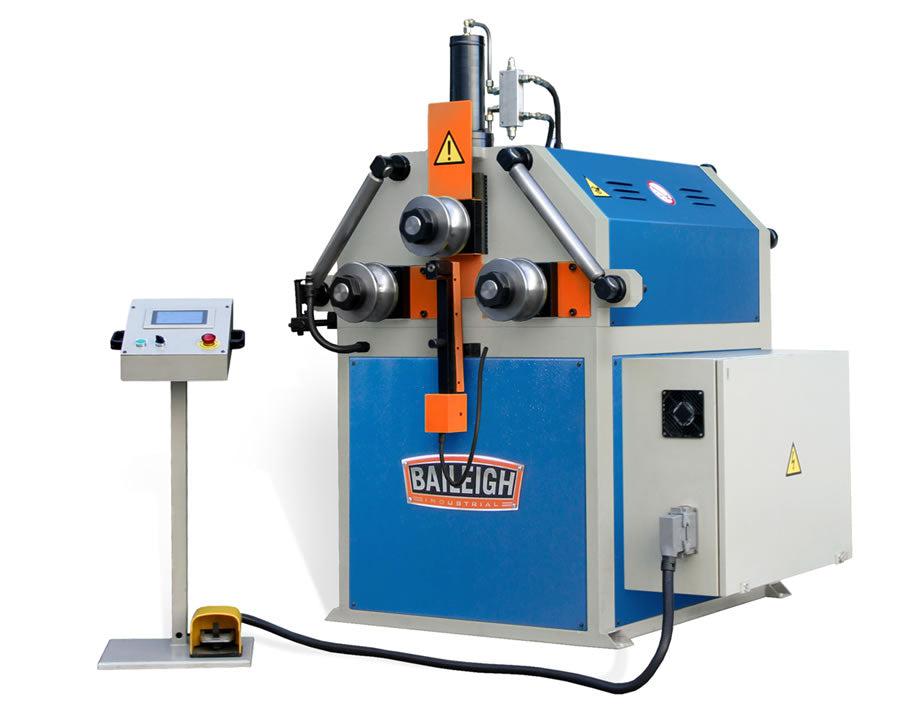

Thiscomputer-controlled, double-pinchtubing roller with3 driven rollsallows you toexecute complex bendswith the press of a few buttons.
CNC roll bender runs on220-volt 3-phase power.
Maximum capacity of4.75” tube.
Variable-speedrolling—4 speeds on top roll, 2 speeds on bottom roll rotation—facilitates smooth transition between bend parts.
Top roll can switch betweenprogressive (moving profile) and direct (profile stopped)bending.
Hydraulically adjustable top rollmoves to fit your application’s profile.
75 different profile calibrationslet you bend multiple radii on a single section.
Overload-protected inverter drivelets you shift machine speed from 0 to 8 rpm, cutting down on machine wear and tear.
Touchscreen operator podiumwithattached foot pedalallows for easy programming.
Internal memory holds40 programs of 24 segmentsper program, cutting down delays on repeat parts.
Heavy electro-welded steel constructionminimizes flex and helps the R-CNC120 to bend at full capacity for years.
Baileigh backs this CNC tube bender with a1-year parts warrantyandlifetime technical support by phone.
Use this CNC rolling machine for:Structural applications, playgrounds, shipyard building, or any high-production, low-waste project.
Why choose this CNC roll bender over comparable machines?
Double-pinch side-to-side adjustment on bottom rollsreduces the wasteful length of straight materialat the ends of each bend that you get on a standard ring roller.
Structural-grade steel plate framesupporting the sharp accuracy of CNC production.
You’ll find our integrated softwareeasy to operate and program, unlike the complicated setups on many CNC roll benders.
Handheld calibration device and cutting-edge CNC technology canautomatically produce the desired bend radiuswithout manual adjustment.
With Baileigh’s world-class after-sale support,expert troubleshooting and free application adviceare always just a phone call away.
SPECIFICATIONS
Item Number
R-CNC120
Roll Adjustment
Hydraulic
Pipe Capacity
Size: 4" (sch. 40) / Min. Dia.: 72"
Round Tube Capacity
Size: 4" (.1875")
Square Tube Capacity
Size: 4" (.1875")
Flat Bar Easy Way
Size: 5.5" (.1.1875") / Min. Dia. 44"
Flat Bar Hard Way
Size: 5" ( .75") / Min. Dia.: 47"
Angle Iron Capacity
Size: 3.15" (.375") / Min. Dia.:40"
Shaft Diameter
3.14”
Pinch
Single with Interchangeable Bottom Rolls
Power
220V 3- phase
Shipping Weight
3540lbs
*Optional Tooling
Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches)
73x64x76
Dimensions L x W x H
64" x 49" x 65"
* specifications subject to change without notice.
