5175410 XPR-15CL-192 BENDPAK 15K Capacity / Clearfloor / Long-Reach Triple-Telescoping Arms / 192" O.A. Height

15,0000-lb. capacity two-post clearfloor lift. Featuring taller column height for greater overhead clearance, single-point safety release, dual hydraulic direct-drive cylinders, two stage telescoping front and rear arms with automatic restraints and an 8-piece truck and van adapter set. Overall height 192.7" with a max lifting height of 74".

Features

  • 15,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Padded overhead safety shutoff bar
  • Extended height top-beam provides greater overhead clearance
  • Single-point safety release
  • Dual direct-drive hydraulic cylinders
  • Dual-synchro equalization system for equal lifting
  • Oversized 53" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"

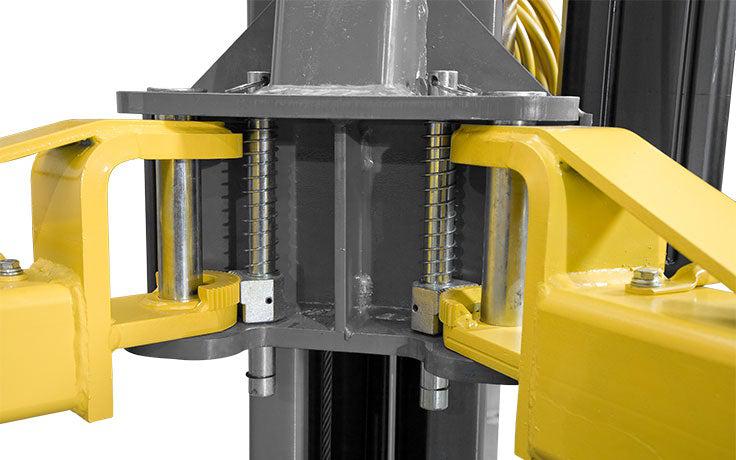

  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber lift pads with stackable adapters
  • Multi-piece adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks
  • Convenient storage is included for truck and van adapters

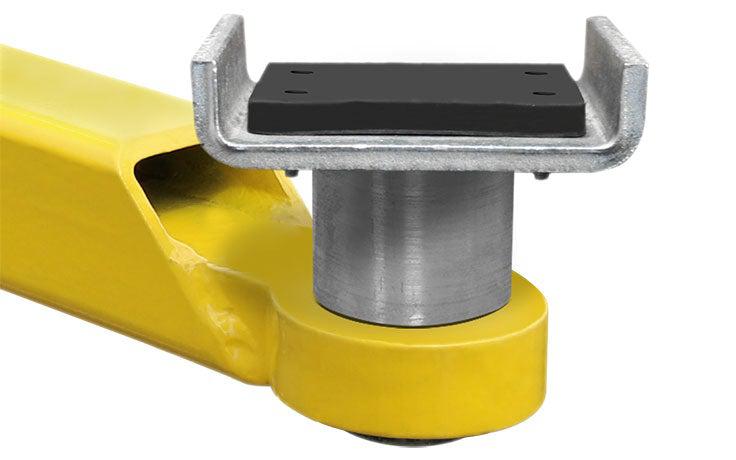

  • Versatile drop-in contact pads with stackable adapters
Lifting Capacity* 15,000 lbs. (6,804 kg)
*Max Capacity / Front Axle 7,500 lbs. (3,402 kg)
*Max Capacity / Rear Axle 7,500 lbs. (3,402 kg)
Rise
A - Rise: 69" (1,753 mm)
B - Rise + Pad Only: 74" (1,880 mm)
C - Rise + Pad + 63 mm Adapter: 80" (2,032 mm)
D - Min. Height + Pad: 5" (127 mm)
Time to Full Rise: 90 seconds
Outside Dimensions
E - Height Overall: 170" (4,318 mm)
F - Width Overall: 155" (3,937 mm)
G - Outside Columns: 144" (3,658 mm)
Inside Dimensions
H - Inside Columns: 120" (3,048 mm)
I - Drive-Thru Clearance: 106" (2,692 mm)
J - Floor To Overhead Switch: 165" (4,191 mm)
Arms & Pads
K - Front Arm Reach: (MIN) 39" (991 mm)
K - Front Arm Reach: (MAX) 60" (1,524 mm)
L - Rear Arm Reach: (MIN) 39" (991 mm)
L - Rear Arm Reach: (MAX) 60" (1,524 mm)
Max Load Per Arm 3,750 lbs. (1,701 kg)
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB
Shipping
Weight: 2,682-lbs. (1,216.5 kg)
Dimensions: 176'' x 29'' x 35'' (4,483 mm x 736 mm x 889 mm)

;
