Extended Double-Wide Parking for Bigger Garage Ambitions
The BendPak HD-9SWX-E Four-Post Lift is built for customers who want the extended-length, high-rise advantages of the HD-9SWX platform in a super-wide four-post lift layout. With 9,000-lb. lifting capacity, four runways, and a double-wide configuration, this model is made to help garages and shops turn limited square footage into smarter vehicle storage.
The HD-9SWX-E is especially useful when the vehicle mix includes longer cars, larger daily drivers, collector vehicles, or combinations that need more clearance above and below the runways. It keeps the core benefit simple: more parking capacity, more lift height, more runway length, and a more capable BendPak four-post lift setup.
Extended Length and High Rise for Serious Storage Setups
The HD-9SWX-E gives users the extended-length runway profile and higher rise needed for more demanding storage layouts. Longer wheelbase vehicles get more runway support, while the added lift height improves the clearance needed for stacked parking and service work beneath the raised platform.
This makes the HD-9SWX-E a strong choice for serious home garages, collector spaces, and professional shops that need to park more vehicles without giving up access. It is not just bigger for the sake of being bigger. The extra size solves real parking and workflow problems.
Runway, Cable, and Lock Systems Designed for Repeated Use
BendPak builds the HD-9SWX-E around heavy-duty four-post lift hardware, including an electric-hydraulic power system, a single hydraulic cylinder mounted underneath the runway, and enclosed lifting cables, locks, and sheaves. Oversized self-lubricating cable rollers, 3/8-inch aircraft cable, and rugged 1.25-inch roller axles support long-term lift performance.
Multi-position safety locks in each column, adjustable lock ladders, push-button pneumatic safety release, and independent backup slack-cable safety latches help keep daily operation controlled. The HD-9SWX-E may be a parking problem solver, but the safety engineering is very much shop-grade.
A Four-Post Lift System Ready for Accessories and Expansion
The HD-9SWX-E runways accommodate wide or narrow vehicles and include rail-kit provisions for optional accessories. Users can configure the lift with drive-thru ramps, drip trays, solid decks, and compatible rolling bridge jacks to better match the way their garage or shop operates.
For customers comparing double-wide models, the HD-9SWX-E is the choice when extended length and higher rise matter. It gives users the confidence to store more, service more, and stop letting garage space dictate what stays outside.

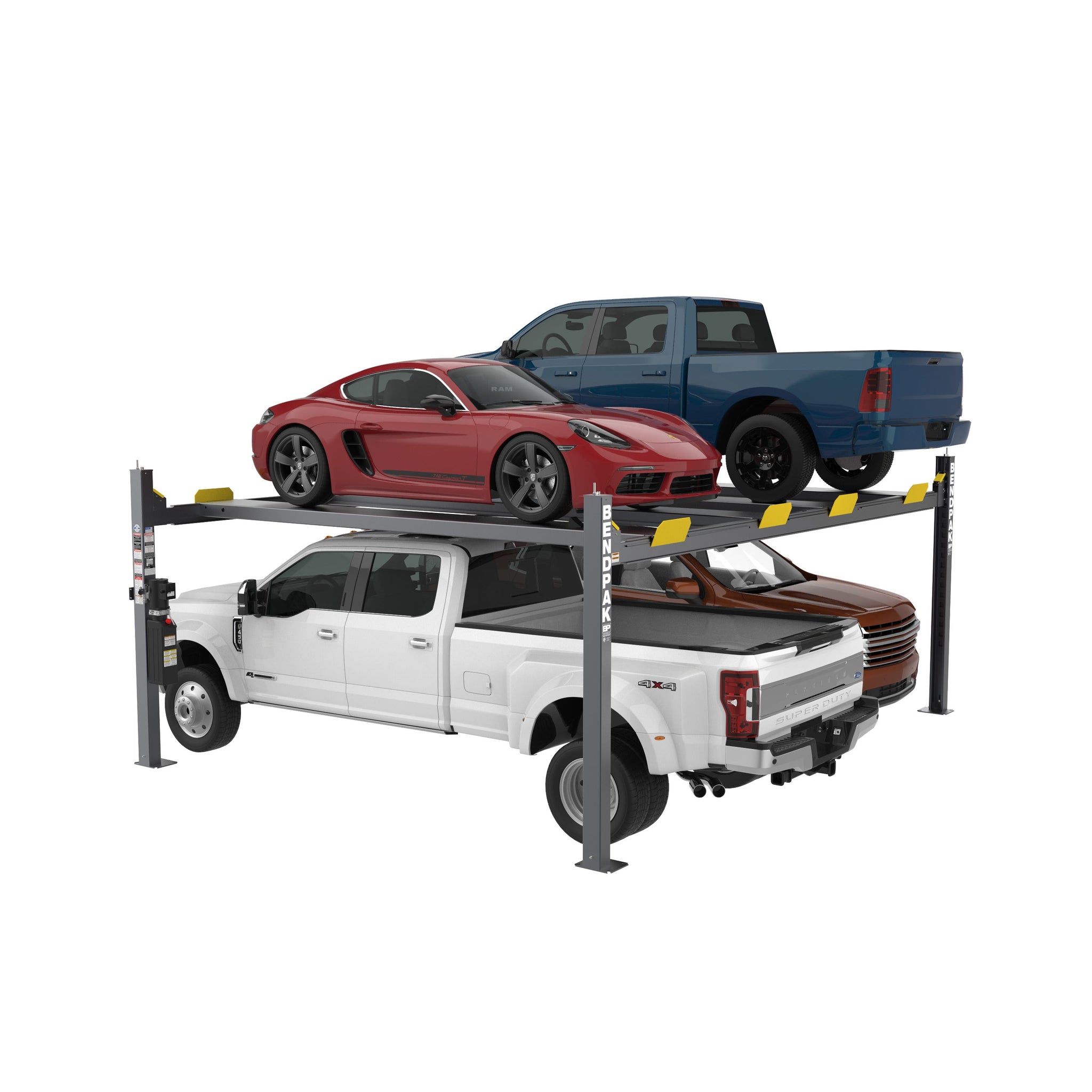

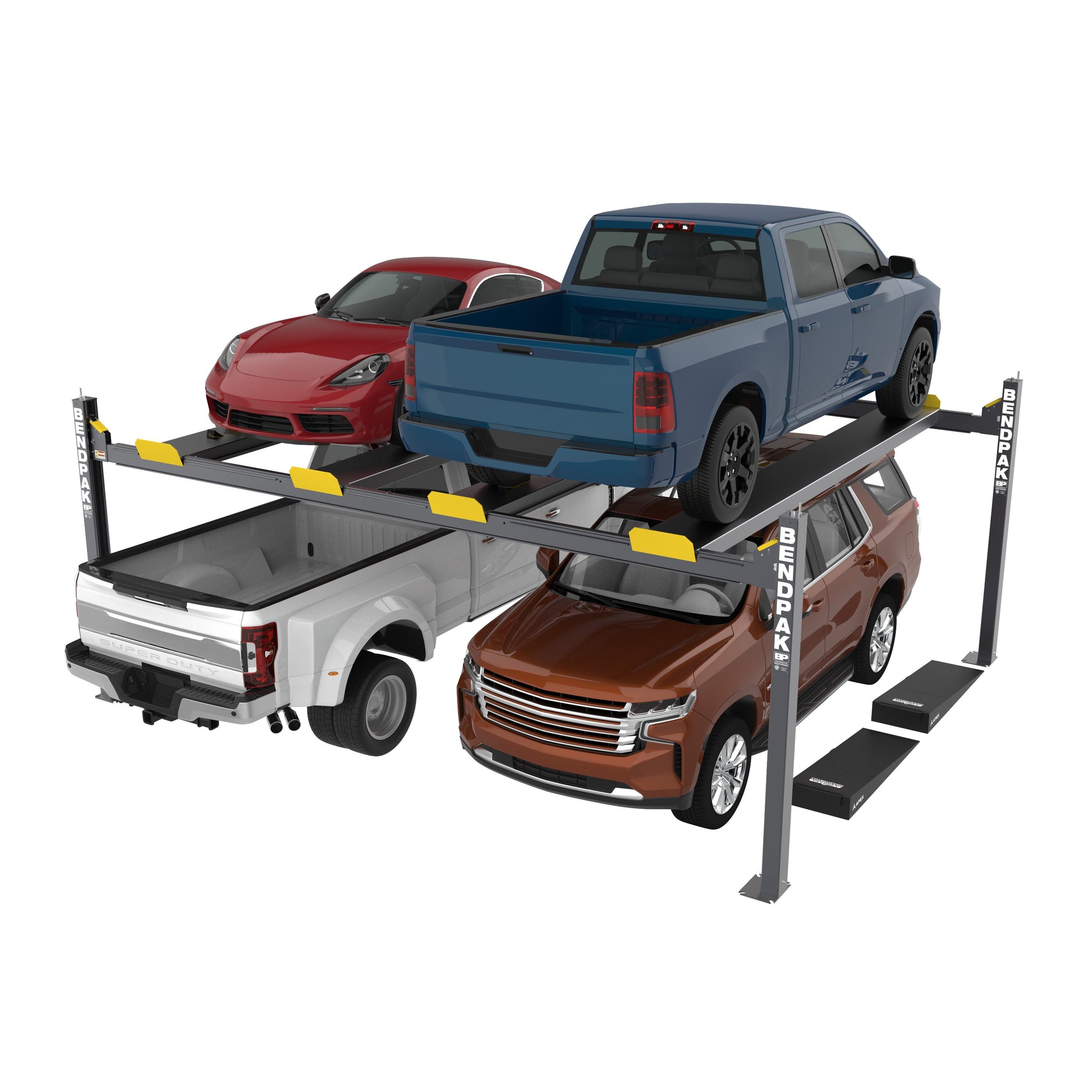

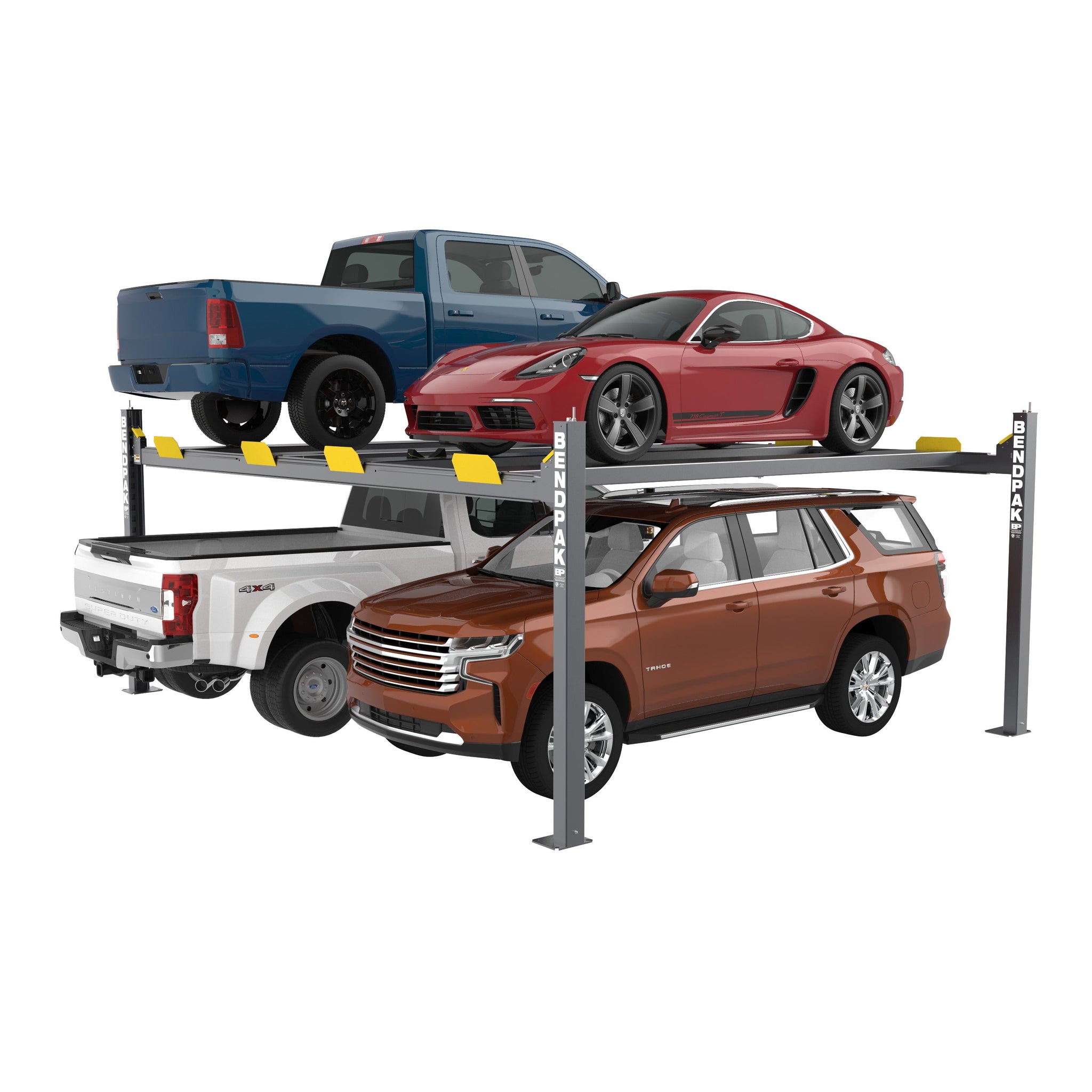

Extended Quad Parking
The HD-9SWX-E combines double-wide four-post storage with extended-length runways for more demanding vehicle layouts.
High-Rise Clearance
A super-tall rise helps create additional room for stacked parking combinations and under-vehicle access.
Built for Longer Vehicles
The extended runway design makes this model a better fit for longer wheelbases and larger vehicle mixes.

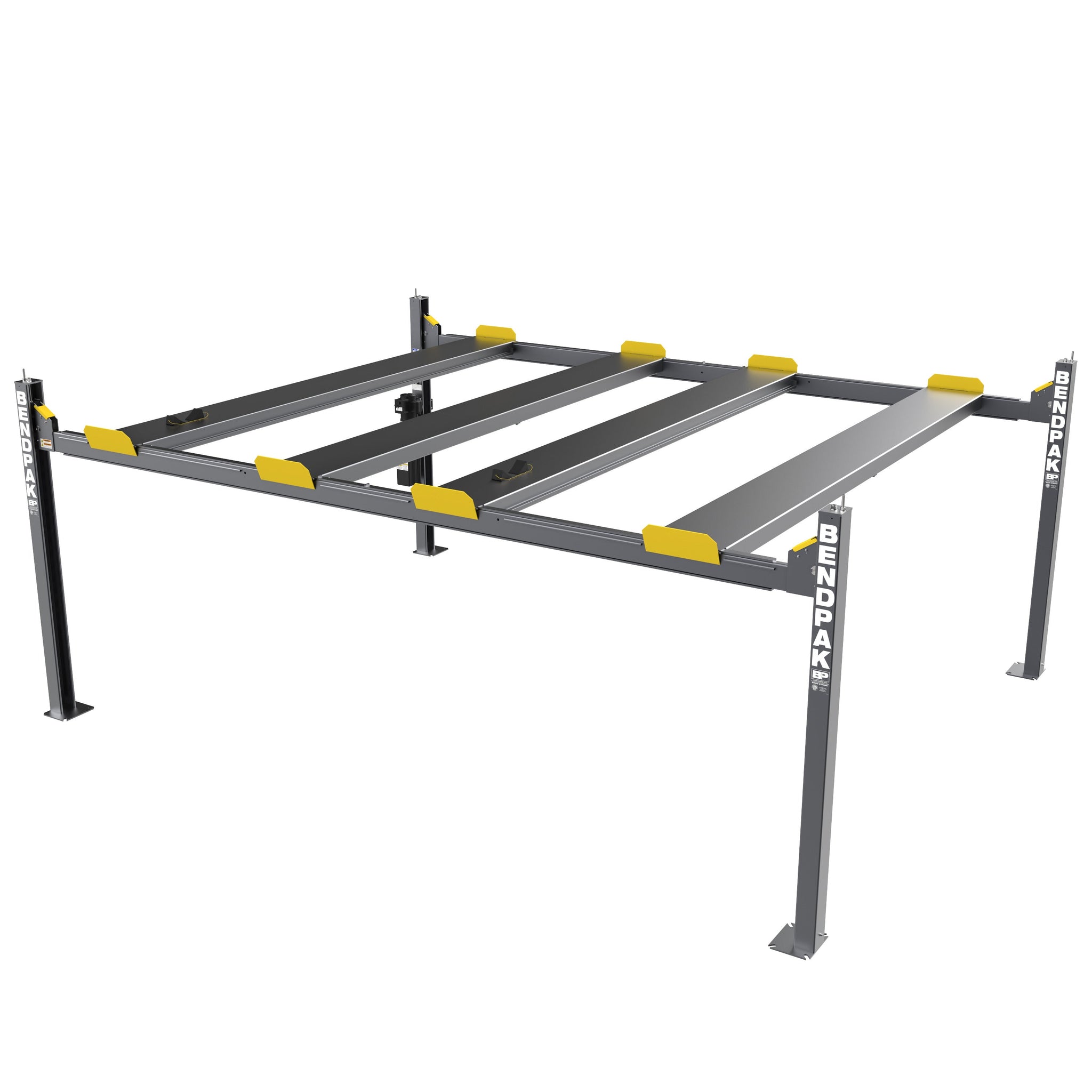

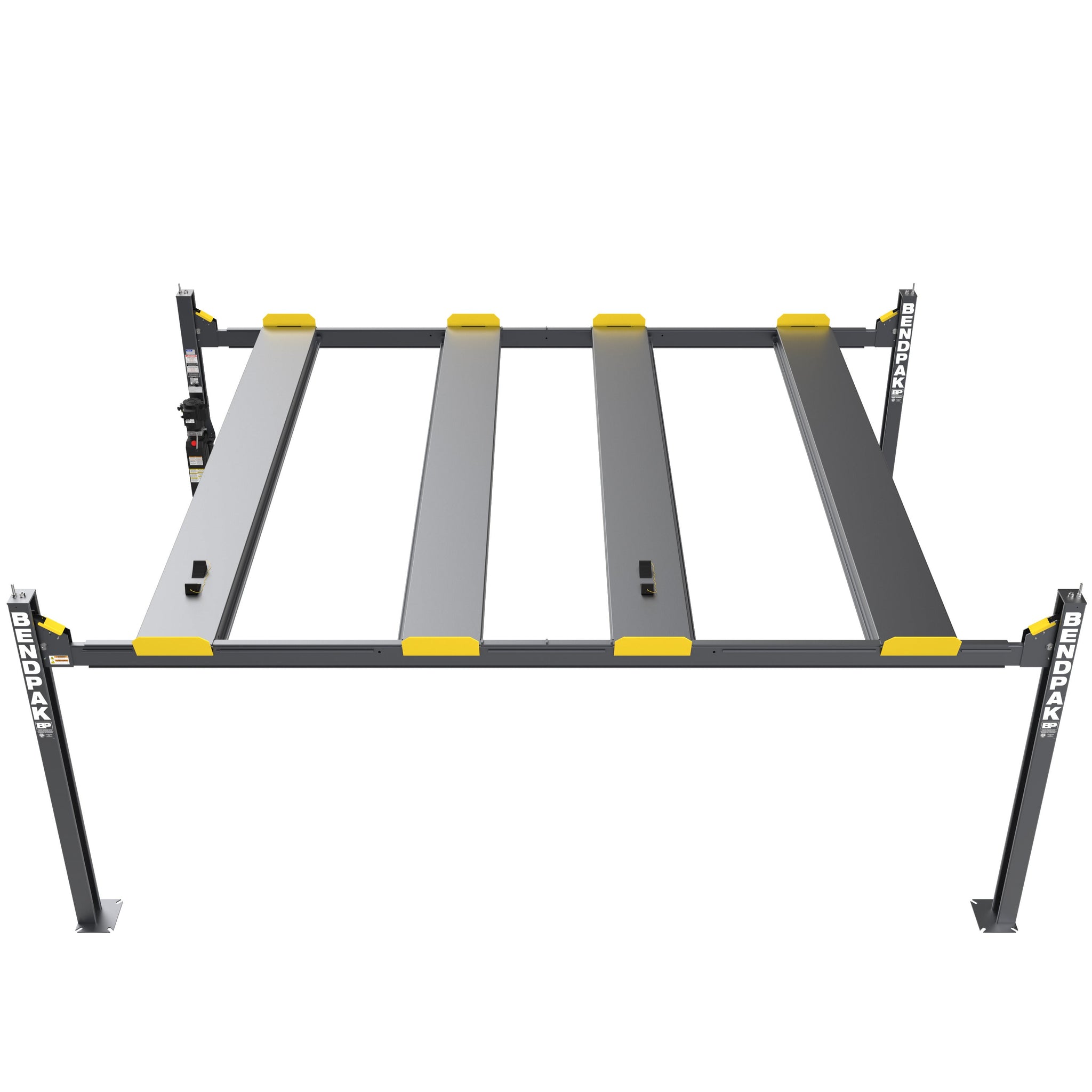

Four-Runway Platform
Four runways support the double-wide layout, helping users turn a two-car area into a more productive storage zone.
Pneumatic Lock Release
Push-button pneumatic safety release adds convenience while working with the lift’s multi-position safety locks.
Accessory-Ready Runways
Rail-kit provisions support optional drive-thru ramps, drip trays, solid decks, and rolling bridge jacks.
Recommended Add-ons
Features
- 9,000-lb. maximum lifting capacity
- Extended-length four-post lift design
- Double-wide configuration for quad-vehicle storage
- Four runways
- Super-tall rise
- Extra-long ramp
- Runways accommodate wide or narrow vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Features heavy-duty 3/8-inch aircraft cable
- Multi-position safety locks in each column
- Push-button pneumatic safety release
Specifications
| Lifting Capacity | 9000 lb |
| Min Runway Height | 7 in |
| Max Rise | 82 in |
| Max Lifting Height | 89 in |
| Width | 248 in |
| Outside Length | 198 in |
| Overall Length | 242.5 in |
| Height | 102 in |
| Inside Columns | 238 in |
| Drive-Thru Clearance | 81 in |
| Runway Width | 19 in |
| Runway Length | 188 in |
| Width Between Runways | 34.25 - 41 in |
| Runway Centerline | 56.25 - 62.75 in |
| Outside Edge of Runways | 75.25 - 81.75 in |
| Rated Wheelbase Capacity | 135 in |
| 25% Capacity | 80 in |
| 50% Capacity | 95 in |
| 75% Capacity | 115 in |
| Locking Positions | 17 |
| Locking Spacing | 4 in |
| Horsepower | 2 HP |
| Voltage | 208-230V / 60 Hz / 1-Phase |
| Sound Level | 45 dB |
| Shipping Dimensions | 23 x 205 x 51 in |
| Shipping Weight | 3038 lb |
| Shipping Method | Flatbed |
| Offload Requirement | Forklift |
