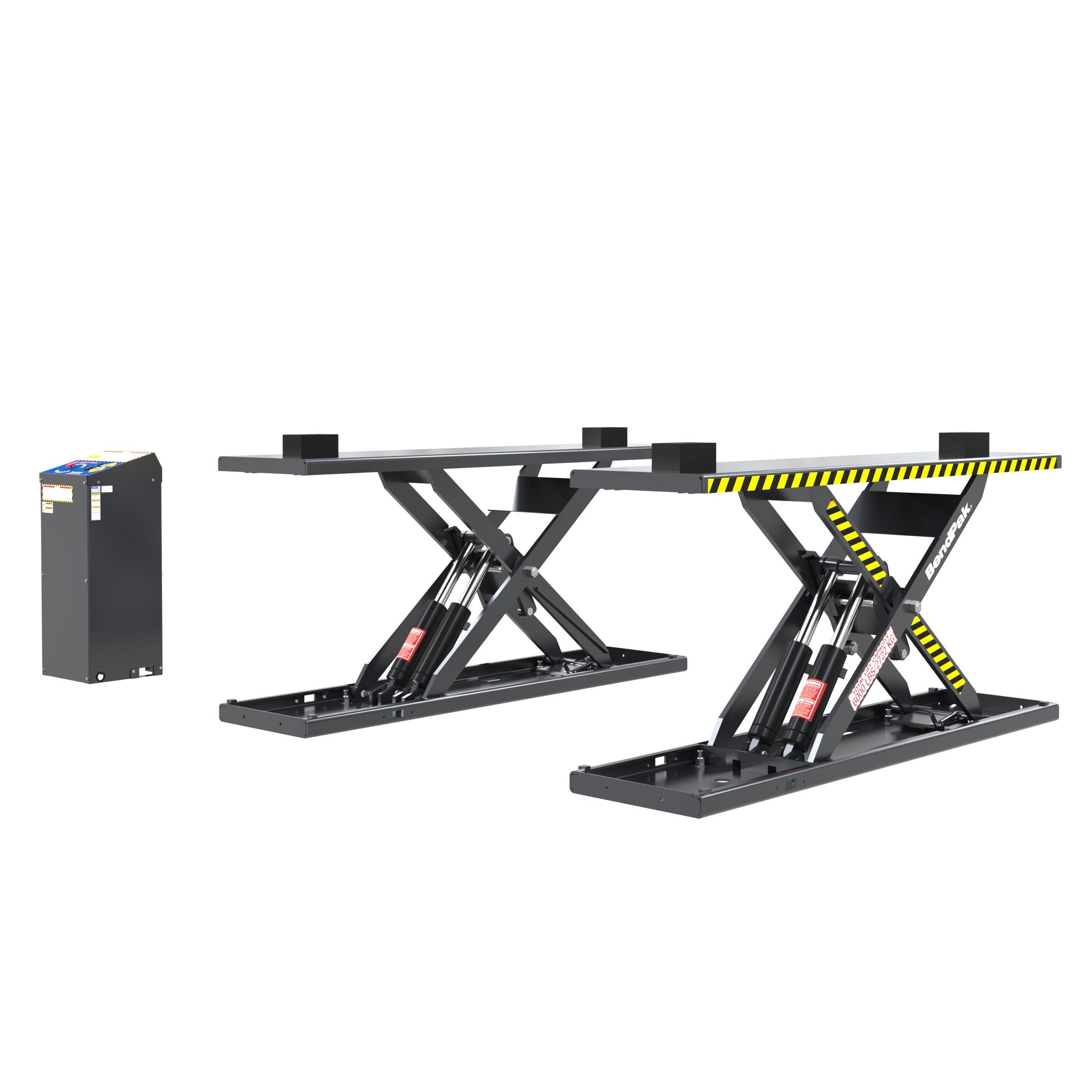

BendPak MDS-6EXF Extended Flush-Mount Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity (5175151)

Flush-Mount Mid-Rise Lifting for Longer Wheelbases

The BendPak MDS-6EXTF Extended Flush-Mount Open-Center Mid-Rise Scissor Lift combines the extended platform reach of the MDS-6EXT with a recessed, flush-mount installation for shops that want a cleaner floor and better access to longer vehicles. With a 6,000-lb. capacity, extended lift points, and open-center design, it is built for long-wheelbase vehicles, modern EVs, and service bays that need more reach without adding floor clutter.

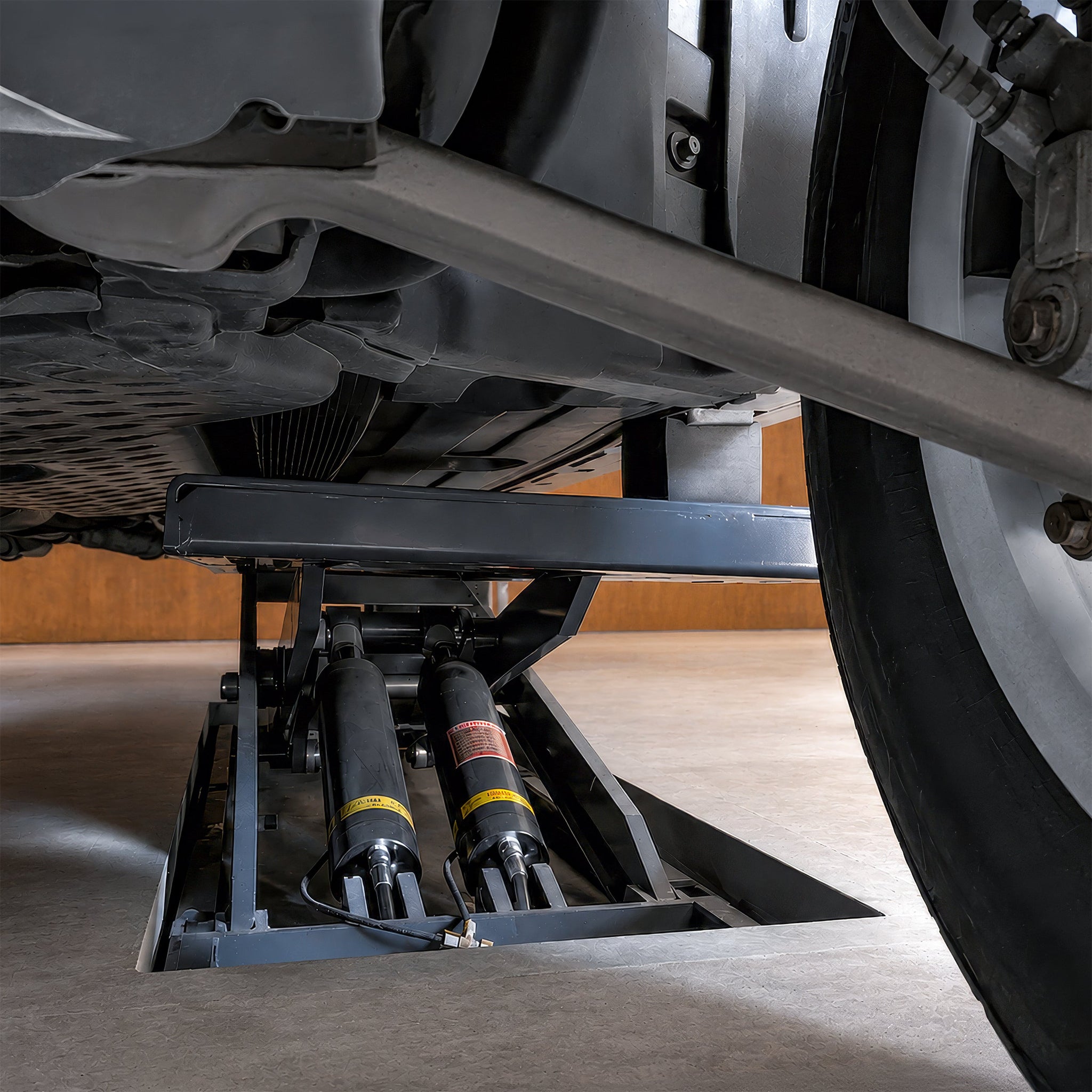

The flush-mount design allows the lift to sit level with the floor when lowered, while extended approach ramps can turn the recessed lift into an easy approach setup for low-stance vehicles and larger tires. For shops that service newer platforms with wide lift point spreads, the MDS-6EXTF gives technicians a more capable mid-rise option.

Extended Approach Access with a Zero-Footprint Bay

The MDS-6EXTF is built to support the unique needs of longer vehicles by reaching farther toward the outer edges of the underbody. That extended reach helps position vehicles more confidently at recommended pick-up points, especially when standard mid-rise platforms feel too short.

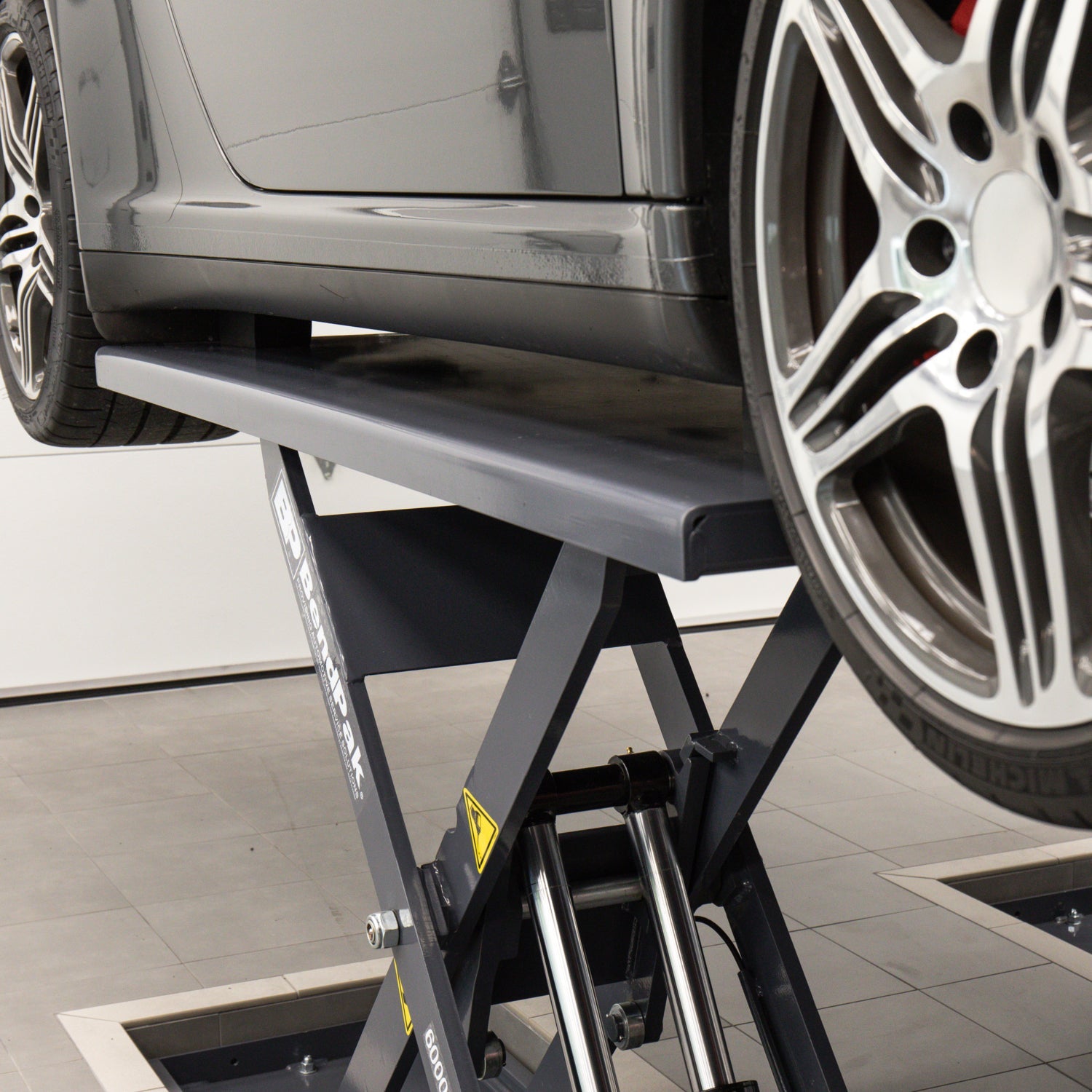

Because the lift installs flush with the floor, it keeps the bay cleaner when not in use. Add the extended approach ramps when loading, remove them when access matters, and keep the working area more open during service.

Pneumatic Boost and Four-Cylinder Lift Control

A pneumatic kicker boosts the platforms through the initial 6 inches of lift, helping overcome the mechanical challenges common to low-profile scissor lifts. These air-powered boosters assist the hydraulics during the first stage of lifting and are designed to require minimal maintenance.

Four hydraulic cylinders work in unison to raise the platforms, while a built-in flow divider helps maintain equal pressure to each hydraulic hose. The result is a quick, efficient rise to about 45 inches with balanced platform movement across the lift.

Safety Locks, Air Release, and Shop-Ready Support

Solid-steel safety arms lock automatically and continuously during ascent, transferring load off the hydraulic system when the lift is secured. Multiple lock positions allow technicians to choose the working height that fits the job, from brake service to underbody access.

Air lock releases replace traditional spring releases and disengage the locks during descent with the push of a button. Zerk grease fittings help protect critical wear areas, while rugged rubber lift blocks support secure vehicle contact points during daily shop use.

Extended Flush-Mount Design

Combines longer platform reach with a recessed floor installation. The MDS-6EXTF helps keep the bay clean when the lift is lowered.

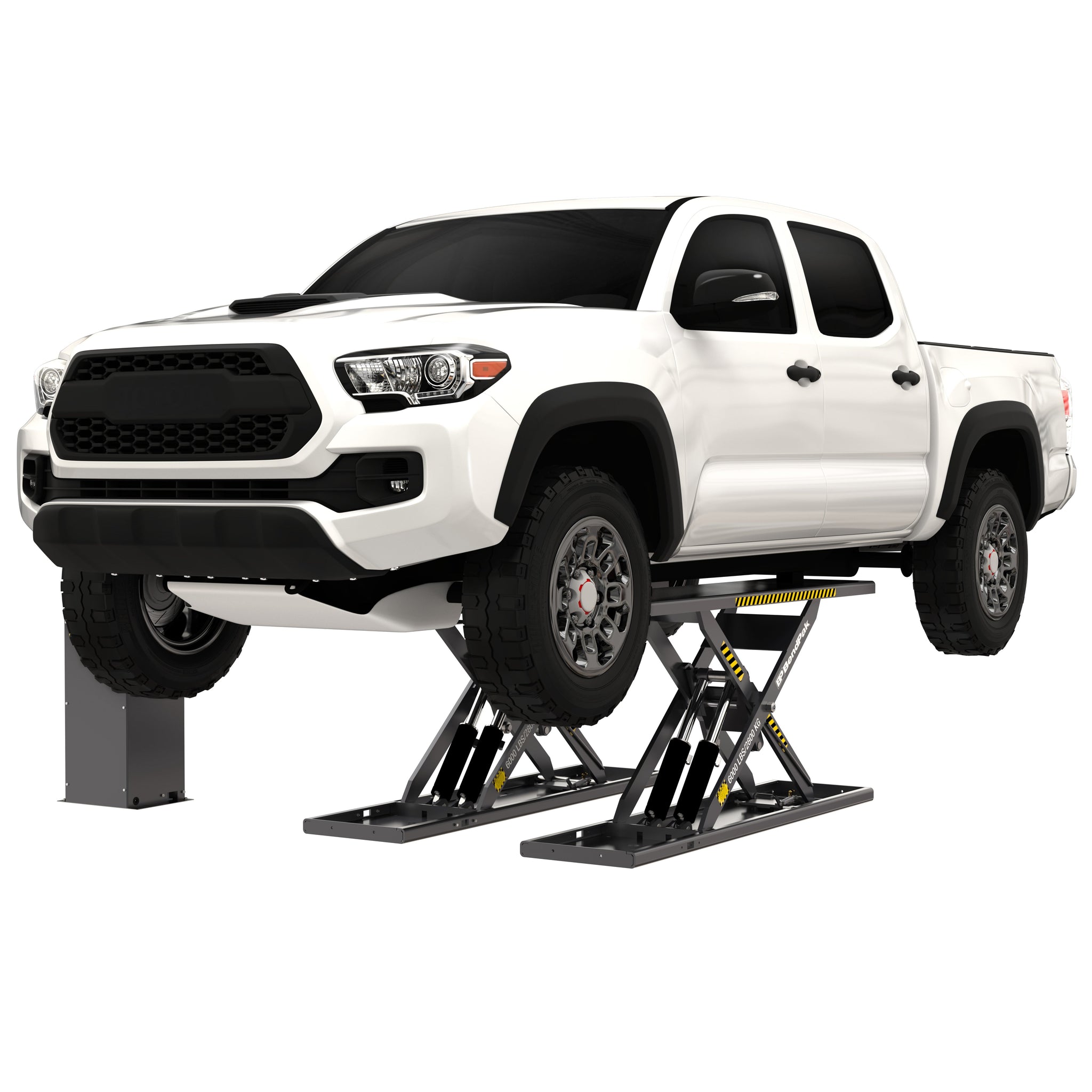

Built for Long Wheelbases

Extended lift points help reach farther across modern underbodies. It is a strong fit for long-wheelbase vehicles and many EV platforms.

6,000-lb. Capacity

Provides mid-rise lifting power for cars and light-duty vehicles. The extended format adds reach without giving up open-center access.

Pneumatic Kicker Boost

Air-powered assistance supports the first 6 inches of lift. This helps the platforms rise smoothly from a low, flush-mount start.

Four Hydraulic Cylinders

Four cylinders and a flow divider help maintain even pressure and platform movement. The system is built for balanced lifting.

Push-Button Lock Release

Air lock releases disengage the safety locks during descent. Operators avoid manual release bars while maintaining controlled operation.

Features

• 6,000-lb. lifting capacity
• Extended flush-mount open-center mid-rise scissor lift
• Designed for long-wheelbase vehicles
• Extended lift points reach farther across the underbody
• Useful for many modern EV platforms
• Flush-mount installation for zero-footprint bay layout
• Extended approach ramps support low-stance vehicles and larger tires
• Pneumatic kicker assists initial 6 inches of lift
• Approximately 45-inch lift height
• Four hydraulic cylinders
• Built-in flow divider
• Solid-steel safety lock bars
• Push-button pneumatic safety lock release
• Zerk grease fittings at hinge points

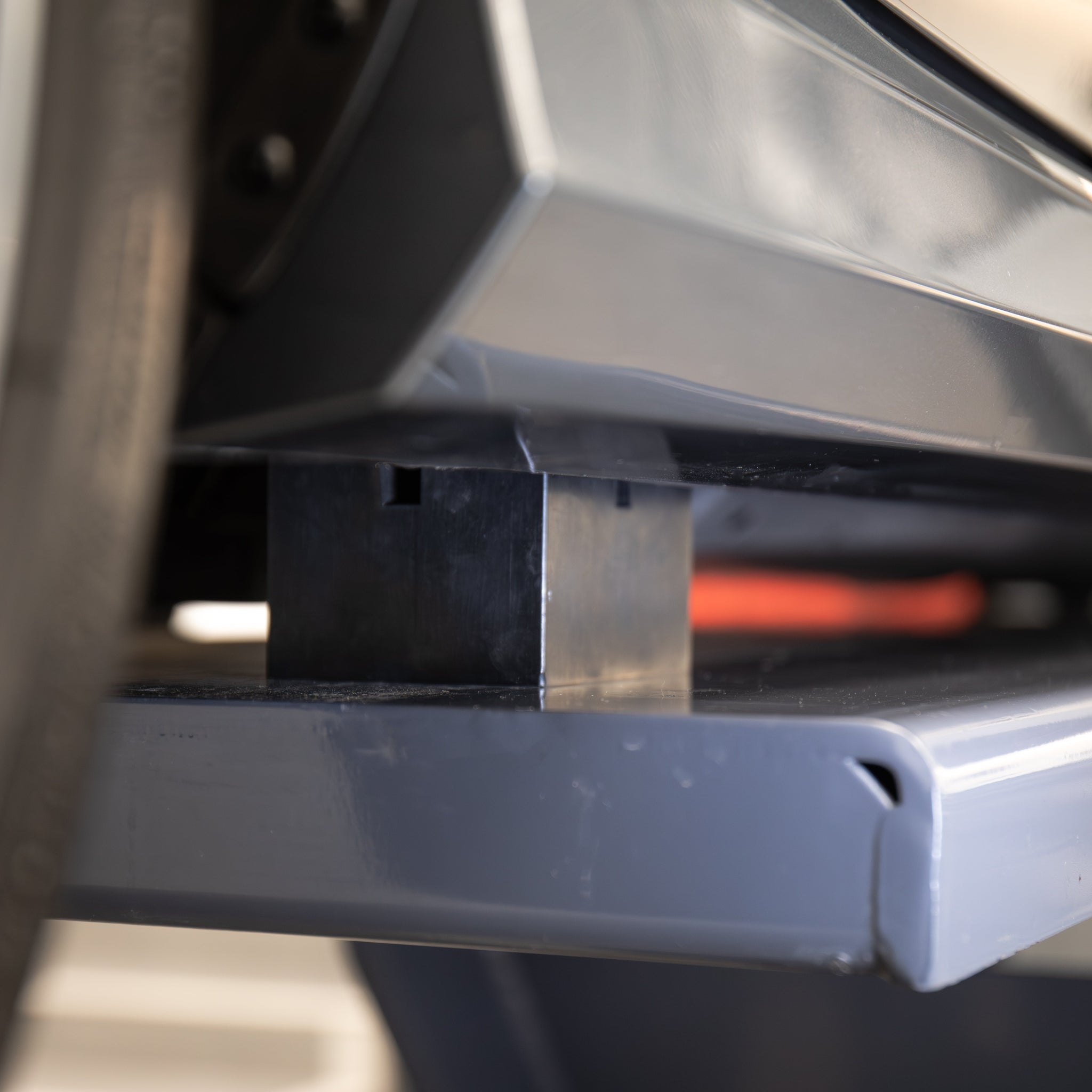

• Four cushioned-rubber contact blocks included

Specifications

Manuals & Downloads

• BendPak MDS 6EXTF Flush Mount Open Center Mid Rise Scissor Lift 5175151 Sales Sheet
• BendPak MDS 6 EXT EXTF LP LPF Mid Rise Scissor Car Lift Installation Operation Manual
• BendPak Limited Warranty All Products
