BendPak OctaFlex 12DPS Two-Post Car Lift - Auxiliary Lift-Assist Arms (5175612)

Eight Arms, One Serious Service Advantage

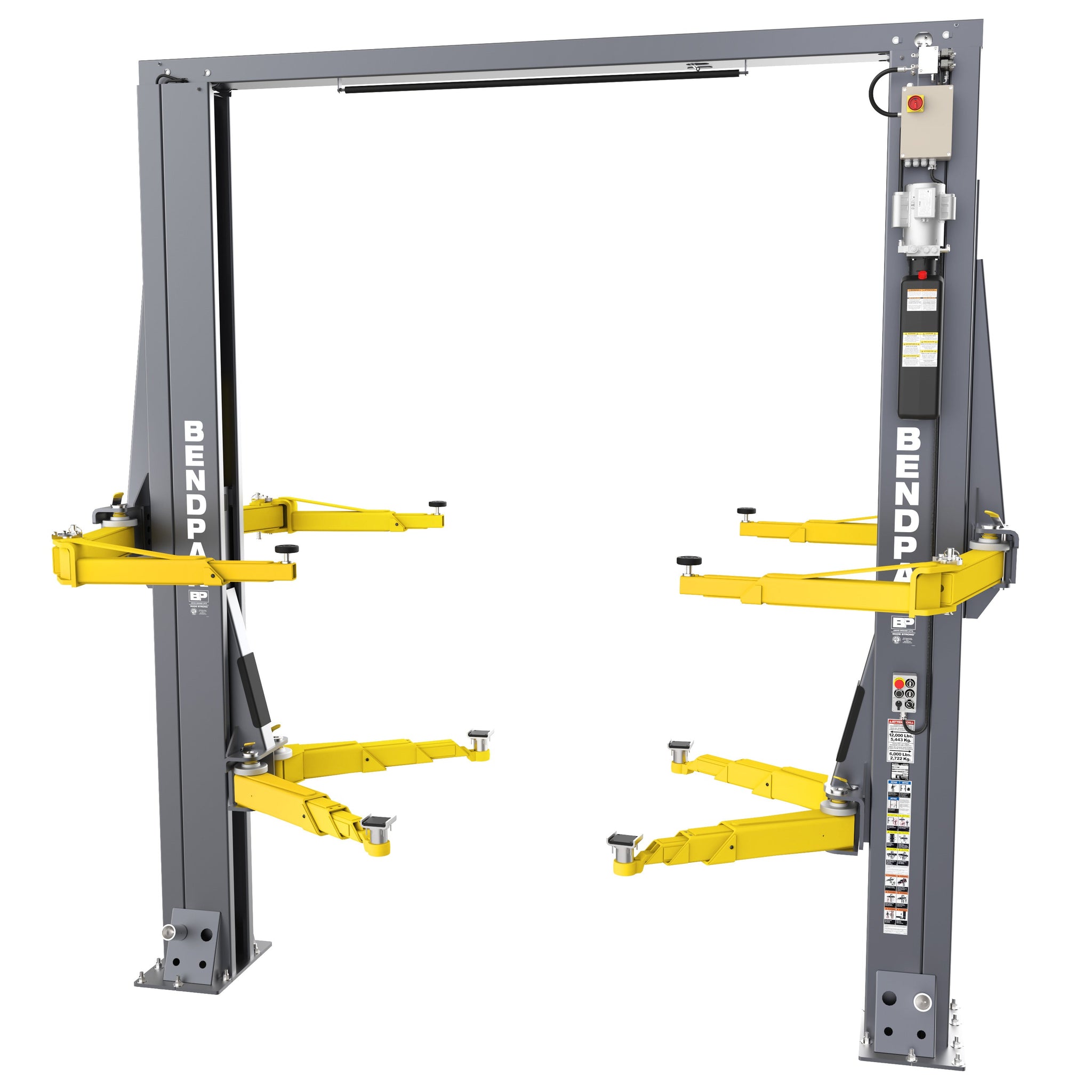

The BendPak OctaFlex 12DPS is a purpose-built two-post service lift for the realities of modern repair work. Electric vehicles require controlled handling of large battery packs, while diesel trucks often demand cab-off service, drivetrain separation, subframe work, and other procedures that involve supporting both the vehicle and major components at the same time.

At its core, the OctaFlex combines a 12,000-lb. primary two-post lift with an integrated 6,000-lb. auxiliary lift-assist system. Four primary arms and four auxiliary arms create an eight-arm service platform that helps technicians raise the vehicle while maintaining controlled support of cabs, drivetrains, EV batteries, suspension assemblies, and other heavy components.

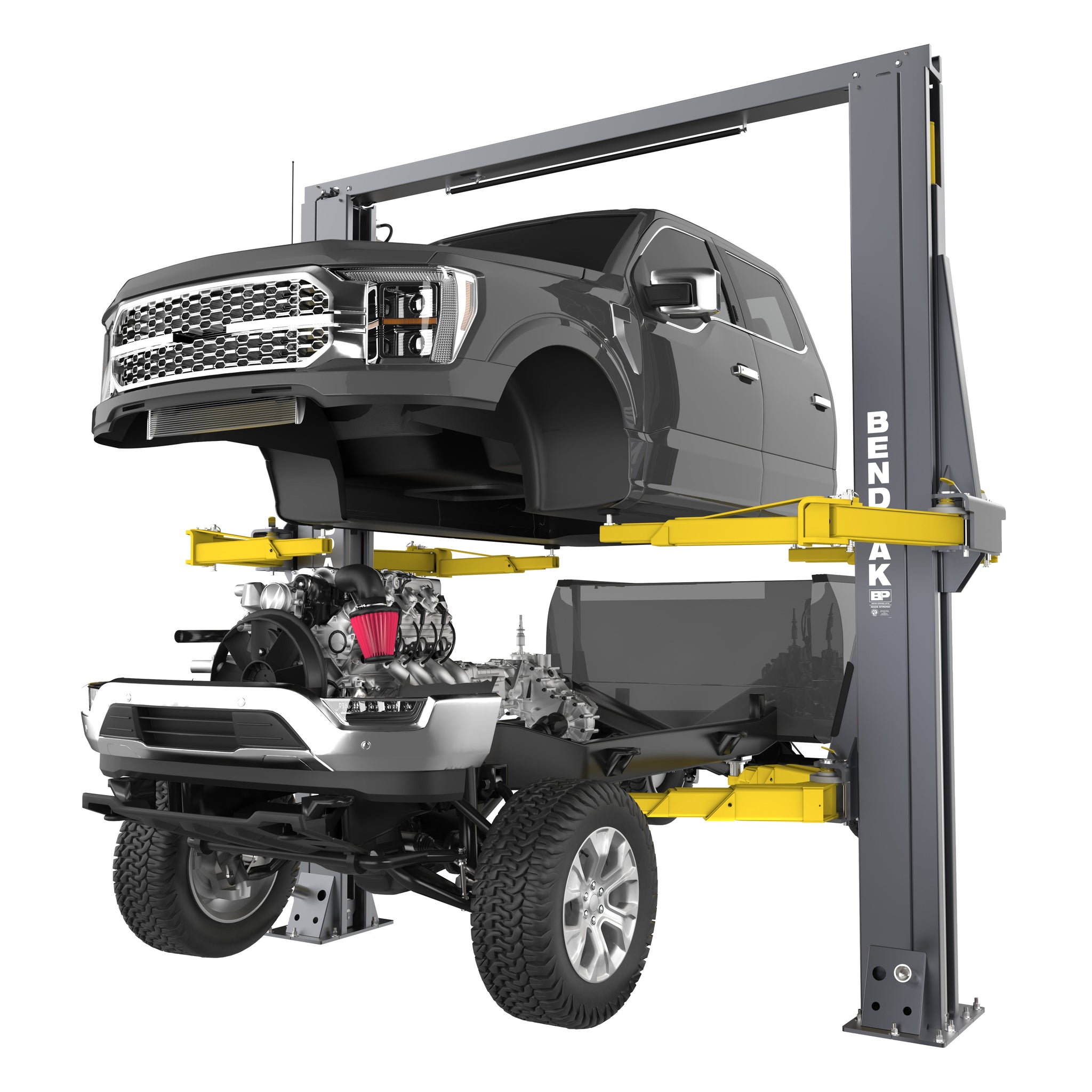

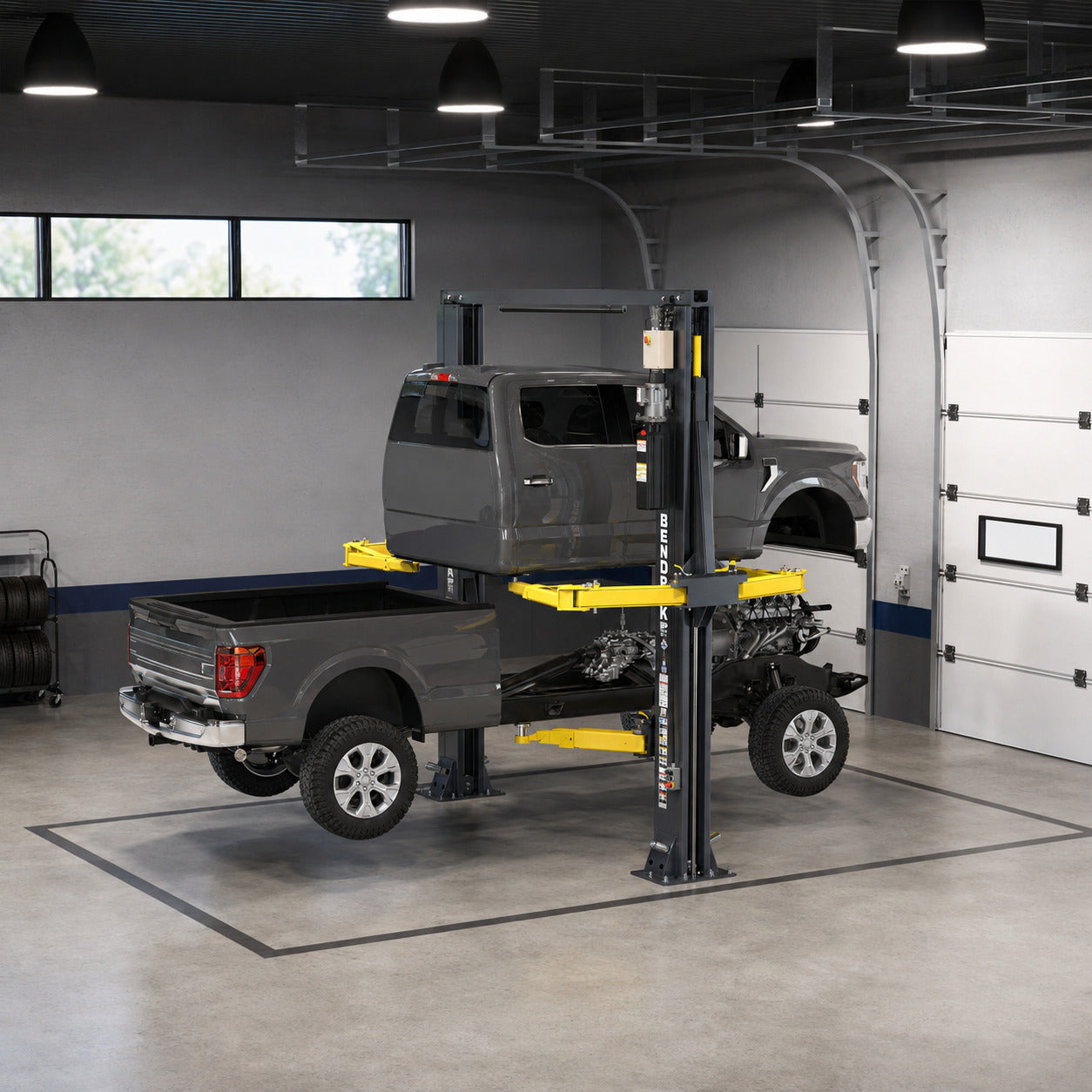

Cab-Off Truck Service and EV Battery Replacement Capability

Cab-off diesel service is one of the clearest reasons to choose the OctaFlex 12DPS. By supporting the vehicle and major assemblies on the same system, technicians can maintain better alignment between the cab, chassis, and drivetrain from disassembly through reassembly. That can reduce repeated adjustments and help difficult jobs come back together more naturally.

For EV service, the auxiliary lift-assist system gives technicians a controlled way to support battery packs beneath the vehicle while the primary lift holds the vehicle above. This integrated approach reduces reliance on separate lifting equipment and helps create a more stable, repeatable workflow for high-value, high-complexity repairs.

Eight-Arm Platform with Triple-Telescoping Reach

The OctaFlex platform is built around four primary lifting arms and four auxiliary arms that work together as one coordinated service system. Patent-pending triple-telescoping swing arms extend farther and retract shorter than conventional arms, giving technicians more reach and more flexibility when positioning lift points across trucks, SUVs, EVs, and passenger vehicles.

Bi-Metric™ arm geometry allows quick adjustment between symmetric and asymmetric configurations, helping shops balance heavier vehicles while maintaining cabin access. This combination of reach, support, and arm layout makes the OctaFlex more than a traditional two-post lift with extra parts bolted on.

Direct-Drive Hydraulics and Shop-Focused Control

Twin direct-drive hydraulic cylinders eliminate chains and screw lifting mechanisms, delivering smooth lifting performance while reducing maintenance requirements. The high-volume, low-pressure hydraulic system lowers stress on internal components while maintaining consistent lift operation in high-use dealership, fleet, and professional repair environments.

A handheld pendant gives technicians precise control of lift operation and safety-lock release during lowering. Clearfloor layout, maintenance-free UHMW load bearings, industrial-grade components, single-piece columns, oversized carriages, and durable finishes help the OctaFlex 12DPS support the increasing complexity of modern vehicle service.

Eight-Arm Service Platform

Four primary arms and four auxiliary arms support both the vehicle and major components. It is designed for work that traditional two-post lifts do not handle as efficiently.

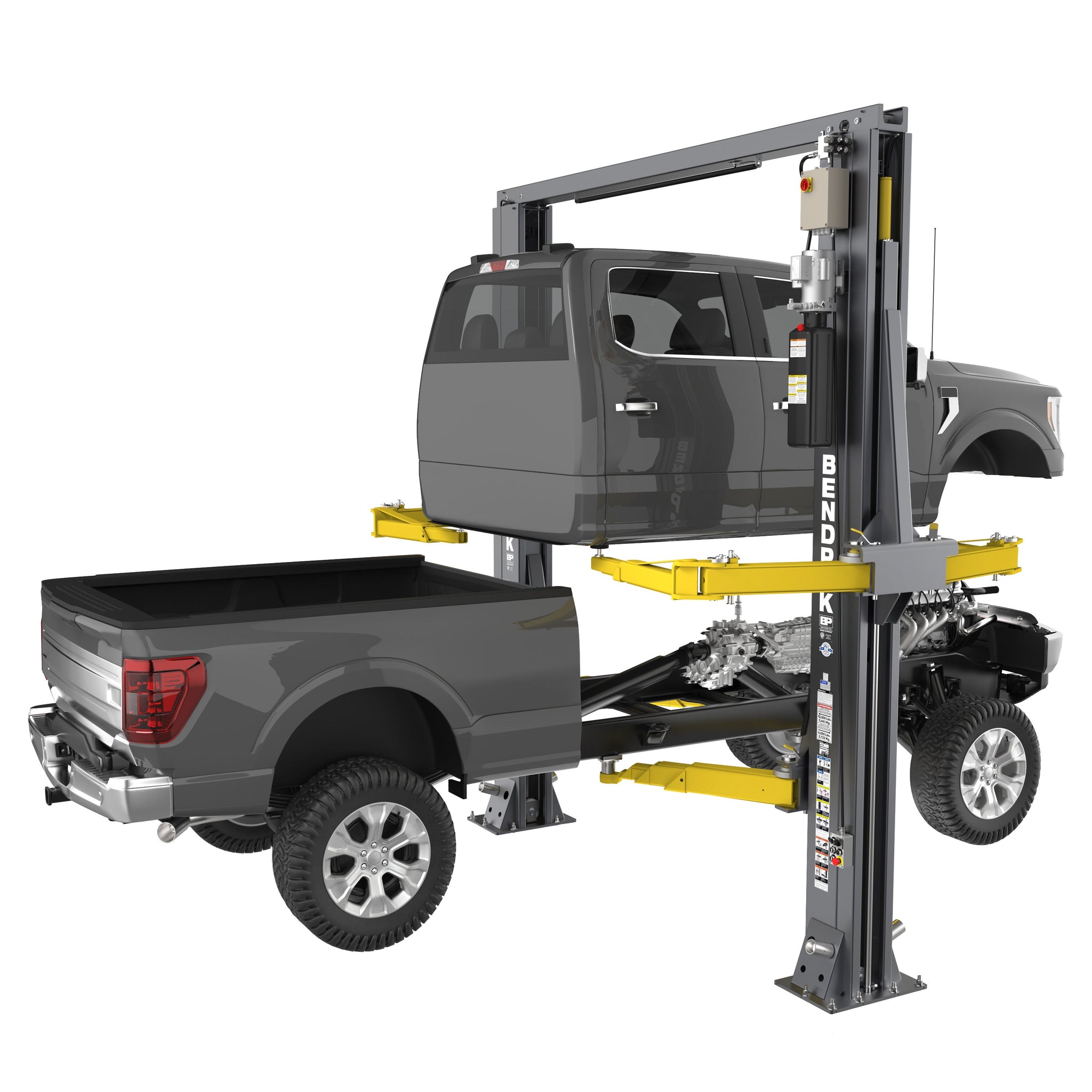

Cab-Off Repair Support

The OctaFlex helps keep the cab, chassis, and drivetrain stabilized during separation. That controlled alignment can reduce time spent repositioning parts during reassembly.

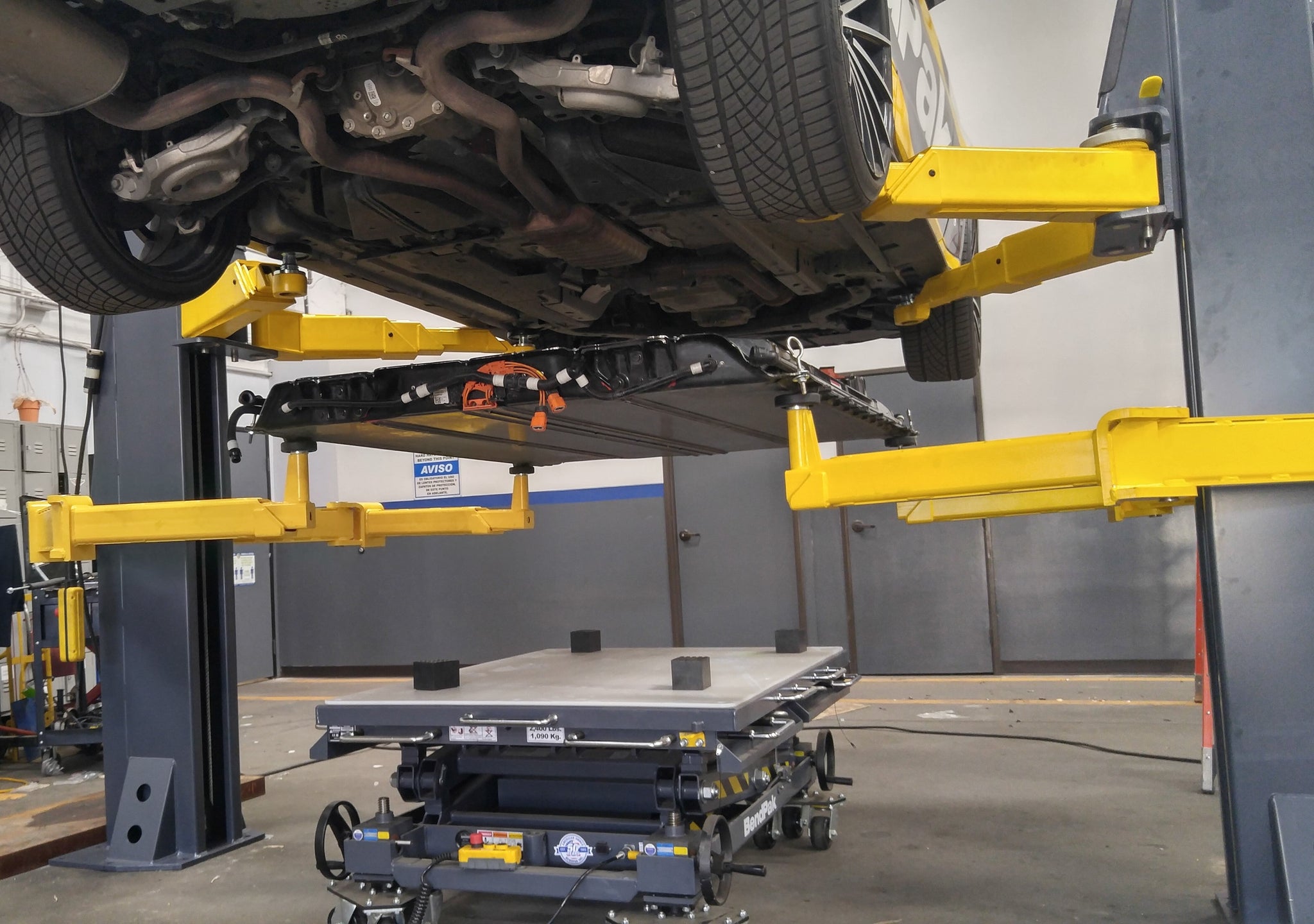

EV Battery Capability

The auxiliary system supports large EV battery packs beneath the vehicle while the primary lift holds the vehicle above. This helps technicians manage battery service with better control.

6,000-lb. Lift Assist

The integrated auxiliary lift-assist system provides up to 6,000 lbs. of support for drivetrains, subframes, suspension assemblies, battery packs, and other heavy components.

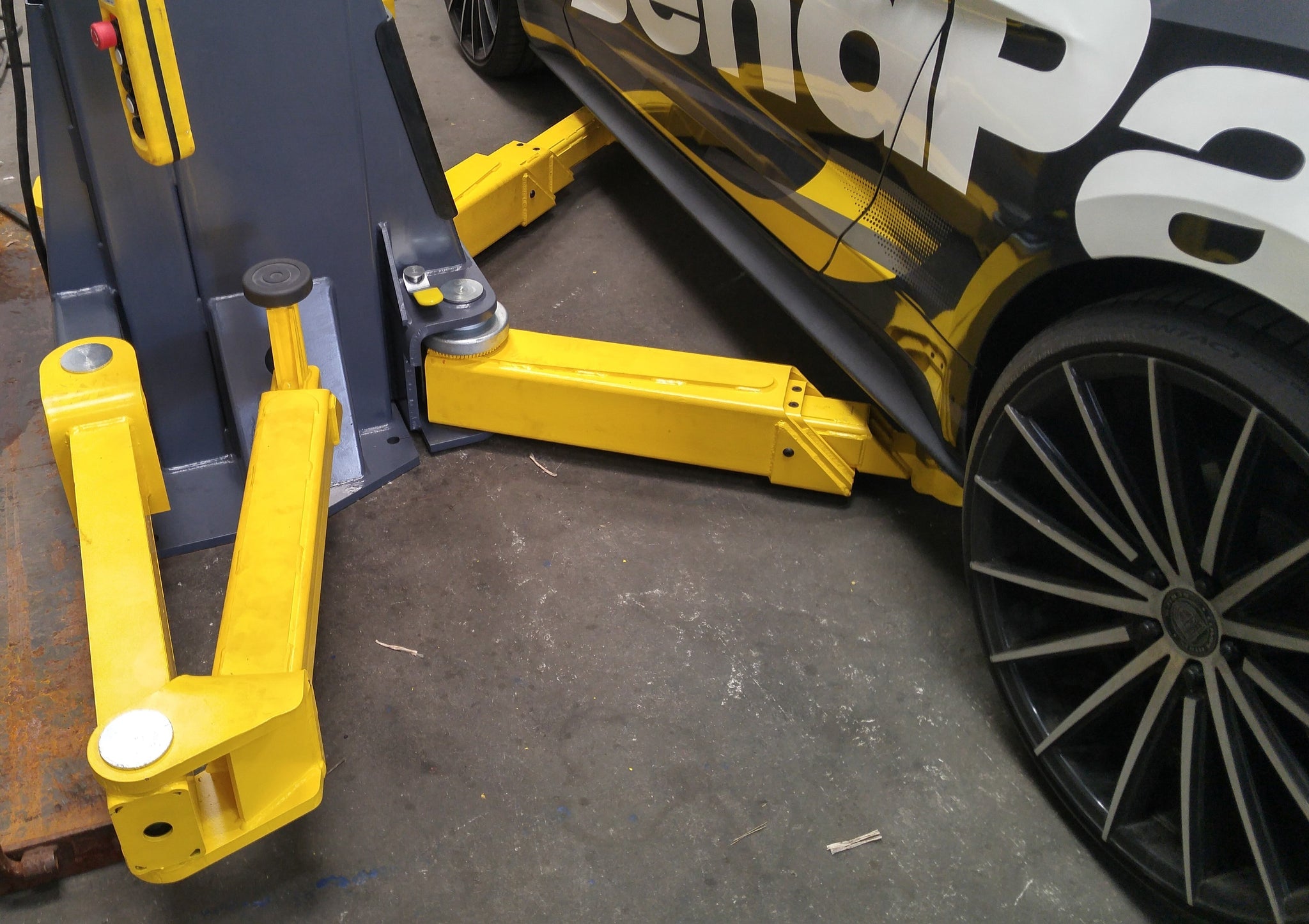

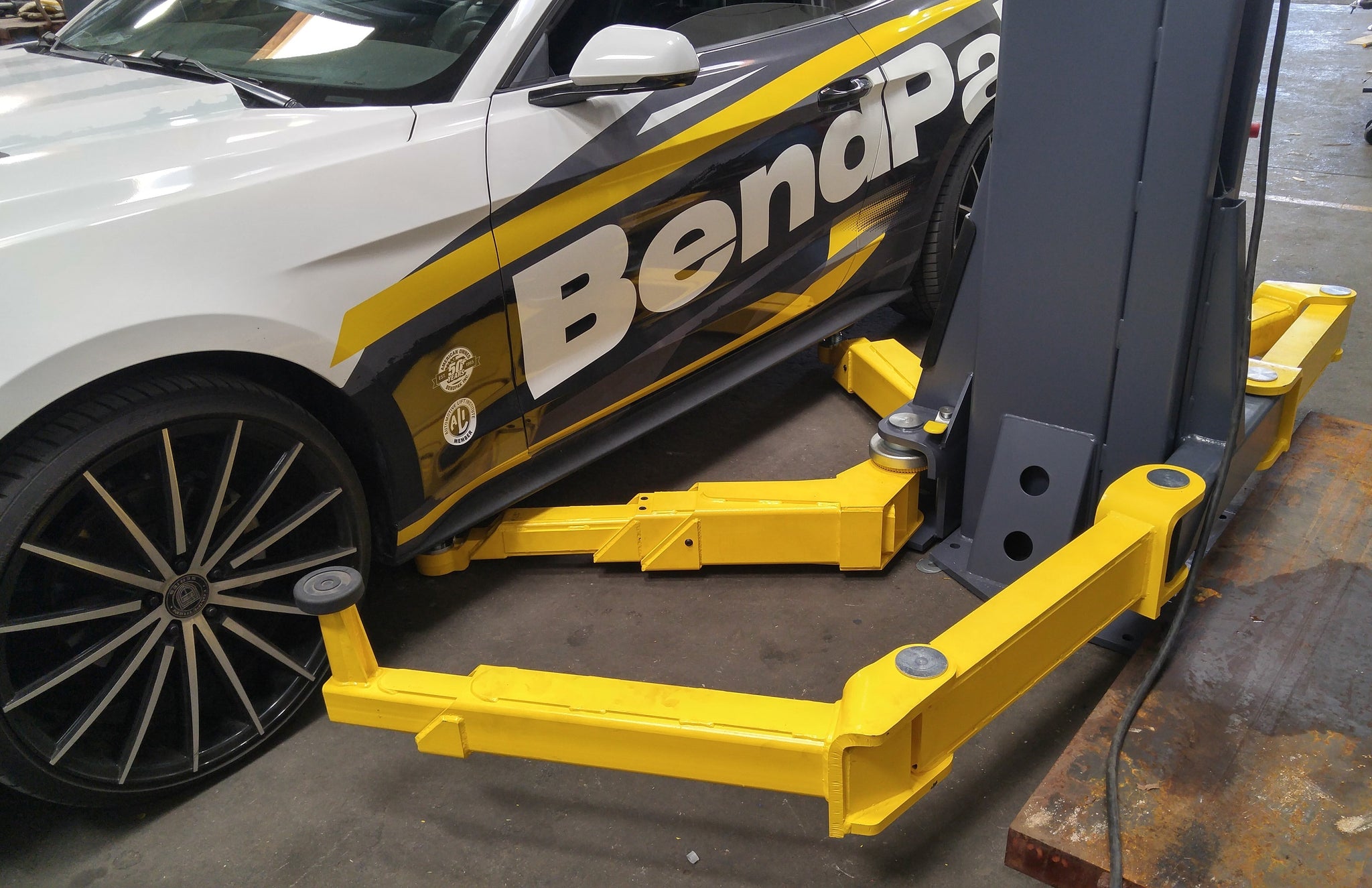

Triple-Telescoping Arms

Patent-pending arms extend farther and retract shorter than conventional designs. That added range helps reach more vehicle lifting points with fewer setup compromises.

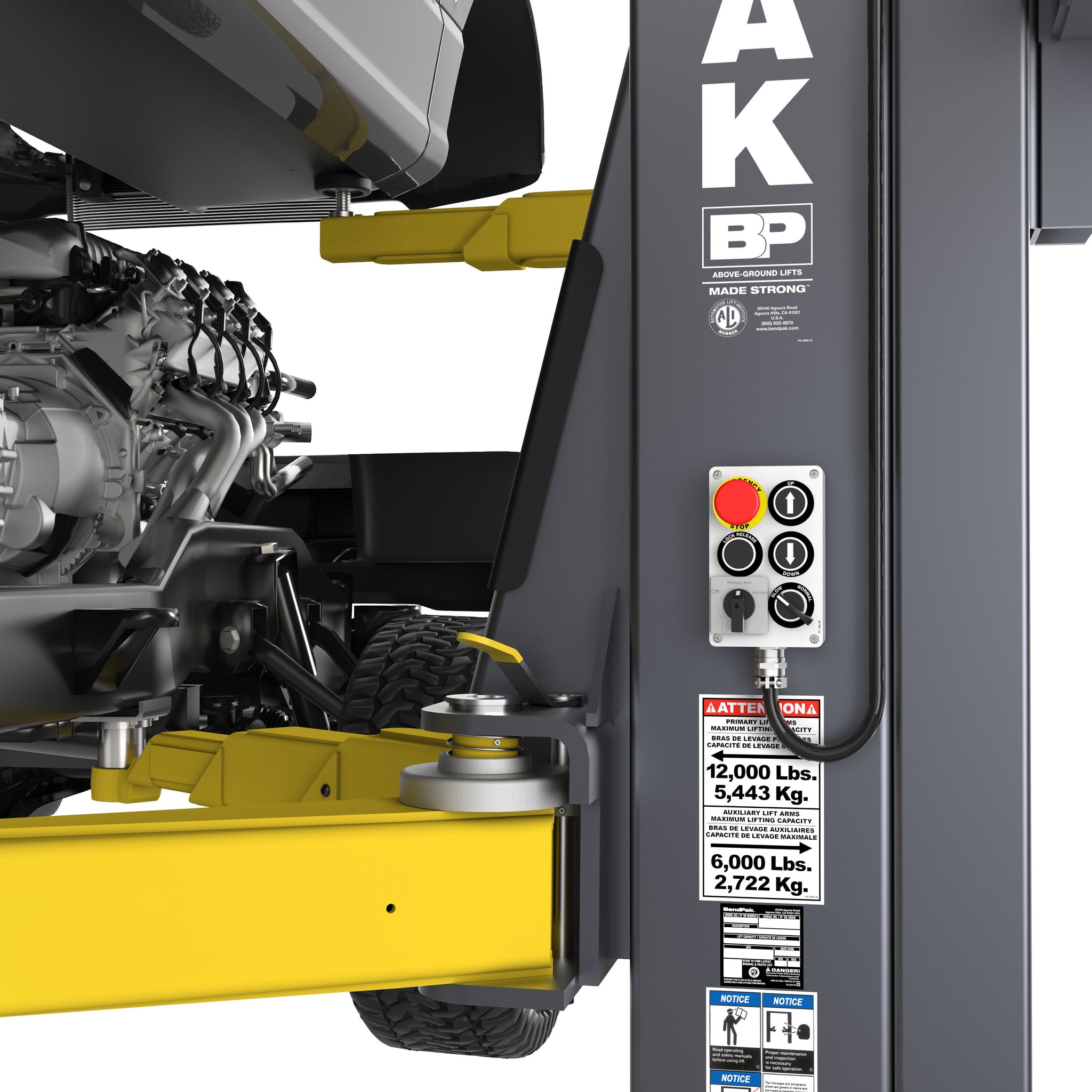

Pendant Control

A handheld pendant gives technicians precise control over lift movement and safety-lock release. It helps simplify complex service procedures that demand careful positioning.

Recommended Add-ons

Features

• 12,000-lb. primary two-post lift capacity
• 6,000-lb. auxiliary lift-assist capacity
• Integrated eight-arm service platform
• Designed for cab-off truck service
• Supports EV battery removal and installation
• Four primary arms and four auxiliary arms
• Patent-pending triple-telescoping swing arms
• Bi-Metric™ lift configuration
• Automatic Swing Arm Restraint System
• Dual direct-drive hydraulic system
• High-volume, low-pressure hydraulic performance
• Clearfloor service bay design
• Maintenance-free UHMW load bearings
• Pendant-controlled operation
• Heavy-duty industrial construction

Specifications

Manuals & Downloads

• BendPak OctaFlex 12DPS Series Two Post Lift Assist Arms 5175612 Brochure
• BendPak Limited Warranty All Products
