BendPak VMP-7580V Air Compressor - Made in USA (5179113)

Two-Stage Air Compressor Muscle for Demanding Workloads

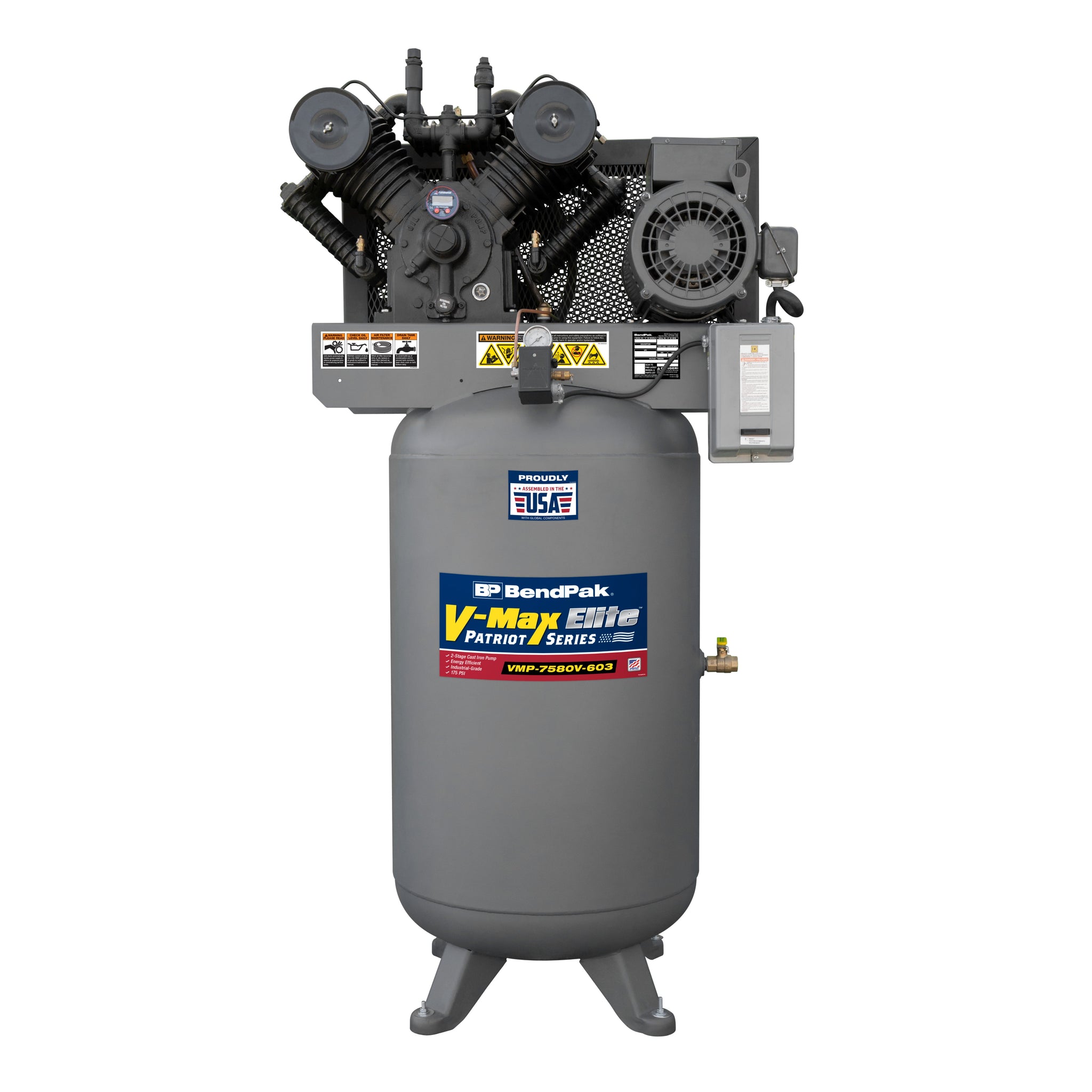

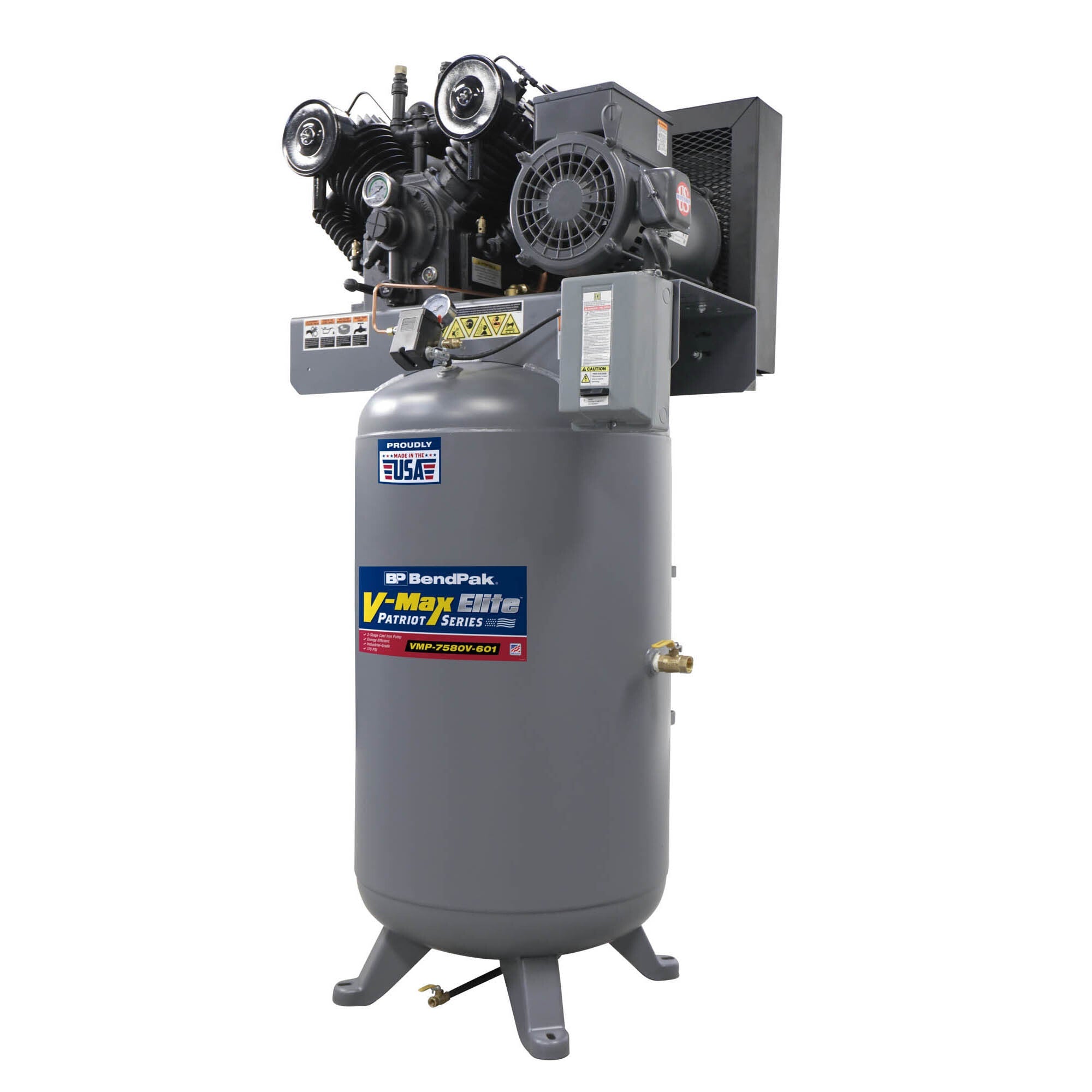

The BendPak V-Max Patriot 7580V is a two-stage lubricated reciprocating air compressor engineered for demanding professional environments. Built for automotive repair shops, body shops, fleet service centers, and industrial manufacturing facilities, the 7580V delivers the dependable compressed air performance heavy-use applications require every day.

Available in 1-phase or 3-phase configurations, this vertical air compressor gives shops the flexibility to match their power setup while maintaining the strength, efficiency, and durability expected from the V-Max Patriot lineup.

Cast-Iron V-Max Pump for Extreme-Duty Air Performance

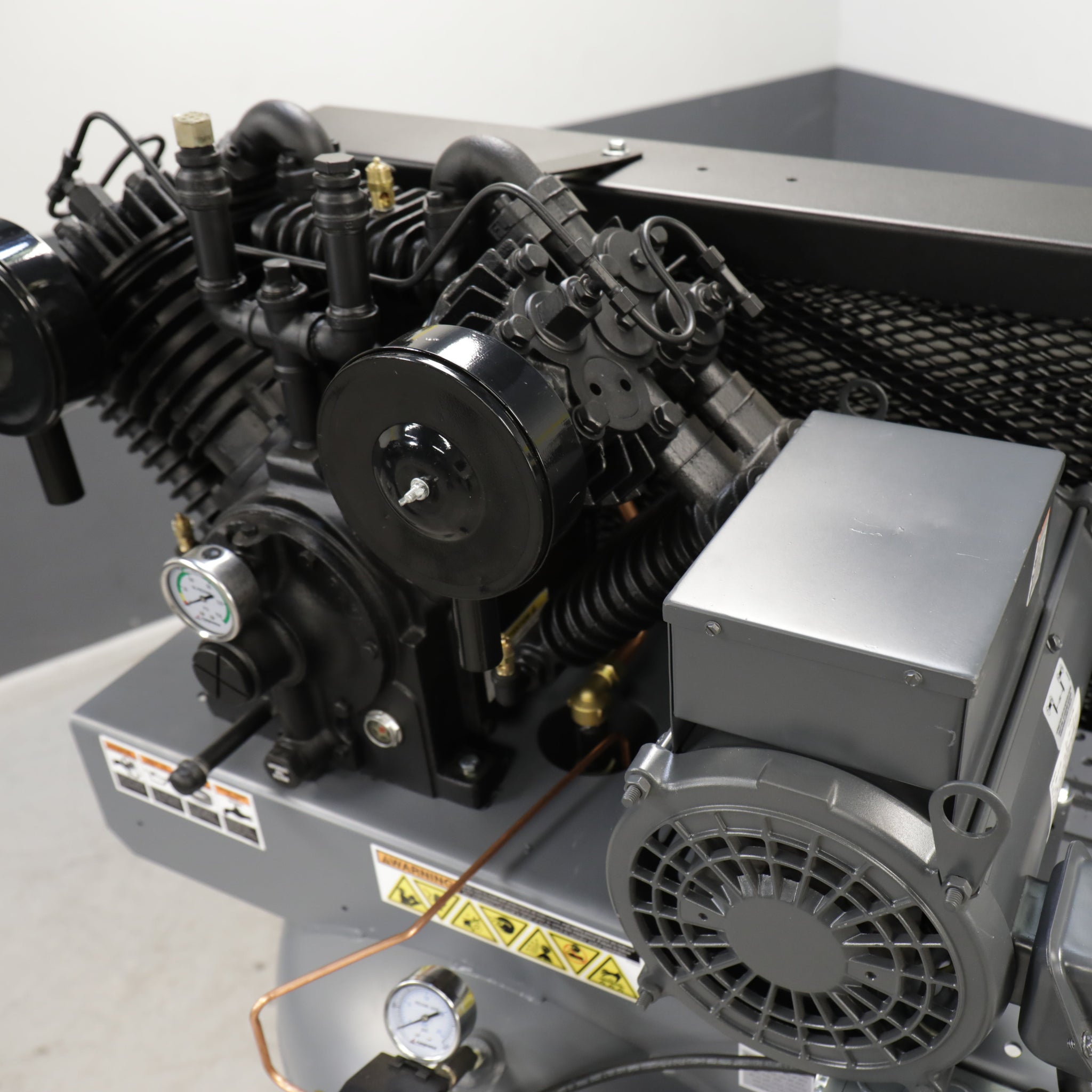

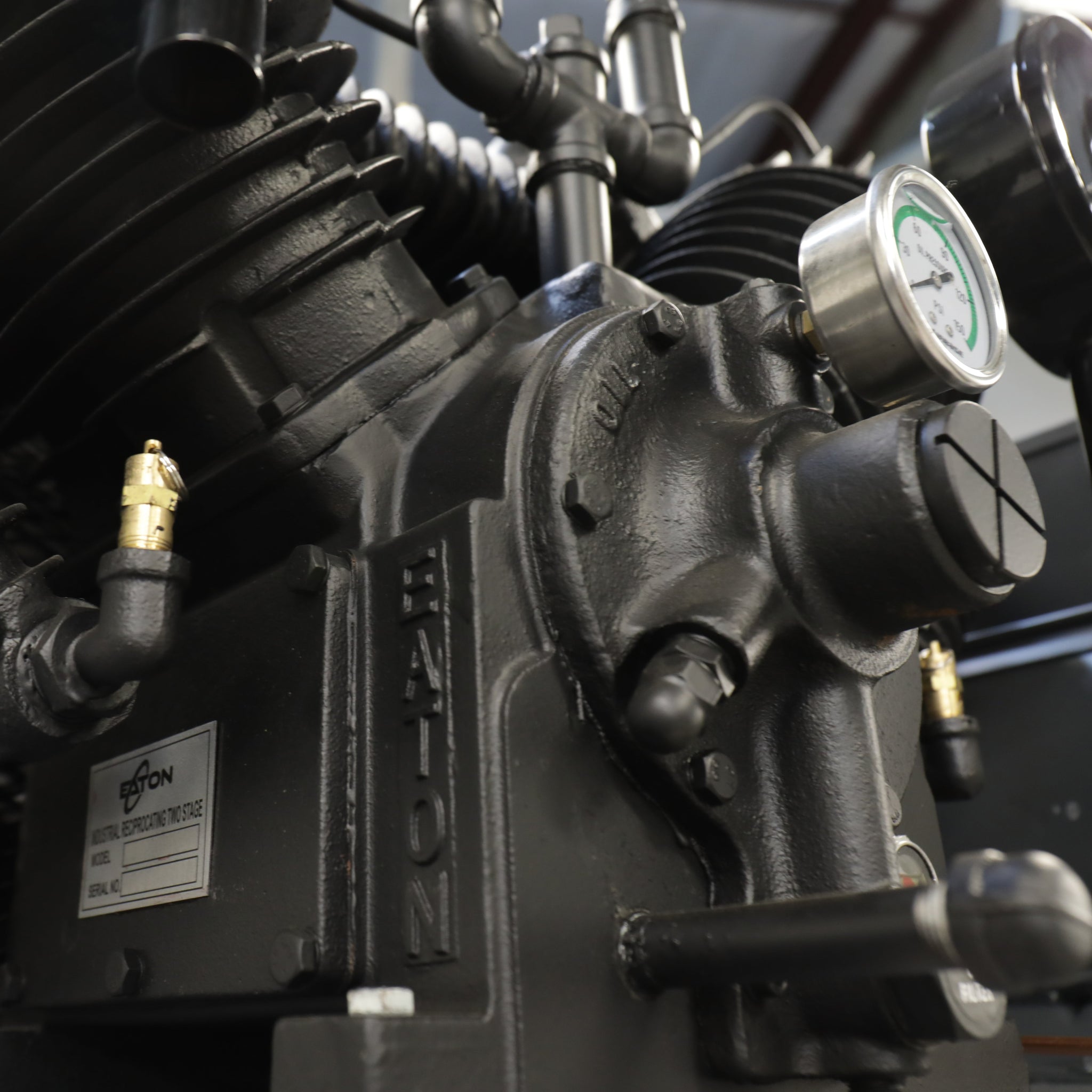

At the heart of the V-Max Patriot 7580V is BendPak’s rugged V-Max four-cylinder pump, designed for extreme duty and maximum efficiency under all load conditions. Its 100% cast-iron pump construction helps deliver long-lasting durability, consistent output, and the performance needed for tough shop and industrial workloads.

From powering pneumatic tools to supporting high-demand service operations, the 7580V is built to handle serious air system demands without flinching. This is air compressor evolution with work boots on.

Recommended Add-ons

Features

• Assembled in USA
• ASME, UL certified

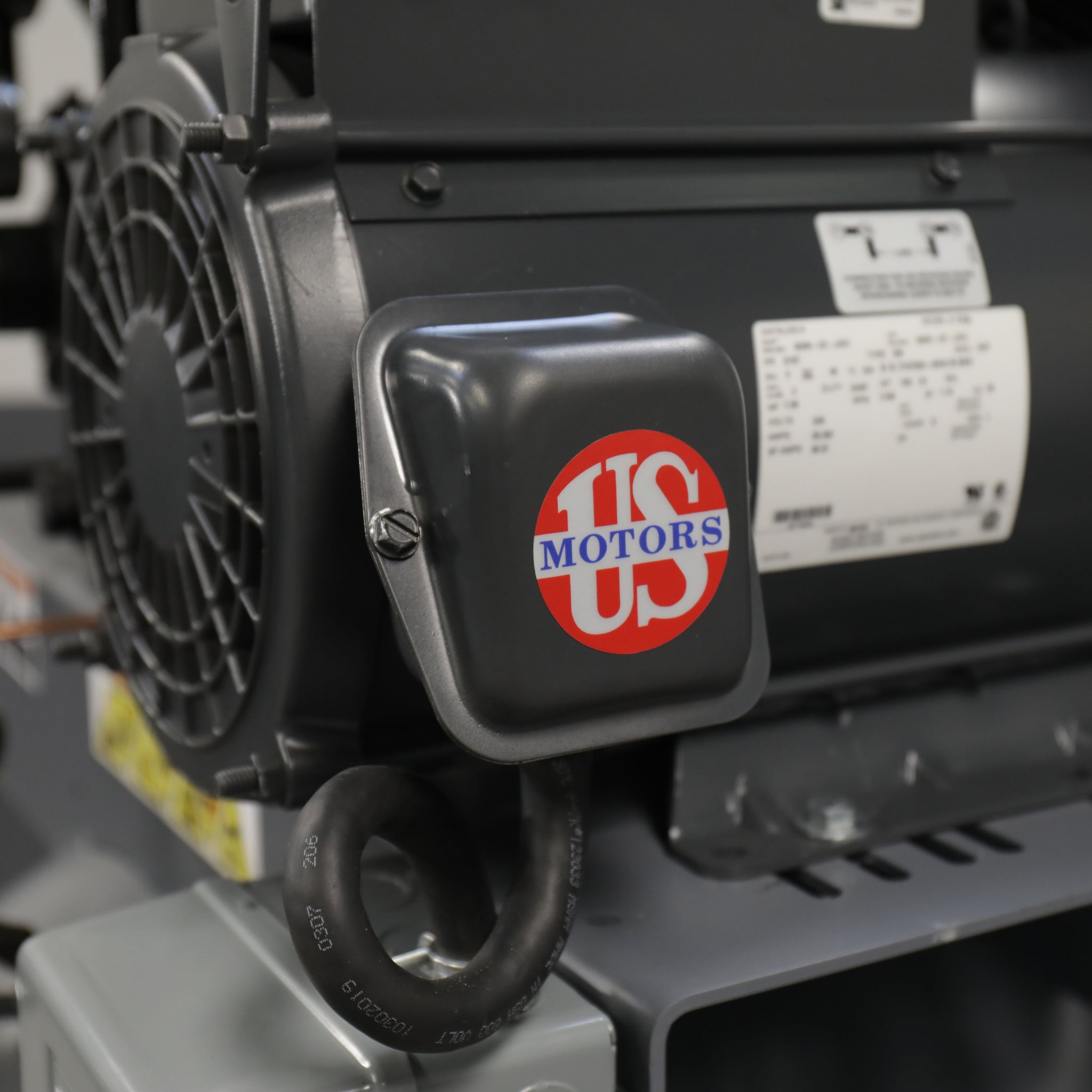

• 7.5 HP energy-efficient motor
• Extra-quiet, low-RPM pump
• Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a "V-4" finned cylinder configuration that provides 360° cooling
• Proven air-cooled design is economical, reliable and environmentally friendly
• Two compression rings and one oil control ring provide excellent oil control and high-efficiency air delivery
• Dual drive belts require less belt tension, resulting in less load on pump bearings, longer belt life and low vibration
• Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed-in sleeves
• Large surface area and cooling fins on cylinders and forced-air after-cooler provide efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
• Tapered roller main bearings provide full contact and support of the crankshaft, and needle-type piston pin bearings properly distribute bearing loads
• Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
• Magnetic starter provides thermal overload protection and minimizes start loads, providing long life and trouble‐free operation
• Balanced flywheel and counterbalanced crankshaft result in nearly vibration-free operation

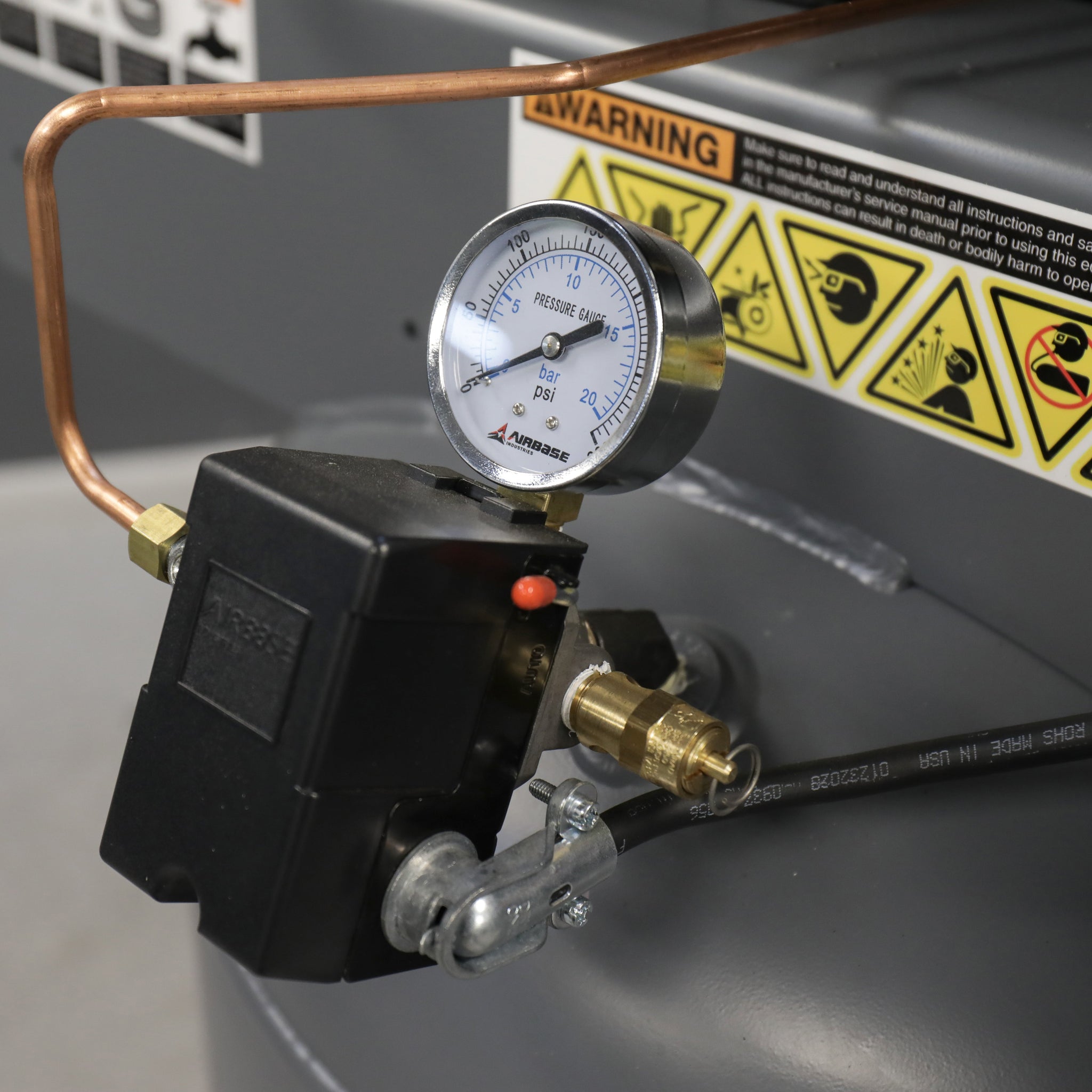

• Pressure gauge with service valve

Specifications

Manuals & Downloads

• BendPak VMP 7580V 603 7 5 HP 80 Gallon Vertical Air Compressor 5179113 Sales Sheet
• BendPak VMP Series Industrial Air Compressor Installation Operation Manual
• BendPak Limited Warranty All Products
