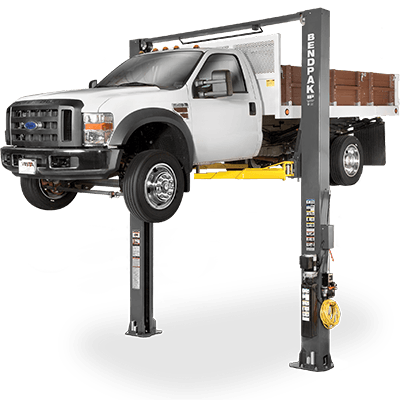

Bendpak XPR-10XLS 10,000 Capacity High Rise Symmetric Two-Post Lift

The XPR-10XLS Symmetrical Lift Offers MORE Lifting Height
With BendPak's 10,000-lb. capacity XPR-10XLS symmetrical two-post lift in your shop, most cars, trucks and SUVs will be raised quickly and effortlessly. Fully ALI Certified, this model features an extra-high lifting carriage. The taller carriage offers an extra 6" of lift, which means vehicles can be raised a full 75" (about 80" with adapters). Taller mechanics will enjoy this feature, since it means they no longer have to bend, stoop, strain and even injure themselves while they spend hour after hour working underneath lifted vehicles.

• Our tallest lift carriages ever
• Direct-Drive technology
• Two-Stage telescoping screw pad assembly kit
• Triple-telescoping front arms and two-stage rear arms
• Choose Low-Pro™ arms
• Choose extended-height
• Choose low-profile AND extended-height

Features

• Lift arms shown with optional foot guards
• 10,000‐lb. lifting capacity
• Expandable top beam accommodates wide or narrow configuration

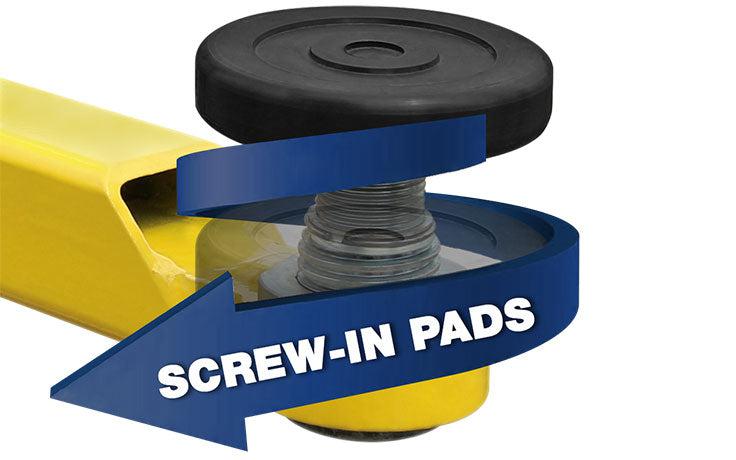

• Double‐telescoping screw pads offer increased versatility
• Padded overhead safety shutoff bar
• Single‐piece columns
• Dual hydraulic direct‐drive cylinders
• Automatic arm restraints
• Lowered arm tube supports
• Maintenance-free UHMW load bearings
• Oversized 59" tall carriage for superior strength and durability
• Electric / hydraulic power system
• Large, 17" x 19" A36 steel base plate
• Self‐lubricating dura‐glide UHMW polyethylene bearing system
• Single‐point safety release
• Safety locks in each column spaced every 3"
• Automatic overhead shutoff
• Plated arm restraints and arm pins for rust prevention
• Heavy‐duty 1/2" aircraft‐quality equalizer cables
• Oversized cable sheave diameter reduces cable fatigue
• 4‐piece 63 mm stackable adapter set comes standard
• ALI ​Certified

Capacity
Lifting Capacity* 10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle 5,000 lbs. (2,268 kg)

Rise
A - Rise: 75" (1,905 mm)
B - Rise + Pad Only: 79.75" (2,026 mm)
C - Rise + Pad + 63 mm Adapter: 82.25" (2,089 mm)
D - Min. Height + Pad: 4.75" (121 mm)
Time to Full Rise: 50 seconds

Outside Dimensions
E - Height Overall: 157" (3,988 mm)
F - Width Overall: 132" (3,353 mm) or 145" (3,683 mm)
G - Outside Columns: 126.75" (3,219 mm) or 139.75" (3,550 mm)

Inside Dimensions
H - Inside Columns: 105.5" (2,680 mm) or 118.5" (3,010 mm)
I - Drive-Thru Clearance: 93" (2,362 mm) or 106" (2,692 mm)
J - Floor To Overhead Switch: 147" (3,734 mm)

Arms & Pads
K - Front Arm Reach: (MIN) 25.5" (648 mm)
K - Front Arm Reach: (MAX) 49.5" (1,257 mm)
L - Rear Arm Reach: (MIN) 32.25" (819 mm)
L - Rear Arm Reach: (MAX) 52.5" (1,334 mm)
Screw Pad Adjustment: 2" (51 mm)
Max Load Per Arm 2,500 lbs. (1,134 kg)

Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

Shipping
Weight: 1,778-lbs. (806.5 kg)
Dimensions: 162'' x 24'' x 32'' (4,114 mm x 609 mm x 812 mm)
