Features Overview:
-

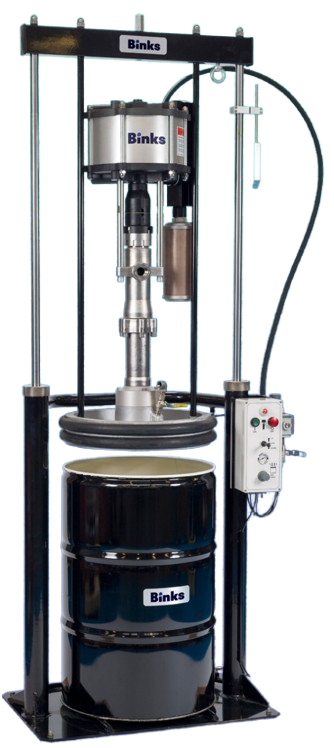

Compatibility: Broad options for pumps, follower plates, and pneumatic rams to suit Ram Unit needs across 20, 30, 60, and 205-liter container sizes.
-
Material Efficiency: Equipped with standard dual-seal follower plates to minimize fluid waste.
-
Pneumatic Ram Options: The 205L configuration offers an 80mm diameter ram (DR205) for high-pressure applications and a 160mm diameter ram (DRX205) for heavy-duty setups.
-
Pumping System: Utilizes Binks MX high-pressure pump units for extended service life and smooth operation.
-
Fluid Section: Stainless steel build featuring either a ball-check or chop-check inlet configuration.
-
Pressure Ratios: Supports ratios from 15:1 to 60:1 on ball-check models, and 5:1 to 68:1 on chop-check models.
-
Air Motor: Powered by anti-icing Binks motor technology for uninterrupted operation.
-
Warranty: Covered by a 5-year manufacturer warranty against defect.
