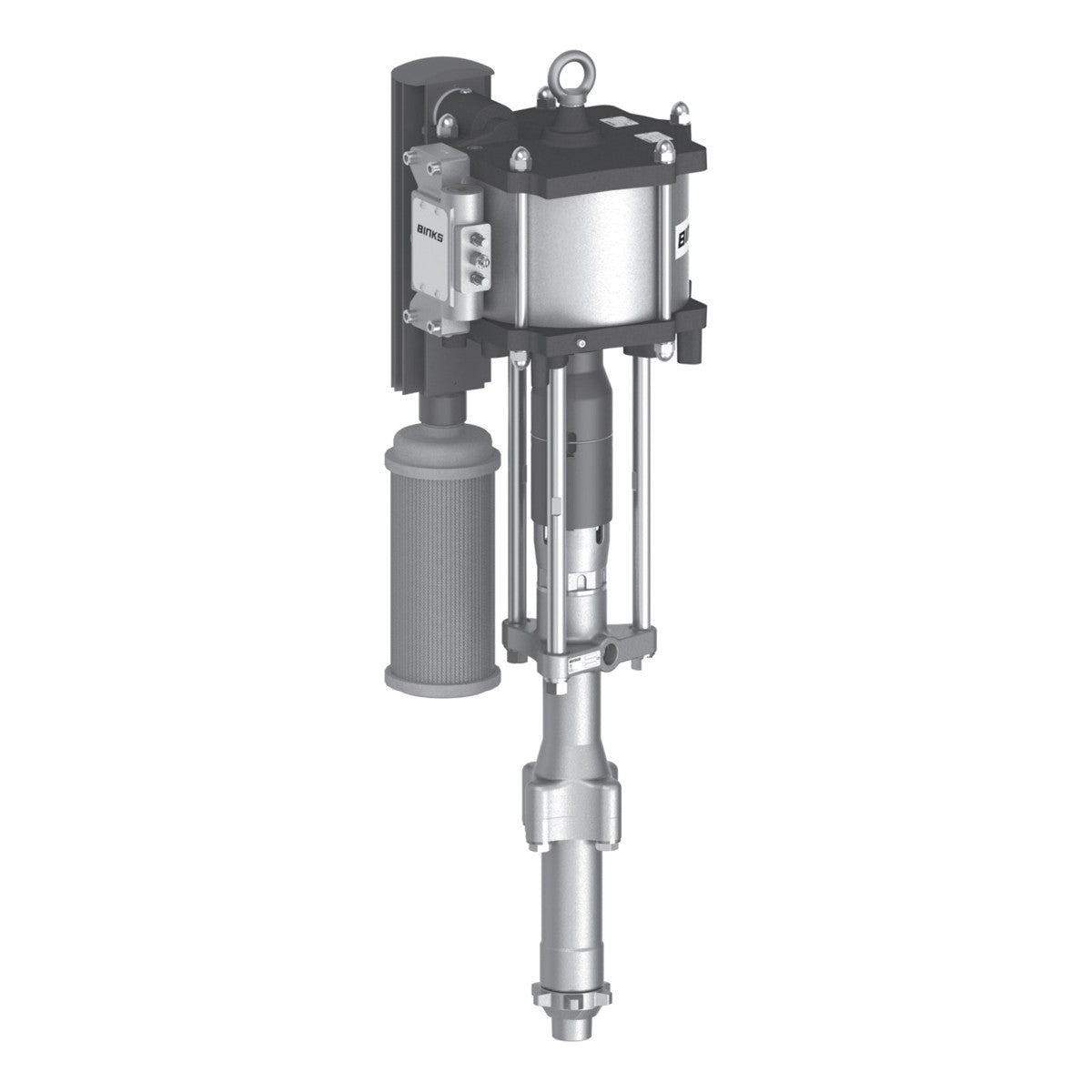

The Binks MX3070 is a 70:1 high-pressure air-driven piston pump for protective coatings and heavy-bodied materials, delivering 3 gpm theoretical output at up to 7,105 psi fluid pressure. Ceramic-coated rods, spring-loaded packings and the Binks low-ice air valve reduce downtime, and MX pumps carry a 5-year Binks limited warranty.
What's included
- Air motor and fluid section (bare pump — no controls, mount, hoses or gun)
Specifications
| Model / part number | MX3070PU-CAK |
| Ratio | 70:1 |
| Maximum fluid pressure | 7,105 psi |
| Maximum air inlet pressure | 101.5 psi |
| Output @ 60 cycles/min | 3 gpm |
| Displacement per cycle | 190 cc [6.4 oz] |
| Packings | PTFE/UHMWPE chevron packings |
| Air inlet | 3/4" BSPP/NPS(f) |
| Fluid inlet | 1-1/2" NPT(m) |
| Fluid outlet | 3/4" NPT(f) |
| Bare pump weight | 118 lb |
| Service manual | Binks 77-2960 |
Not sure which ratio, packing or setup fits your coating? Call 888-714-1410 or email sales and we'll help you size it before you order.
