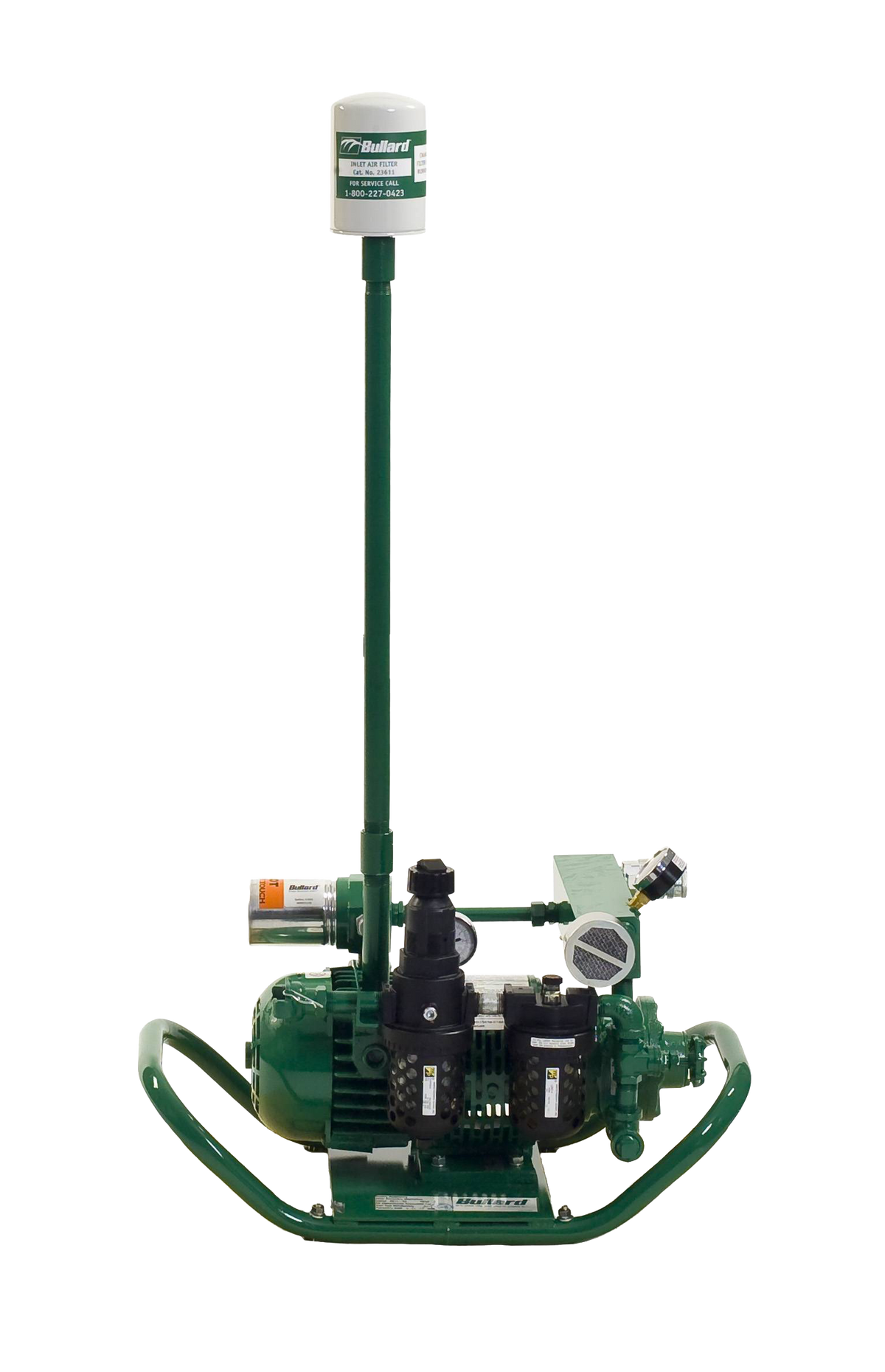

Oil-less, air-driven Free-Air pump with 3 quick-disconnect couplers (1/4-inch industrial interchange) and 30 CFM airflow. It supplies breathable air to respirator wearers up to 300 feet from the pump.
Specifications
| Bullard part number | ADP3CA |
| Product line | Free-Air Pumps |
| Sold as | Each |
| Series | Free-Air ADP |
| Flow (CFM) | 30 |
| Outlets | 3 |
| Connection | 1/4-inch Industrial Interchange QD |
| Air source | Air driven |
About ADP20 Air Driven Pump
Bullard Free-Air® pumps offer a low-cost means of supplying clean, breathable air to respirator wearers working in contaminated environments up to 300 feet away from the pump. Bullard ADP Free-Air Pumps are oil-less, so they do not produce carbon monoxide, oil vapor, or oil mist. Ideal for both general purpose and hazardous duty use.
- Air-Powered Efficiency - Air pressure (psig), going into the Air Motor, determines horsepower of the air motor which directly affects output air pressure and output air volume coming from the compressor pump.
- Multi-User Capability - These pumps have the capacity to supply air to up to two respirator hoods or three Spectrum full-face mask respirators. This multi-user feature optimizes productivity and safety in environments with multiple workers requiring respiratory protection.
- Oil-Less for Simplicity - The Air Driven Pump’s oil-less design does not produce carbon monoxide or require temperature alarms, and airline filters. This simplifies safety protocols and ensures a streamlined and efficient air supply process.
- Maintenance Simplicity - With no belts or pistons to maintain or tighten and no calibration required, these pumps are hassle-free and cost-effective. They provide a straightforward solution for maintaining an uninterrupted supply of ambient air.
- Versatile - Best choice for users working in locations without an electrical power source (but compressed air is available).
Compatible with CC20, GR50, RT, GVX, Spectrum, 88VX
Manuals & documents
- ADP20 User Manual
- ADP3CA User Manual
- Service Kit for ADP Series User Manual
- ADP20 Tech Specs
- ADP20 Sales Sheet
- ADP20 Air Flow Diagram
Not sure which part fits your Bullard system? Call 888-714-1410 or email sales@pittsburghsprayequip.com and we will match it to your model.
