Bullard CAB100HA SAR Clean Air Box 100CFM 8 Outlet Industrial Interchange 10PPM

Bullard CAB100HA SAR Clean Air Box 100CFM 8 Outlet Industrial Interchange 10PPM

Regular price
$3,759.99
Sale price
$3,759.99
Quantity must be 1 or more

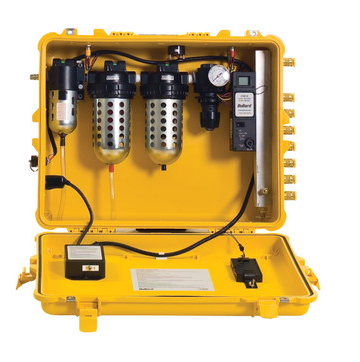

Bullard CAB100HA Clean Air Box provides 3 stage air filtration & CO (carbon monoxide) monitoring to help satisfy OSHA Grade D Breathing Air requirements.

Features

  • Durable construction withstands harsh working environments
  • Polycarbonate Pelican Case
  • Auto condensate drains will extend the filter element lifespan
  • CO Monitor
    • Automatic calibration is approx. 90 seconds with no tools required
    • High-intensity 90dB alarm, remote capable w/ strobe
    • Self contained
    • Over 70 hrs operation time with 8 AA size batteries
    • 110 VAC power cord incl.
    • Visual display w/ Internal LCD & External LEDs



Specifications

  • Filtration Capacity - 100cfm (4248lpm) at 110psi (7.5bar)
  • Filter Efficiencies
    • 1st Stage - Filters to 5 microns, 95 percent of bulk liquids, Auto drain, Filter Change Indicator
    • 2nd Stage - Filters to .01 microns, 99.9998 percent efficient, Auto drain, Filter Change Indicator
    • 3rd Stage - Oil vapor removal, odor & taste removal, Max. remaining oil content of .003 ppm / wt., 99.9998% efficient, Filter Change Indicator
  • Filter Housing Inlet - Polycarbonate bowls, 1/2 inch (13 mm) Industrial Interchange (Hansen Compatible) male plug
  • Outlets - 8 Industrial Interchange (Hansen Compatible)
  • Maximum Inlet Pressure - 150 psi (10.3bar)
  • Maximum Outlet Pressure - 125 psi (8.6 bar)
  • Relief Valve - 125 psi (8.6bar), ASME preset
  • Pressure Regulator - Adjustable, locking regulator w/ 0 to 160psi outlet gauge
  • Monitor - Flow thru In line continuous operation
  • Voltage - 115 VAC 10 foot cord included, or 8 AA size batteries, monitor will switch to DC automatically w/ AC power fail
  • Display - Digital LCD, Accurate to +/- 1 percent full scale
  • Operation Lights
    • Ext. green light with normal AC operation
    • Ext. red light for high CO
    • Ext. amber light, steady for battery power currently in use
    • Ext. amber light, flashing for low battery w/ flashing chirp
  • Audible Alarm - High intensity at 90dB
  • Response - 90 percent full scale in 10sec.
  • Sensor - Electrochemical, CO specific
  • Output Signal - Remote alarm jack w/ DC out & cover cap
  • Calibration - Auto (no tools needed), Complete in 90 sec., Recommended monthly
  • Warranty - 2 yrs on sensor & monitor

;
