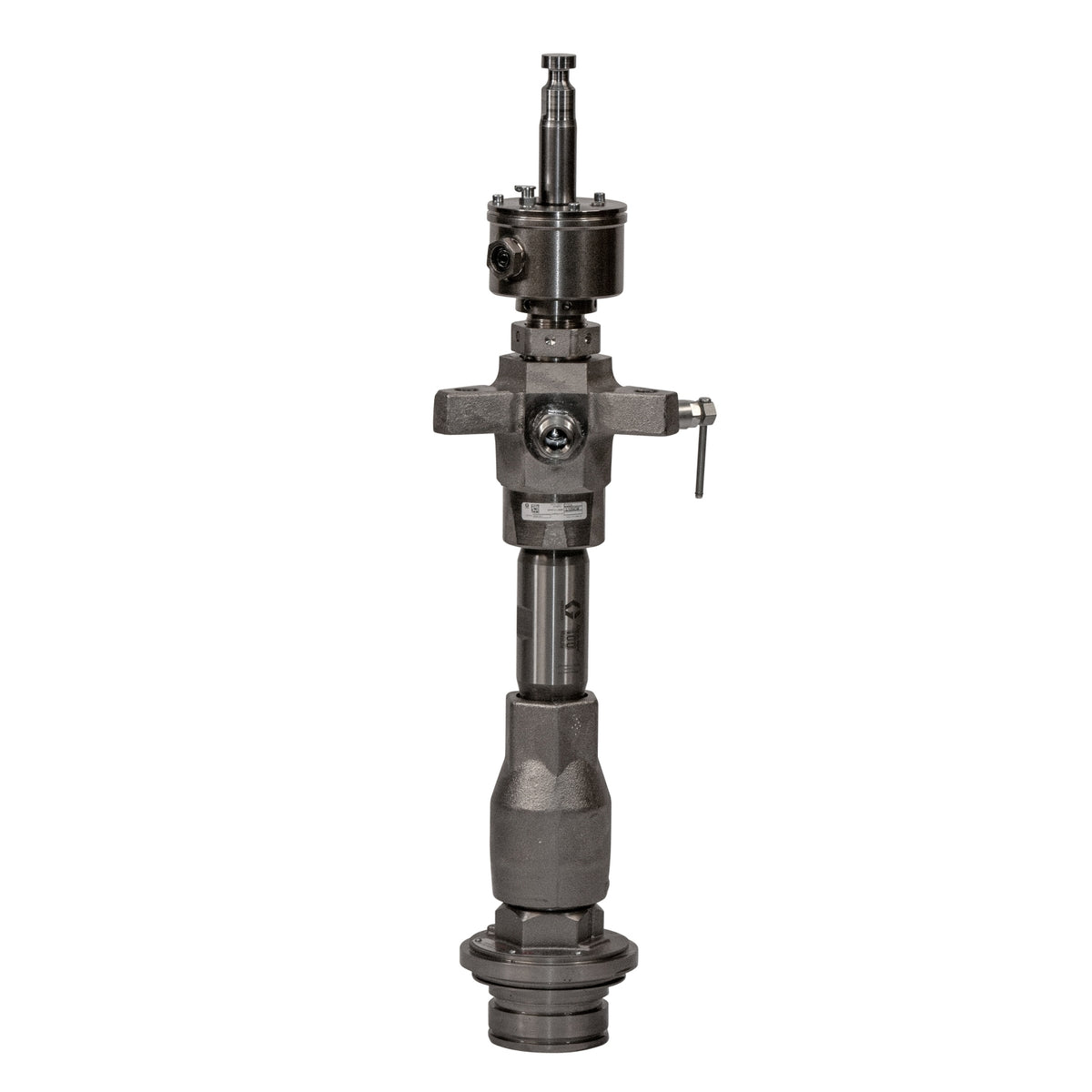

With priming piston, rod and cylinder.
Feel free to call or chat with us for recommendations.
📦
Ships in 2-3 weeks, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
UPC Product: 00633955239746
Family Code: FAMQFP
Unit of Measure: EA
Height:
42.672 CM
| 16.8 IN
Length:
36 IN
| 91.44 CM
Width:
15.6 IN
| 39.624 CM
Volume:
5.46 FT3
| .155 M3
Chargeable Weight:
56.837 LBS
| 25.769 KG
Technical Specifications
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
|---|---|
| Maximum Pump Speed (CPM) | 60 |
| Weight (lb) | 35 |
| Wetted Parts | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Leather, Ductile Iron, Carbon Steel, Electroless Nickel Plating, Zinc Plating, Chrome Plating, MaxLife Plating, High Molecular Weight Polyethylene, Nitrile Rubber, Polyurethane |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| For Use With | Check-Mate 泵套件, Check-Mate ポンプパッケージ, Check-Mate Pump Packages, Check-Mate Pump Packages, Ensembles de pompes Check-Mate, Paquetes de bomba Check-Mate, Check-Mate 펌프 패키지, Check-Mate Pumpensysteme, Pakketten voor Check-Mate-pompen, Unità pompa Check-Mate |
| Stroke Length (in) | 4.75 |
| Type | Pump Lower |
| Ambient/Warm Melt/Hot Melt | 常温型, アンビエント式, Ambient, Ambient, Ambiant, Ambiente, 상온식, Umgebung, Ambient, Ambiente |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Output (cm³) | 100 |
| Maximum Working Pressure (psi) | 6300 |
| Model | Check-Mate |
