Clemco 32672 Series 36x36 Suction Blast Cabinet, 900 CFM LPDC Dust Collector, Steel Media, 230V 3-Phase, IQ PLC Controls

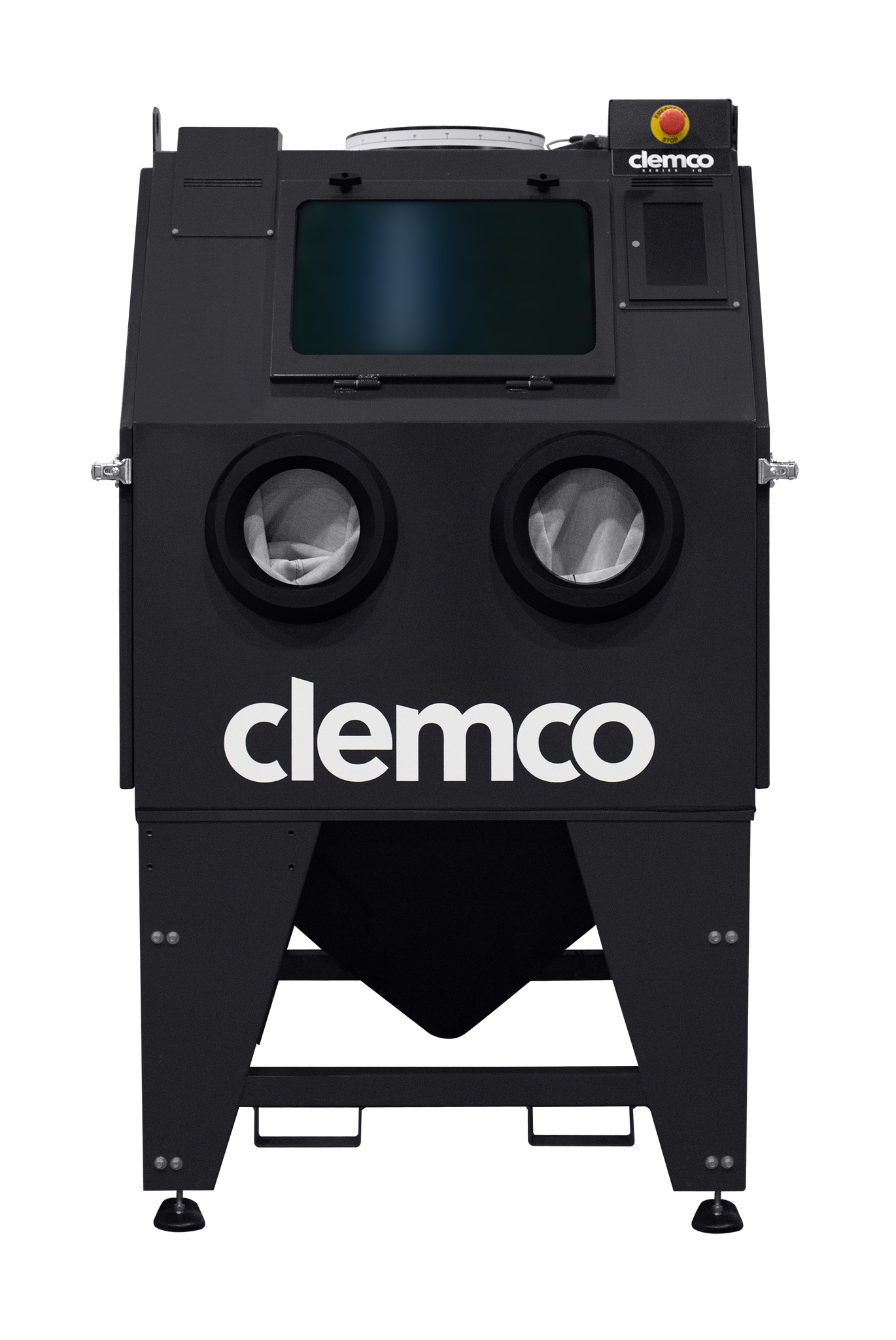

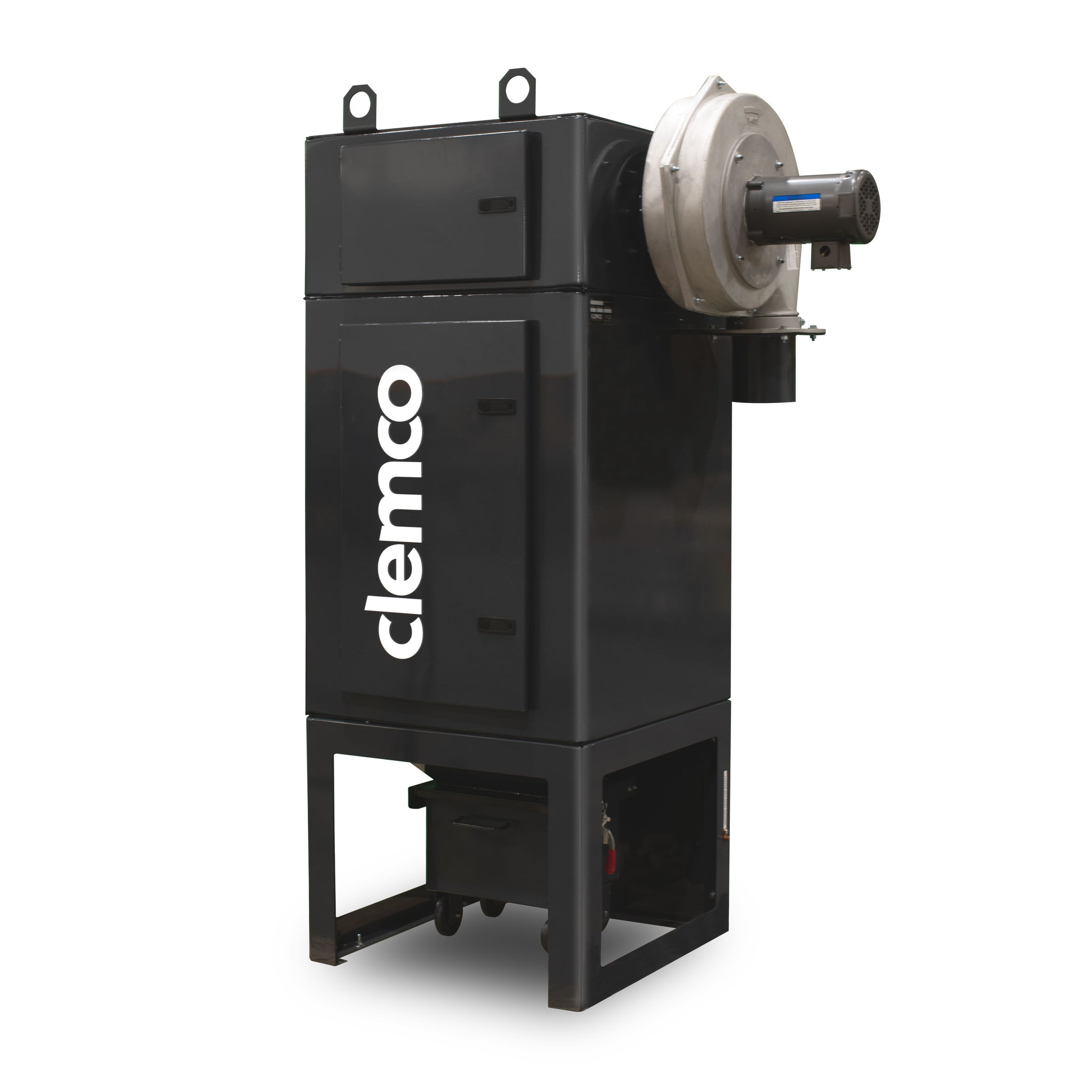

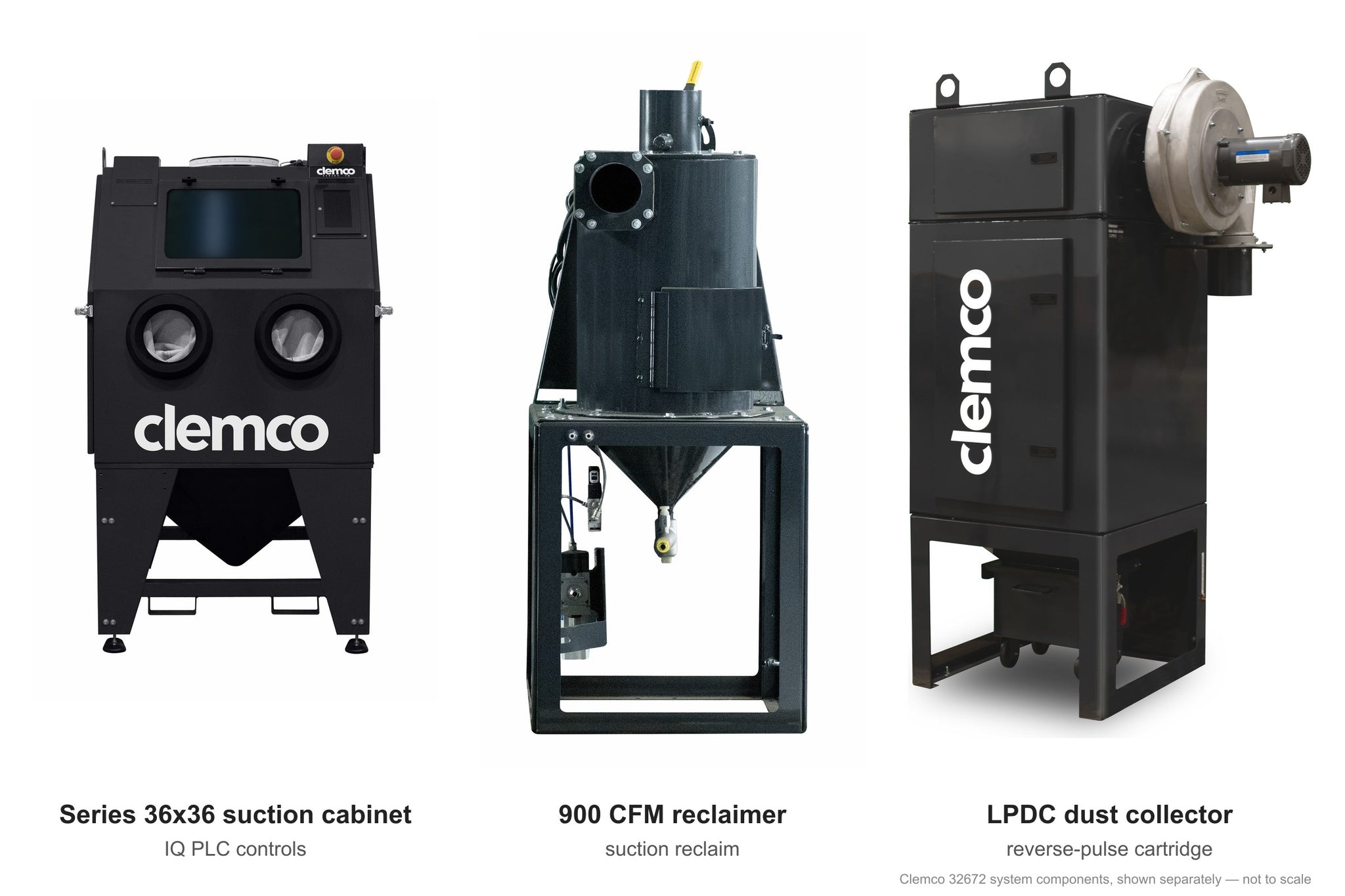

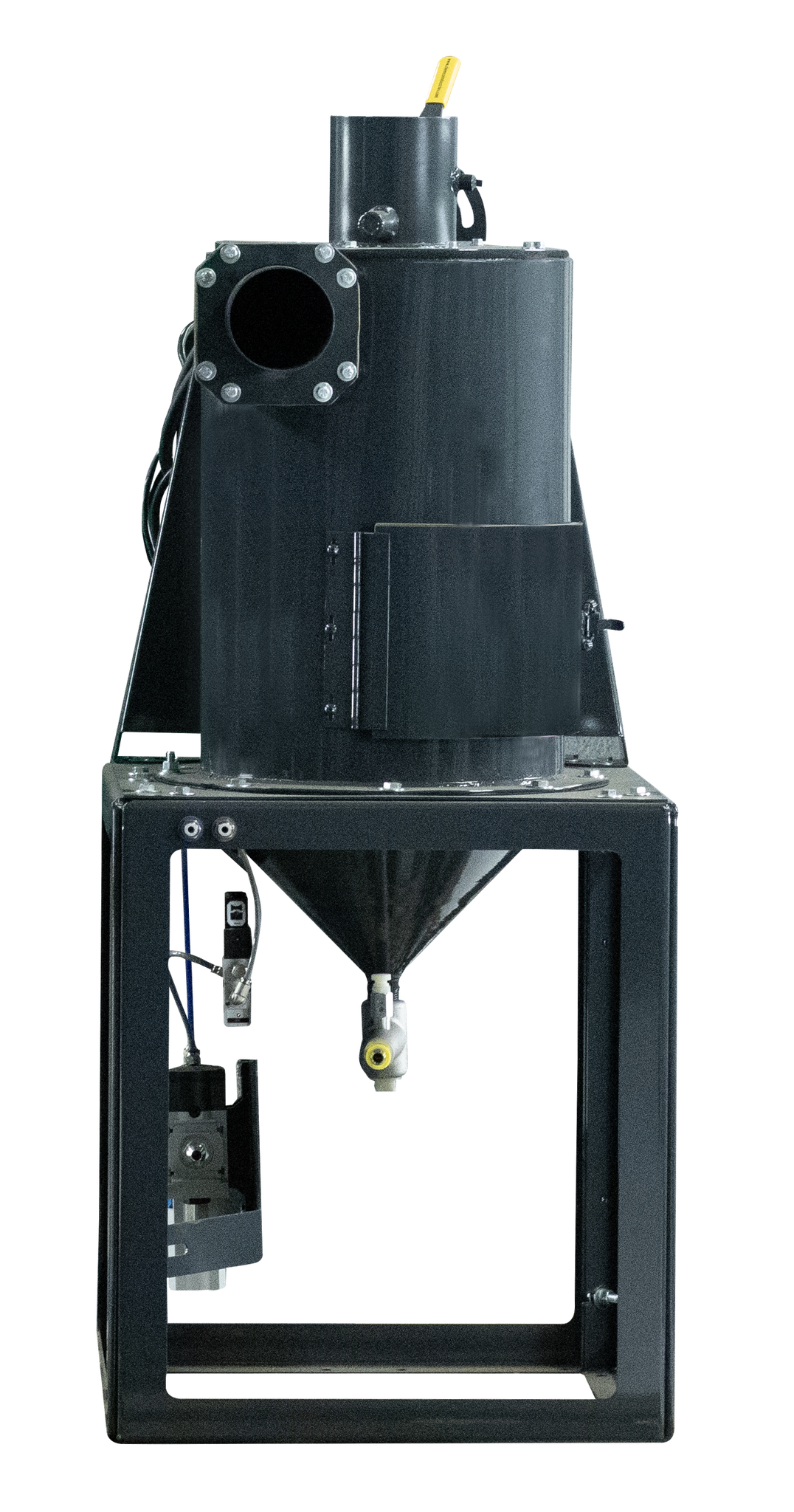

Clemco Industrial Series 36x36 suction blast cabinet system (Clemco 32672), configured with a 900 CFM suction reclaimer and LPDC reverse-pulse dust collector, set up for steel media on 230V 3-Phase power with IQ PLC controls.

About this configuration

• Equivalent in size to a BNP 65 & Aerolyte 3636. 36" wide x 36" deep work chamber offering a larger, more square workspace. A versatile mid-size option suitable for a wide range of part sizes and production volumes.
• Approx. Air Consumption: 33 CFM @ 80 PSI, #5 Nozzle Uses a siphon gun that draws media into the air stream via vacuum, offering lower media velocity and gentler action. More economical upfront and easier to operate, ideal for light to medium-duty cleaning and finishing.
• Steel and stainless steel grit, shot, and cut wire are highly durable and recyclable, making them the most economical choice for high-volume operations. Best for aggressive cleaning, descaling, and profiling on ferrous metal parts.
• Three-phase industrial power for higher efficiency and motor performance. Required for larger dust collectors and recommended for production environments with heavy daily use.
• In addition to features included in Standard Series cabinets, Every Series IQ Cabinet comes with: -Hydraulic Lift Legs -Timed Reverse Pulse -Digitally controlled, lockable blast pressure -4” Touchscreen with start/stop button and e-stop

Industrial Cabinet Series features

• Operator-friendly features and commonality of parts for easier service
• Harnessed wiring for faster install and setup
• Improved arm ports (ergonomics) standard
• Standard electric foot pedal and safety interlocks
• Standard manually adjustable lift legs; hydraulic lift legs available as an upgrade on all cabinets
• Dust collector options for every size and budget

Accessories for this cabinet

• Clemco 32562 ALOX kit 3636S, factory installed
• Clemco 32507 Curtain set, 3636 cabinet (Clemco recommends with Steel media)
• Clemco 24744 Mat, floor, anti-fatigue, rubber, 2'x3'
• Clemco 12318 Gun mount, BNP, adj (suction only)
• Clemco 22502 Filter element, HEPA 24"x24"x12"
• Clemco 23626 Filter, HEPA asmbly, 900 cfm
• Clemco 12528 Manometer kit
• Clemco 23151 Liner set, rbr, recl 900 cfm (Clemco recommends with Steel media)
• Clemco 23147 Screen, recl, #8 mesh w/magnets
• Clemco 23146 Screen, recl, #4.5 mesh w/magnets
• Clemco 14138 Turntable, 30" dia, 500#
• Clemco 12411 Turntable, 20" dia, w/brng, 500#
• Clemco 12412 Turntable, 20" dia, w/o brng, 25#
• Clemco 32528 3636 track assembly with 20" 500 lb work car

Choose one of each: 23147 or 23146; 32562 or 32563; 32564 or 32565; 14130 or 28901; 28894 or 28902; 32566 or 33174; 13410 or 23625; 13410 or 23626.

Recommended service spares

• Clemco 12301 Gun asmbly, #4 BNP
• Clemco 12302 Gun asmbly, #5 BNP
• Clemco 12303 Gun asmbly, #6 BNP
• Clemco 12304 Gun asmbly, #7 BNP
• Clemco 12305 Gun asmbly, #8 BNP
• Clemco 11935 Nozzle, #5 boron carbide
• Clemco 11936 Nozzle, #6 boron carbide
• Clemco 11937 Nozzle, #7 boron carbide
• Clemco 12894 Nozzle, #8 boron carbide
• Clemco 11931 Nozzle, #6 ceramic, blue tip
• Clemco 11932 Nozzle, #7 ceramic, red tip
• Clemco 11930 Nozzle, #5 ceramic, green tip
• Clemco 13118 Nozzle, #5 tungsten carbide
• Clemco 12212 Window glass, 12-1/2" x 19-1/2"
• Clemco 06190 Lenses, for cab window 12212, 5-pk
• Clemco 31862 Filter, 13x36, 900cfm, MERV 15

Clemco documentation

• Clemco 32541OSG
• Clemco 32559CM
• Clemco 32806TSM
• Clemco 32560CM
• Clemco OM32011
